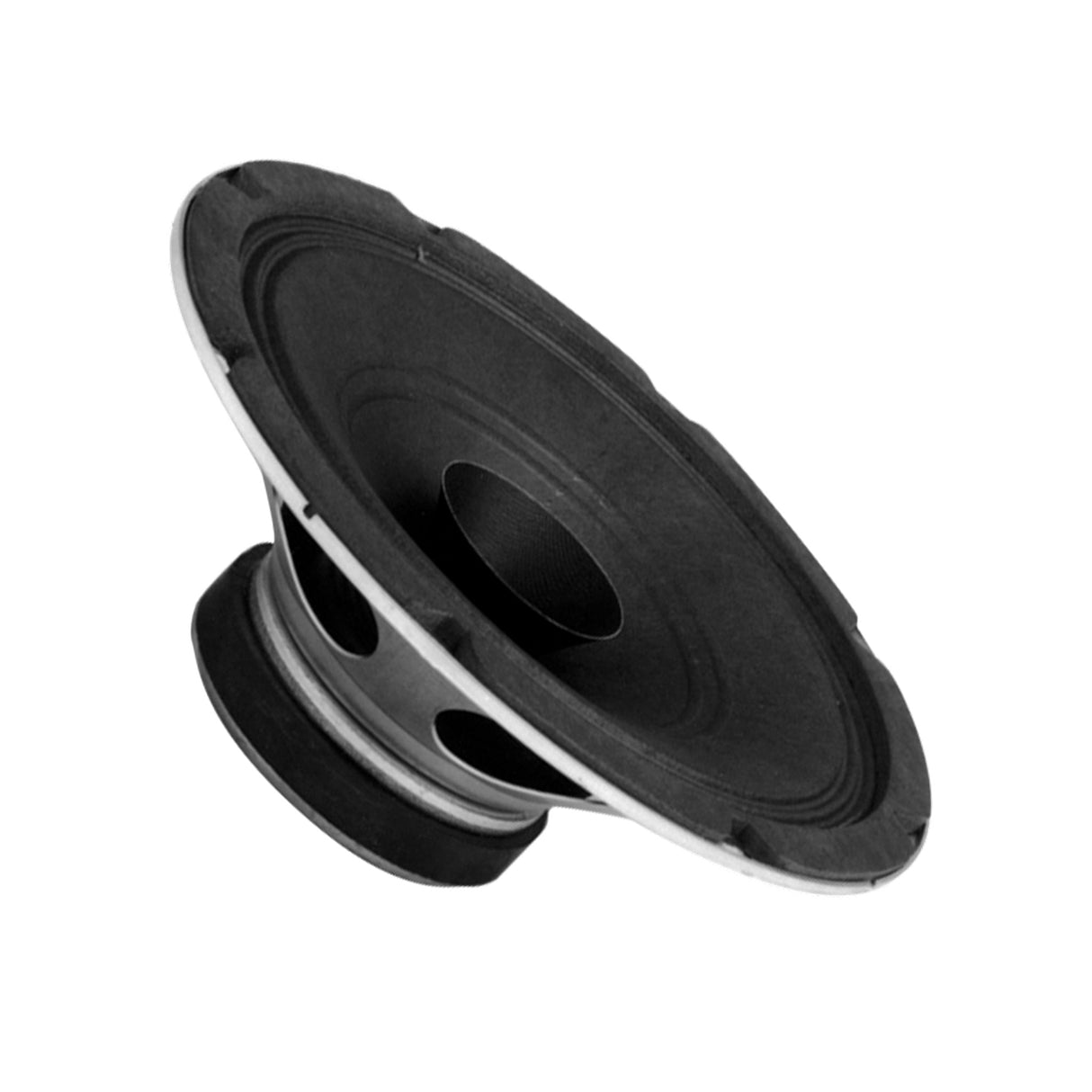

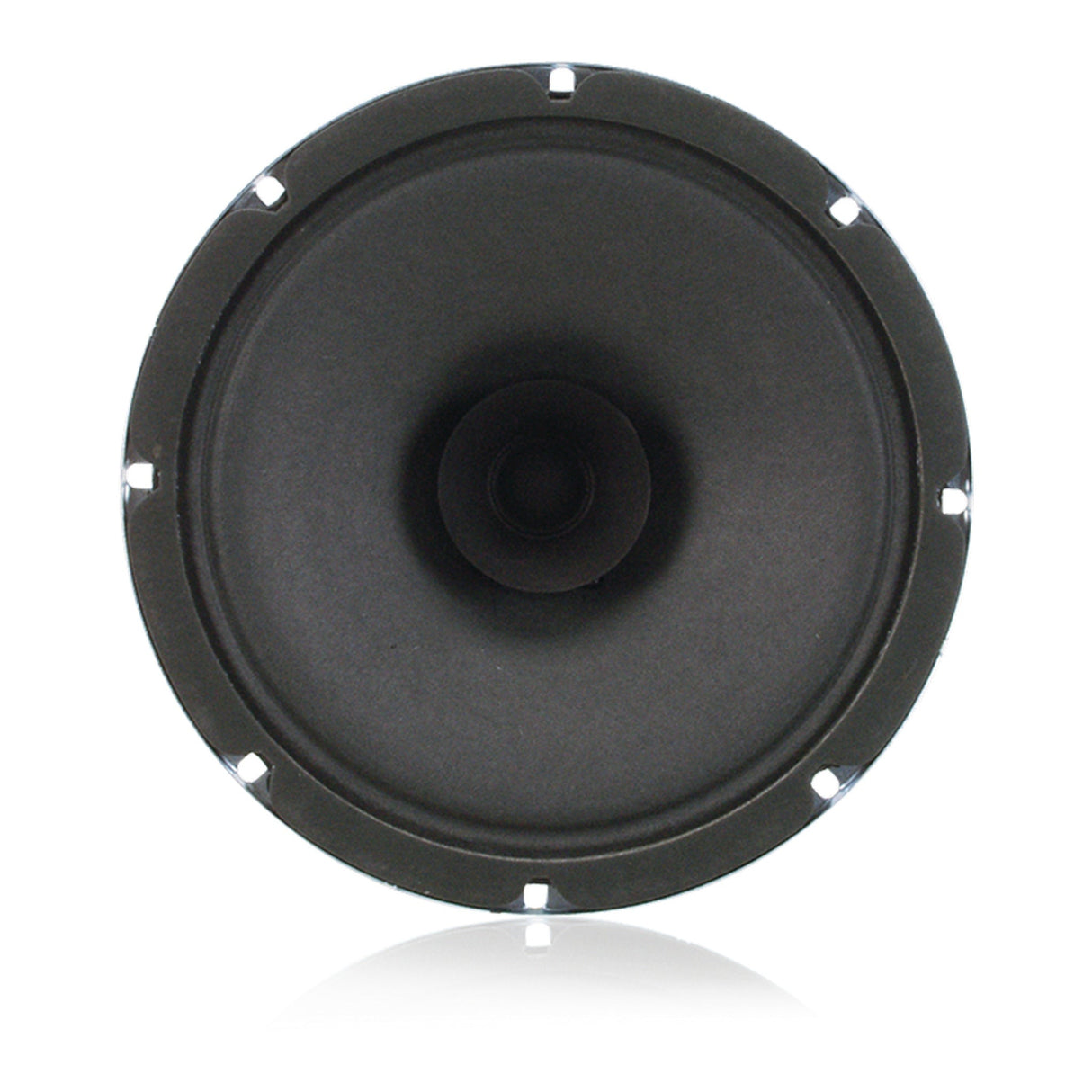

AtlasIED C10AT70 8-Inch Dual Cone In-Ceiling Speaker with 70V Transformer and 10oz Magnet
The AtlasIED C10AT70 is an 8-Inch dual cone in-ceiling speaker featuring a factory-installed 70V 10-watt line-matching transformer designed for efficient and reliable performance in commercial and institutional sound systems. This speaker combines a 10-ounce ceramic magnet with a curvilinear treated paper cone to reduce harmonic distortion, delivering clear and natural audio reproduction. The full 1-Inch diameter copper voice coil with a black anodized aluminum former ensures excellent power dissipation for durability and long-lasting use.
Operating with a frequency response range of 100Hz to 10kHz and a 105-Degree dispersion angle, the C10AT70 provides wide and even sound coverage suitable for paging, background music, and other distributed audio applications. It is compatible with a wide variety of AtlasIED round and square baffles and enclosures, offering flexible mounting options to fit various installation needs.
Ideal for multi-purpose commercial and industrial use, the C10AT70 includes hydrophobic treatment options for enhanced durability in challenging environments. This acoustically proven loudspeaker ensures consistent performance and easy integration into existing sound systems.
Key Features
- 8-Inch dual cone in-ceiling loudspeaker with 10-watt 70V line-matching transformer
- Curvilinear treated paper cone for low harmonic distortion
- 1-Inch copper voice coil with anodized aluminum former for better power dissipation
- Wide 105-Degree dispersion angle for broad sound coverage
- Compatible with a wide selection of AtlasIED round and square baffles
- Optional hydrophobic treatment for moisture resistance
Technical Specifications
- Speaker Type: Treated paper dual cone
- Sensitivity: 97dB Peak, 94dB Average
- Frequency Response: 100Hz - 10kHz nominal
- Power Taps: 1, 2.5, 5, & 10 Watts
- Dispersion: 105-Degree
- Depth: 2 7/8-Inch (7.3 cm)
- Diameter: 8-Inch (20.32 cm)
- Shipping Weight: 3.00 lbs (1.36 kgs)
- Warranty Period: 60 months from date of purchase
