AtlasIED C803AT47 8-Inch Coaxial Ceiling Speaker with 4W 70V Transformer

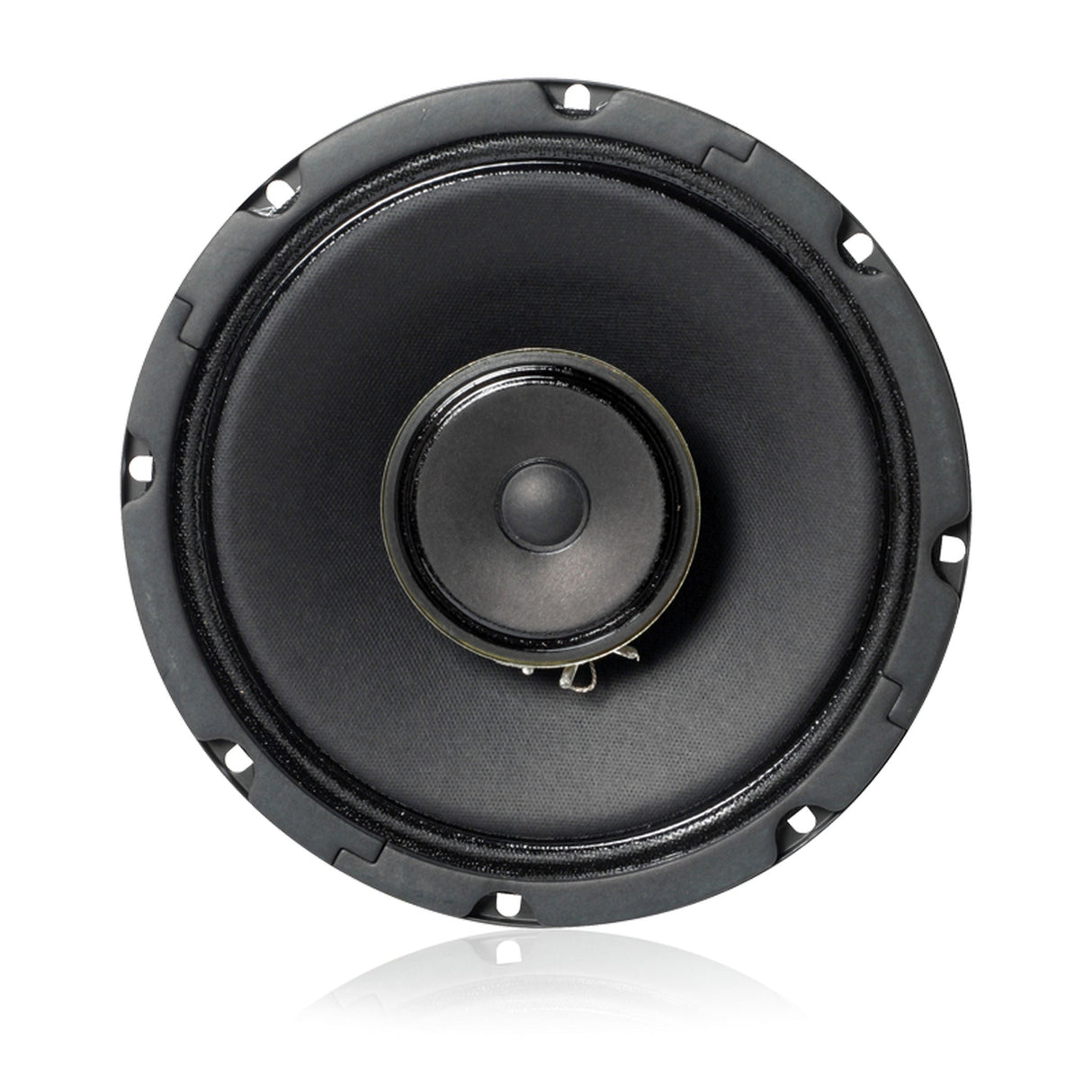

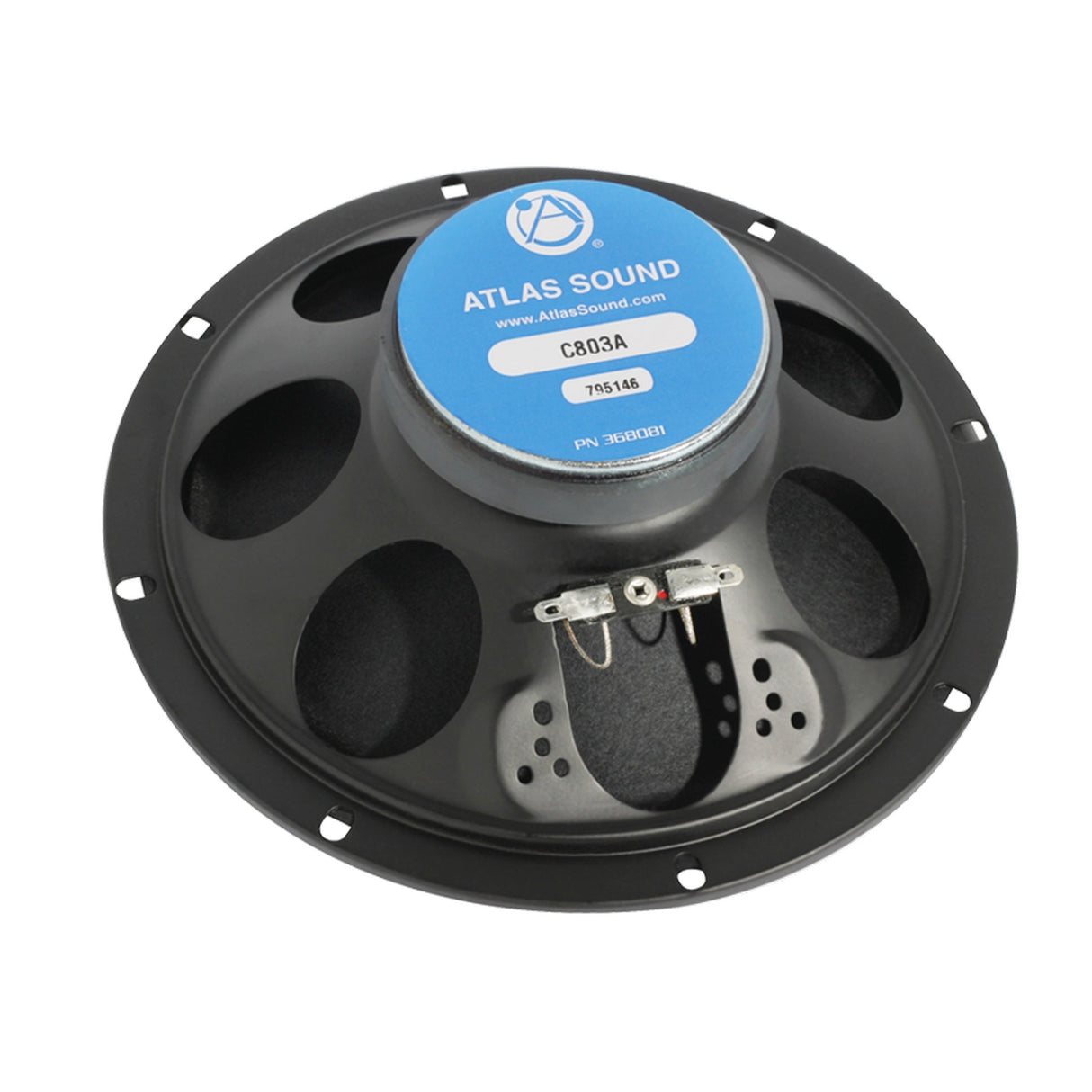

The AtlasIED C803AT47 is a high-quality 8-Inch coaxial ceiling speaker designed for commercial and institutional audio applications. Featuring a factory-installed 4-watt 70.7V line-matching transformer, this speaker delivers clear, intelligible sound with a wide 120-Degree dispersion pattern. Its coaxial design includes a full-size 8-Inch low-frequency driver coupled with a 3-Inch high-frequency driver via an integrated crossover, ensuring balanced audio performance across a broad frequency range.
With a frequency response range of 40Hz to 15.5kHz and a peak sensitivity of 98dB at 1 watt/1 meter, the C803AT47 is suitable for use in paging, background music, and sound reinforcement systems. The speaker’s treated paper cone drivers and robust construction provide durable, reliable performance for various environments. This model is compatible with multiple AtlasIED baffles and enclosures for flexible installation options.
Key Features
- 8-Inch coaxial loudspeaker with treated paper cone
- Factory-installed 70.7V, 4-watt line-matching transformer
- Frequency response: 40Hz - 15.5kHz for clear, intelligible sound
- 120-Degree wide dispersion for broad sound coverage
- Post-mounted tweeter for enhanced durability and appearance
- Peak sensitivity of 98dB at 1 watt / 1 meter
- Compatible with various AtlasIED baffles and enclosures
Technical Specifications
- Speaker Type: Treated paper
- Sensitivity: 98dB (peak), 95dB (average)
- Frequency Response: 40Hz - 15.5kHz
- Power Taps: 1, 2, & 4 Watts
- Dispersion: 120-Degree
- Diameter: 8-Inch (20.32 cm)
- Depth: 5 1/8-Inch (13.03 cm)
- Shipping Weight: 4.5 lbs (2.04 kg)
- Warranty Period: 60 months from date of purchase
- Safety Listed: UL 1480
