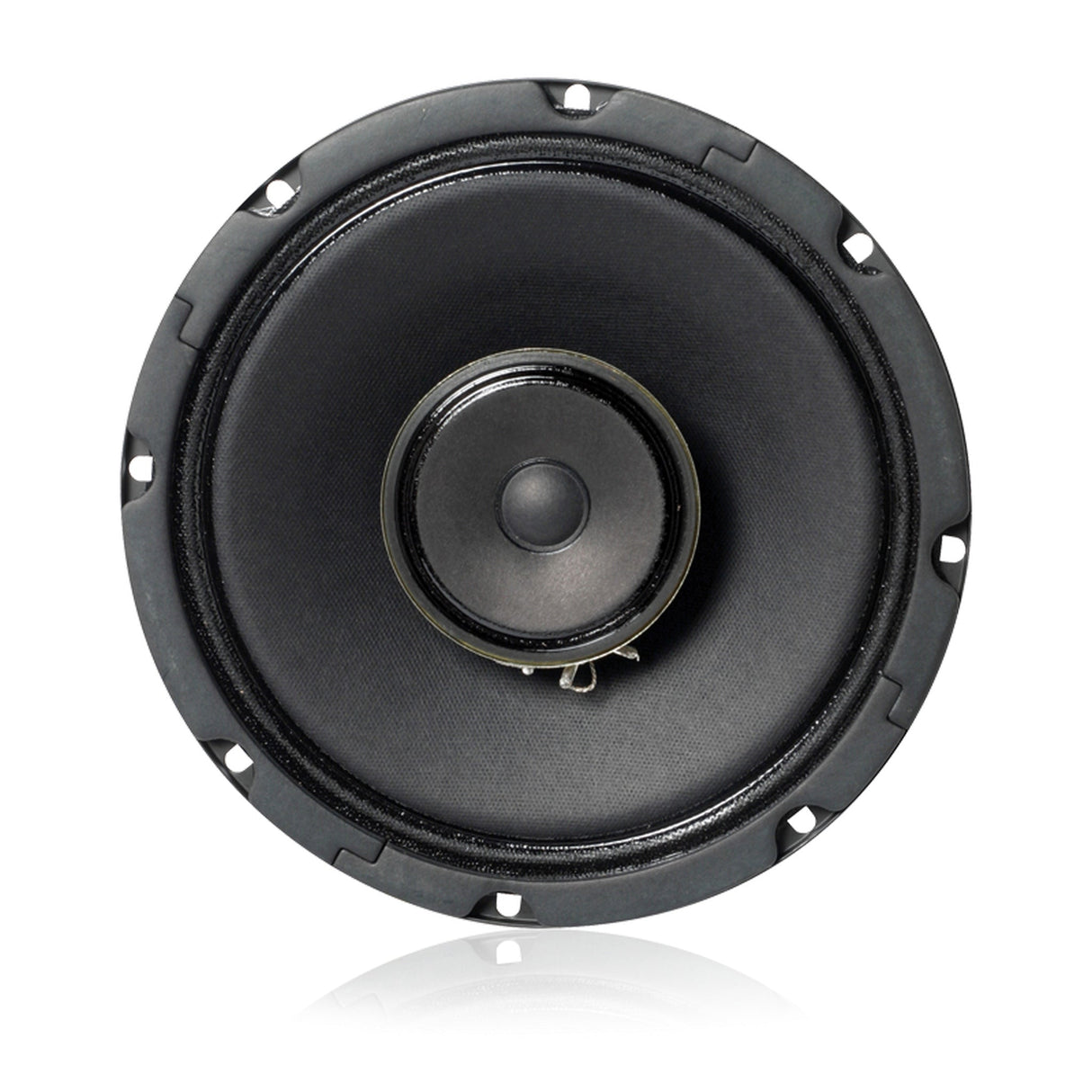

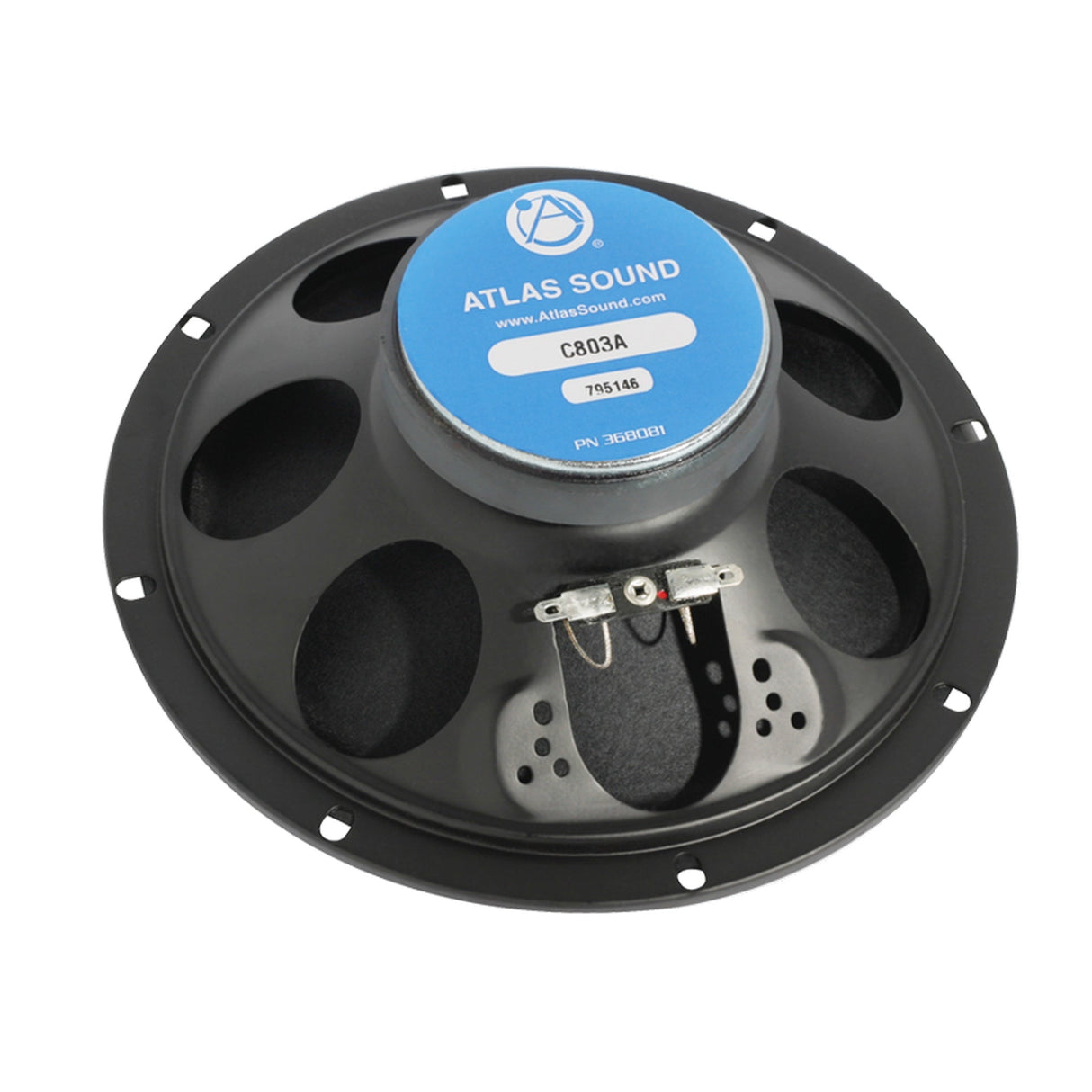

AtlasIED C803AT70 8-Inch In-Ceiling Coaxial Speaker with 5W 70V Transformer
The AtlasIED C803AT70 is a high-quality 8-Inch coaxial ceiling speaker featuring a factory-installed 70.7V 5-watt line-matching transformer. Designed for multi-purpose commercial, industrial, and institutional use, this speaker delivers clear, intelligible sound with a broad and uniform 120-Degree dispersion pattern. Its post-mounted tweeter adds structural strength to the assembly while providing a sleek, attractive appearance for seamless ceiling integration.
This coaxial speaker offers a frequency response range of 70Hz to 15.5kHz, combining a full-size 8-Inch treated paper low-frequency driver with a 3-Inch high-frequency driver coupled via a built-in crossover network. The woofer uses a 10 oz ceramic magnet, and the tweeter has a 2.35 oz ceramic magnet, achieving a peak sensitivity of 98dB at 1 watt/1 meter. The C803AT70 is compatible with a wide variety of AtlasIED baffles and enclosures, with an optimum sealed enclosure size of 0.36 cubic feet.
Key Features
- 8-Inch coaxial loudspeaker with treated paper cone drivers
- Factory-installed 70.7V, 5-watt line-matching transformer
- Frequency response: 70Hz - 15.5kHz for high-quality sound reproduction
- 120-Degree wide dispersion for broad sound coverage
- Post-mounted tweeter adds strength and attractive appearance
- Peak sensitivity of 98dB at 1 watt / 1 meter
- Compatible with various AtlasIED baffles and enclosures
Technical Specifications
- Speaker Type: Treated paper
- Sensitivity: 98dB (peak), 95dB (average)
- Frequency Response: 100Hz - 10kHz
- Power Taps: 0.5, 1, 2, & 5 Watts
- Dispersion: 120-Degree
- Diameter: 8-Inch (20.32 cm)
- Depth: 2 7/8-Inch (7.30 cm)
- Shipping Weight: 3.67 lbs (1.66 kg)
- Warranty Period: 60 months from date of purchase
