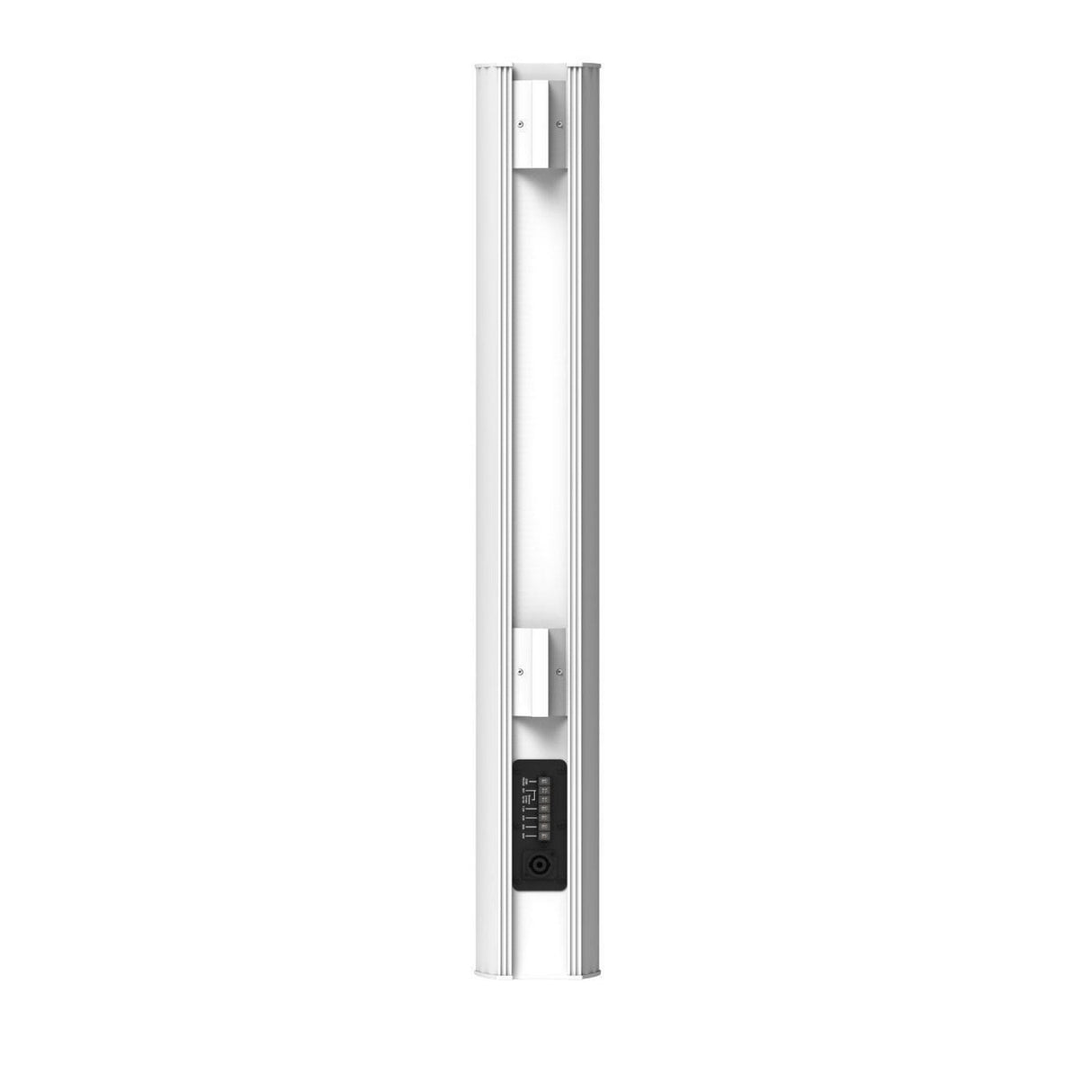

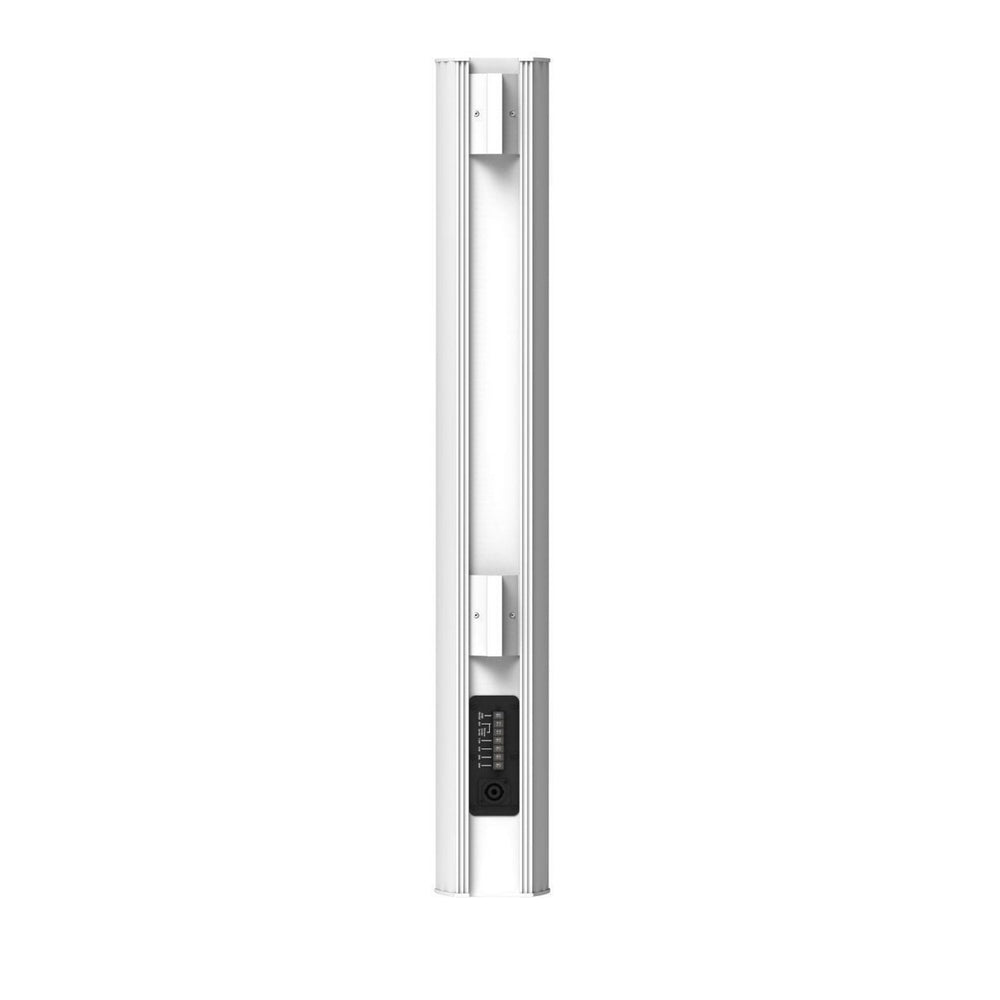

AtlasIED Certified 10 Speaker Full Range Line Array Speaker System
The AtlasIED ALA10TAW is a compact, EN54-24 certified column line array speaker that delivers maximum performance with minimal visual impact. Equipped with ten 3″ full-range drivers and four 22 mm high-frequency tweeters housed in a sleek extruded aluminum cabinet, this speaker offers exceptional speech intelligibility across challenging acoustic spaces, museums, houses of worship, retail venues, and transportation hubs. A built-in wall-mount bracket allows ±10° vertical tilt for precise coverage adjustments. Choose between durable black or white finish to match any environment.
Purpose-built for flexibility and reliability, the ALA10TAW supports 600 W RMS at 6 Ω, along with multiple 70 V/100 V line transformer taps (60 W, 30 W, 15 W, 7.5 W). Its wide 135° horizontal × 40° vertical dispersion pattern ensures even audio coverage, ideal for public address and background music applications. With a compact 32.9″ × 4.61″ × 5.43″ form factor, aluminum housing, and a five-year warranty, this speaker is perfect for both fixed and portable setups.
Key Features
- EN54-24 certified column line array loudspeaker
- Ten 3″ full-range drivers and four 22 mm HF tweeters
- Wide 135° horizontal × 40° vertical sound coverage
- 600 W RMS; supports 70 V/100 V transformer taps (60 W, 30 W, 15 W, 7.5 W)

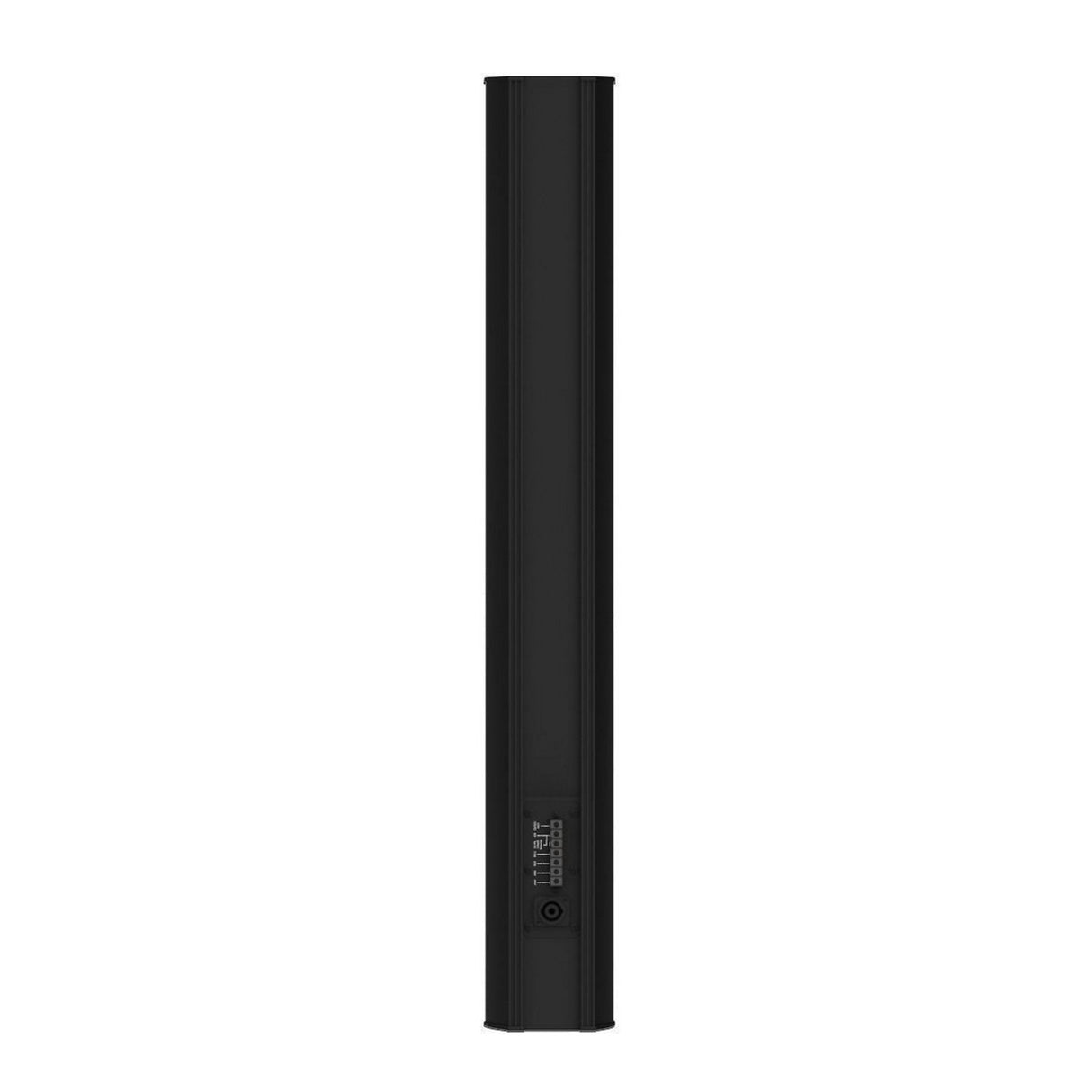

- Available in black or white finish

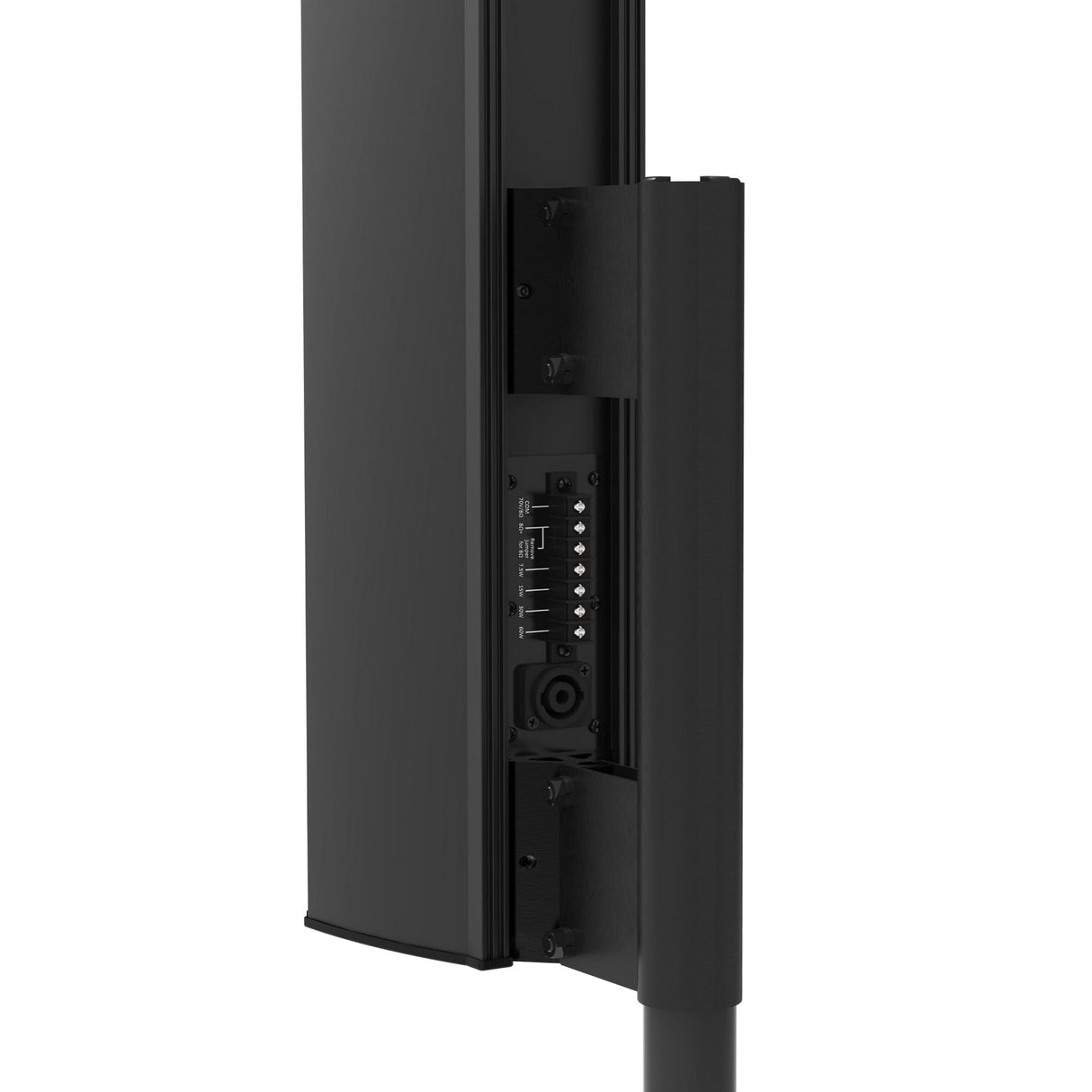

- Wall-mount bracket with ±10° vertical tilt included
- Durable extruded aluminum with IP33C rating
- 5-year factory warranty
Technical Specifications
- Power Handling (6 Ω): 600 W RMS
- Transformer Taps: 60 W, 30 W, 15 W, 7.5 W @ 70/100 V
- Frequency Response: 160 Hz – 20 kHz (±5 dB)
- Sensitivity: 96 dB @1 W/1 m
- Dispersion: 135° horizontal × 40° vertical
- Impedance: 6 Ω nominal
- Coverage Adjustment: ±10° vertical tilt via mount
- Warranty: 60 months (5 years)
What’s Included in the Box
- ALA10TAW column line array loudspeaker (black or white)
- Wall-mount bracket with vertical slide and tilt
- Installation hardware and templates
- Product documentation and 5-year warranty
