AtlasIED Contemporary Wall or Ceiling Speaker Baffles
The AtlasIED 161-series square baffles deliver a sleek, textured white epoxy finish ideal for recessed wall or ceiling speaker installations. Available in both 4-inch (161‑4) and 8-inch (161‑8) configurations, these baffles feature concealed speaker-mounting studs, heavy-gauge CRS construction, and a “no-leak” gasket, ensuring professional aesthetics and acoustic integrity.
Whether upgrading an existing system or installing a new network, these baffles are UL-listed, BAA- and TAA-compliant, and designed to complement standard enclosures, tile bridges, or mounting rings. The 4″ version accommodates 4″ diameter speakers, while the 8″ version fits 8″ diameter drivers, offering multi-purpose ceiling and wall mounting flexibility.
Key Features

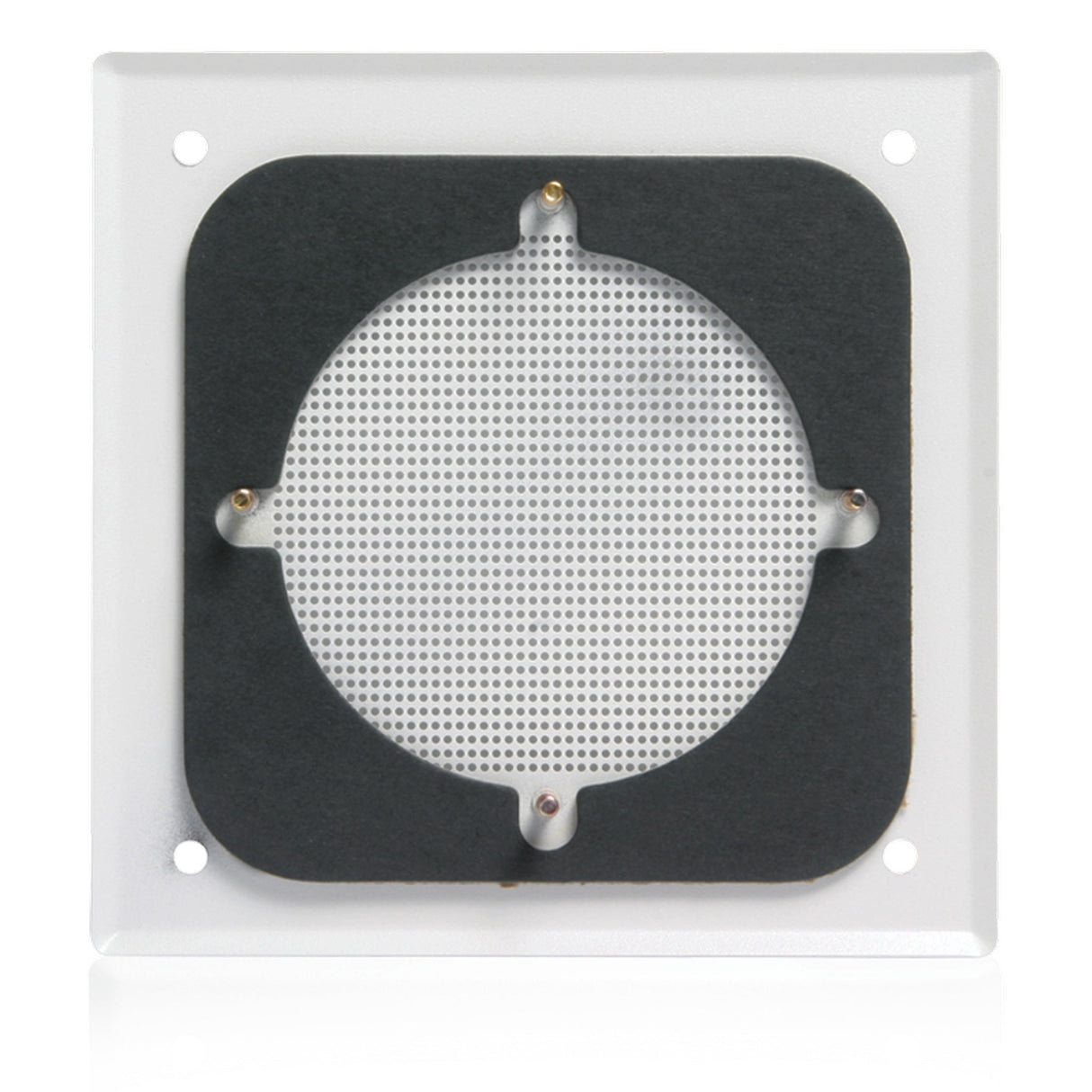

- Attractive concealed speaker-mounting studs for clean installation
- One-piece 20-gauge CRS body with square “no leak” gasket
- Textured white epoxy finish resists scratches and wear
- UL Listed (model 161‑4 & 161‑8), BAA & TAA compliant
- Versatile for recessed ceiling or wall mounting
- Heavy-gauge steel guards against vibration and rattle
Technical Specifications

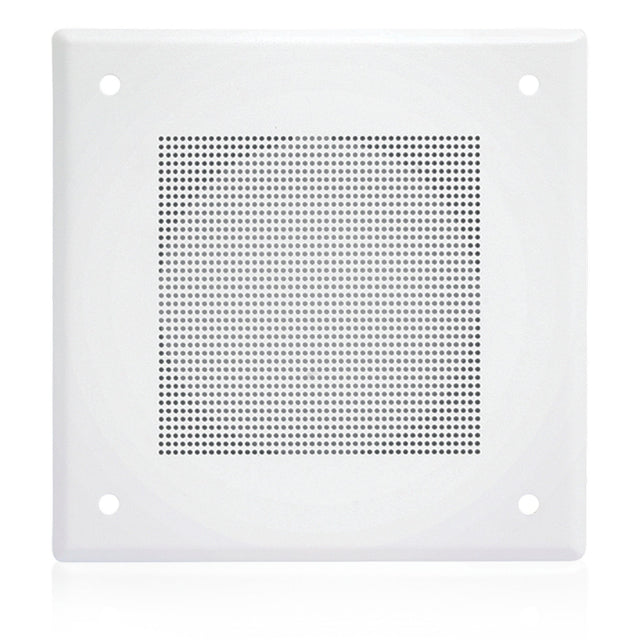

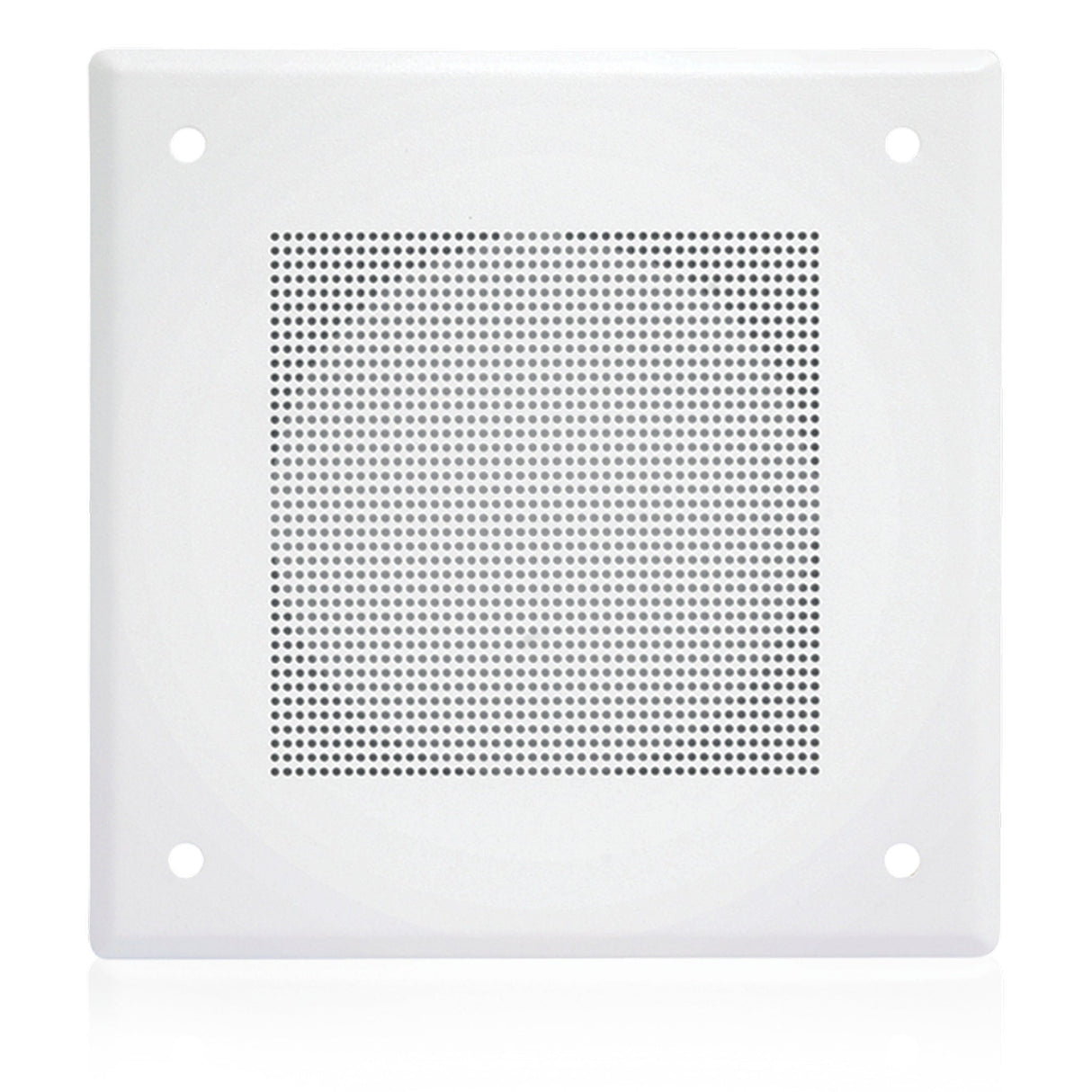

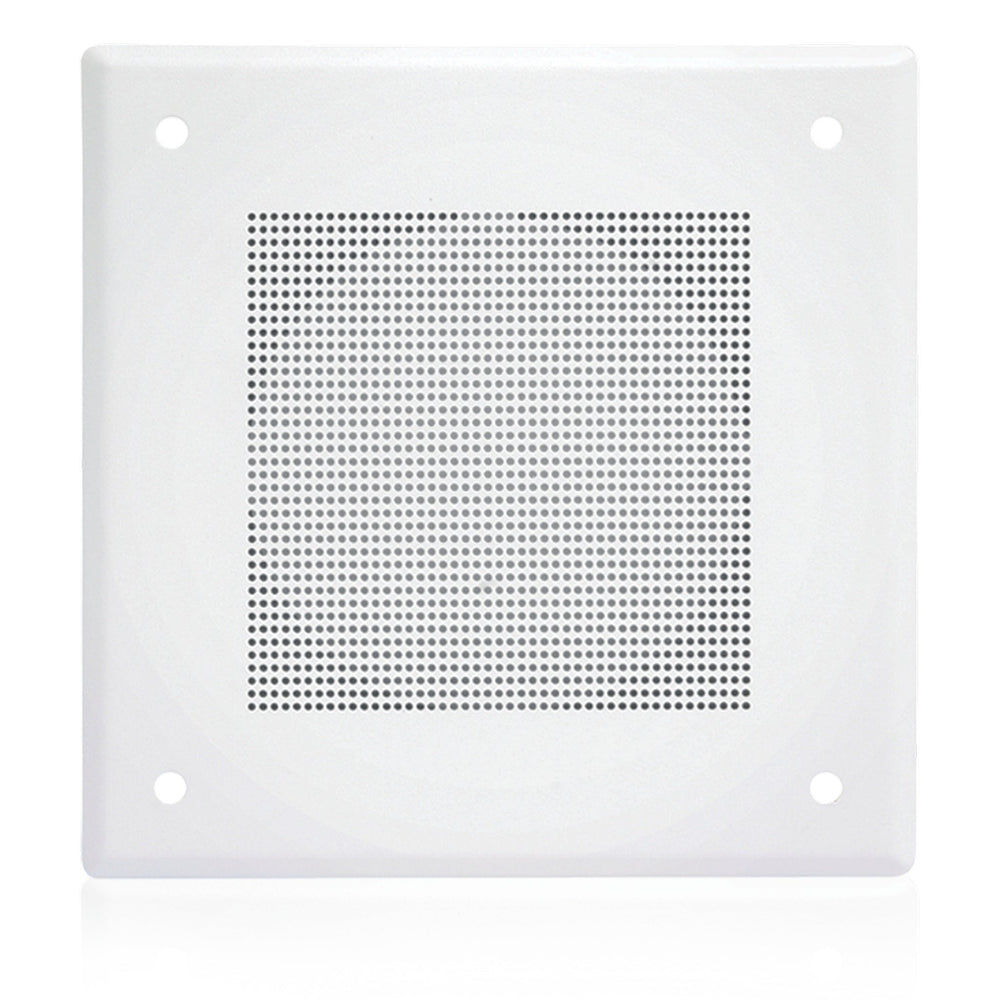

Model 161‑4 (4″ Baffle)
- Accommodates 4″ (102 mm) diameter speakers
- Height: 7″ (178 mm); Projection: 3/16″ (4 mm)
- Speaker stud pattern: 4⅝″ (119 mm) diameter
- Baffle mounting footprint: 5½″ (140 mm) square
- Shipping weight: 0.67 lbs (0.30 kg)
- Safety listing: UL 1480; Warranty: 60 months

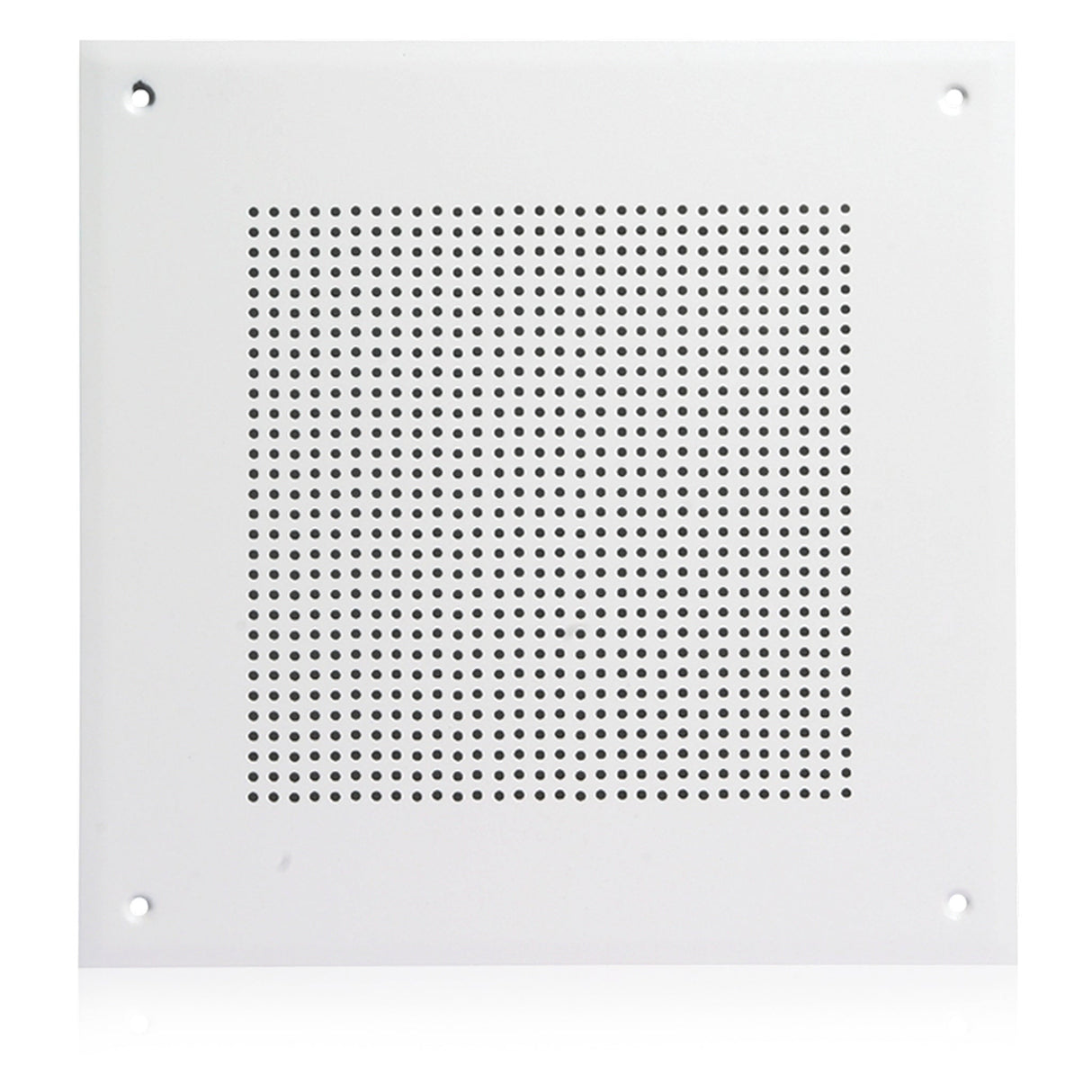

Model 161‑8 (8″ Baffle)
- Accommodates 8″ (203 mm) diameter speakers
- Height: 11½″ (292 mm); Projection: ¼″ (6 mm)
- Speaker stud pattern: 7⅝″ (194 mm) diameter
- Baffle mounting footprint: 10″ (254 mm) square
- Shipping weight: 1.67 lbs (0.76 kg)
- Safety listing: UL 1480; Warranty: 60 months
Box Contents
- One AtlasIED 161-series square baffle (4″ or 8″)
- Square “no leak” gasket pre-installed
- Mounting hardware with concealed speaker studs
- Installation instructions
