AtlasIED CS95-8 8-Inch Recessed Round Stacking Enclosure

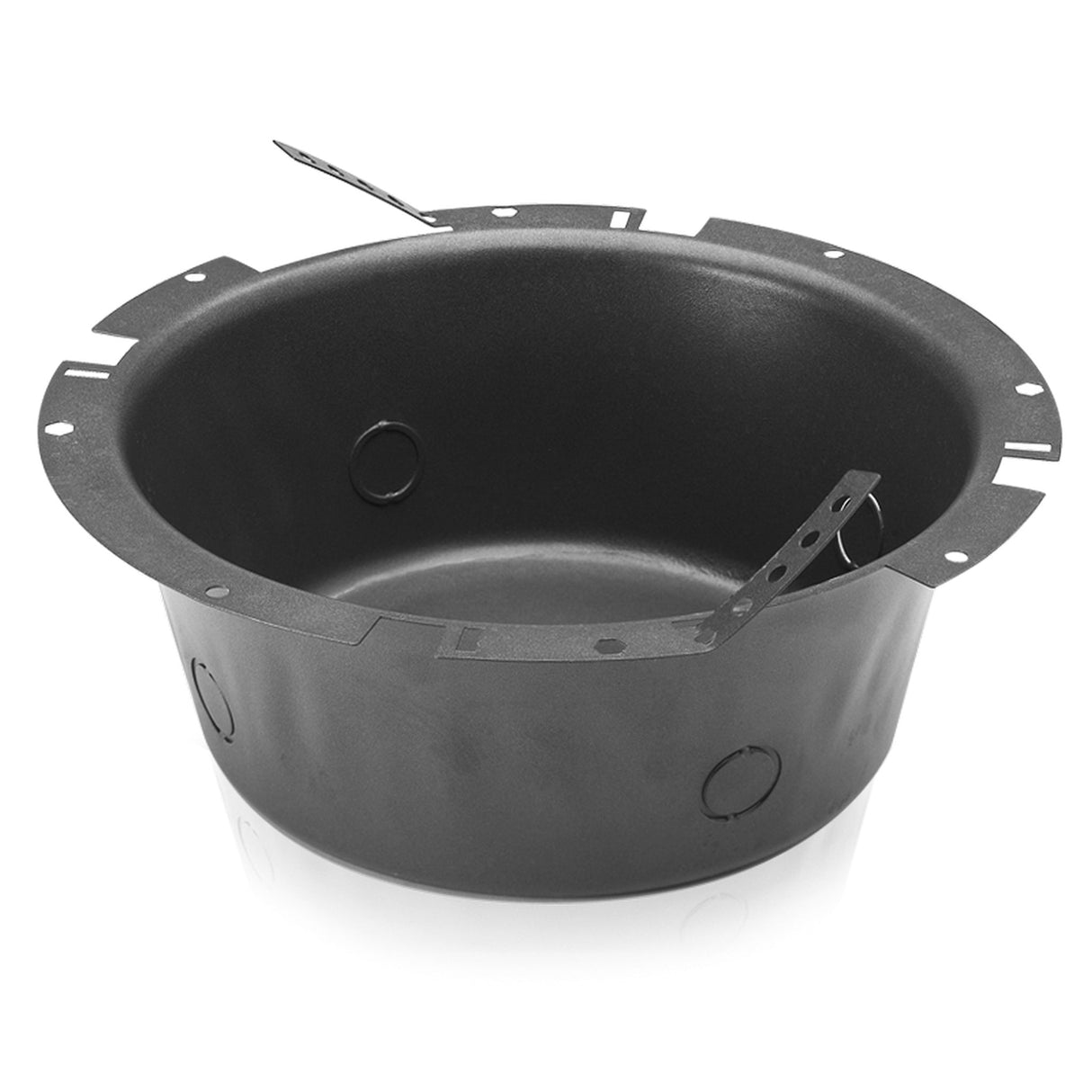

The CS95-8 is an 8-Inch recessed round stacking enclosure engineered by AtlasIED for contractors and integrators who require efficient storage and transportation solutions. Its conical design allows enclosures to nest neatly, reducing inventory space and lowering shipping costs. Constructed from one-piece cold‑rolled steel (CRS), the CS95-8 features epoxy finish, undercoating, and patch‑jute lining to optimize acoustic performance and durability.

Designed to work seamlessly with AtlasIED model SD72W, SD72WV, or the GD87W coaxial loudspeaker packages, this enclosure includes all necessary hardware for installation. Four combination conduit knockouts (1/2‑Inch to 3/4‑Inch), four J‑clips, and two flexible perforated mounting straps make mounting quick and secure. For general-use commercial audio installations, the CS95-8 provides a cost-effective, robust enclosure solution.

Key Features

• Cost-effective enclosure system for general use
• Stackable recessed round design saves storage space
• One-piece cold-rolled steel construction with epoxy finish
• Undercoated and patch-jute lined for enhanced acoustics
• Includes four combination conduit knockouts (1/2‑Inch – 3/4‑Inch)
• Supplied with four J‑clips and two flexible perforated mounting straps
• Compatible with SD72W, SD72WV, and GD87W loudspeaker packages

Technical Specifications

• Depth: 4 1/4‑Inch
• Diameter: 11 3/4‑Inch
• Shipping Weight: 2.33 lbs
• Mounts Baffle Models: 51‑8, 60‑8(W), 61‑8W, 62‑8, 63‑8, 67‑8(W), G22‑8, M222(W), P900, VP60‑R
• Safety Listed: 1480, 2043
• Warranty Period: 60 months from date of purchase
