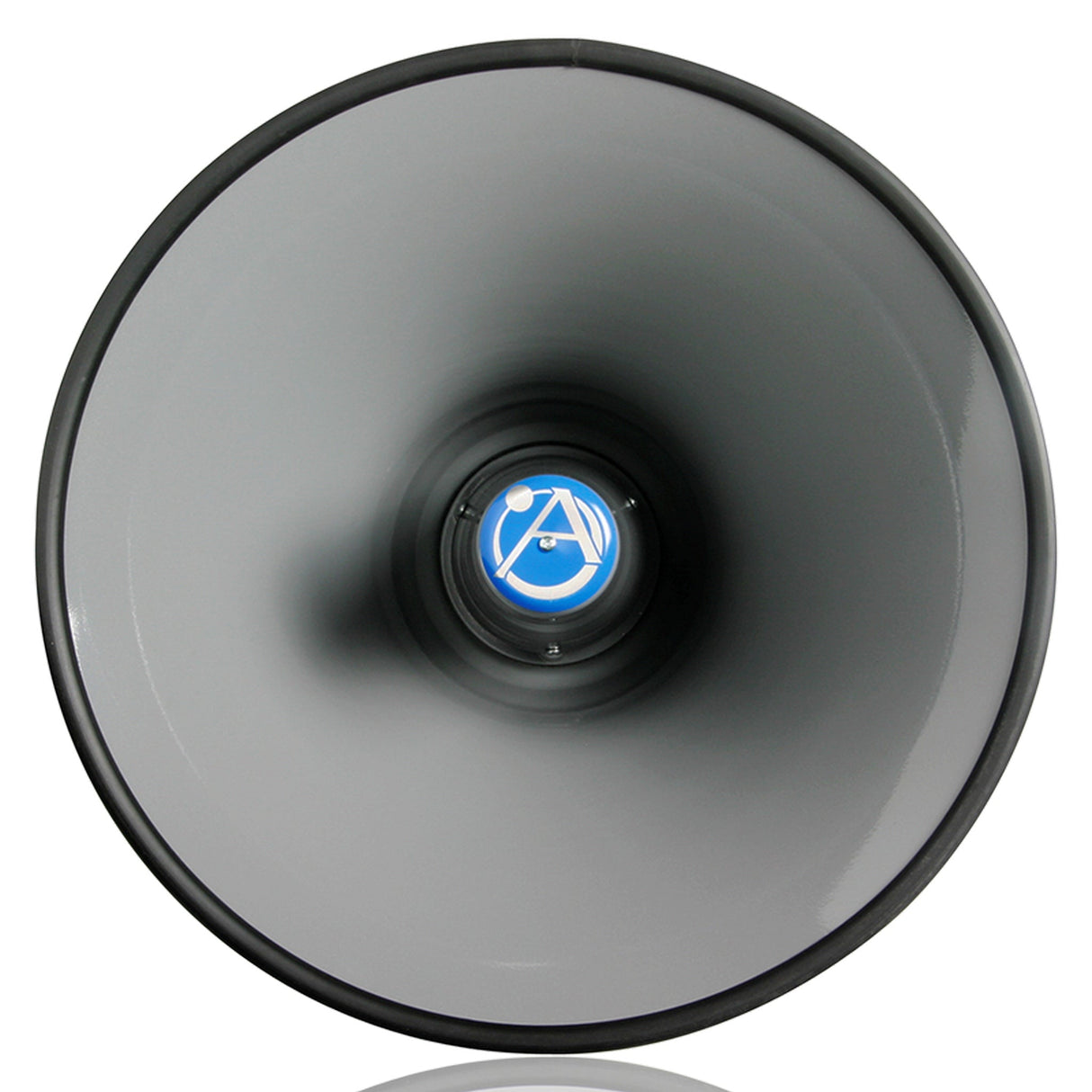

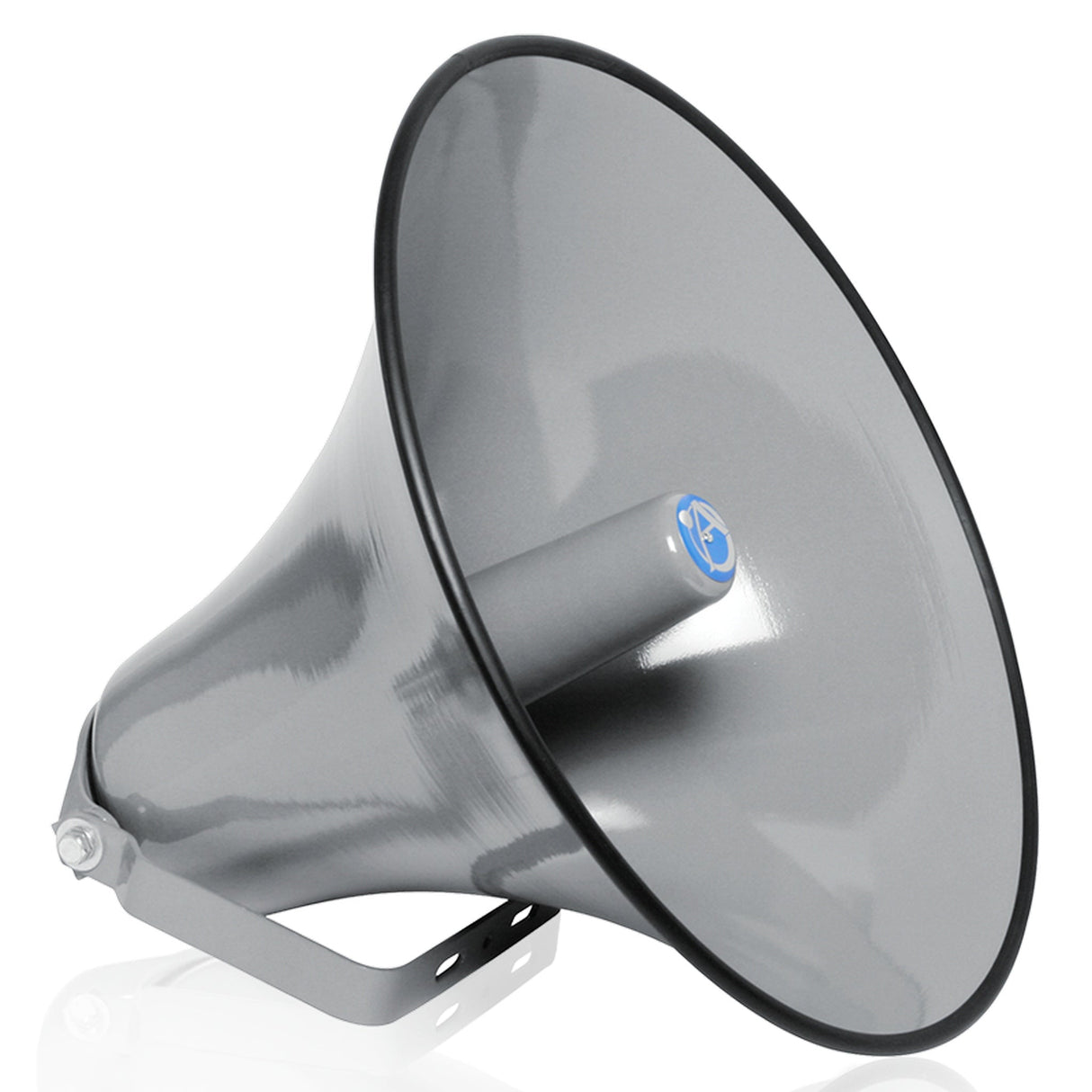

AtlasIED DR Series Projector Horns For Uniform Sound Dispersion
The Atlas Sound DR Series projector horns are multi-purpose reflex sound horns designed to provide high intelligibility sound distribution and reliable voice and signal applications. These horns accept all standard high-efficiency compression drivers with 1 3/8"-18 male threads and feature an exponentially-flared design for uniform sound distribution. Constructed from weatherproof, all-metal materials, they are suitable for year-round use in demanding environments.
With over sixty years of proven capability, DR Series double re-entrant horns are ideal for recreational, commercial, and industrial settings including sports facilities, amusement parks, warehouses, factories, military sites, and transportation terminals. When paired with Atlas Sound PD or SD Series compression drivers, they ensure clear audio transmission over long distances and through high background noise levels. The integral U-type steel mounting bracket allows for flexible directional aiming and easy installation.
Key Features
- Multi-purpose reflex sound horns for high intelligibility sound distribution
- Compatible with all standard high-efficiency compression drivers with 1 3/8"-18 male threads
- Exponentially-flared design for uniform sound distribution
- Weatherproof, all-metal construction for year-round outdoor use
- Integral U-type steel mounting bracket for flexible aiming
- Durable grey epoxy finish
Technical Specifications
- DR-32: Dispersion 95°, Low End Cut-Off 190Hz, Air Column Length 2.5' (762mm), Directivity Factor (Q) 10.7, Weight 11 lbs. (4.9kg)
- DR-42: Dispersion 85°, Low End Cut-Off 140Hz, Air Column Length 3.5' (1067mm), Directivity Factor (Q) 14.7, Weight 13 lbs. (5.9kg)
- DR-54: Dispersion 75°, Low End Cut-Off 115Hz, Air Column Length 4.5' (1372mm), Directivity Factor (Q) 16.8, Weight 20 lbs. (9.0kg)
- DR-72: Dispersion 65°, Low End Cut-Off 85Hz, Air Column Length 6.5' (1981mm), Directivity Factor (Q) 19.3, Weight 25 lbs. (11.3kg)
Dimensions (in Inches)
- DR-32: 12.5-Inch (A) x 16.5-Inch (B) x 10.5-Inch (C)
- DR-42: 16-Inch (A) x 21-Inch (B) x 13.75-Inch (C)
- DR-54: 19-Inch (A) x 26-Inch (B) x 17-Inch (C)
- DR-72: 28-Inch (A) x 31-Inch (B) x 24.25-Inch (C)
