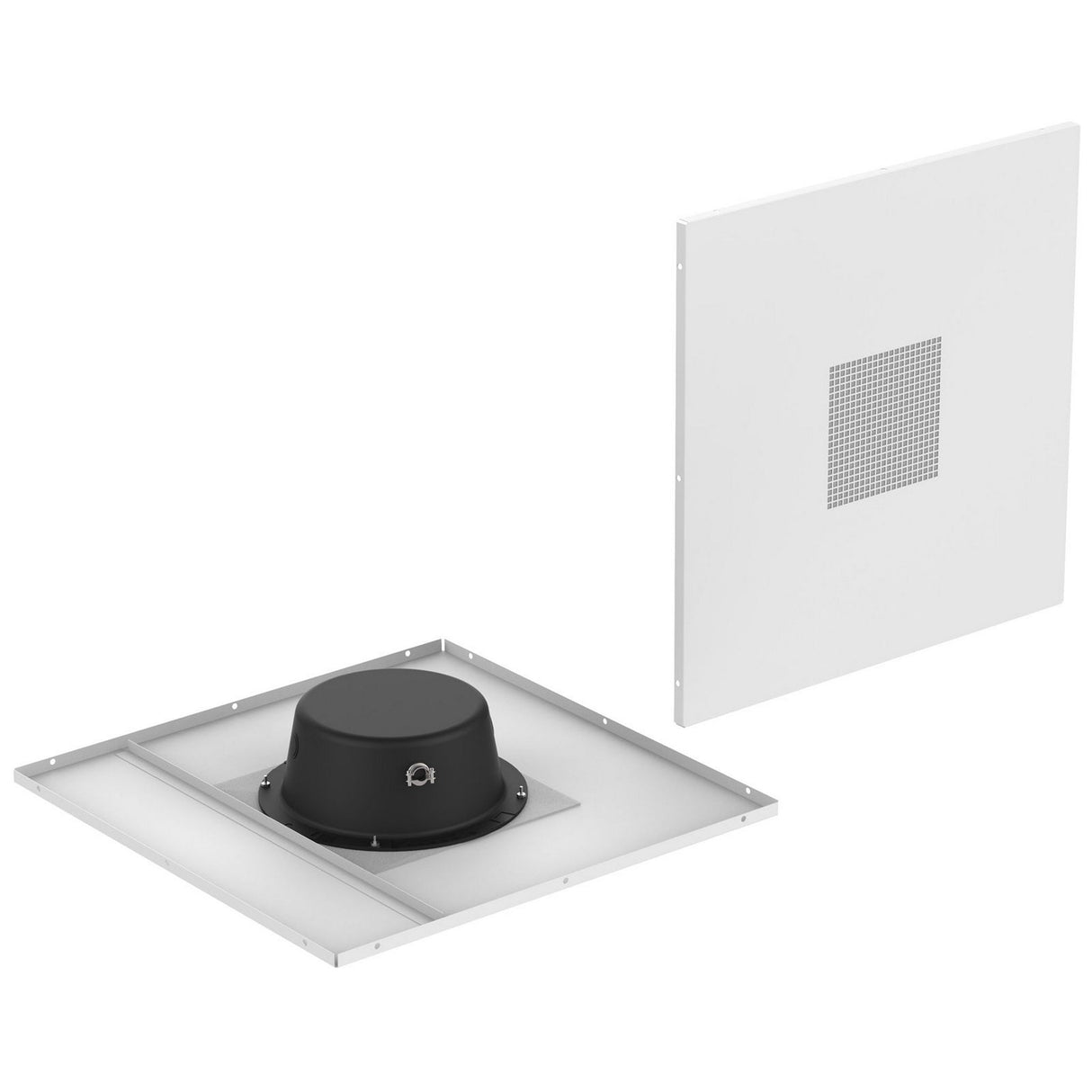

AtlasIED DT22 2 x 2 Feet Drop Tile Speaker Package
The installer-friendly AtlasIED DT22 provides clear paging and background music in a labor-saving, all-in-one package. Perfect for shopping malls, department stores, and other large commercial environments, the DT22 simplifies speaker installation by integrating the speaker, transformer, enclosure, and grille into a single pre-assembled unit that drops easily into acoustic ceiling grids.
The DT22 features a solid white panel with a punched speaker grille that blends seamlessly with most acoustic ceiling tiles, delivering clear, crisp audio without compromising building aesthetics. Equipped with a standard 8-Inch dual cone speaker and built-in 25V / 70.7V transformer, this drop tile speaker system meets UL1480 and UL2043 certifications, ensuring safety and performance.
Key Features
- All-in-one, pre-assembled unit designed for easy drop-in installation
- Solid white panel with punched speaker grille for aesthetic ceiling integration
- Standard 8-Inch speaker with built-in 25V / 70.7V transformer
- UL1480 and UL2043 safety certifications
Technical Specifications
- Speaker: 8-Inch Dual Cone
- Frequency Response: 100Hz - 5kHz
- 70.7V Power Taps: 0.25, 0.5, 1, 2, & 4 Watts
- Dispersion: 105-Degree at 2kHz Octave Band (-6dB)
- Sensitivity: 96dB
- Magnet Weight: 10oz (283g)
- Length: 23.9-Inch (607mm)
- Depth: 4.53-Inch (115mm)
- Weight: 11.3 lbs (5.125 kg)
- Color: White
- Warranty Period: 60 months from date of purchase
