AtlasIED FA62T-8MB 6-Inch In-Ceiling Coaxial Speaker Motorboard Assembly with 32W 70.7V/100V Transformer

AtlasIED | SKU: ATS-FA62T8MB
$9499

Estimated Shipping Widget will be displayed here!

Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability. Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible. Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand. No restocking fee will be charged when you opt for store credit. Exclusions apply.

Condition: New

AtlasIED FA62T-8MB 6-Feet In-Ceiling Coaxial Speaker Motorboard Assembly with 32W 70.7V/100V Transformer

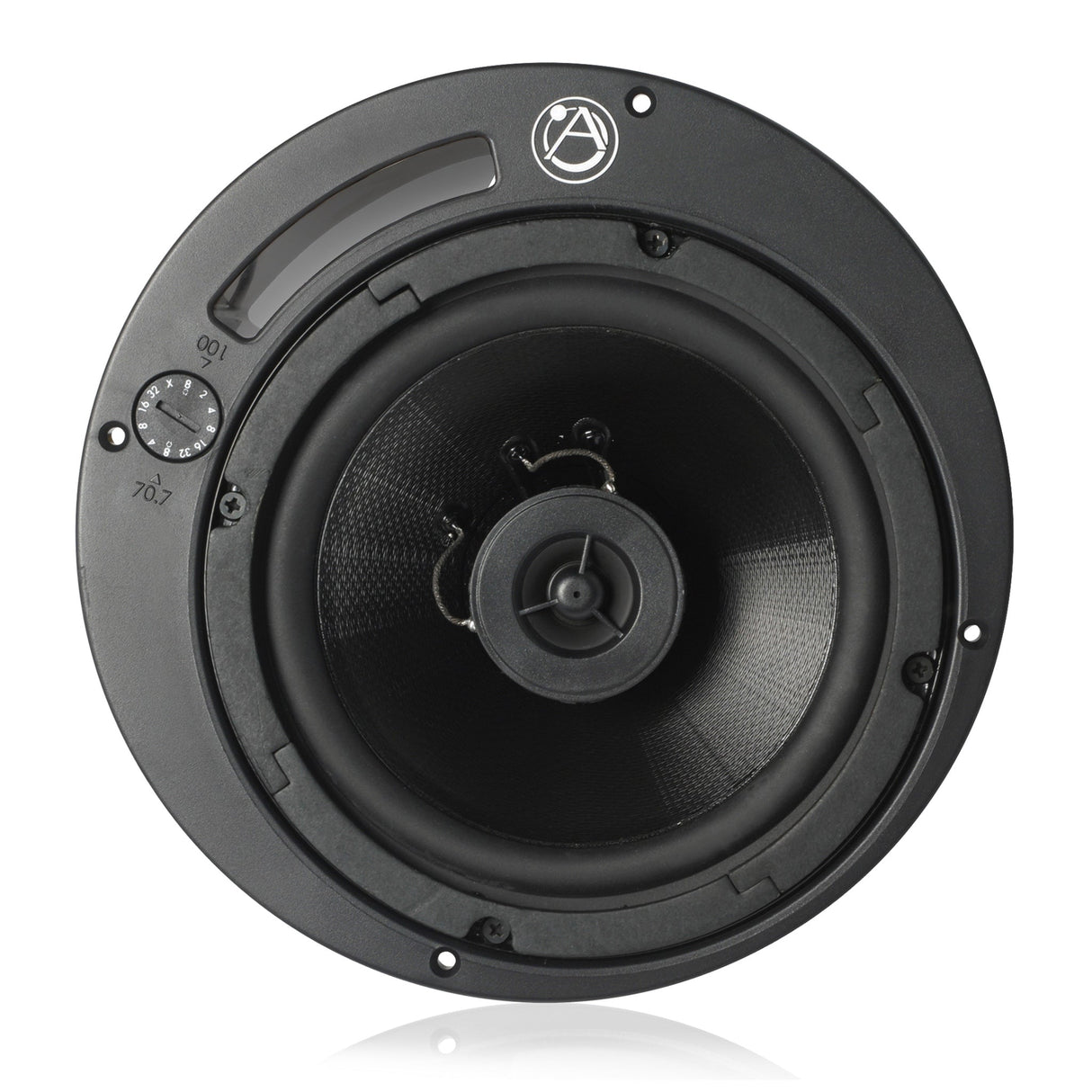

The AtlasIED FA62T‑8MB is a full motorboard assembly featuring a 6″ coaxial speaker, 32 W 70.7 V/100 V transformer, selector switch, and front plate. Designed to fit into 8″ Strategy Series enclosures (FA97‑8/FA95‑8), its division-of-labor design allows installers to mount enclosures first and speakers later—streamlining commercial installation workflows.

With a front-mounted tap selector, convenient tuning adjustments can be made without ceiling access, and the tuned port enhances low-frequency performance when used in Strategy enclosures. Safety-rated and reliable, this assembly supports background music, paging, and AV signal clarity.

Key Features

  • 6″ coaxial driver: Poly cone with PEI tweeter delivers full-range audio
  • Selectable taps: 2, 4, 8, 16, 32 W plus 8 Ω direct bypass
  • Front tap selector: Easy system tuning from grille side
  • 110° dispersion: Wide coverage for even sound distribution
  • UL 1480 listed: Certified for general signaling/safety systems
  • Division-of-labor design: Fits into existing 8″ Strategy enclosures

Technical Specifications

  • Model: FA62T‑8MB
  • Diameter: 8 ½″ (21.59 cm)
  • Depth: 5 ½″ (13.97 cm)
  • Shipping Weight: 6.00 lb (2.72 kg)
  • Sensitivity: 88 dB average
  • Frequency Response: 63 Hz–20 kHz
  • Transformer Taps: 2, 4, 8, 16, 32 W (70.7 V); 8 Ω bypass
  • Dispersion: 110°
  • Safety Listing: UL 1480, file UEAY.S1824
  • Warranty: 60 months
