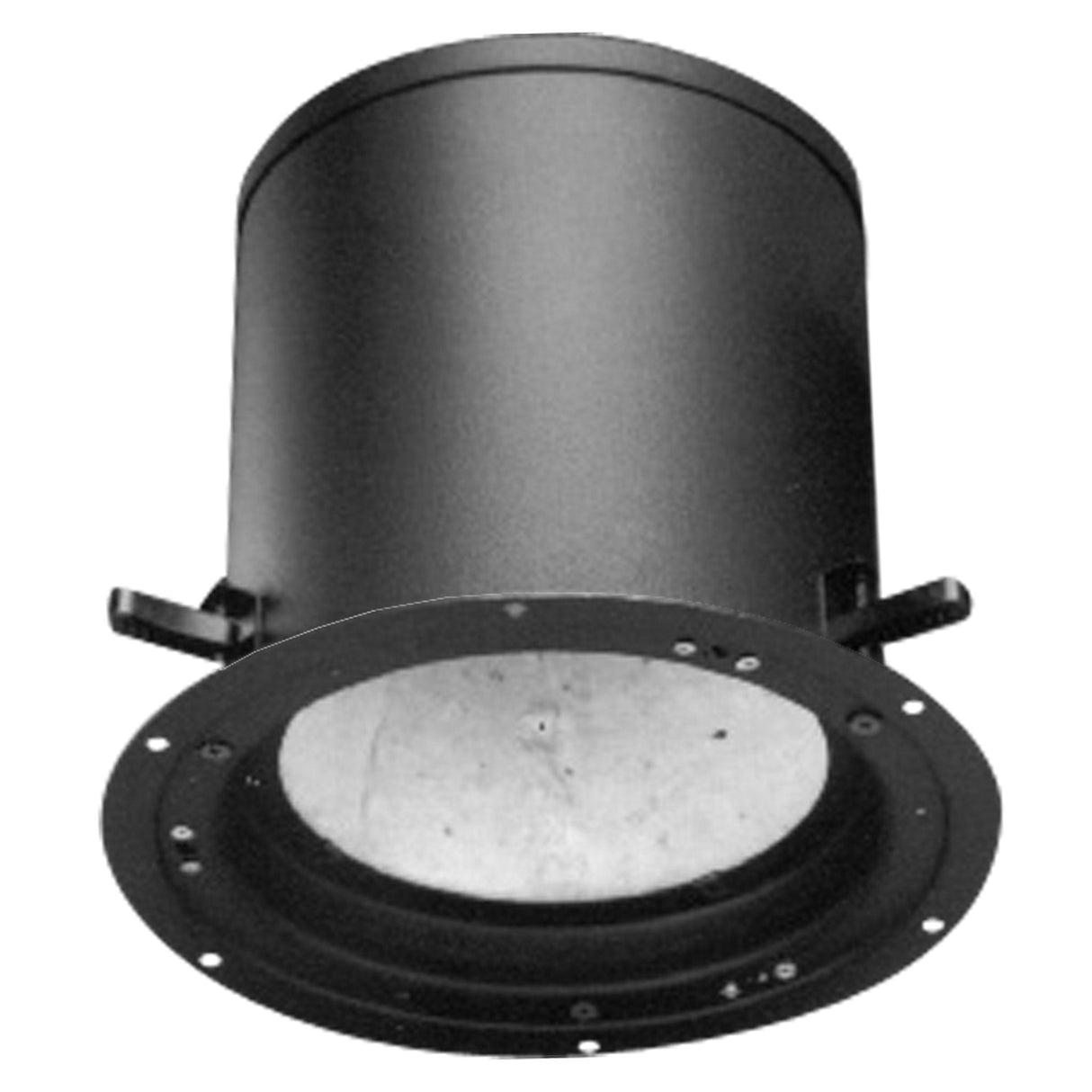

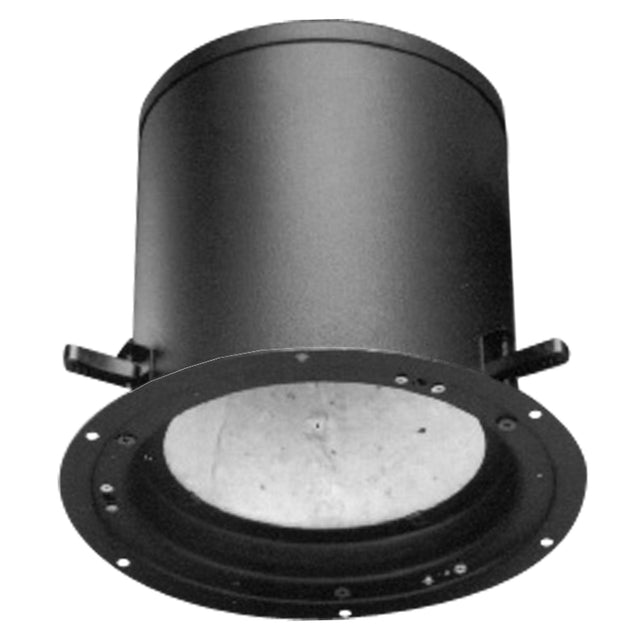

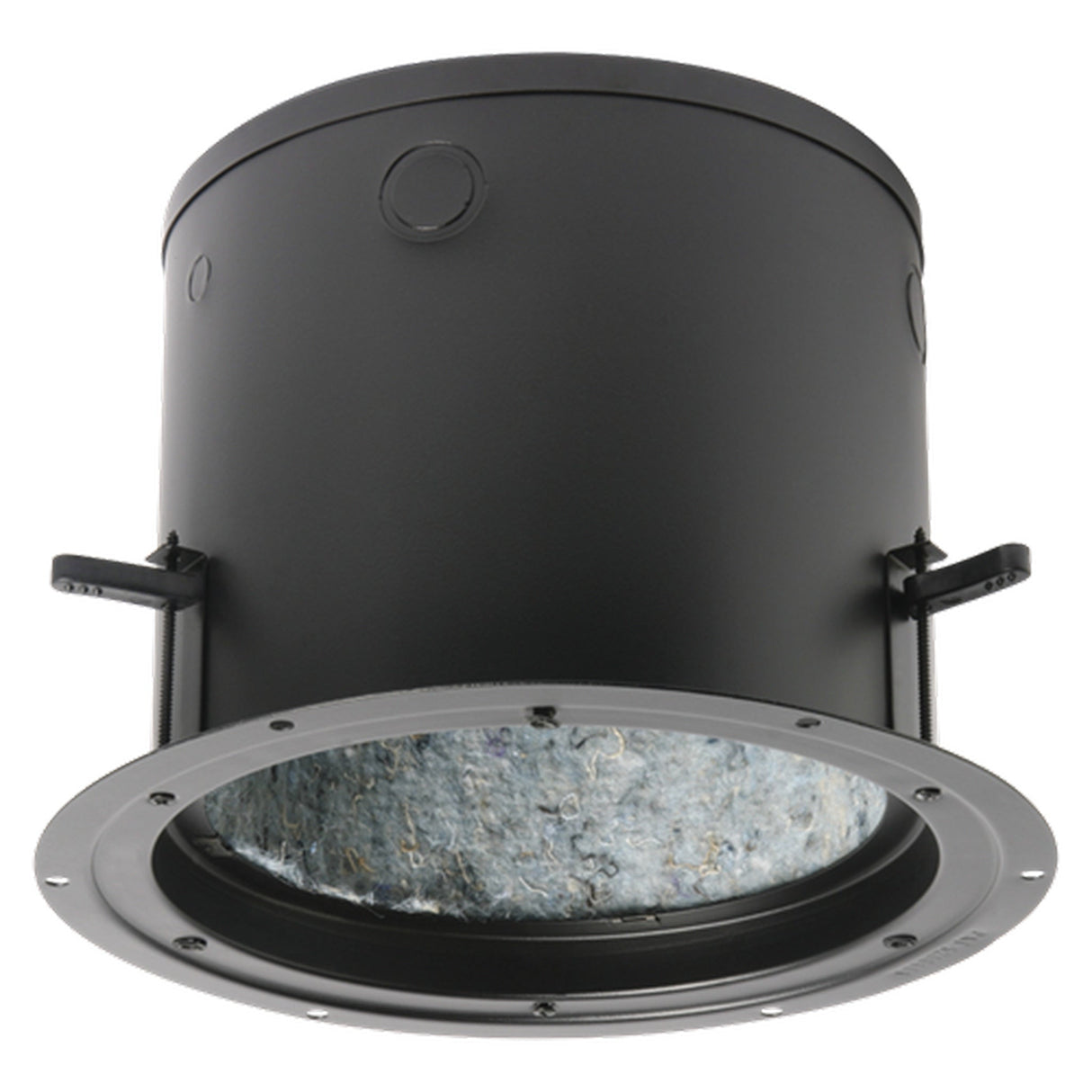

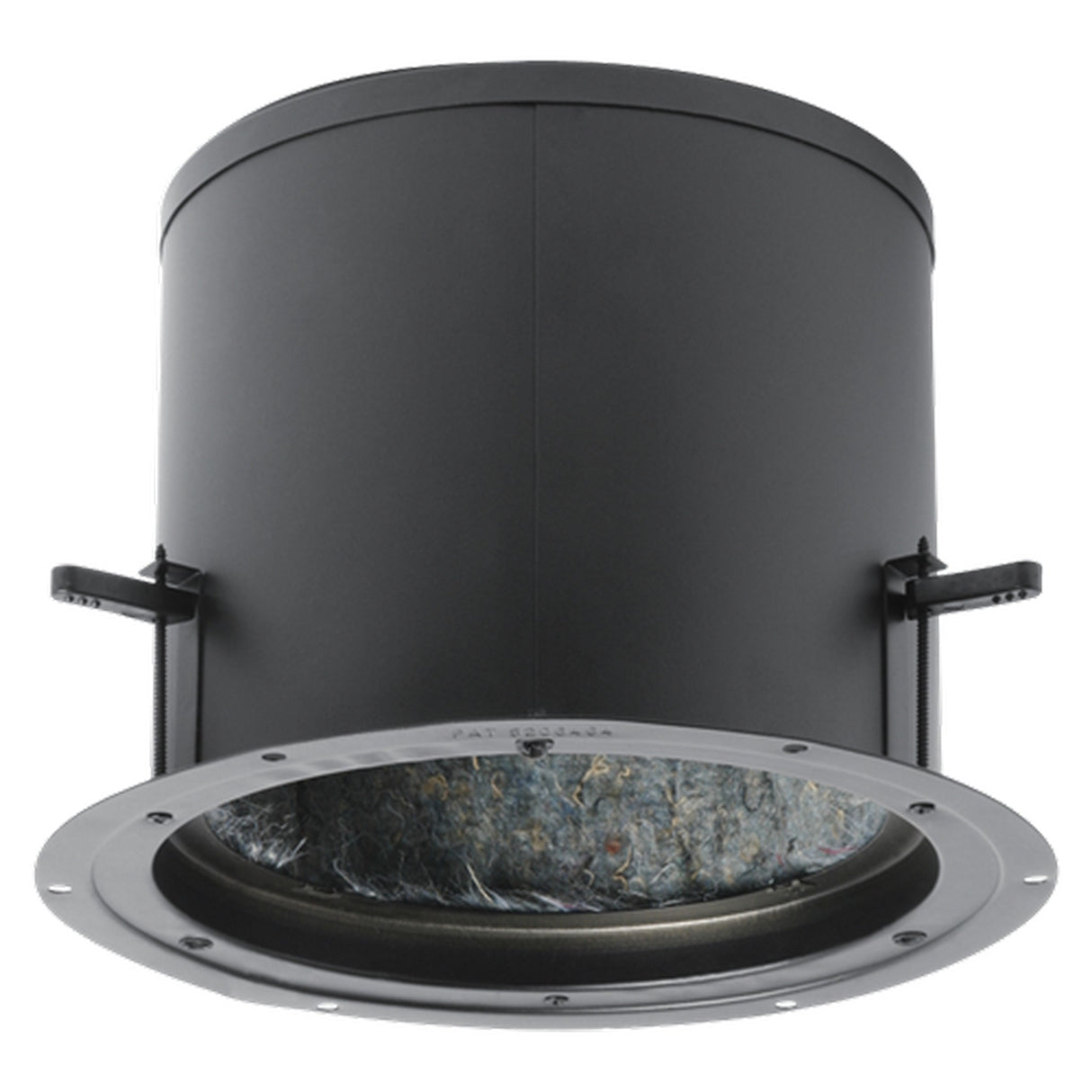

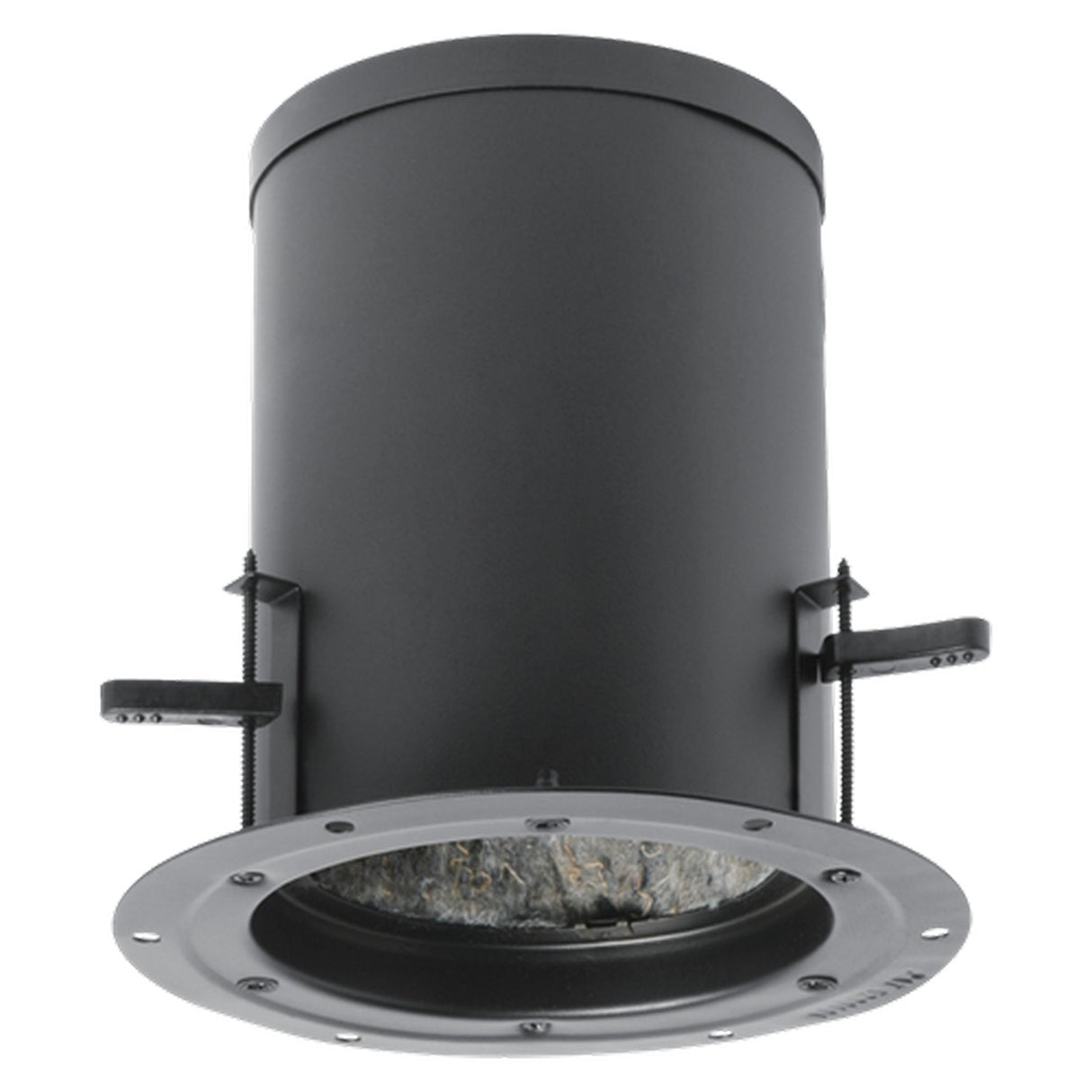

AtlasIED FA97 Series Extra Deep Recessed Enclosures for Strategy I Ceiling Speakers
The AtlasIED FA97 Series offers acoustically treated, recessed enclosures designed for high-performance installations using 4″, 6″, and 8″ Strategy I ceiling loudspeakers. These extra-deep models provide optimal low-frequency response, making them ideal for applications demanding clarity in both music and voice.
Engineered for fast and secure ceiling installation, each model features flip-tab dog ears compatible with ceiling depths up to 2 3/8″. The enclosures use a front-loading design that mounts speakers directly, eliminating grille load stress and supporting tool-free, push-on grille attachment. The FA97 Series is available in standard models with pre-punched conduit knockouts and in “NK” (No Knockout) versions, which are sealed for compliance with fire codes, plenum use, or cleanroom environments.
Key Features
- Extra depth design: Enhances bass performance in ceiling-mounted audio systems
- Recessed speaker lip: Provides a sealed, stable mount for improved audio clarity
- Dog-ear clamps: Secure installation in plaster, drywall, or tile ceilings up to 2 3/8″ thick
- Push-mount compatible: Supports welded-stud grille attachment without visible hardware
- UL Listed: UL1480 and UL2043 for signaling and plenum ceiling compliance
- Standard models: Include conduit knockouts for easy wiring access
- NK models: Sealed enclosures with no knockouts for code-sensitive installations
- Available sizes: 4″ (FA97-4), 6″ (FA97-6), and 8″ (FA97-8) with NK variants
Technical Specifications
- Model: FA97-4 / FA97-6 / FA97-8 (+ NK variants)
- Depth: 7 5/8″ (194 mm)
-
Diameter:
- FA97-4: 5 3/8″ (137 mm)
- FA97-6: 7″ (178 mm)
- FA97-8: 8 1/2″ (216 mm)
-
Shipping Weight:
- FA97-4: 2.67 lbs (1.21 kg)
- FA97-6: 2.83 lbs (1.29 kg)
- FA97-8: 4.17 lbs (1.89 kg)
- Construction: CRS with acoustic treatment
- Listings: UL 1480, UL 2043
- Warranty: 60 months
