AtlasIED HD70W 8-Inch In-Ceiling Speaker with 5W 70V Transformer and 62-8 Baffle

AtlasIED | SKU: ATS-HD70W
$5999

Estimated Shipping Widget will be displayed here!

Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability. Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible. Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand. No restocking fee will be charged when you opt for store credit. Exclusions apply.

Condition: New

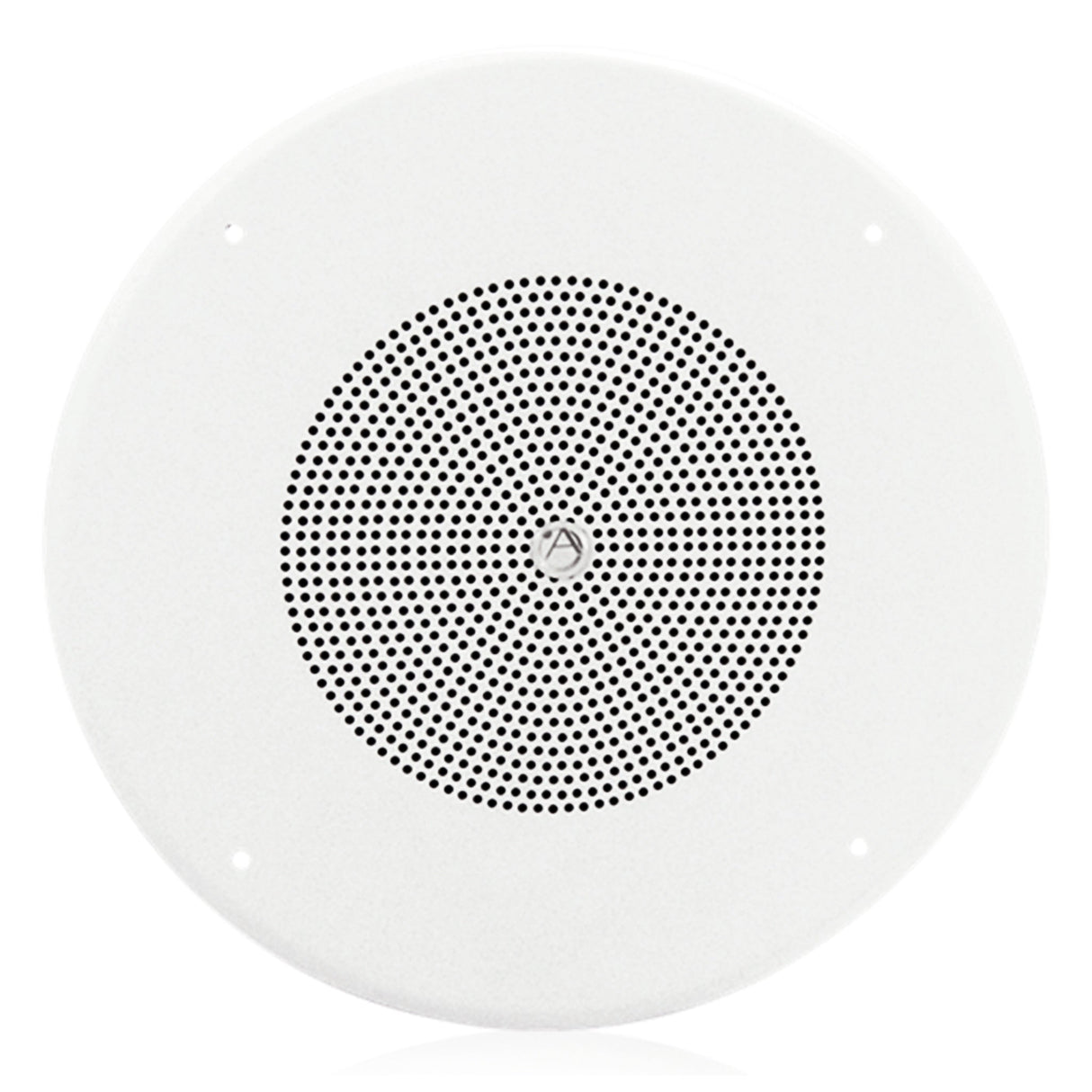

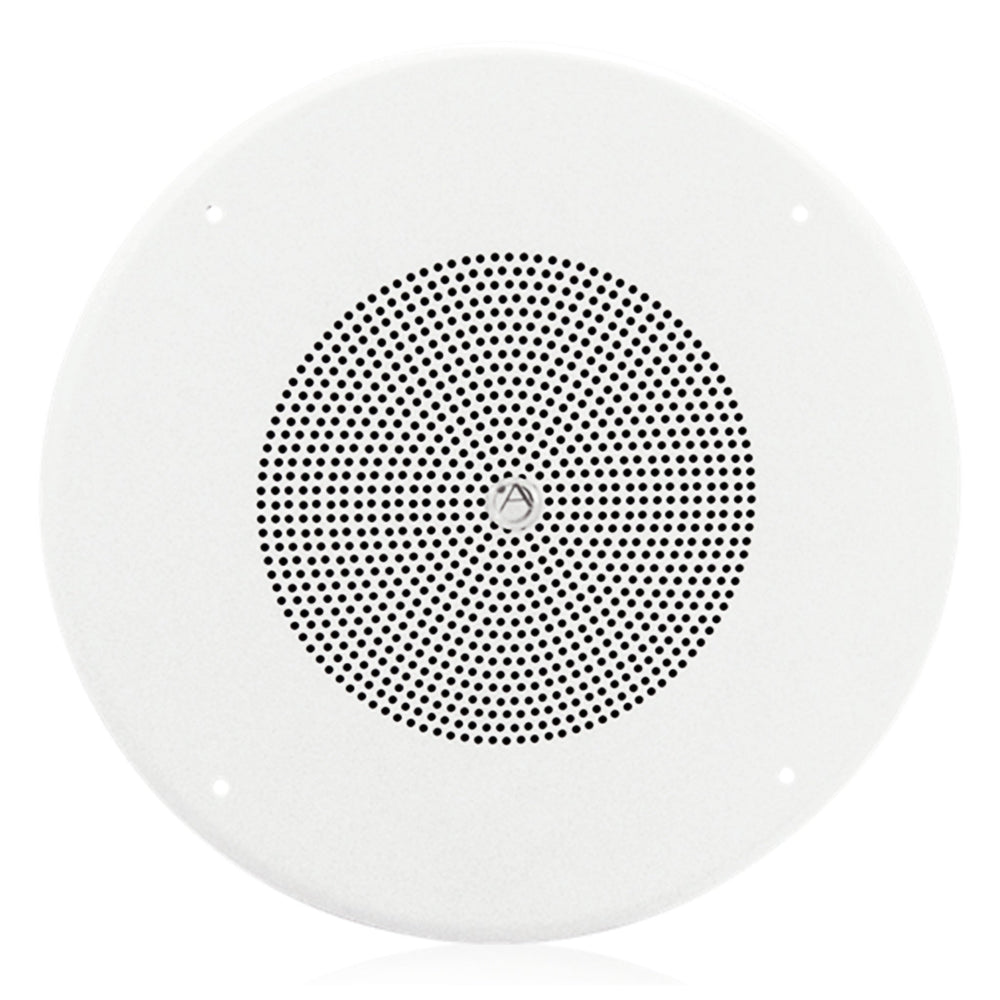

AtlasIED HD70W 8-Inch In-Ceiling Speaker with 5W 70V Transformer and 62-8 Baffle

The AtlasIED HD70W is a pre‑assembled 8″ in‑ceiling speaker system, complete with a factory-installed 70 V transformer and white screw-in grille. It’s ideal for commercial paging and background music applications, delivering quality sound from a sleek installation-ready unit.

Featuring a treated paper cone and a 1″ voice coil, this speaker offers a wide 100 Hz–10 kHz frequency response with less than 1.5 dB insertion loss. Its high sensitivity ensures excellent performance in retail, education, or office environments.

Key Features

  • 8″ cone speaker: Delivers clear music and speech with treated paper cone
  • 70 V transformer: Tap settings of 0.5, 1, 2, and 5 W for system flexibility
  • Shallow depth: Only 2 7⁄8″ deep for retrofit-friendly installation
  • Pre-assembled: Includes 62‑8 baffle and grille, ready to mount

Technical Specifications

  • Model: HD70W
  • Diameter: 8″ (203 mm)
  • Depth: 2 7⁄8″ (73 mm)
  • Frequency Response: 100 Hz–10 kHz
  • Sensitivity: 97 dB peak / 94 dB avg @1 W/1 m
  • Transformer taps: 0.5, 1, 2, 5 W at 70 V (8 Ω bypass)
  • Dispersion: 105° conical
  • Shipping weight: 4.50 lb (2.04 kg)
