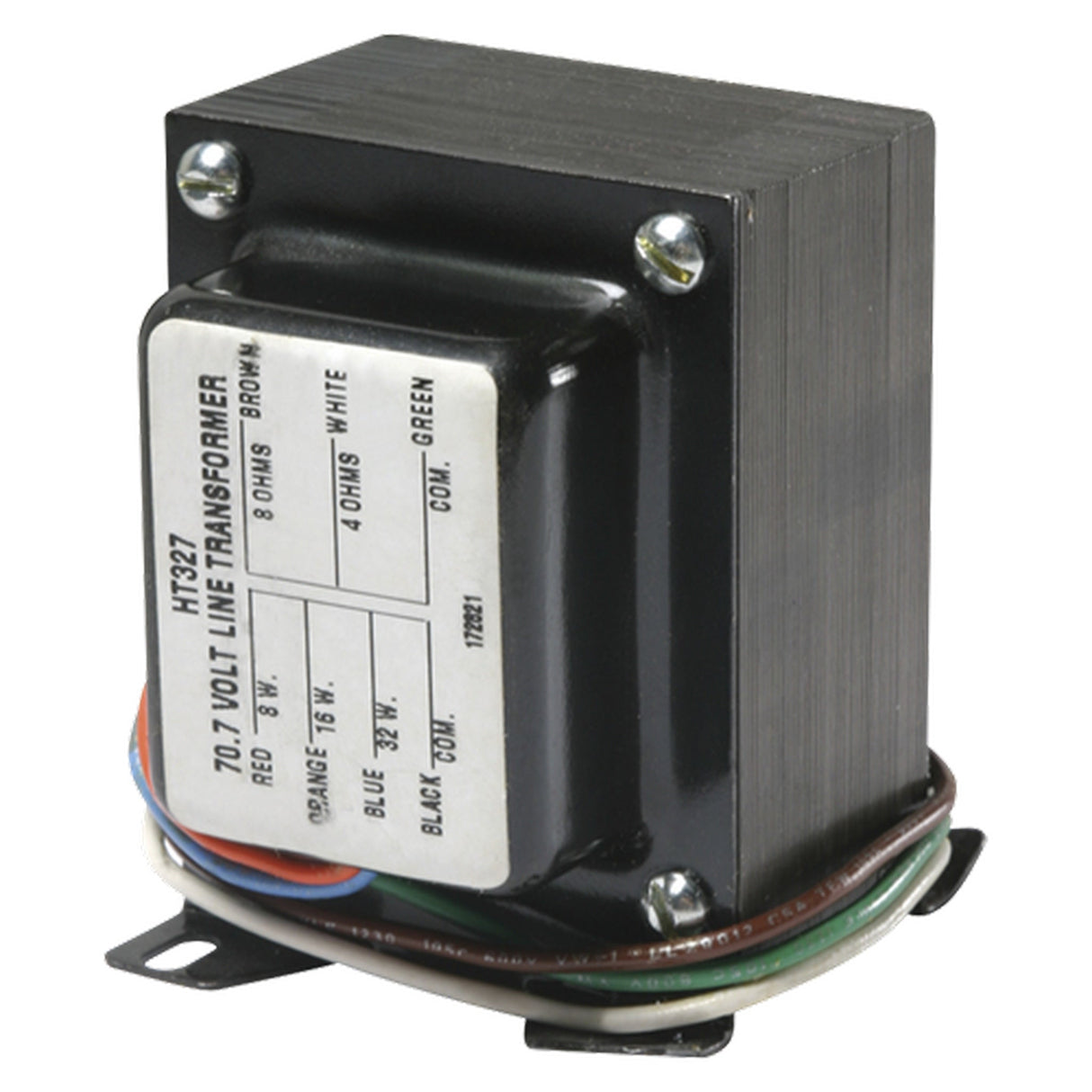

AtlasIED HT327 32W Line Matching Transformer
The AtlasIED HT327 is a high-power, external-mount line matching transformer designed for use in 70.7 V distributed audio systems. It provides precision impedance matching with minimal insertion loss, making it ideal for high-power commercial and industrial sound systems.
Engineered with audio-grade laminations, the HT327 delivers reliable performance across a wide 30 Hzā15 kHz frequency range. With selectable primary taps at 8, 16, and 32 watts and secondary output at 4 or 8 ohms, it supports flexible speaker configurations while maintaining high audio fidelity.
Key Features
- Constructed with Audio Grade Laminations: Ensures fidelity in high-power applications
- Selectable Primary Taps: 8, 16, and 32 W for versatile system design
- Dual Secondary Outputs: 4 Ī© and 8 Ī© options for matching various loudspeakers
- Low Insertion Loss: ā¤ 0.6 dB for optimal signal integrity
- Wide Frequency Range: 30 Hzā15 kHz (Ā±1 dB) for full-bandwidth performance
Technical Specifications
- Power Rating: 32 W
- Power Taps: 8, 16, 32 W
- Primary Voltage: 70.7 V
- Secondary Impedance: 4 Ī©, 8 Ī©
- Frequency Response: 30 Hzā15 kHz (Ā±1 dB)
- Insertion Loss: ā¤ 0.6 dB
- Height: 3.25 in (8.255 cm)
- Width: 2.5 in (6.35 cm)
- Shipping Weight: 3.50 lbs (1.59 kg)
- Warranty: 5 years
