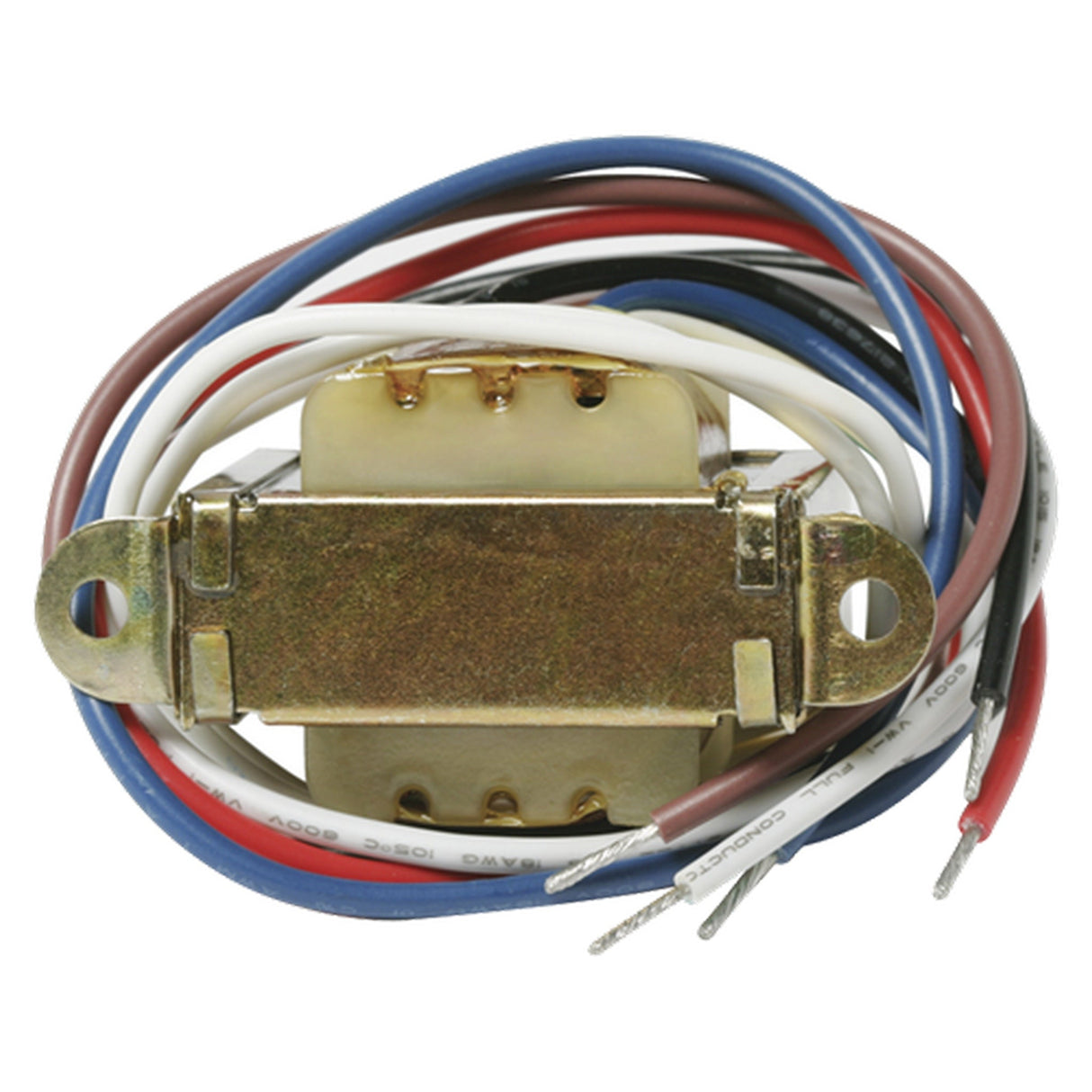

AtlasIED HT42 4W 25V Line Matching Transformer

AtlasIED | SKU: ATS-HT42
$2899



Estimated Shipping Widget will be displayed here!


Condition: New

AtlasIED HT42 4W 25V Line Matching Transformer

The AtlasIED HT42 is a precision line-matching transformer engineered for 25 V distributed audio systems. Built with audio-grade laminations, it delivers full-range performance and is designed to mount externally to loudspeakers.

Selectable primary taps (0.5, 1, 2, and 4 W) and an 8 Ω secondary allow flexibility in low-power installations. With ±1 dB frequency response from 60 Hz to 12 kHz and only 1.0 dB insertion loss, the HT42 maintains clarity and fidelity in compact sound systems.

Key Features

  • Audio-grade laminations: Ensures accurate signal transfer
  • Four power taps: 0.5/1/2/4 W for adaptable system design
  • Low insertion loss: Maximum 1.0 dB for clean audio output
  • Full-range response: ±1 dB from 60 Hz to 12 kHz

Technical Specifications

  • Power Rating: 4 W
  • Primary Voltage: 25 V
  • Power Taps: 0.5, 1, 2, 4 W
  • Secondary Impedance: 8 Ω
  • Frequency Response: 60 Hz–12 kHz (±1 dB)
  • Insertion Loss: ≤1.0 dB
  • Dimensions (HxWxD): 1.63 × 1.97 × 0.75 in (4.13 × 5.00 × 1.83 cm)
  • Shipping Weight: 0.67 lb (0.30 kg)
  • Warranty: 5 years (60 months)

AtlasIED HT42 4 W 25 V Line Matching Transformer (0.5/1/2/4 W Taps)
