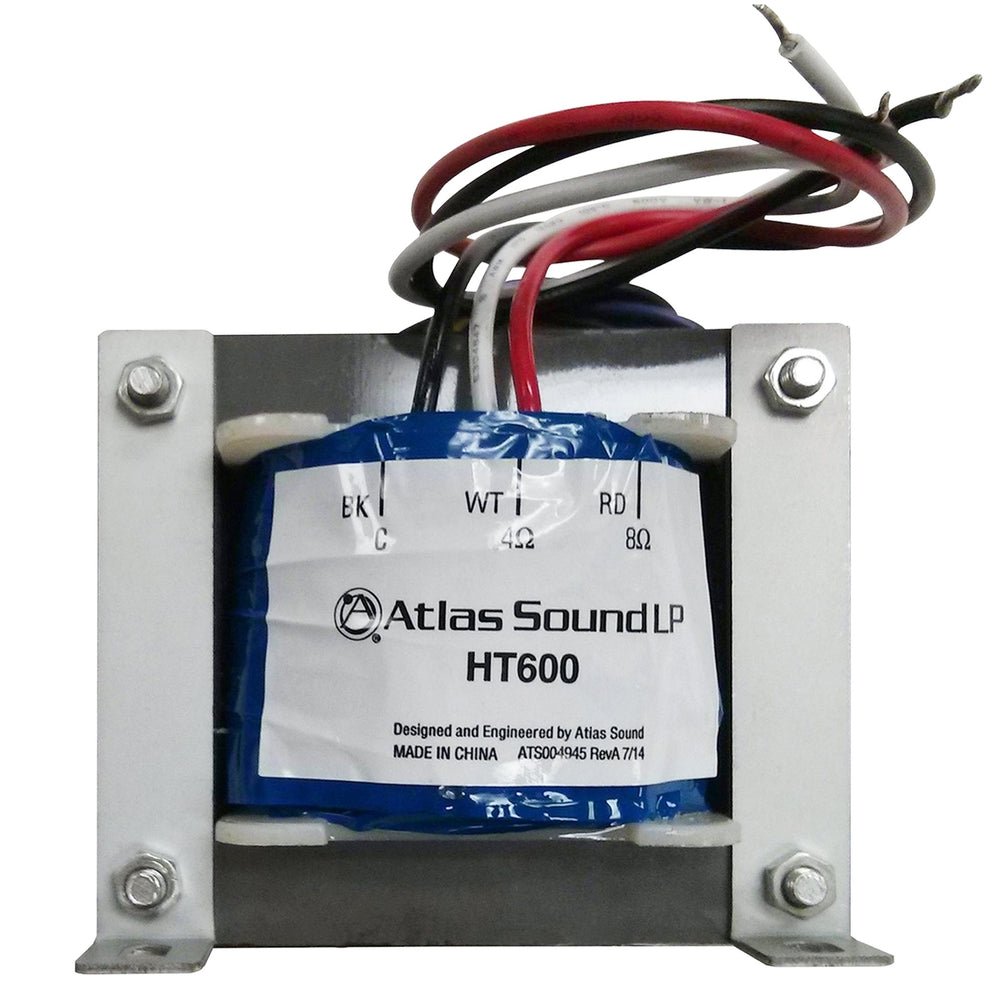

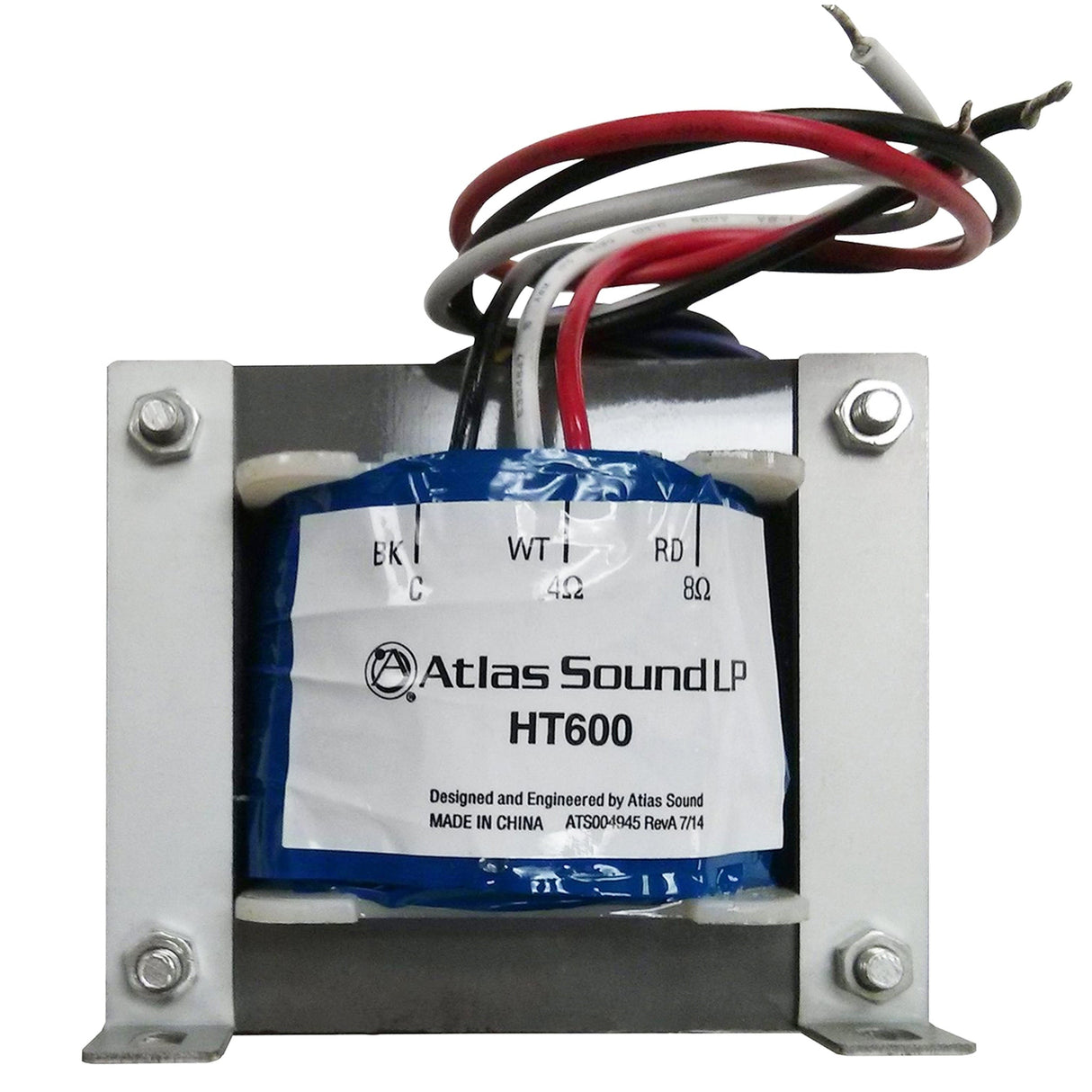

AtlasIED HT600 600W 70.7 V Line Matching Transformer
The AtlasIED HT600 is a high-power, external-mount transformer crafted for professional-grade 70.7 V distributed audio systems. Built with audio-grade laminations, it delivers full-range performance with minimal insertion loss in high-power environments.
Featuring selectable primary taps at 150, 300, and 600 W and secondary outputs for 4 Ω and 8 Ω loads, the HT600 efficiently drives large speaker arrays, maintaining signal integrity with ≤2 dB insertion loss across a wide 30 Hz–15 kHz bandwidth.
Key Features
- Audio-grade laminations: Ensures pristine audio in high-power installations
- Selectable power taps: 150 / 300 / 600 W for versatile system design
- Dual impedance secondary: 4 Ω and 8 Ω support for diverse speaker loads
- Wide frequency range: 30 Hz–15 kHz (±1 dB) for full-range clarity
- Low insertion loss: ≤2 dB preserves audio fidelity
Technical Specifications
- Power Rating: 600 W
- Primary Voltage: 70.7 V
- Power Taps: 150, 300, 600 W
- Secondary Impedance: 4 Ω, 8 Ω
- Frequency Response: 30 Hz–15 kHz (±1 dB)
- Insertion Loss: ≤2 dB
- Dimensions (HxWxD): 3.08 × 3.785 × 3.49 in (78.2 × 96.1 × 88.6 mm)
- Shipping Weight: 6.218 lb (2.83 kg)
- Warranty: 5 years (60 months)
