AtlasIED IP‑SDM‑72 IP PoE+ Endpoint Speaker with LCD

AtlasIED | SKU: ATS-IPSDM72
$1,34299

Free Shipping




Estimated Shipping Widget will be displayed here!


Condition: New

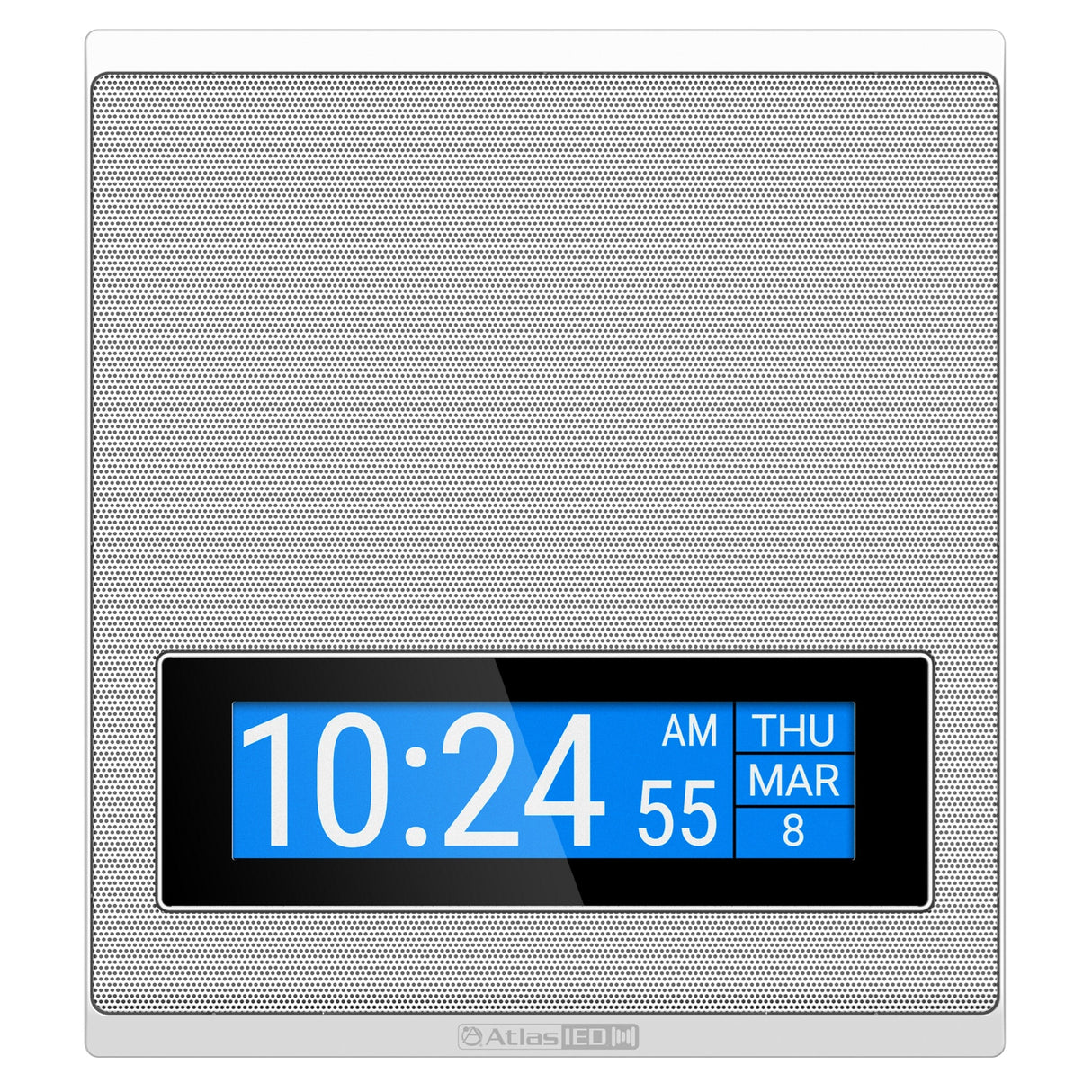

AtlasIED IP‑SDM‑72 IP PoE+ Endpoint Speaker with LCD

The AtlasIED IP‑SDM‑72 is a high-output indoor PoE+ IP speaker featuring an integrated LCD display and talkback microphone. Ideal for public address, emergency alerts, and scheduled notifications over VoIP or SIP networks.

Its 8″ coaxial speaker delivers clear, intelligible voice communication with both analog and network audio options. Designed for retrofit or phased rollout installations, it enhances campus-wide messaging using existing infrastructure.

Key Features

  • PoE+ Power & Analog Retrofit: Supports 802.3af/at PoE and includes 25V/70V transformer with front-baffle switch for analog or network operation.
  • LCD & Mic: Scrolling display for time/text and integrated omnidirectional mic for full-duplex talkback or monitoring.
  • Voice‑Network Integration: Compatible with InformaCast, Syn-Apps Revolution, Cisco SRST, SIP devices, and major VoIP platforms.
  • Durable Construction: 18-gauge steel grille with powder-coated baffle, ideal for high-traffic commercial interiors.
  • GPI/O Triggers: Includes two inputs and one relay output for third-party system integration and event triggers.

Technical Specifications

  • Model: IP‑SDM‑72
  • Dimensions: 14.37 × 12.87 × 3.42 inches (365 × 327 × 87 mm)
  • Weight: 6.37 lbs (shipment); 5.78 lbs net
  • Connectivity: RJ‑45 Ethernet (10/100Base‑T, VLAN), balanced analog line-in/out, GPI/O ports.
AtlasIED

AtlasIED IP‑SDM‑72 IP PoE+ Endpoint Speaker with LCD

$1,34299

Free Shipping

AtlasIED IP‑SDM‑72 IP PoE+ Endpoint Speaker with LCD

The AtlasIED IP‑SDM‑72 is a high-output indoor PoE+ IP speaker featuring an integrated LCD display and talkback microphone. Ideal for public address, emergency alerts, and scheduled notifications over VoIP or SIP networks.

Its 8″ coaxial speaker delivers clear, intelligible voice communication with both analog and network audio options. Designed for retrofit or phased rollout installations, it enhances campus-wide messaging using existing infrastructure.

Key Features

  • PoE+ Power & Analog Retrofit: Supports 802.3af/at PoE and includes 25V/70V transformer with front-baffle switch for analog or network operation.
  • LCD & Mic: Scrolling display for time/text and integrated omnidirectional mic for full-duplex talkback or monitoring.
  • Voice‑Network Integration: Compatible with InformaCast, Syn-Apps Revolution, Cisco SRST, SIP devices, and major VoIP platforms.
  • Durable Construction: 18-gauge steel grille with powder-coated baffle, ideal for high-traffic commercial interiors.
  • GPI/O Triggers: Includes two inputs and one relay output for third-party system integration and event triggers.

Technical Specifications

  • Model: IP‑SDM‑72
  • Dimensions: 14.37 × 12.87 × 3.42 inches (365 × 327 × 87 mm)
  • Weight: 6.37 lbs (shipment); 5.78 lbs net
  • Connectivity: RJ‑45 Ethernet (10/100Base‑T, VLAN), balanced analog line-in/out, GPI/O ports.
