AtlasIED IP‑ZCM Series IP‑to‑Analog Gateways with Integrated Amplifier

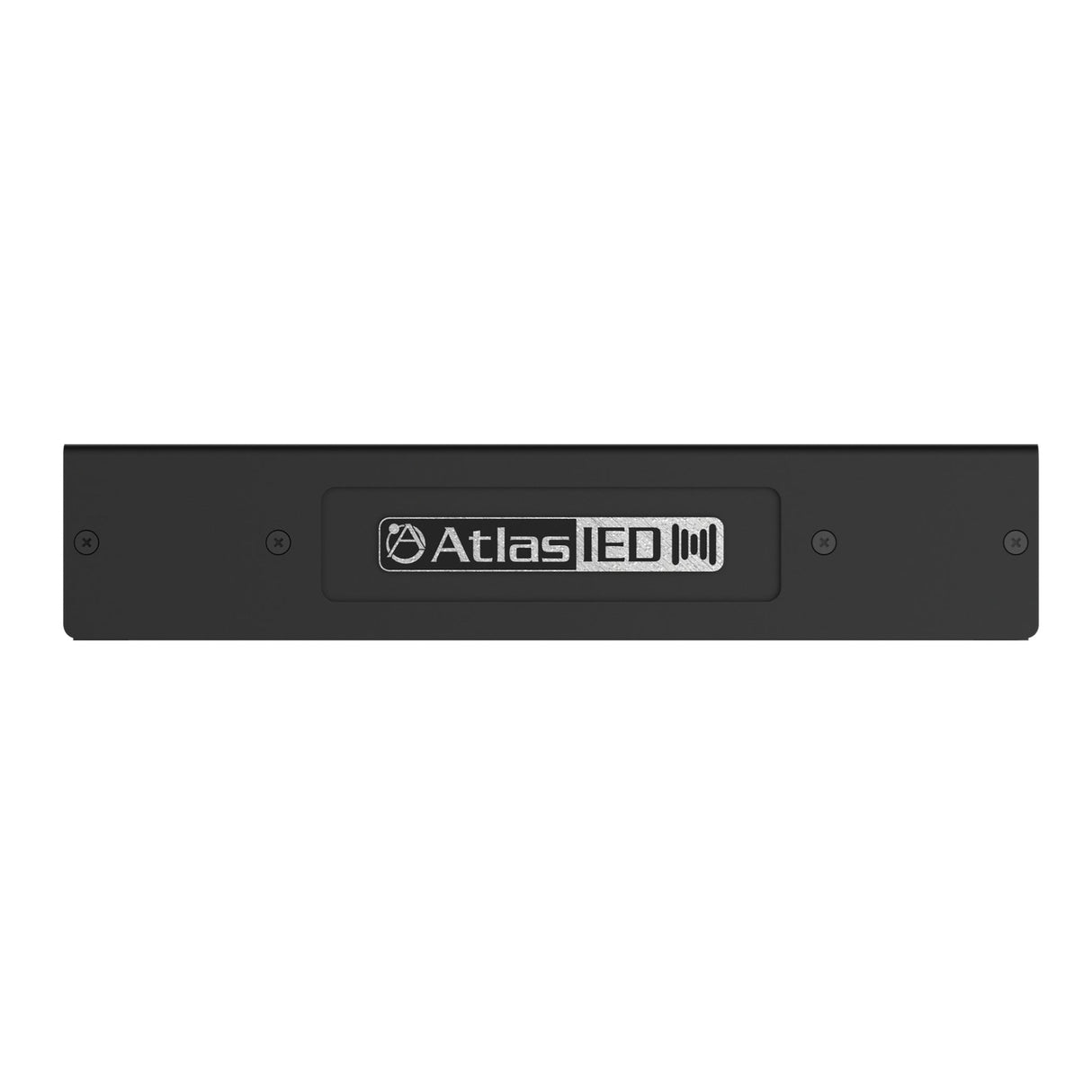

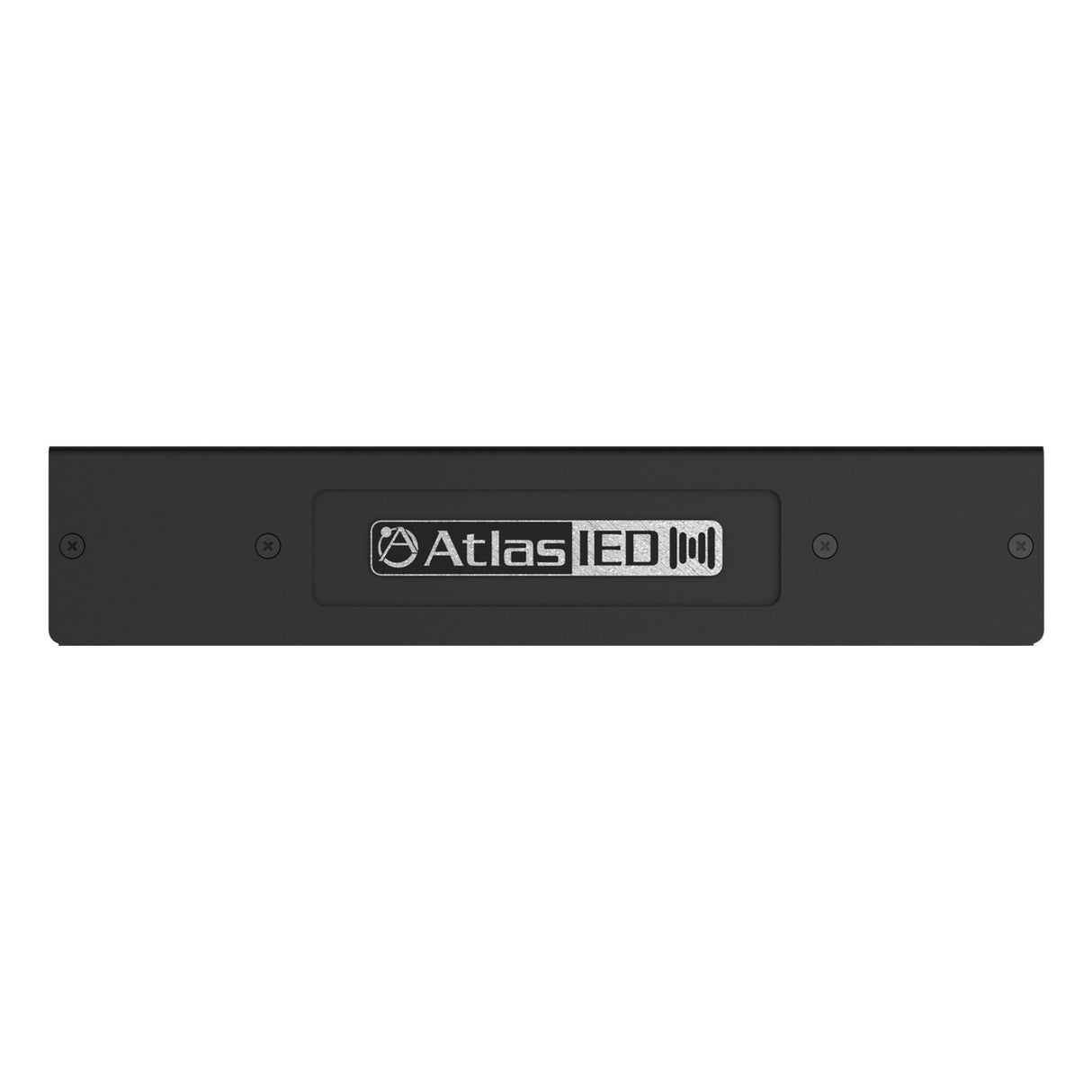

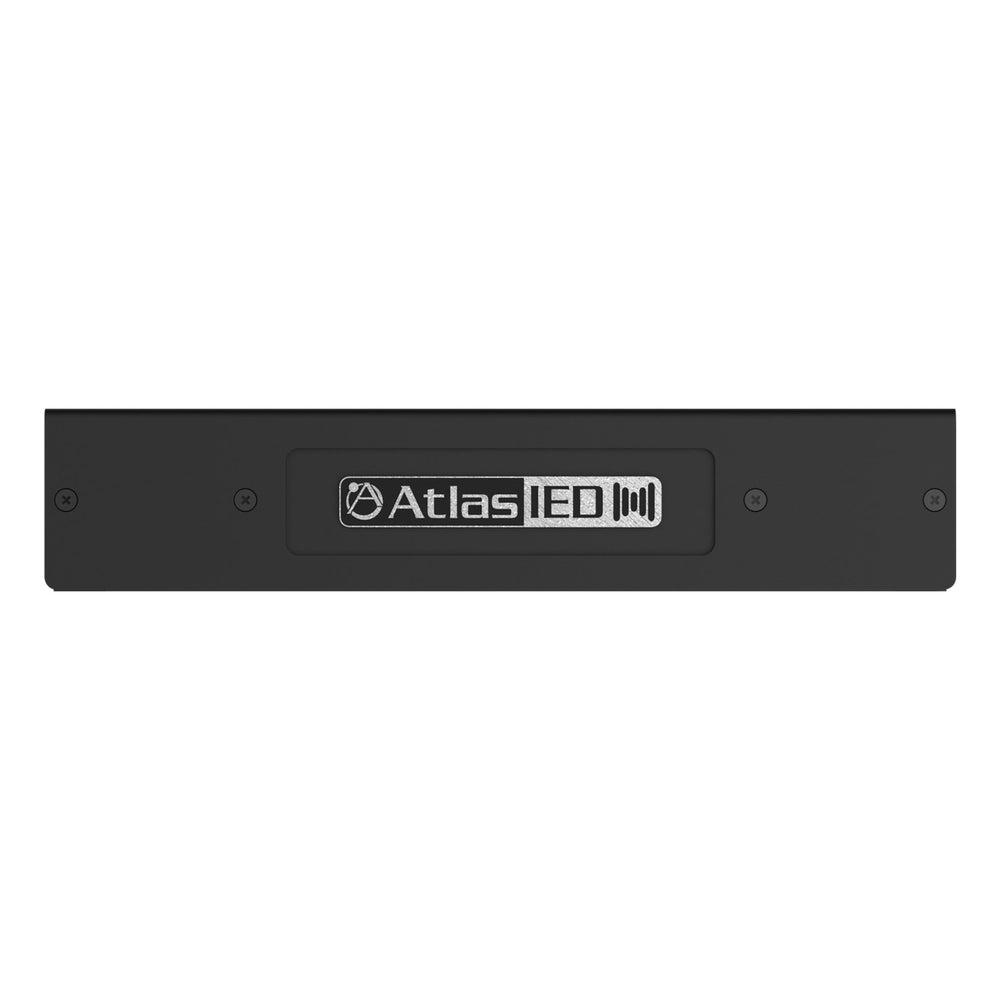

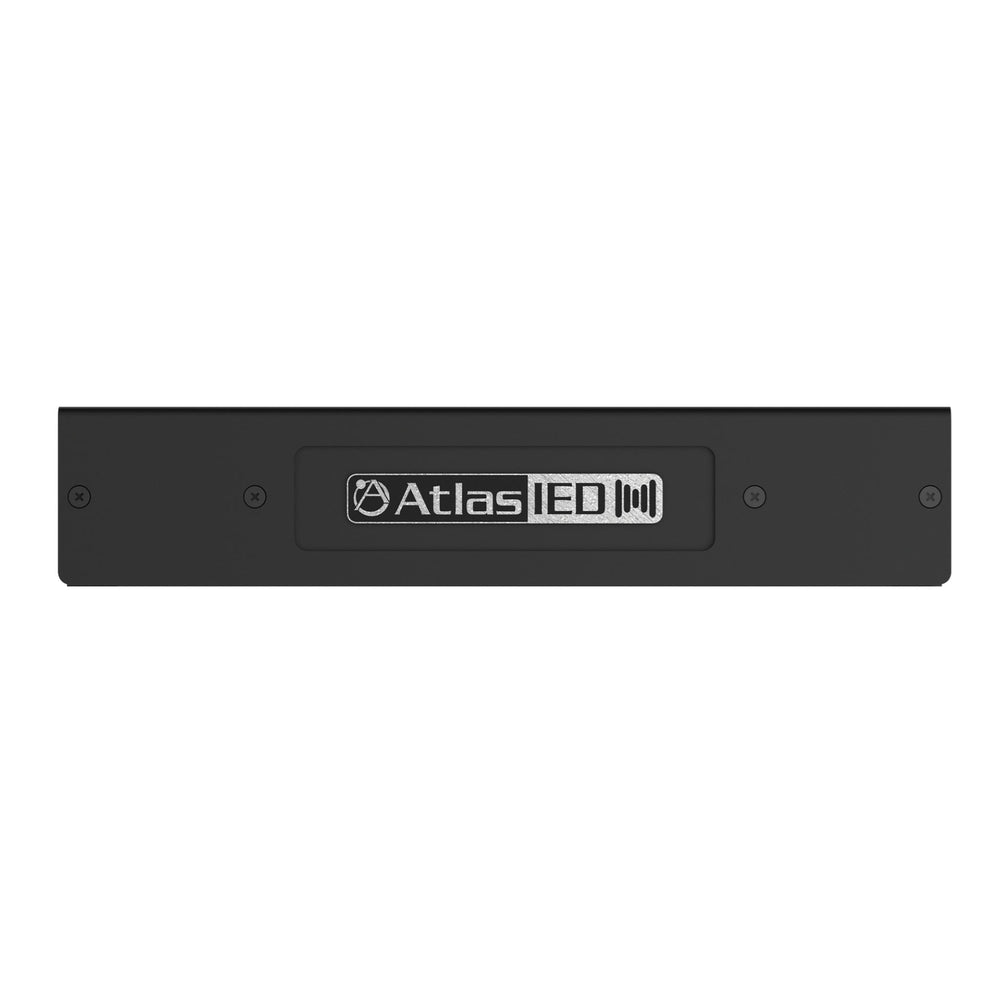

The AtlasIED IP‑ZCM series connects VoIP and unified communication platforms to traditional analog systems. Available in three models—standard (IP‑ZCM), single rack-mount (IP‑ZCM1RMK), and dual rack-mount (IP‑ZCM2RMK)—these PoE+ powered gateways enable audio routing, zone paging, alerting, and device control in a compact 1RU chassis.
Each unit registers as an addressable SIP or InformaCast endpoint, supporting audio broadcasts, pre-recorded messages, and talkback via GPI and microphone inputs. A 15-watt integrated amplifier delivers audio to 8-ohm or 70.7V speakers, while line-level outputs interface with external AtlasIED amplifiers. Ideal for corporate, education, transportation, and industrial paging systems.
Key Features
- Integrated 15W Amplifier: Drives 8-ohm or 70.7V analog speaker clusters
- SIP & InformaCast Compatibility: Registers directly as a communication endpoint

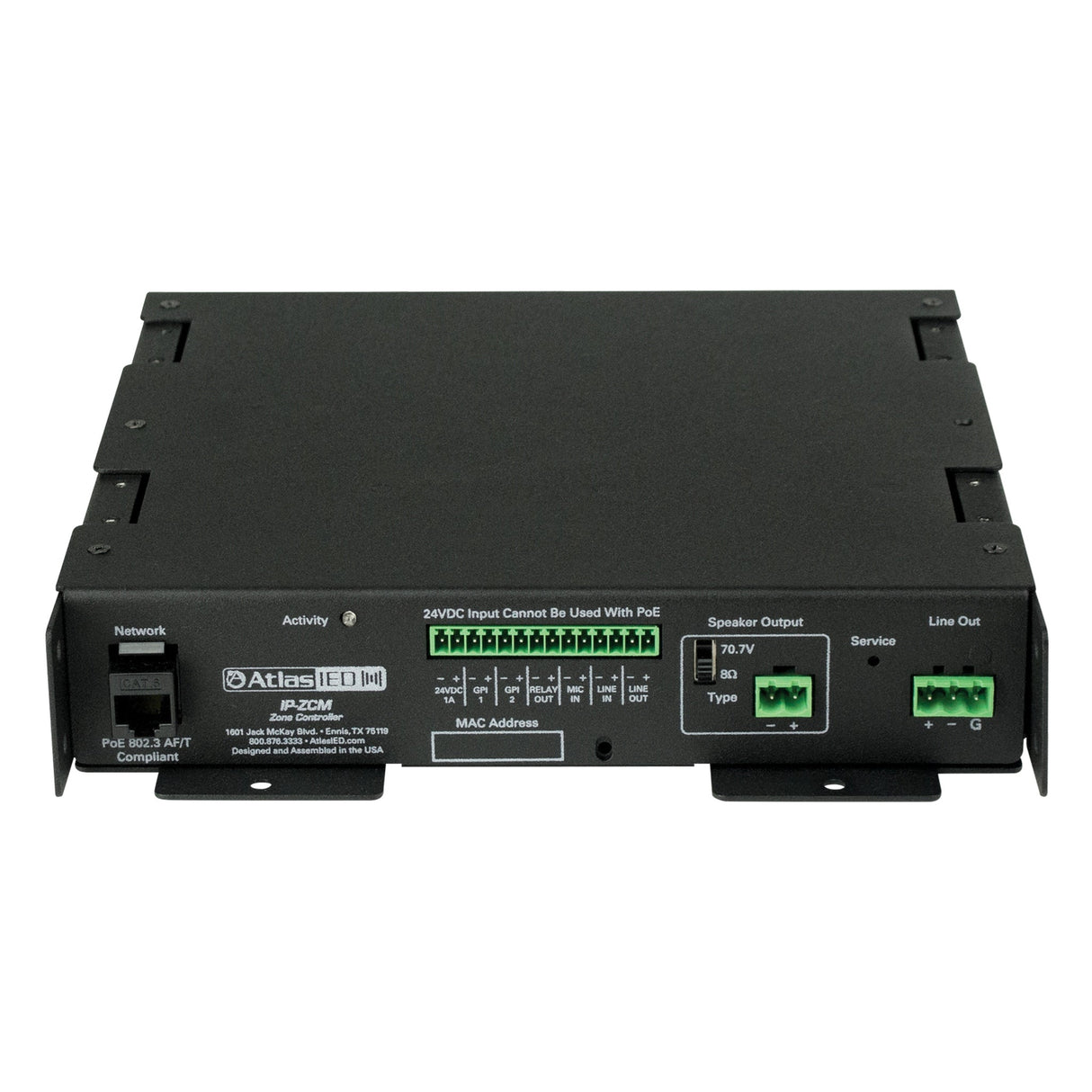

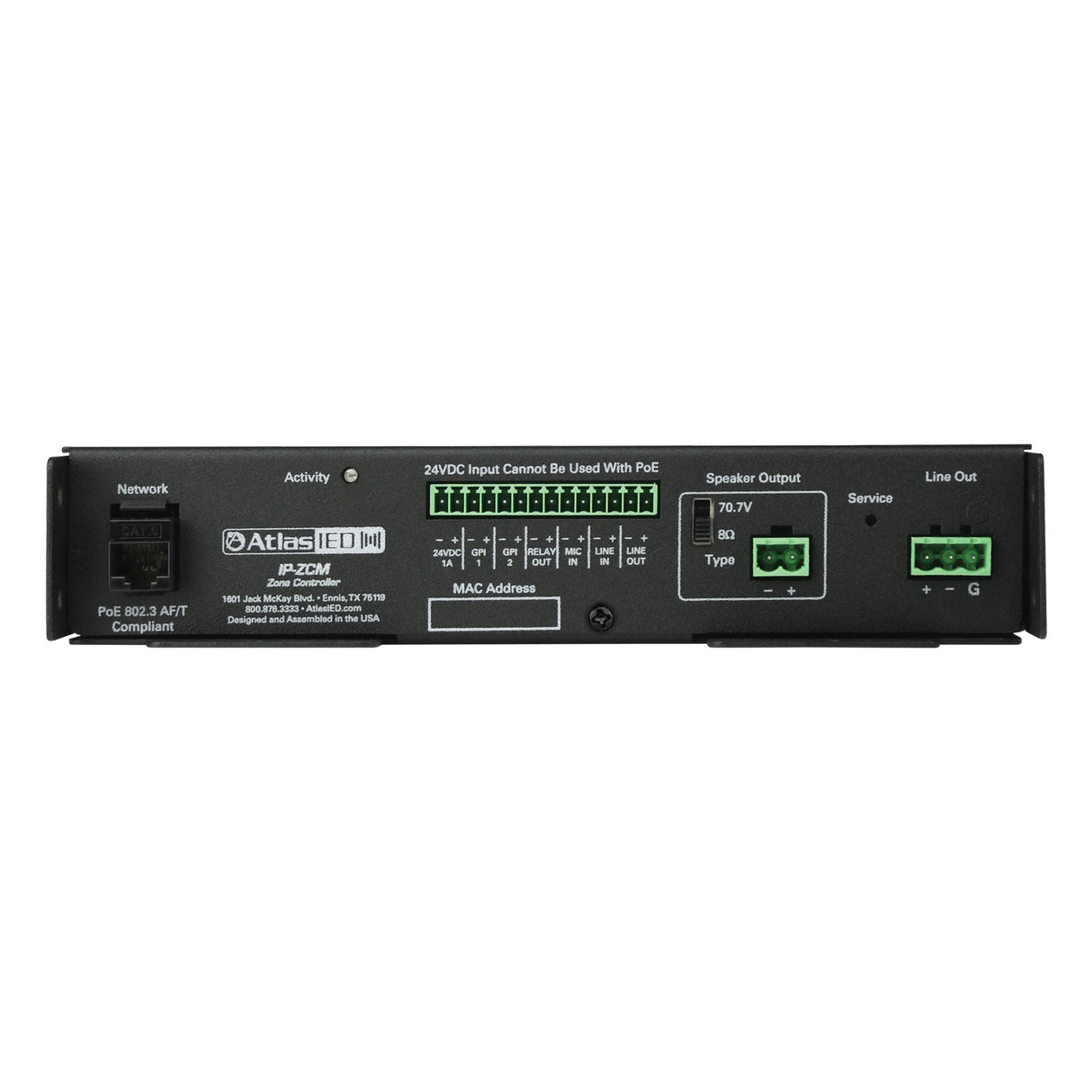

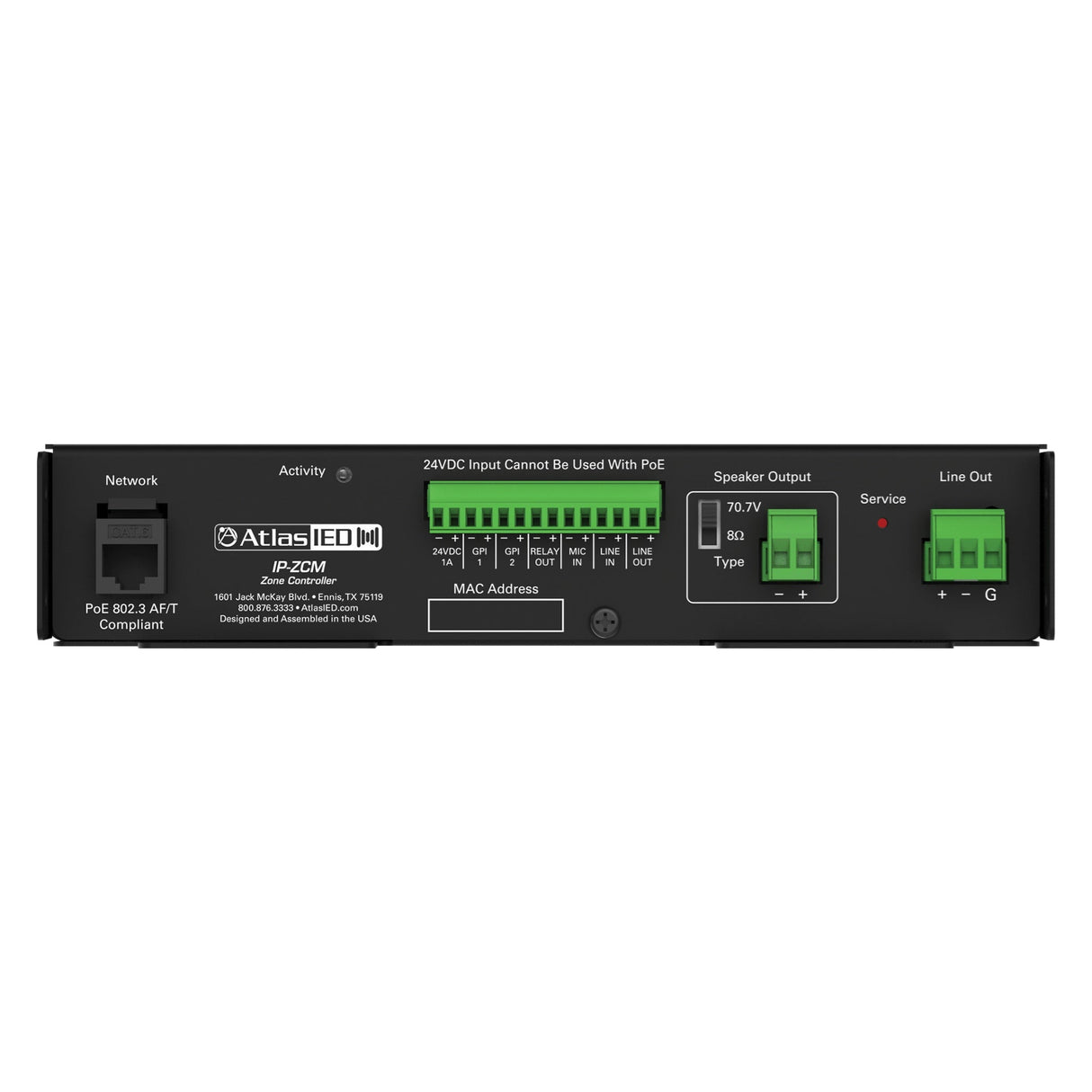

- Flexible I/O: Line-in/out, 2 GPI, 1 GPO, and mic input for talkback
- PoE+ Powered: Compliant with IEEE 802.3af/at or optional 24VDC PSU
- Compact Design: 1RU form factor; rack-mount kits available
Technical Specifications

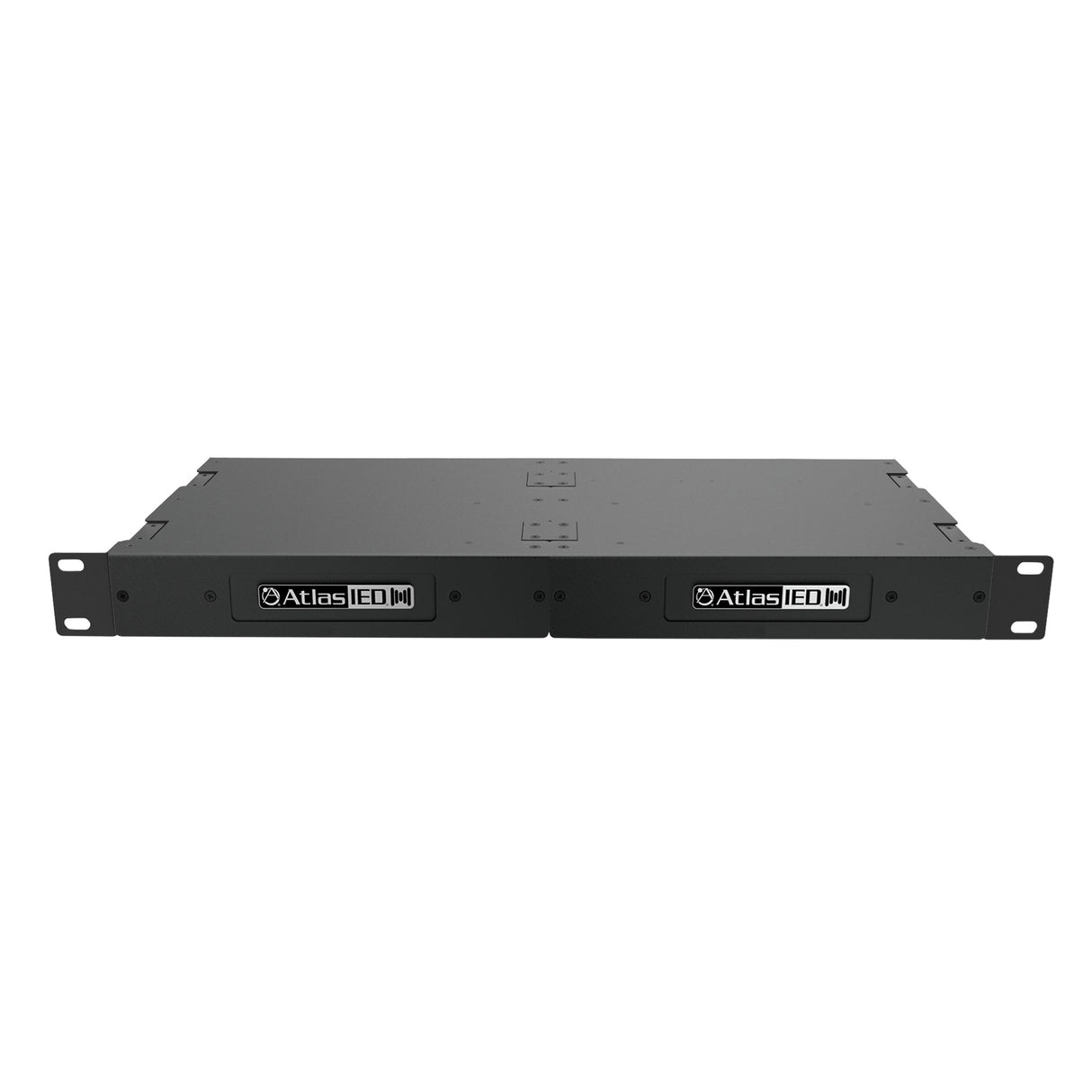

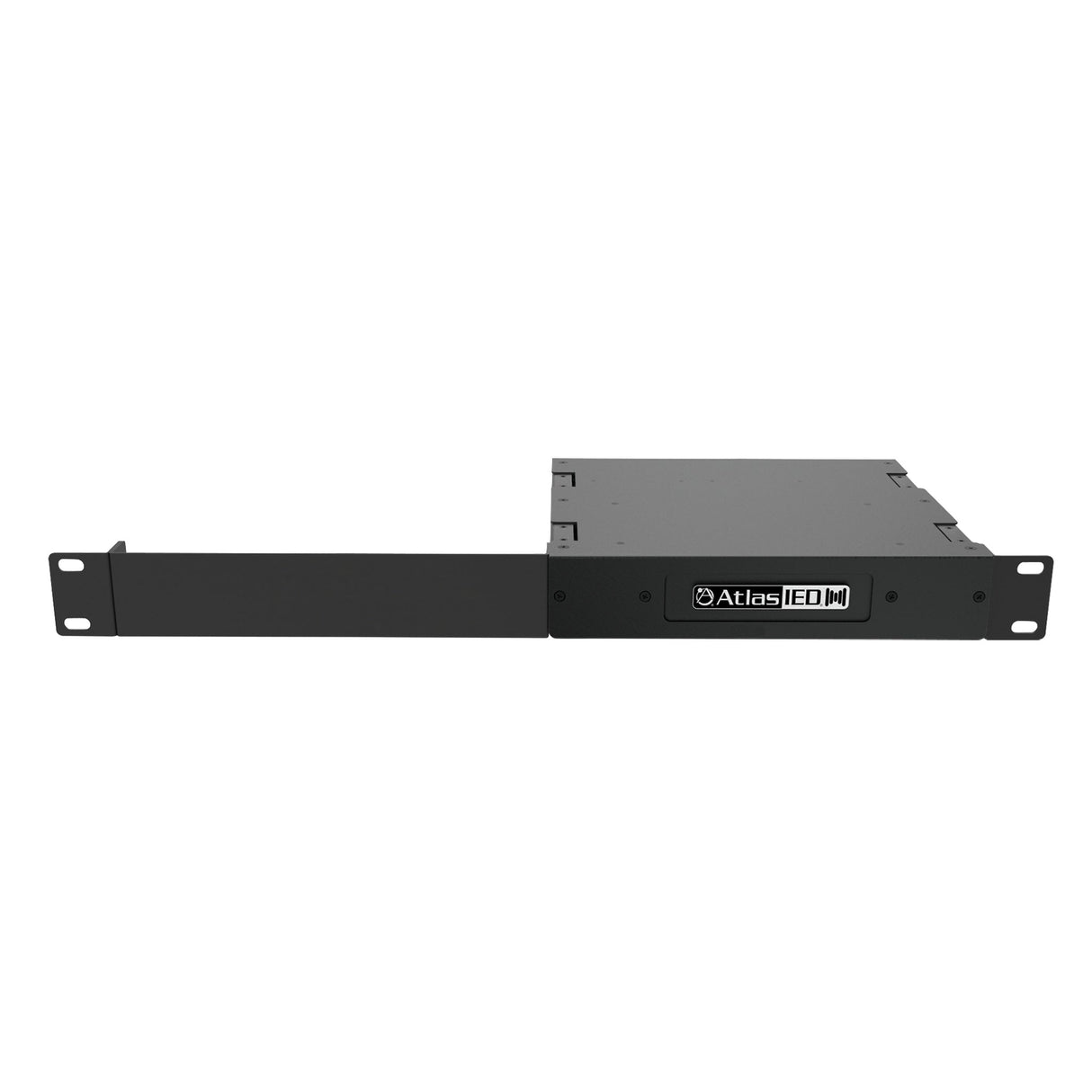

- Models: IP-ZCM, IP-ZCM1RMK (with single rack kit), IP-ZCM2RMK (dual unit with rack kit)
- Dimensions: 8.5 × 8.85 × 1.75 in (216 × 225 × 45 mm); 19 in wide with rack mount
- Weight: Approx. 3.5 lbs (1.6 kg)
- Audio Output: 8Ω or 70.7V amplified; unbalanced line-level out
- Network: 10/100Base-T Ethernet, multicast enabled, VLAN tagging
- Power: PoE+ or 24VDC, 15W max
- Compliance: FCC, CSA, IEC 62368-1
- Warranty: 60-month manufacturer warranty
