AtlasIED PD-30 30W Compression Driver for Large Format Horn Speakers, 8 Ohms
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

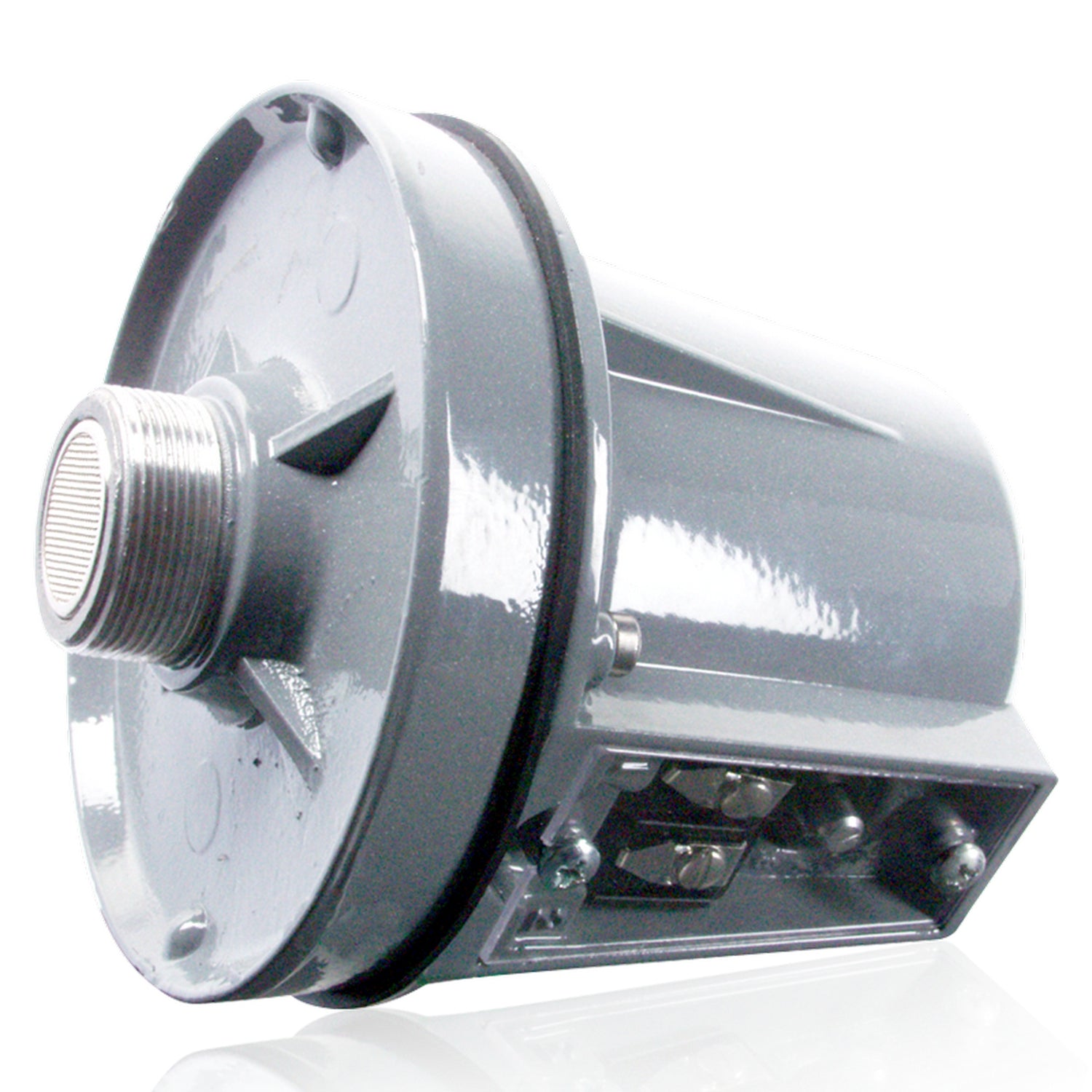

AtlasIED PD‑30 30W Environmental Compression Driver, 8 Ohms
The AtlasIED PD‑30 is a rugged, environment-resistant compression driver designed for high-output horn speaker applications, delivering 30 W into 8 Ω. Ideal for indoor or outdoor public address, signaling, and music systems featured in expansive or high-ambient noise environments.
Featuring a 1.5″ (32 mm) voice coil and a plane-wave frequency response from 300 Hz to 3.9 kHz (±5 dB), the PD‑30 provides clear vocal and midrange audio with high sensitivity. Its weatherproof die-cast housing with 1-3/8″–18 male thread allows easy mounting on standard horns or via AtlasIED DA‑FH adapters.
Designed for durability and versatility, the PD‑30 is well-suited for professional installations requiring reliable long-term performance in challenging environments.
Key Features
- Power Rating: 30 W at 8 Ω
- Voice Coil: 1.5″ (32 mm)
- Frequency Response: 300 Hz – 3.9 kHz (±5 dB)
- Sensitivity: 113.6 dB average 300–3.9 kHz
- Impedance: 8 Ω nominal
- Construction: Environment-resistant die-cast housing
- Mounting: Standard 1 3/8″–18 male coupling
- Weather Resistance: Indoor/outdoor rated
- Warranty: 60 months
Technical Specifications
- Dimensions: 4.5″ × 4.5″ (11.4 × 11.4 cm)
- Weight: 3.0 lbs (1.36 kg)
- Shipping Weight: 4.00 lbs (1.81 kg)
- Power Rating: 30 W @ 8 Ω
- Plane-Wave Frequency Response: 300 Hz – 3.9 kHz (±5 dB)
- Low-Frequency Limit (full power): 500 Hz
- Sensitivity: 113.6 dB avg. (300–3,900 Hz)
- Impedance: 8 Ω nominal
- Voice Coil Diameter: 1.5″ (32 mm)
- Mounting Thread: 1 3/8″‑18 male
- Housing Finish: Grey baked epoxy
- Warranty Period: 60 months
What's Included
- PD‑30 compression driver
- Die-cast protective cover
- Standard thread coupling (no horn)
