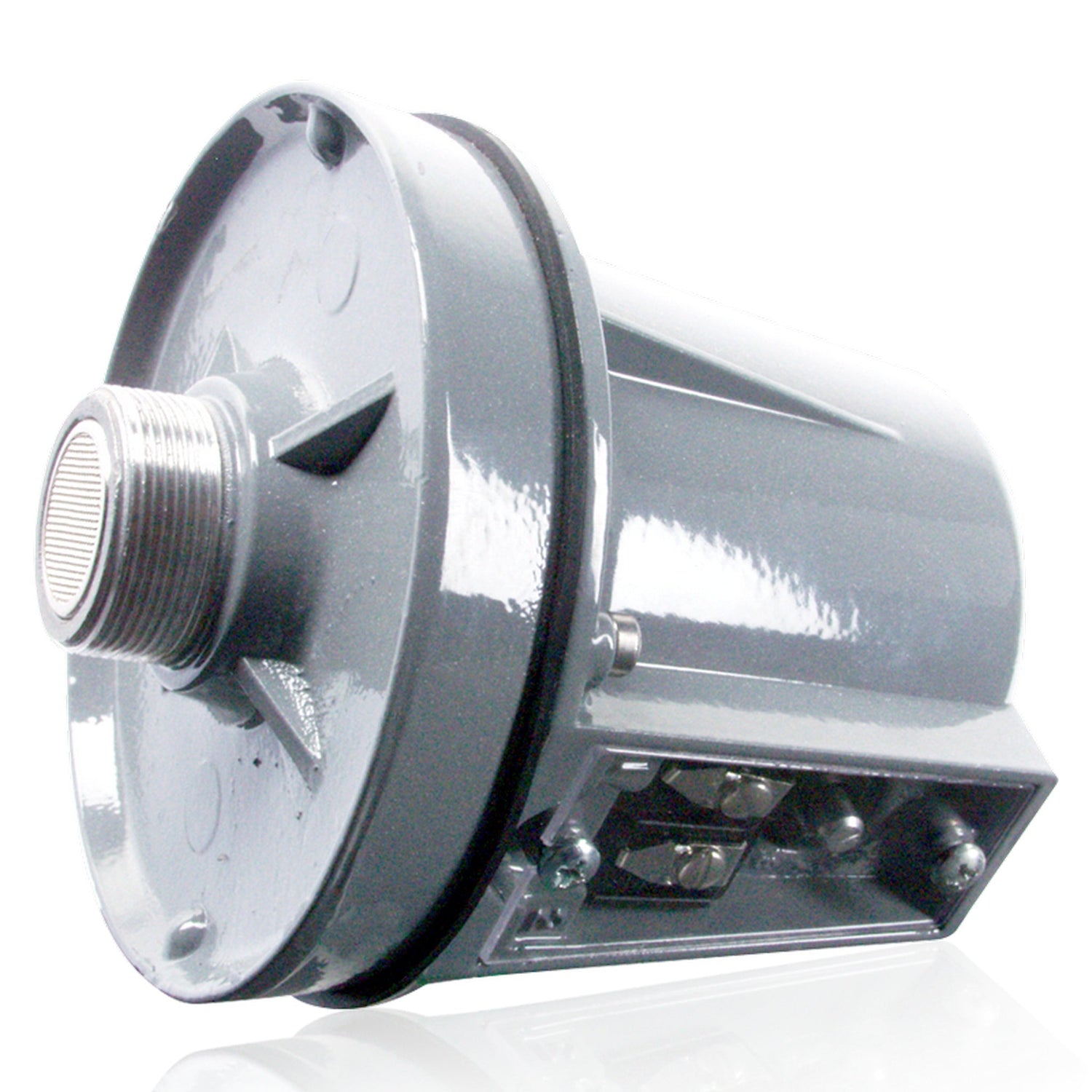

AtlasIED PD‑30T 30W Environmental Compression Driver with Vari‑Tap Transformer
The AtlasIED PD‑30T is an environment‑resistant compression driver featuring a 70.7 V line‑matching transformer with screwdriver‑selectable power taps. Delivering 30 W RMS and high intelligibility, it's suited for indoor/outdoor PA systems, signaling, and music in expansive or high‑noise venues.
It has a 1.5″ voice coil and plane‑wave frequency response of 300 Hz–3.9 kHz (±5 dB), with 113.6 dB sensitivity. The transformer offers taps at 1.8, 3.7, 7.5, 15, and 30 W, selectable via the Vari‑Tap control. Rugged die‑cast housing and standard 1 3/8″–18 coupling allow reliable horn mounting.
Key Features
- Power Rating: 30 W RMS at 70.7 V
- Transformer Taps: 1.8, 3.7, 7.5, 15, 30 W
- Voicing: 300 Hz–3.9 kHz (±5 dB)
- Sensitivity: 113.6 dB avg. (300–3,900 Hz)
- Impedances: 45, 89, 167, 333, 666, 1300, 2500 Ω
- Voice Coil: 1.5″ (32 mm)
- Housing: Die‑cast, grey epoxy, environment‑resistant
- Mounting: 1 3/8″–18 male thread
- Transformer Control: Vari‑Tap selectable
- Warranty: 60 months
- Certifications: TAA, NDAA compliant
Technical Specifications
- Dimensions: 4.5″ × 4.5″ (11.43 × 11.43 cm)
- Weight: 4.75 lbs (2.15 kg)
- Shipping Weight: 4.00 lbs (1.81 kg)
- Package Dimensions: 7.1″ × 5.9″ × 5.1″
- Power Rating: 30 W RMS @ 70.7 V
- Frequency Response: 300 Hz–3.9 kHz (±5 dB)
- Low-Freq Limit: 500 Hz at full power
- Sensitivity: 113.6 dB avg (300–3,900 Hz)
- Impedances: 45–2500 Ω corresponding to transformer taps
- Voice Coil Diameter: 1.5″ (32 mm)
- Mounting Thread: 1 3/8″–18 male
- Construction: Die‑cast grey epoxy
- Warranty: 60 months
- Certifications: TAA, NDAA compliant
What's Included
- PD‑30T compression driver with Vari‑Tap Transformer
- Protective terminal cover with strain relief
