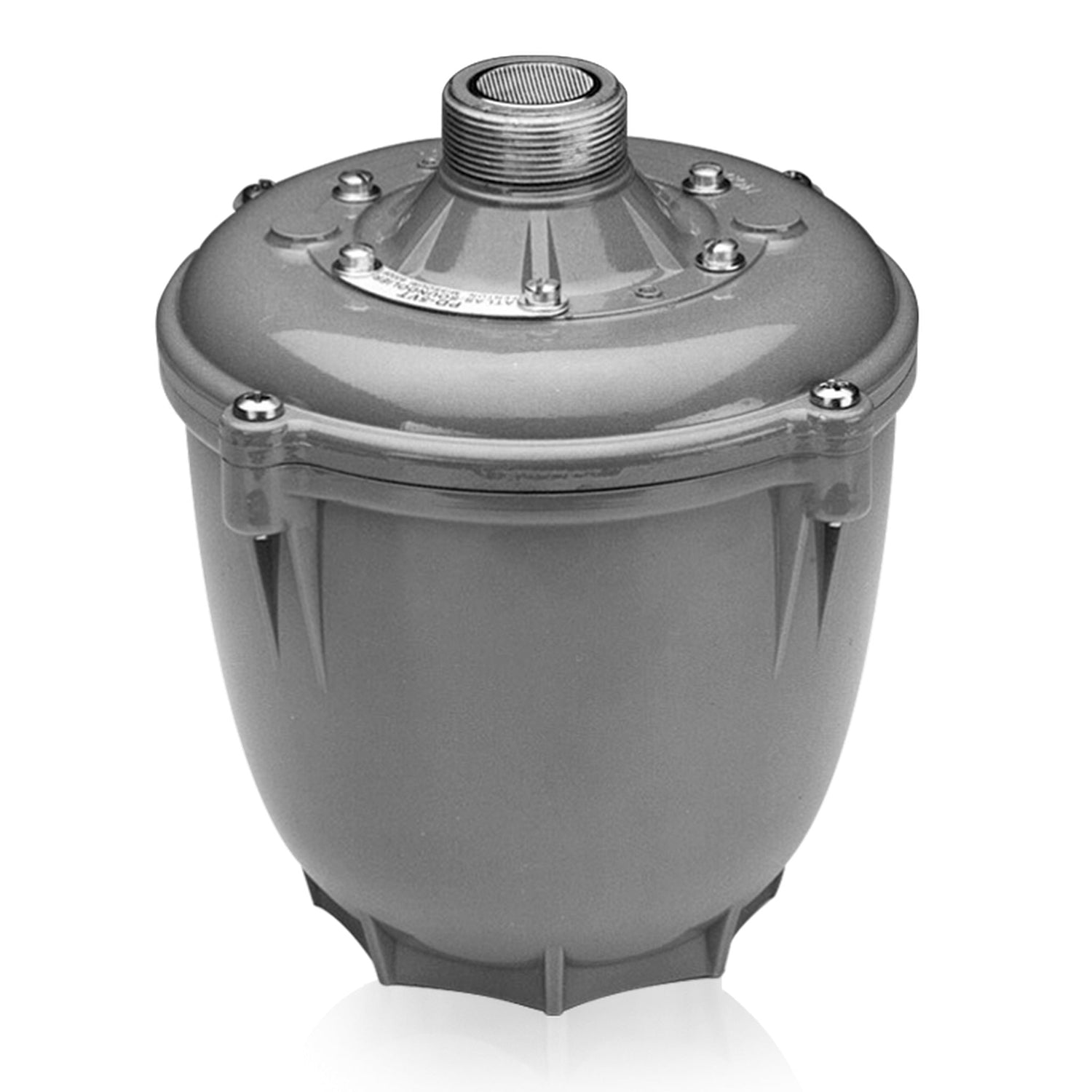

AtlasIED PD‑5VT 40W Environmental Compression Driver with Multi‑Tap Transformer
The AtlasIED PD‑5VT is a rugged, weather-resistant compression driver featuring a built-in multi-tap 70.7 V transformer, selectable via screwdriver taps. Delivering 40 W RMS power and optimized for indoor/outdoor PA, signaling, and live sound environments, it supports both 70 V and 25 V systems.
Equipped with a ceramic magnet and a 2″ (50.8 mm) voice coil, it offers a plane-wave frequency response from 190 Hz to 4.2 kHz (±5 dB), with an average sensitivity of 111.2 dB. Housed in a durable die-cast enclosure with IP56 rating and finished in gray baked epoxy, it mounts easily to horns via standard 1 3/8″–18 threads.
Key Features
- Power Handling: 40 W RMS
- Transformer: Multi‑tap 70.7 V line‑matching (also adaptable to 25 V)
- Selectable Power Taps: 2.5, 5, 10, 20, 40 W
- Voice Coil: 2″ (50.8 mm)
- Frequency Response: 190 Hz – 4.2 kHz (±5 dB)
- Sensitivity: 111.2 dB avg. (190–4,200 Hz)
- Magnet: Ceramic, tropic-sealed
- Mounting: 1 3/8″–18 male thread
- Construction: Environment-resistant die-cast housing, IP56 rated, gray baked epoxy finish
- Terminals: Screw-type wiring with clear protective cover (strain relief)
- Warranty: 60 months
Technical Specifications
- Dimensions: 6 7/8″ × 6 3/8″ (17.46 × 16.19 cm)
- Weight: 7.00 lbs (3.18 kg)
- Power Rating: 40 W RMS
- Power Taps: 2.5, 5, 10, 20, 40 W @ 70.7 V
- Frequency Response: 190 Hz – 4.2 kHz (±5 dB)
- Low-Frequency Limit (full power): 300 Hz
- Sensitivity: 111.2 dB avg.
- Impedances: 2 kΩ, 1 kΩ, 500 Ω, 250 Ω, 125 Ω, 16 Ω
- Voice Coil Diameter: 2″ (50.8 mm)
- Magnet Type: Ceramic, varnish‑impregnated, tropic‑sealed
- Mounting Thread: 1 3/8″–18 male
- Construction: IP56 rated die-cast housing, gray epoxy finish
- Terminals: Screw‑type with protective cover & strain relief
- Warranty: 60 months
What's Included
- PD‑5VT compression driver with transformer
- Clear protective terminal cover with strain relief
