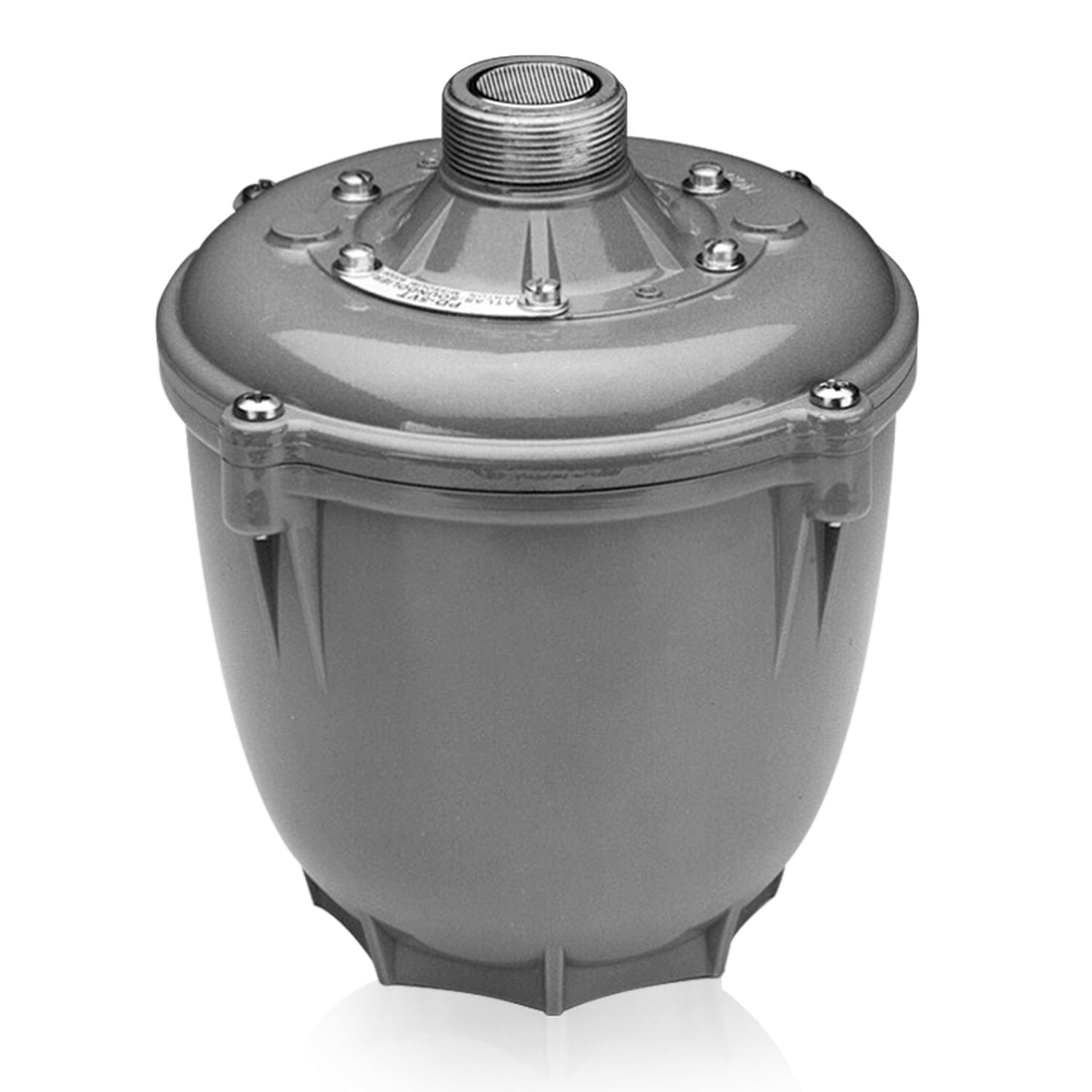

AtlasIED PD‑60A 60W Environmental Compression Driver, 16 Ohms
The AtlasIED PD‑60A is a rugged, environment-resistant 60 W compression driver designed for large-format horn speaker systems used in PA, signaling, and live sound applications both indoors and outdoors. It delivers high intelligibility and excellent power handling in expansive or noisy environments.
Constructed with a 2″ phenolic voice coil and ceramic magnet structure, it offers a plane-wave frequency response from 100 Hz to 3.7 kHz (±5 dB) and an average sensitivity of 112.7 dB. Housed in a durable die-cast enclosure with screw-type terminals and strain-relief cover, the PD‑60A mounts effortlessly via industry-standard 1 3/8″–18 male threading.
Key Features
- Power Rating: 60 W RMS
- Impedance: 16 Ω nominal
- Voice Coil: 2″ (50.8 mm), phenolic
- Magnet: Ceramic, precision machined
- Frequency Response: 100 Hz – 3.7 kHz (±5 dB)
- Sensitivity: 112.7 dB (average, 100–3,700 Hz)
- Mounting: 1 3/8″–18 male thread
- Terminals: Screw-type, corrosion-resistant, protected by plastic cover with strain relief
- Housing: Die‑cast, grey baked epoxy; weather-resistant
- Warranty: 60 months
- Field-Replaceable Diaphragm: High‑temp molded phenolic
Technical Specifications
- Dimensions: 6⅞″ H × 6⅜″ D (17.46 × 16.19 cm)
- Weight: 6.2 lbs (2.81 kg)
- Shipping Weight: 8.66 lbs (3.93 kg)
- Frequency Response: 100–3,700 Hz (±5 dB)
- Low-Frequency Limit: 300 Hz @ full power
- Sensitivity: 112.7 dB (avg.)
- Impedance: 16 Ω nominal
- Voice Coil Diameter: 2″ (50.8 mm)
- Mounting Thread: 1 3/8″–18 male
- Diaphragm: High‑temperature phenolic, roll‑type suspension (field‑replaceable)
- Housing Finish: Grey baked epoxy
- Warranty: 60 months
What's Included
- PD‑60A compression driver
- Corrosion‑resistant screw terminal assembly with protective cover
