AtlasIED PD‑60AT 60W Environmental Compression Driver with Multi‑TapTransformer

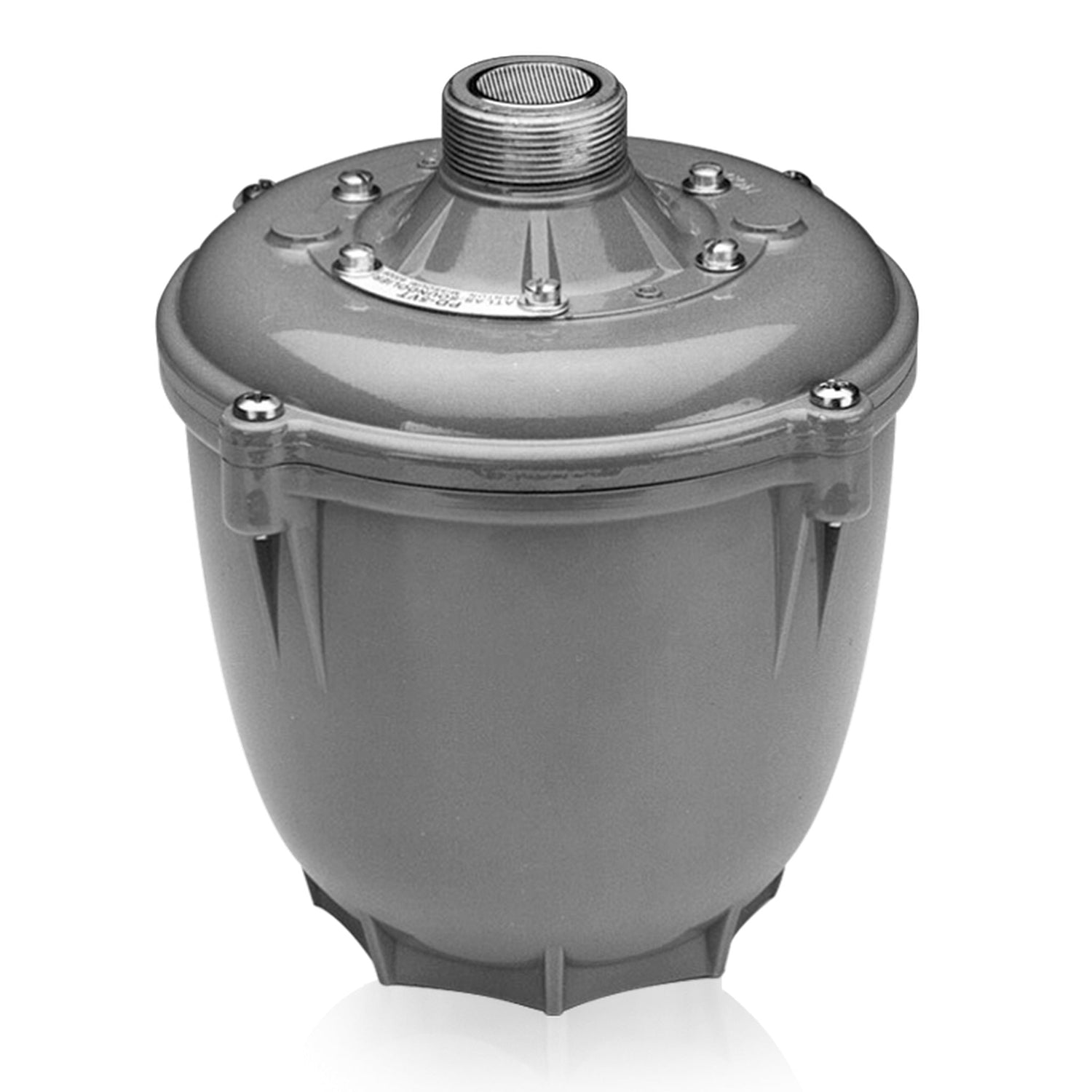

The AtlasIED PD‑60AT is a rugged, weather-resistant 60 W compression driver featuring an integrated multi‑tap 70.7 V line‑matching transformer and sealed transparent terminal cover. It delivers high intelligibility and dependable performance in indoor/outdoor PA, signaling, and industrial audio systems located in large or high-noise environments.
Equipped with a 2″ cloth-base phenolic voice coil and ceramic magnet optimized for thermal stability, the unit provides a plane-wave frequency response of 100 Hz–3.7 kHz (±5 dB) with an average sensitivity of 112.7 dB. Mounts using standard 1 3/8″–18 male threading and includes corrosion-resistant screw terminals with strain-relief cover.
Key Features
- Power Rating: 60 W RMS
- Transformer Taps: 2.5, 5, 10, 20, 40, 60 W @ 70.7 V
- Frequency Response: 100 Hz – 3.7 kHz (±5 dB)
- Sensitivity: 112.7 dB average (100–3,700 Hz)
- Impedance: 16 Ω voice coil; transformer taps at 83 Ω, 167 Ω, 333 Ω, 625 Ω, 1250 Ω, 2 kΩ
- Voice Coil: 2″ (50.8 mm), phenolic
- Magnet: Ceramic, varnish‑impregnated for durability
- Mounting: 1 3/8″–18 male thread
- Housing: Die‑cast, grey baked epoxy; environment‑resistant
- Terminals: Screw‑type, corrosion‑resistant with transparent cover & strain relief
- Warranty: 60 months
- Field‑Replaceable Diaphragm: High‑temperature phenolic
Technical Specifications
- Dimensions: 6 7/8″ H × 6 3/8″ D (17.46 × 16.19 cm)
- Weight: 8.0 lbs (3.63 kg)
- Shipping Weight: 8.66 lbs (3.93 kg)
- Frequency Response: 100–3,700 Hz (±5 dB)
- Low-Frequency Limit: 300 Hz at full power
- Sensitivity: 112.7 dB avg.
- Impedance (voice coil): 16 Ω nominal
- Transformer Impedance Taps: 2 kΩ, 1 kΩ, 500 Ω, 250 Ω, 125 Ω, 83 Ω
- Power Taps: 2.5, 5, 10, 20, 40, 60 W @ 70.7 V
- Voice Coil Diameter: 2″ (50.8 mm)
- Mounting Thread: 1 3/8″–18 male
- Diaphragm: Cloth-base molded phenolic, field-replaceable
- Housing Finish: Grey baked epoxy, weather-resistant
- Warranty: 60 months
What's Included
- PD‑60AT compression driver with built‑in transformer
- Corrosion‑resistant screw terminal connector with clear protective cover & strain relief
