AtlasIED PM8FA 8-Inch FA138 Coaxial Pendant Mount Speaker - Black
AtlasIED | SKU: ATS-PM8FAB
1
of
3
Loading...
$38199
Free Shipping
Unit price
/
Unavailable
More finance options:
Estimated Shipping Widget will be displayed here!
Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability.
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New

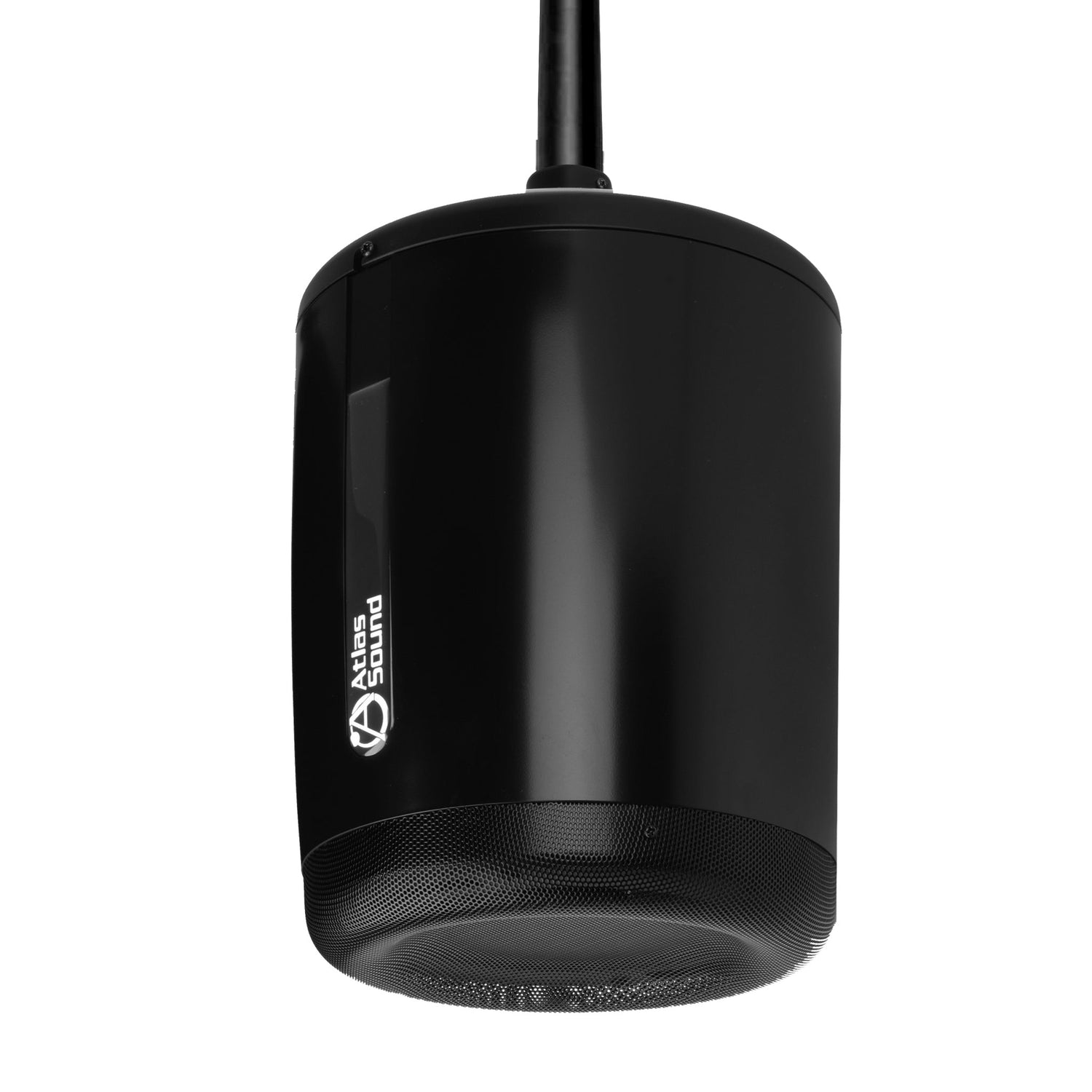

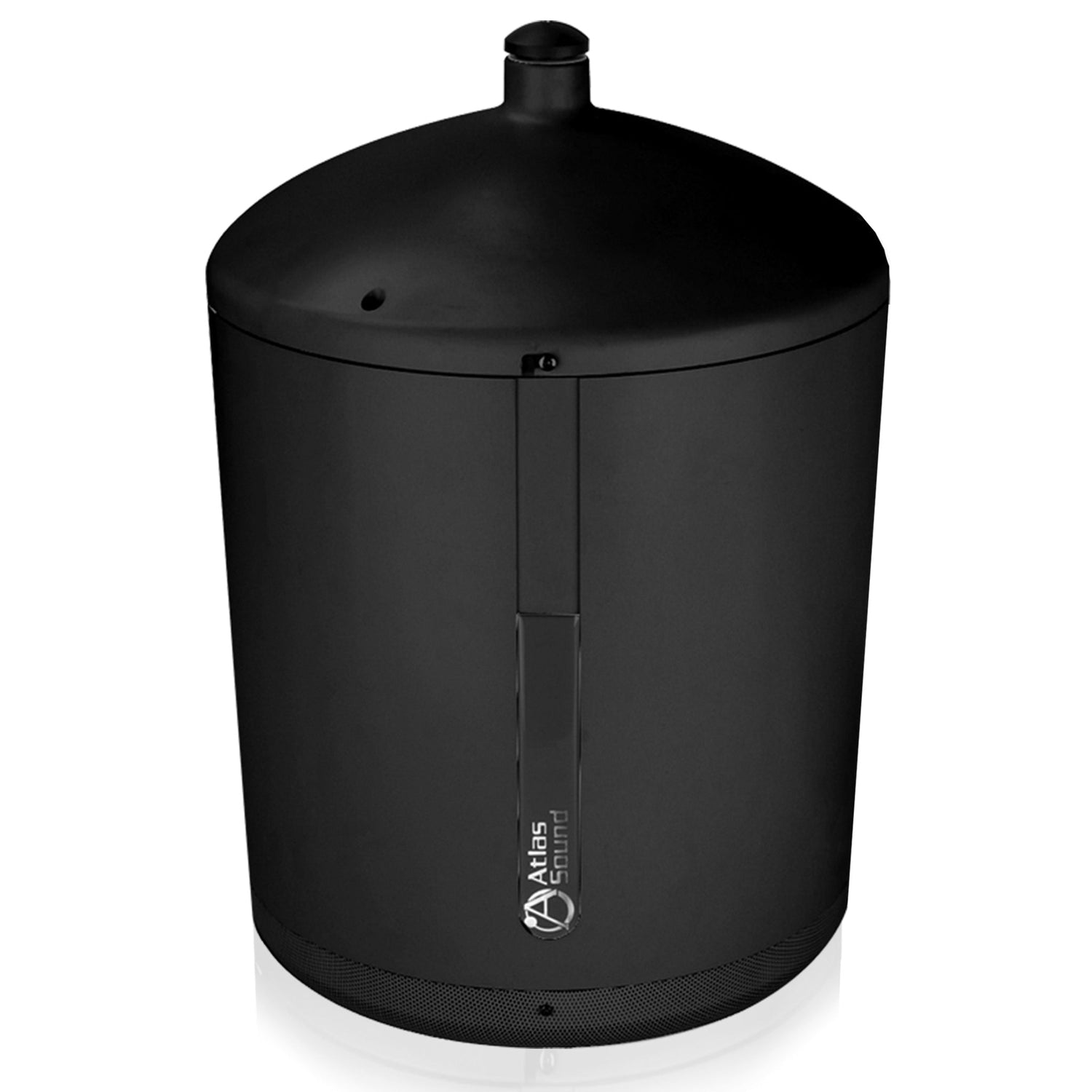

AtlasIED PM8FA 8-Inch FA138 Coaxial Pendant Mount Speaker
The PM8FA is a pendant-mount loudspeaker featuring an 8″ FA138 full-range coaxial driver, delivering wide—and natural—audio coverage (100° @ 2 kHz) with a frequency response of 65 Hz–20 kHz ±5 dB. Designed for retail, hospitality, or paging applications, it provides 60 W on 70.7 V transformer taps and 8 Ω direct input.
This IPX‑rated, bass‑reflex speaker includes a 3 m suspension cable with a self‑gripping ferrule and is compatible with standard ¾″ ceiling‑fan down‑pipe hardware. It’s available in both black and white to complement various interior designs.
Key Features
- Driver: 8″ FA138 coaxial full-range
- Coverage: 100° conical (±50° @ 2 kHz)
- Frequency Response: 65 Hz–20 kHz (±5 dB)
- Sensitivity: 90 dB SPL (1 W/1 m)
- Power Handling: 60 W RMS (100 W peak)
- Transformer Taps: 1.9, 3.8, 7.5, 15, 30, 60 W @ 70.7 V; selectable 8 Ω bypass
- Enclosure: Ported, cylindrical, IPX water/condensation-resistant
- Mounting: Includes 3 m suspension cable; compatible with ceiling-fan down‑pipe kits (up to 45°)

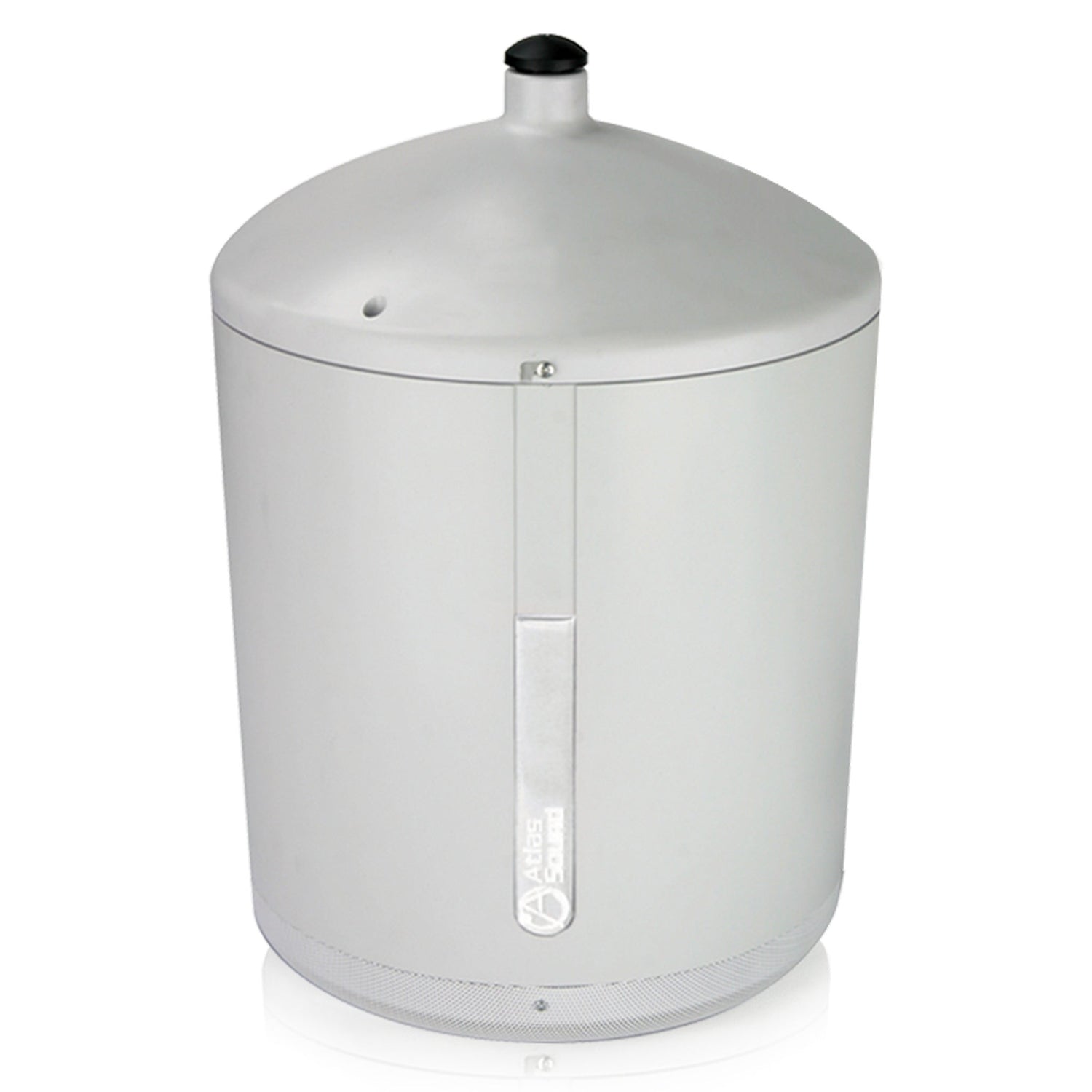

- Finish: Available in black (PM8FA‑B) or white (PM8FA‑WH)
Technical Specifications
- Diameter: 12.25″ (31.12 cm)
- Height: 16.62″ (42.21 cm)
- Weight: 25 lb (11.34 kg)
- Shipping Weight: 16.5 lb (7.48 kg)
- Frequency Response: 65 Hz–20 kHz (±5 dB)
- Sensitivity: 90 dB (1 W/1 m)
- Power Rating: 60 W RMS, 100 W peak
- Transformer Taps: 1.9, 3.8, 7.5, 15, 30, 60 W; 8 Ω bypass
- Coverage: 100° conical @ 2 kHz
- Driver: 8″ poly cone woofer (21 oz magnet), coaxial PEI dome tweeter
- Enclosure Volume: 1,075 in³ (17,616 cm³)
What's Included
- PM8FA pendant-mount loudspeaker (black or white)
- 3 m suspension cable with self-gripping ferrule
- Mounting hardware
- Concealment cap covering wiring and suspension anchor
