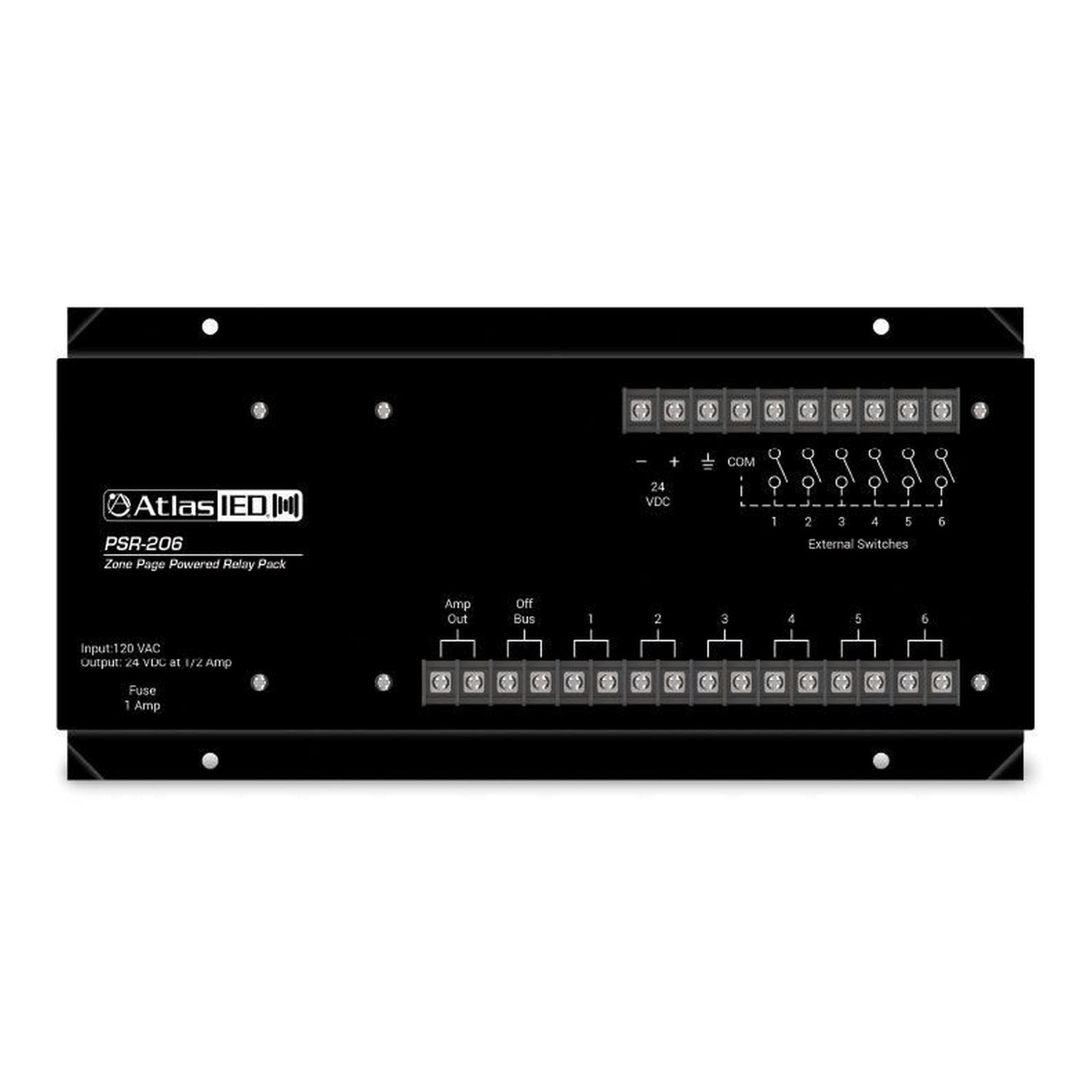

AtlasIED PSR-206 Zone Page Powered Relay Pack
The AtlasIED PSR-206 is a compact, six-relay powered pack for zone paging systems. Designed for seamless integration with paging controllers (e.g., MPC Series), it delivers up to 500 mA at 24 VDC and includes an internal fuse for safety.
Housed in a rugged 18‑gauge cold‑rolled steel chassis with black epoxy finish, the PSR-206 comes pre‑wired and ready to mount. Each relay is DPDT, gold/silver‑plated, and rated at 3 A, ideal for reliable switching in high‑traffic environments.
Key Features
- Relays: 6 × 24 VDC DPDT, silver/gold plated contacts
- Contact Rating: 3 A per relay
- Relay Coil: ~35 mA nominal
- Power Output: 24 VDC @ 500 mA (internal)
- Input: 120 VAC @ 60 Hz, 12 W consumption
- Fuse: Internal protection for power output
- Chassis: 18‑ga CRS, black epoxy finish with 6 ft power cord
- Zone Paging: Supports up to 5 individual zones + All‑Page mode
- Expandability: Terminal strip supports external relay or light loads
- Compatibility: Fits MPC Series modular paging center
Technical Specifications
- Product Dimensions: 4.75″ × 9.875″ × 2.75″ (121 × 251 × 70 mm)
- Unit Weight: 4.5 lb (2.04 kg)
- Shipping Weight: 5.0 lb (2.27 kg)
- Input Power: 120 VAC, 60 Hz, 12 W
- Output Power: 24 VDC @ 500 mA
- Relay Specifications: 6 × DPDT, 24 VDC coils, 3 A contact, 35 mA coil current
- Relay Contacts: Silver/gold plated
- Chassis Material: 18‑gauge cold‑rolled steel, black epoxy finish
- Power Cord: 6 ft integrated
- Warranty: 12 months from purchase
What's Included
- PSR-206 relay pack (includes 6 installed 24 VDC DPDT relays)
- 6 ft power cord
- Internal fuse installed
