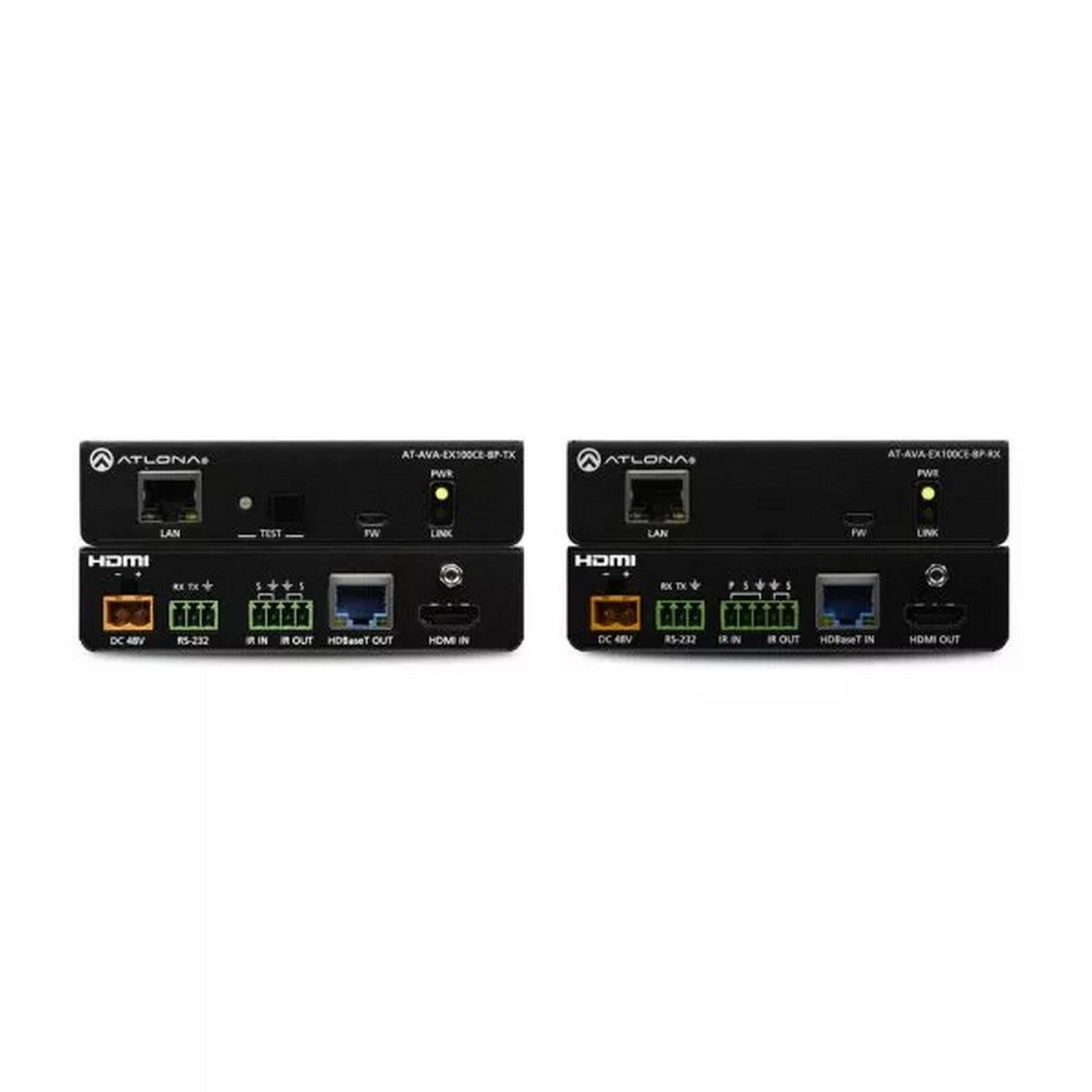

Atlona AT-AVA-EX100CE-BP-KIT 4K HDMI Extender Kit with Ethernet, Control, and Remote Power
The Atlona AT-AVA-EX100CE-BP-KIT is a professional-grade HDMI extender kit designed to transmit 4K/UHD video, audio, Ethernet, control, and power over a single CAT6A/7 cable up to 330 feet. It is part of Atlona’s Avance Series and includes a transmitter and receiver pair with advanced signal integrity features for high-performance AV system integration.
This kit supports bidirectional remote power, integrated HDBaseT link testing, Audio Return Channel (ARC), and passthrough for RS-232, IR, and Ethernet. It ensures full compatibility with 4K/60 4:2:0 content and delivers robust signal extension for commercial, educational, and residential applications.
Whether in conference rooms, classrooms, or AV-over-IP installations, the compact and mountable design, multi-channel audio support, and support for legacy resolutions make the AT-AVA-EX100CE-BP-KIT a future-proof, installer-friendly solution.
Key Features
- Long-Distance 4K Extension: Supports 4K/UHD HDMI transmission up to 330 feet (100 meters)
- Integrated Ethernet and Control: Bidirectional pass-through of RS-232, IR, IP, and Ethernet over HDBaseT
- Remote Power Flexibility: Power the receiver or transmitter from either side via 48V connection
- Signal Integrity Tools: EDID filtering, HDMI clock stretching, and HDBaseT link testing
- Multi-Channel Audio: Compatible with Dolby Atmos, DTS:X, TrueHD, and more
Technical Specifications
- Video Resolutions: Up to 4K @ 60Hz 4:2:0; 4:4:4 support up to 30Hz
- HDMI Versions: HDCP 1.4/2.2 compatible
- Audio Formats: PCM 2.0, LPCM 5.1/7.1, Dolby Digital, DTS-HD, Dolby Atmos
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
- Color Depth: 8-bit, 10-bit, 12-bit
- Control Signals: RS-232, IR (30–60kHz), IP, CEC pass-through
- Power Supply: 48V DC, 0.83A (AC 100–240V input)
- Power Consumption: 13.55 W (kit)
- Dimensions: 5.20 x 4.29 x 1.02 in (13.2 x 10.9 x 2.6 cm)
- Weight: 1.60 lbs (0.73 kg combined TX + RX)
- Operating Temperature: 32 to 122 F (0 to 50 C)
- Certifications: CE, FCC, cULus, RoHS, TAA, NDAA-889
