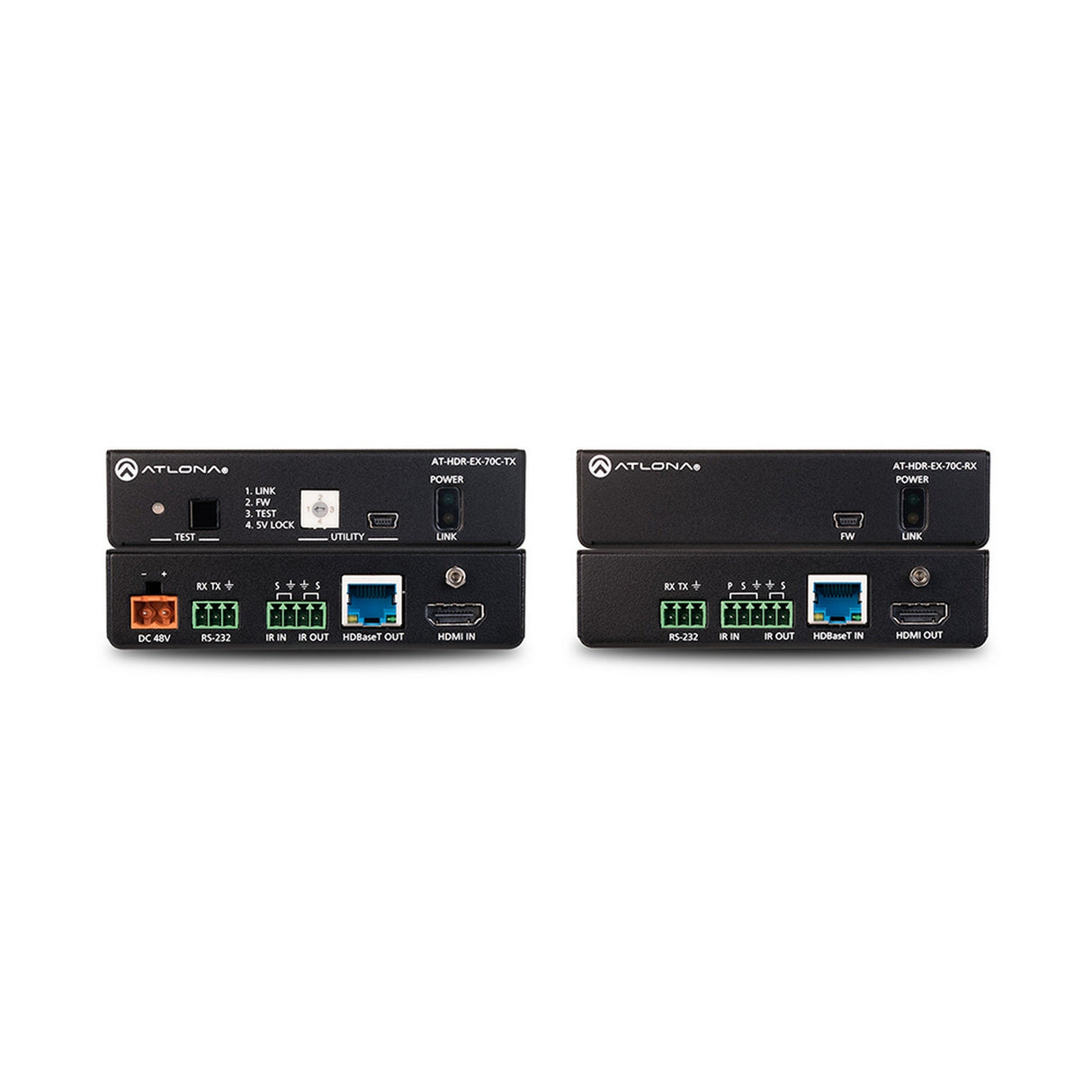

Atlona AT-HDR-EX-70C-KIT 4K HDR HDMI over HDBaseT TX/RX with Control and PoE

The Atlona AT-HDR-EX-70C-KIT is a compact HDBaseT extender kit designed for 4K and HDR HDMI signal transmission with control and power over a single Category cable. This professional-grade solution transmits 4K/UHD video with HDR, multi-channel audio, bidirectional IR and RS-232 control, and remote power up to 230 feet (70 meters). It is ideal for residential, commercial, and education AV systems that require reliable, long-distance signal extension.

The AT-HDR-EX-70C-KIT includes both transmitter and receiver units, supporting HDMI 2.0 with HDCP 2.2 compliance and HDR10, HLG, and 4:2:0 chroma formats. The receiver is powered remotely from the transmitter via Power over HDBaseT (PoH), simplifying installation. Compact and efficient, this extender is perfect for use behind displays, in racks, or integrated with presentation switchers and matrix systems.

With full 4K HDR compatibility, robust control options, and simplified single-cable installation, the AT-HDR-EX-70C-KIT is a versatile and dependable choice for professional AV integrators seeking quality and performance in modern HDMI signal extension.

Key Features

• 4K HDR Extension: Transmits 4K/UHD video with HDR10 and HLG up to 230 ft (70 m) over a single Category 6/6A cable.
• HDBaseT Technology: Carries uncompressed video, audio, control, and power signals over one cable.
• Power over HDBaseT (PoH): Receiver powered directly from the transmitter for simplified installation.
• Control Pass-Through: Supports bidirectional IR and RS-232 control for display and source management.
• Compact Design: Low-profile form factor for mounting behind displays, in furniture, or within AV racks.
• Full HDCP 2.2 Compliance: Ensures compatibility with protected 4K UHD content.

Technical Specifications

• Video Signal: HDMI 2.0 with HDCP 2.2
• Supported Resolutions: Up to 4K/UHD at 60 Hz (4:2:0), or 30 Hz (4:4:4)
• Transmission Distance: Up to 230 ft (70 m) for 1080p, up to 131 ft (40 m) for 4K/HDR
• HDR Support: HDR10, HLG
• Audio Support: PCM, Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio
• Control Interfaces: RS-232, IR (bidirectional)
• Power: 24 V DC power supply included; receiver powered via PoH
• Power Consumption: Approximately 7.0 W (transmitter), 5.0 W (receiver)
• Connectors: HDMI Type A, HDBaseT RJ-45, RS-232 (3-pin), IR In/Out (3.5 mm)
• Dimensions (W x L x H): 4.29 x 3.00 x 0.98 in (10.9 x 7.6 x 2.5 cm)
• Weight: 0.55 lb (0.25 kg) each (estimated)
• Operating Temperature: 32 F to 104 F (0 C to +40 C)
