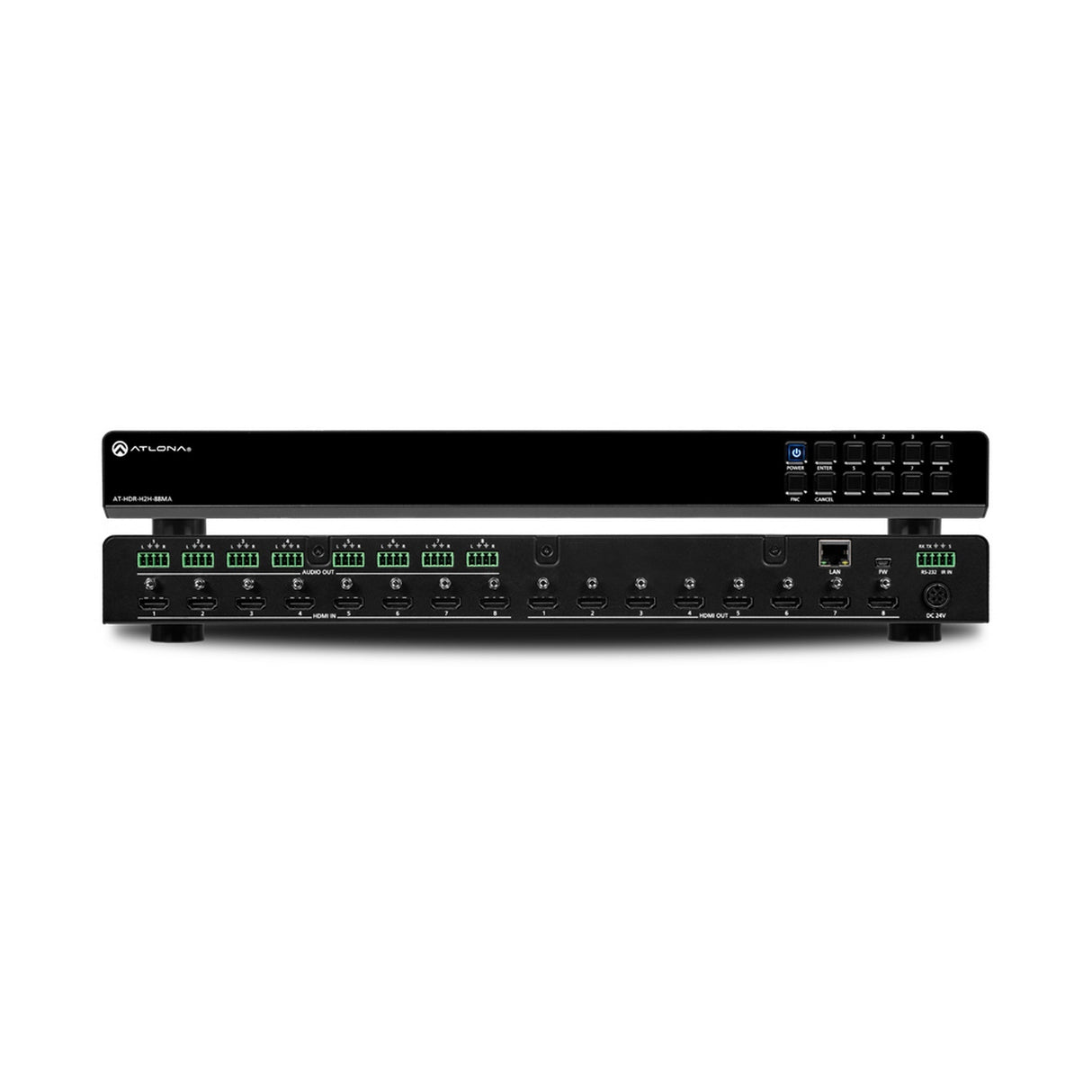

Atlona AT-HDR-H2H-88MA 8x8 4K HDR HDMI Matrix Switcher
The Atlona AT-HDR-H2H-88MA is an 8x8 HDMI matrix switcher engineered for professional AV installations that require flexible, high-performance routing of 4K HDR video and audio. Supporting HDMI 2.0, HDCP 2.2, and 18 Gbps bandwidth, it provides full 4K/UHD at 60 Hz (4:4:4) with HDR10 for premium image quality across all sources and displays.
The unit offers EDID management, audio de-embedding, and complete control flexibility through TCP/IP, RS-232, IR, or front panel buttons. Integrated web GUI control simplifies configuration and monitoring. This matrix is ideal for large-scale AV systems in conference centers, auditoriums, hospitality venues, and advanced residential theaters.
Designed for reliability and scalability, the AT-HDR-H2H-88MA ensures clean signal switching, audio integration, and compatibility across modern 4K and HDR workflows.
Key Features
- 8x8 HDMI Matrix: Connect up to eight HDMI sources to eight displays independently.
- 4K HDR Support: Handles 4K/UHD at 60 Hz (4:4:4) with HDR10.
- Audio De-Embedding: Extracts stereo analog audio from any HDMI output.
- EDID and HDCP Management: Ensures seamless handshakes and compatibility.
- Multiple Control Options: TCP/IP, RS-232, IR, and front panel with web GUI.
- Professional Build: Full-width rack design with integrated rack ears for installation.
Technical Specifications
- Video Standard: HDMI 2.0 with HDCP 2.2
- Inputs / Outputs: 8 HDMI inputs, 8 HDMI outputs
- Maximum Resolution: 4K/UHD at 60 Hz (4:4:4)
- HDR Format: HDR10
- Audio Formats: PCM, Dolby Digital, DTS, Dolby TrueHD, DTS-HD Master Audio
- Audio Output: Stereo analog (de-embedded)
- Video Bandwidth: 18 Gbps
- Control Interfaces: RS-232, TCP/IP, IR, front panel
- Power Supply: 100-240 V AC input, 12 V DC external adapter
- Power Consumption: Approx. 35 W
- Operating Temperature: 32 F to 104 F (0 C to +40 C)
- Dimensions (W x L x H): 17.30 x 11.22 x 1.75 in (43.9 x 28.5 x 4.4 cm)
- Weight: 9.90 lb (4.49 kg)
