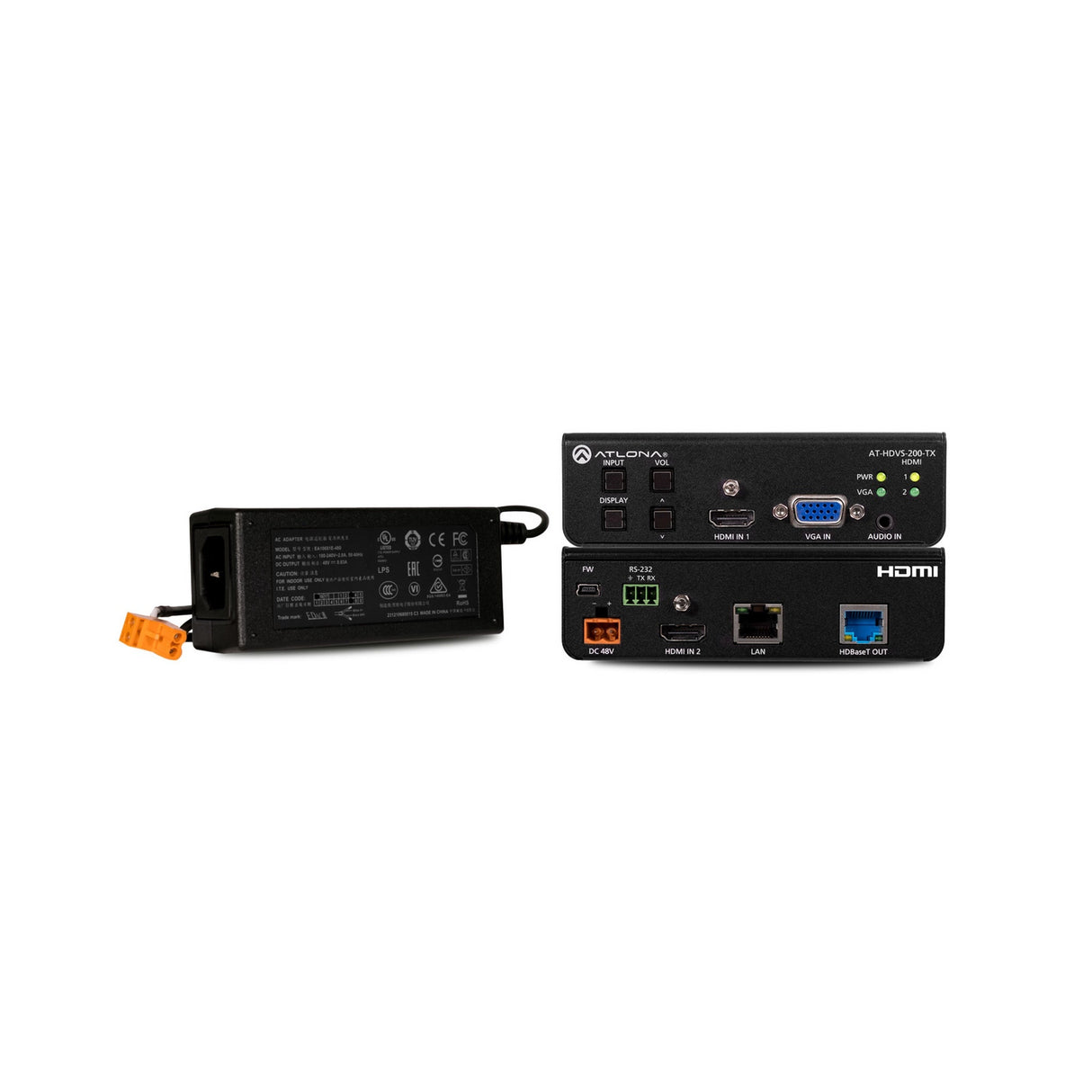

Atlona AT-HDVS-200-TX-PSK Three-Input HDMI VGA Switcher with Ethernet-Enabled HDBaseT Output
The Atlona AT-HDVS-200-TX-PSK is a 3×1 switcher and HDBaseT transmitter designed for two HDMI inputs and one VGA input with audio. It supports high-resolution signals and long-distance transmission via Ethernet-enabled HDBaseT, delivering reliable AV switching and control functions in professional installations.
This unit offers HDMI up to 4K/UHD at 60 Hz (4:2:0), VGA up to 1920×1200, audio embedding, automatic input detection, display control, TCP/IP and RS-232 control, and HDBaseT transmission up to 330 feet (100 meters). The “PSK” variant includes an external power supply, allowing flexible installation without relying purely on PoE.
Ideal for use in classrooms, huddle rooms, meeting spaces, and integrated AV systems, the AT-HDVS-200-TX-PSK enables seamless switching, distributed control, and simplified cabling in commercial AV setups.
Key Features
- Three-Input Switching: Two HDMI inputs and one VGA input with 3.5 mm audio connector.
- Ethernet-Enabled HDBaseT Extension: Transmits HDMI, VGA, audio, control and Ethernet up to 330 ft (100 m) via CAT6a/7 cable.
- Automatic Input Selection: Detects and switches to the active input source automatically.
- Display & Audio Control: Supports automatic display power on/off, front panel volume, and control via IP, RS-232 or CEC.
- Power Supply Included: External 48 V DC adapter provided for installations without PoE (PSK version).
Technical Specifications
- Inputs: 2 × HDMI (Type A, 19-pin), 1 × VGA (15-pin) with 3.5 mm stereo audio
- Output: 1 × HDBaseT (RJ-45)
- LAN Port: 1 × RJ-45 (10/100/1000 Mbps local; 10/100 Mbps over HDBaseT)
- Video Signal: HDMI with HDCP 1.4
- Supported Resolutions: Up to 4096×2160 @ 24/25/30/50/60 Hz; 3840×2160 @ 24/25/30/50/60 Hz; VGA up to 1920×1200
- Color Space: YUV, RGB
- Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
- Color Depth: 8-bit, 10-bit, 12-bit
- Audio Formats: HDMI/HDBaseT: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos; Analog In: PCM 2Ch
- Sample Rates: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
- Bit Depth: Up to 24-bit
- Transmission Distance: CAT5e/6 up to 330 ft (100 m) at 1080p; CAT6a/7 up to 330 ft (100 m) at 4K/UHD
- Signal Bandwidth: 10.2 Gbps
- Control: TCP/IP, RS-232, CEC
- Power Supply (PSK): 48 V DC, 3.125 A external adapter included
- Power Consumption: 30 W (when paired) / 22 W idle
- Operating Temperature: 32 °F to 122 °F (0 °C to 50 °C)
- Storage Temperature: -4 °F to 140 °F (-20 °C to 60 °C)
- Humidity: 20 % to 90 % non-condensing
- Dimensions (H × W × D): 1.50 × 5.00 × 4.02 in (38 × 127 × 102 mm)
- Weight: 0.64 lb (0.29 kg)
- Certifications: CE, FCC, cULus, RoHS
