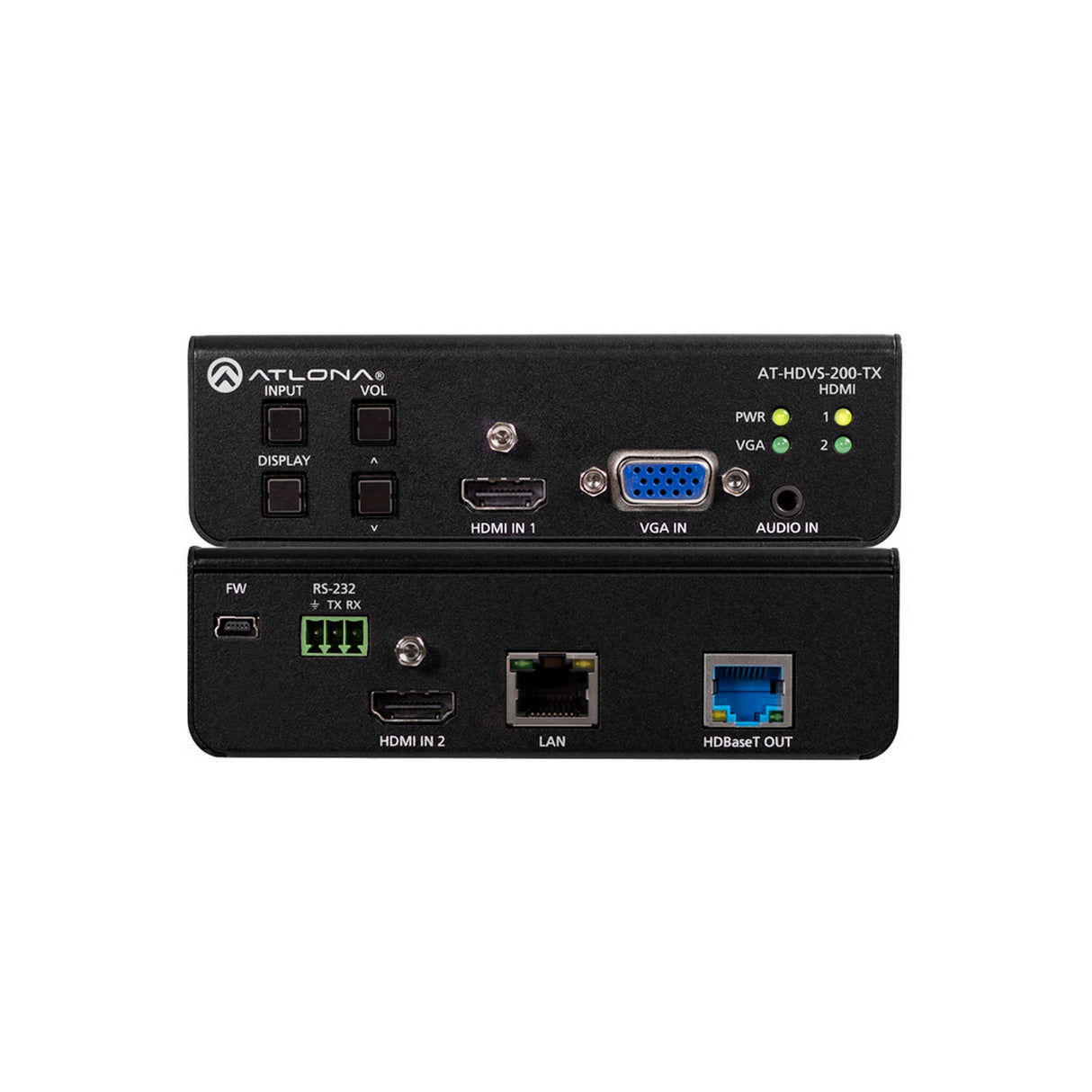

Atlona AT-HDVS-200-TX Three-Input HDMI VGA Switcher with Ethernet-Enabled HDBaseT Output

The Atlona AT-HDVS-200-TX is a 3x1 AV switcher and HDBaseT transmitter designed for HDMI and VGA inputs. It supports embedded audio, automatic input selection, and display control, transmitting high-quality signals over Ethernet-enabled HDBaseT up to 328 feet (100 meters). Ideal for classrooms, huddle rooms, and meeting environments, it integrates seamlessly into Atlona systems or larger AV networks.

This unit includes two HDMI inputs and one VGA input with 3.5 mm audio, supporting HDMI signals up to 4K/UHD at 60 Hz (4:2:0) and VGA resolutions up to 1920x1200. It features IP and RS-232 control for easy integration with third-party systems, automatic display on/off management, and front panel controls for manual source selection, display power, and audio volume. The switcher is powered via Power over Ethernet (PoE) from a compatible receiver such as the AT-HDVS-200-RX.

Offering advanced functionality including Ethernet management, CEC display control, and audio de-embedding, the AT-HDVS-200-TX combines the flexibility of IP-based control with the simplicity of HDBaseT transmission in a compact, reliable form factor.

Key Features

• Three-Input Switching: Two HDMI inputs and one VGA input with 3.5 mm audio.
• Ethernet-Enabled HDBaseT Transmission: Extends HDMI, VGA, audio, control, and Ethernet up to 328 ft (100 m) using a single CAT6a/7 cable.
• Auto-Switching: Automatically selects the active input based on source detection or power status.
• Auto Display Control: Powers display on or off automatically via IP, RS-232, or CEC commands.
• Network & Serial Control: Supports TCP/IP and RS-232 control for integration with third-party control systems.
• Front Panel Controls: Buttons for Input Select, Display On/Off, and Volume with LED feedback.
• 4K/UHD Support: Supports resolutions up to 4096x2160 and 3840x2160 at 60 Hz (4:2:0, 8-bit).
• Power over Ethernet: Receives power via PoE from connected receiver, eliminating need for external adapter.
• Compact Design: Small form factor suitable for under-table or rack-mount installation.

Technical Specifications

• Inputs: 2 x HDMI (Type A), 1 x VGA (15-pin) with 3.5 mm stereo audio
• Output: 1 x HDBaseT (RJ-45)
• Video Resolutions: 4096x2160 @ 24/25/30/50/60 Hz, 3840x2160 @ 24/25/30/50/60 Hz, 1080p, 1080i, 720p, 576p, 480p
• VESA Resolutions: Up to 2560x1600, VGA input up to 1920x1200
• Color Space: YUV, RGB
• Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
• Color Depth: 8-bit, 10-bit, 12-bit
• Audio Inputs: PCM 2-channel analog
• HDMI / HDBaseT Audio: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos
• Sample Rates: 32 kHz to 192 kHz
• Bit Depth: Up to 24-bit
• Transmission Distance: CAT5e/6 up to 328 ft (100 m) at 1080p; CAT6a/7 up to 328 ft (100 m) at 4K/UHD
• Signal Bandwidth: 10.2 Gbps
• HDCP: 1.4 compliant
• CEC: Supported
• Control: IP (TCP/IP), RS-232, and CEC
• Power: PoE powered, 30 W (when paired)
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Humidity: 20% to 90% non-condensing
• Dimensions (H x W x D): 1.50 x 5.00 x 4.02 in (38 x 127 x 102 mm)
• Weight: 0.64 lb (0.29 kg)
• Certifications: CE, FCC
