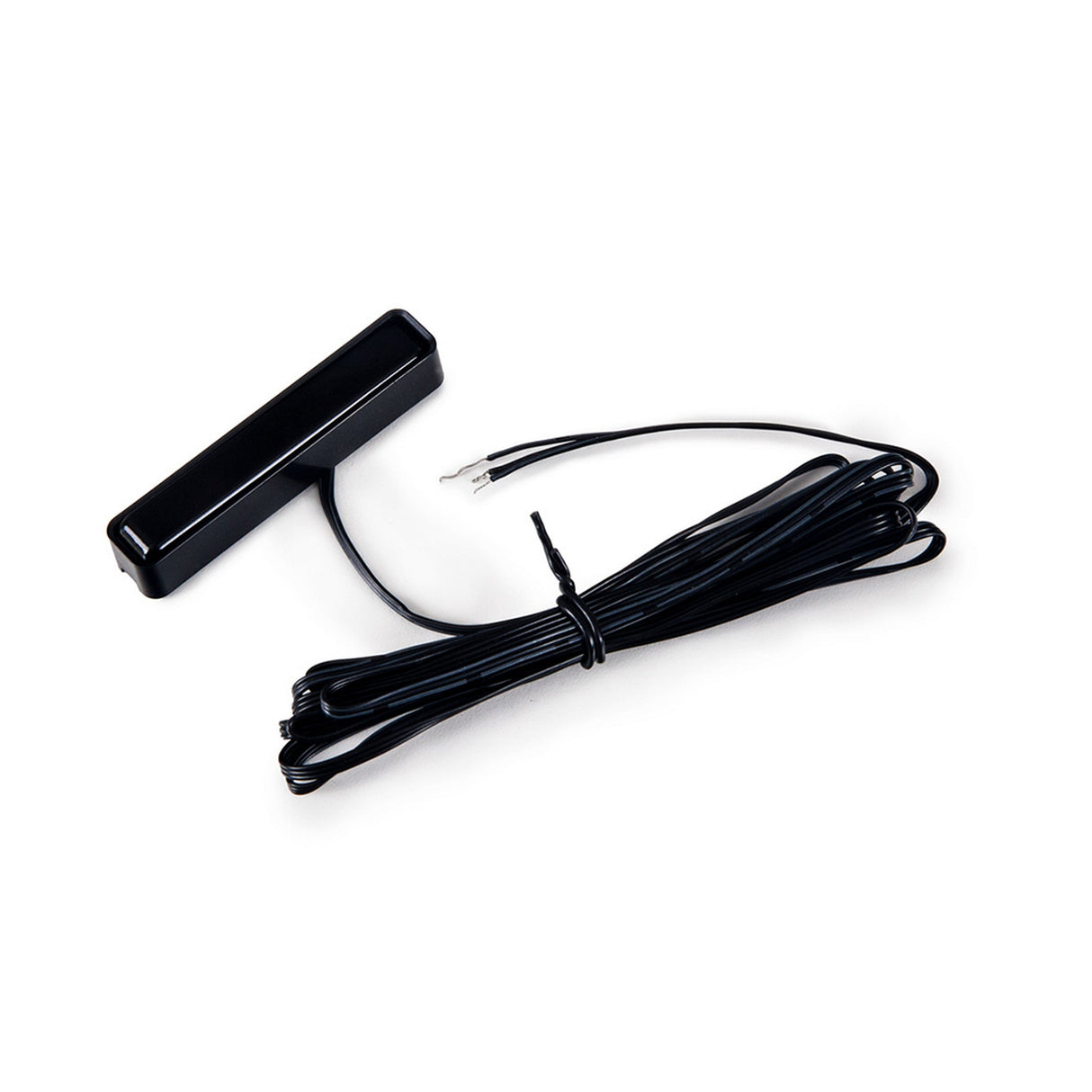

Atlona AT-IR-CS-RX IR Receiver Cable for PoE Extenders
The Atlona AT-IR-CS-RX is an infrared receiver cable designed for use with Atlona PoE extenders and compatible AV devices. It enables reliable IR control extension from remote locations, allowing end users to operate AV equipment even when it is installed out of direct line-of-sight.
This compact receiver connects easily using a 3-pin connector and includes a 6.6 ft (2.0 m) cable for flexible placement. The built-in red LED provides visual feedback when IR commands are received. Designed for professional AV systems, the AT-IR-CS-RX simplifies remote control signal routing and improves integration flexibility.
Ideal for classrooms, conference rooms, and control environments, this receiver cable provides dependable performance and seamless IR functionality when used with Atlona control or extender systems.
Key Features
- IR Receiver Cable: Designed for Atlona PoE extenders and compatible AV systems.
- Extended Control Range: Receives IR signals up to 33 ft (10 m) on-axis.
- Wide Frequency Range: Supports standard IR frequencies from 30 kHz to 60 kHz.
- Visual Feedback: Integrated red LED indicates active IR signal reception.
- Flexible Installation: 6.6 ft (2.0 m) cable allows placement near display or control points.
- Simple Connection: 3-pin flying leads for power, ground, and signal.
Technical Specifications
- IR Frequency Range: 30 kHz to 60 kHz
- Reception Distance: Up to 33 ft (10 m) on-axis
- Cable Length: 6.6 ft (2.0 m)
- Connector Type: 3-pin flying leads (Signal, Ground, Power)
- Power Requirement: 12 V DC, 20 mA typical
- Receiver Module Dimensions (W x L x H): 0.39 x 2.44 x 0.39 in (0.99 x 6.20 x 0.99 cm)
- Estimated Product Weight: 0.1 lb (0.05 kg)
