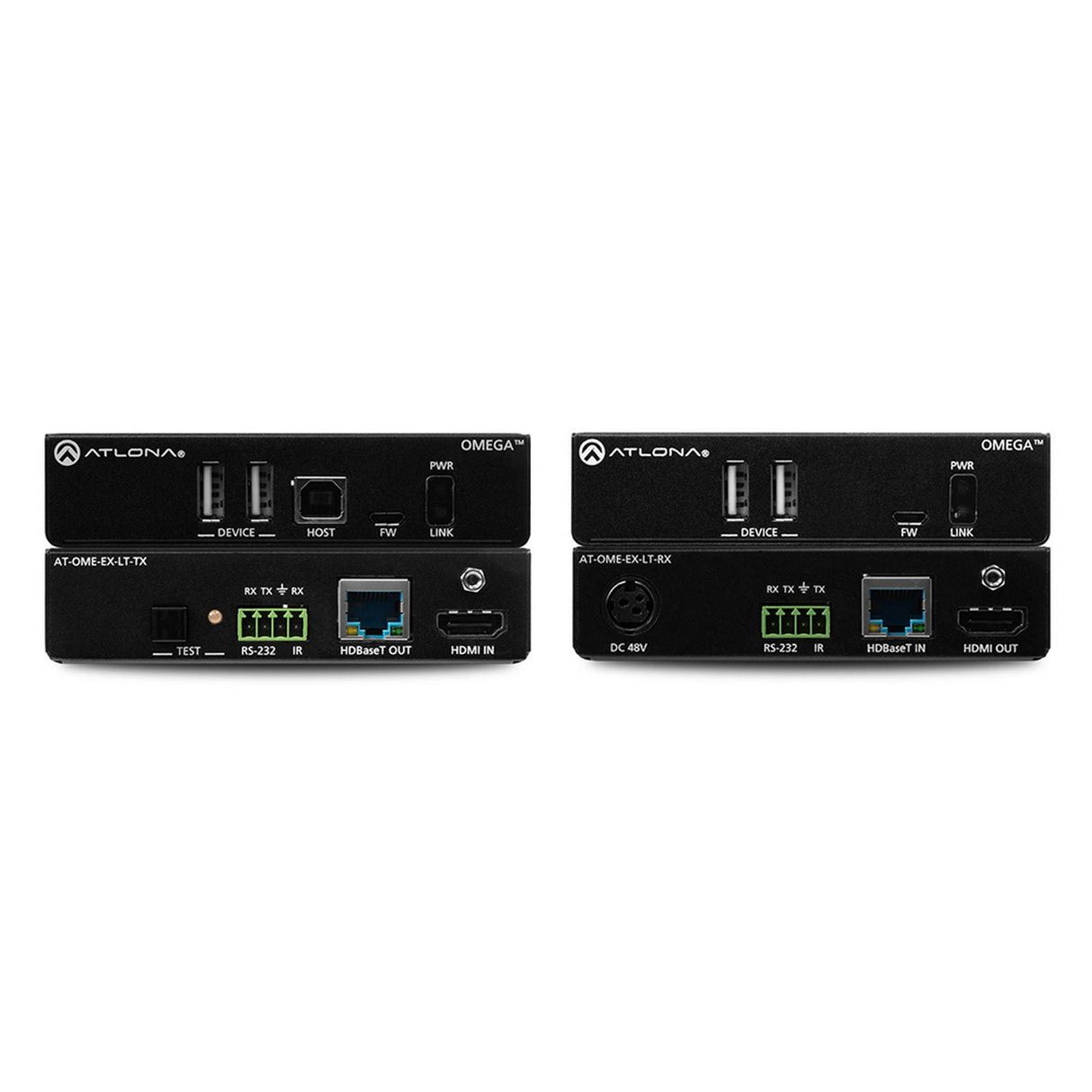

Atlona AT-OME-EX-KIT Omega HDBaseT TX/RX for HDMI with USB Kit
The Atlona AT-OME-EX-KIT is a professional-grade HDBaseT extender designed to deliver reliable 4K/UHD video, audio, USB, Ethernet, and control signal extension up to 330 feet (100 meters). As part of Atlona’s Omega™ Series, this system is ideal for integration into conference rooms, classrooms, and collaborative workspaces where dependable connectivity and streamlined setup are essential.
Featuring HDMI and USB 2.0 extension capabilities, the OME-EX-KIT supports modern AV workflows including video conferencing, interactive display integration, and remote device connections. It’s engineered to meet today’s 4K performance standards while maintaining compliance with HDCP 2.2 for secure signal transmission across enterprise environments.
Built for flexibility and performance, the kit includes a transmitter and receiver that support Power over Ethernet (PoE), simplifying installation by eliminating the need for a local power supply at the transmitter end. The OME-EX-KIT ensures long-term reliability backed by Atlona’s 10-year limited warranty, making it a trusted solution for both residential and commercial AV systems.
Key Features
- 4K UHD Extension: Extends HDMI up to 330 ft (100 m) using CAT6a/7 cable at 4K/UHD or 1080p over CAT5e/6.
- Integrated USB 2.0 Hub: Provides host and peripheral ports for seamless PC and device connectivity in conferencing setups.
- HDCP 2.2 Compliance: Ensures compatibility with protected 4K content sources.
- Power over Ethernet (PoE): Transmitter powered via receiver, reducing power supply needs.
- Compact Form Factor: 1-inch-high, quarter-rack-width design ideal for confined installation spaces.
- Multi-format Audio Pass-through: Supports PCM, Dolby, and DTS formats including Dolby Atmos® and DTS:X®.
- Long-Distance Signal Integrity: Maintains 10 Gbps HDMI bandwidth for reliable, high-quality performance.
- Wide Device Support: Works with cameras, speakerphones, touch displays, and USB peripherals.
- Comprehensive Control Options: Supports RS-232, IR, IP, and CEC pass-through control.
- Extended Warranty: Covered by Atlona’s 10-year limited warranty for professional installations.
Technical Specifications
- Video Inputs/Outputs: HDMI / HDBaseT
- Max Resolution: 4096×2160 @ 60 Hz (4:2:0)
- Copy Protection: HDCP 2.2
- Color Space: YUV, RGB (4:4:4 / 4:2:2 / 4:2:0)
- Audio Formats: PCM, LPCM, Dolby Digital, Dolby Atmos, DTS-HD, DTS:X
- USB: 2.0, up to 120 Mbps data rate
- LAN: RJ45, 100 Mbps Ethernet support
- Control: RS-232, IR, IP, CEC pass-through
- Power: 48V DC via PoE, 24.75 W consumption
- Operating Temperature: 0–122°F (–18–50°C)
- Compliance: CE, FCC, RoHS, NDAA-899, TAA
- Warranty: 10-year limited (Atlona)
