Atlona

Atlona AT-OME-EX-TX-WP Omega Wallplate Transmitter for HDMI with USB

$920⁰⁰

Free Shipping

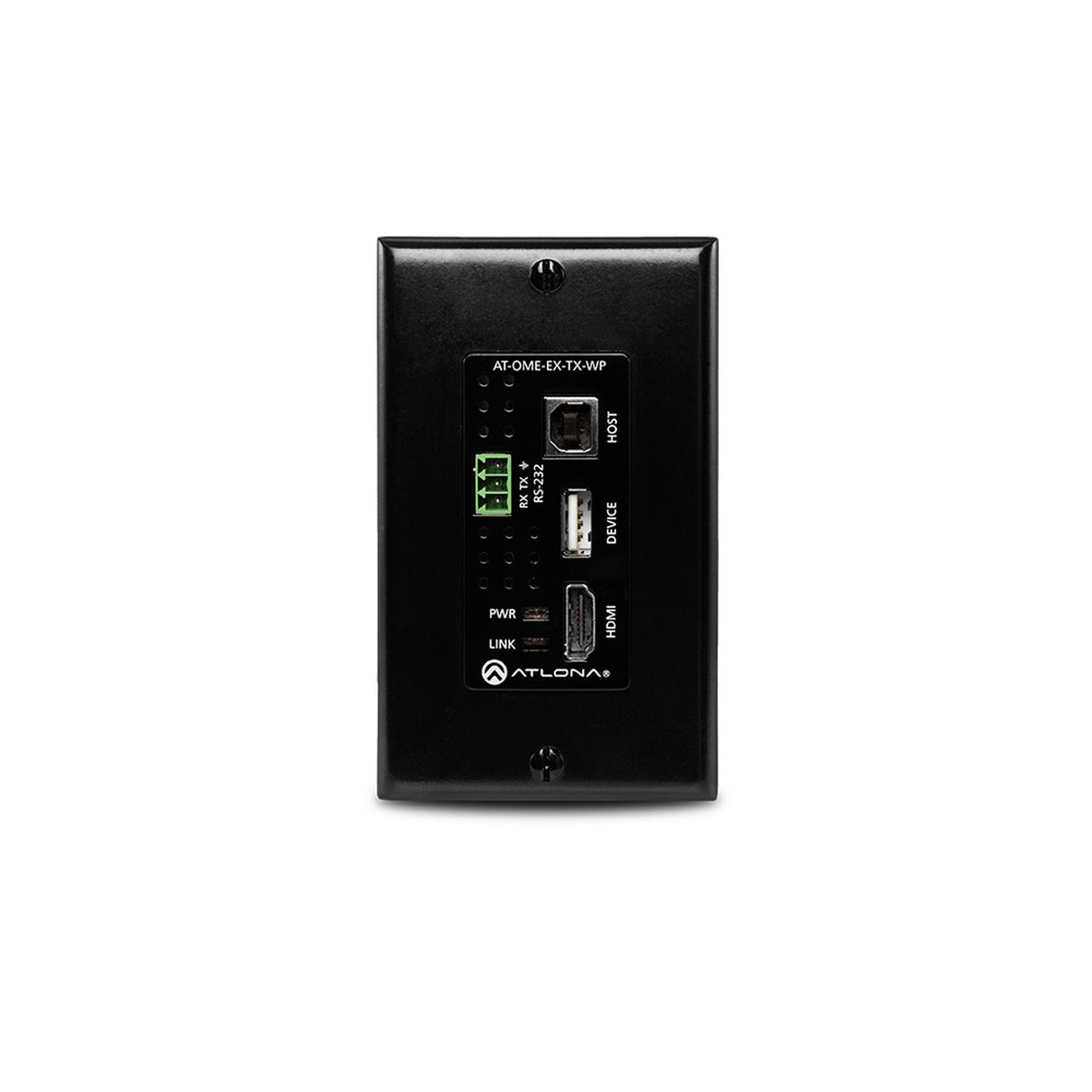

Atlona AT-OME-EX-TX-WP Omega Wallplate Transmitter for HDMI with USB

Name: Atlona AT-OME-EX-TX-WP Omega Wallplate Transmitter for HDMI with USB
Brand: Atlona
SKU: AT-ATOMEEXTXWP
Price: 920.00 USD
Availability: InStock

The Atlona AT-OME-EX-TX-WP is a compact wall plate HDBaseT transmitter designed for transmitting 4K/UHD video, embedded audio, USB, Ethernet, and control signals over long distances using a single category cable. With its clean one-gang design, it is ideal for wall, lectern, or furniture installation in professional AV environments where neat connectivity and reliability are essential.

Supporting HDMI data rates up to 10 Gbps and full HDCP 2.2 compliance, the OME-EX-TX-WP delivers dependable 4K/60 (4:2:0) signal extension up to 330 feet (100 meters). It includes both a USB 2.0 host port for PC connection and a USB Type-A port for a peripheral device such as a microphone or speakerphone, making it an excellent choice for video conferencing and interactive display systems.

This wall plate transmitter is powered via PoE (Power over Ethernet) from a compatible receiver or switcher, eliminating the need for a local power supply. Its low-profile enclosure and professional integration features ensure easy setup and a clean finish in any AV installation.

Key Features

Wall Plate Form Factor: Single-gang Decora-style wall plate design for seamless installation.
4K/UHD Signal Extension: Supports up to 4096x2160 @ 60Hz (4:2:0) or 3840x2160 @ 60Hz over category cable.
USB 2.0 Hub: Features one USB Type-B host port and one USB Type-A peripheral port for conferencing and interactive setups.
HDCP 2.2 Compliant: Ensures compatibility with protected 4K/UHD sources.
Remote Power via PoE: Receives power from compatible receiver or switcher without need for local AC power.
Control Integration: Pass-through support for RS-232, IR, and CEC control signals.
Long-Distance Capability: Transmits HDMI, USB, and control up to 330 ft (100 m) using CAT6a/7 or 295 ft (90 m) using CAT5e cable.
Compact Build: Fits standard electrical wall boxes for clean, low-profile mounting.
Professional-Grade Reliability: Designed for corporate, educational, and conferencing environments.

Technical Specifications

Video Input: 1 x HDMI Type-A, 19-pin female
HDBaseT Output: 1 x RJ45
USB Ports: 1 x USB Type-B (host), 1 x USB Type-A (device)
Control: RS-232 via 3-pin captive screw, IR, CEC pass-through
Maximum Resolution: 4096x2160 @ 60Hz (4:2:0), 3840x2160 @ 60Hz
Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
Audio Formats: PCM, LPCM 5.1/7.1, Dolby Digital, Dolby Atmos, DTS-HD, DTS:X
USB Data Rate: Up to 120 Mbps (USB 2.0)
Transmission Distance: Up to 330 ft (100 m) via CAT6a/7, up to 295 ft (90 m) via CAT5e
Power Consumption: 11.18 W typical (including 2.5 W USB load)
Operating Temperature: 0 to 122 F (–18 to 50 C)
Certifications: CE, FCC, RoHS
Dimensions (H x W x D): 4.07 in x 1.80 in x 2.63 in (103.5 mm x 45.8 mm x 67 mm)
Weight: 0.40 lb (0.18 kg)
Warranty: 10-year limited manufacturer warranty
