Atlona AT-OME-EX-WP-KIT Omega Wallplate HDBaseT Extender Kit with USB, Control, and PoE

Atlona | SKU: AT-ATOMEEXWPKIT
$1,70100

Free Shipping




Estimated Shipping Widget will be displayed here!


Condition: New

Atlona AT-OME-EX-WP-KIT Omega Wallplate HDBaseT Extender Kit with USB, Control, and PoE

The Atlona AT-OME-EX-WP-KIT is a high-performance wallplate form AV extender kit designed for 4K/UHD video, embedded audio, USB, Ethernet, and control signal extension over long-distance category cable runs. It provides an efficient, integration-ready solution for conference rooms, classrooms, and collaborative workspaces.

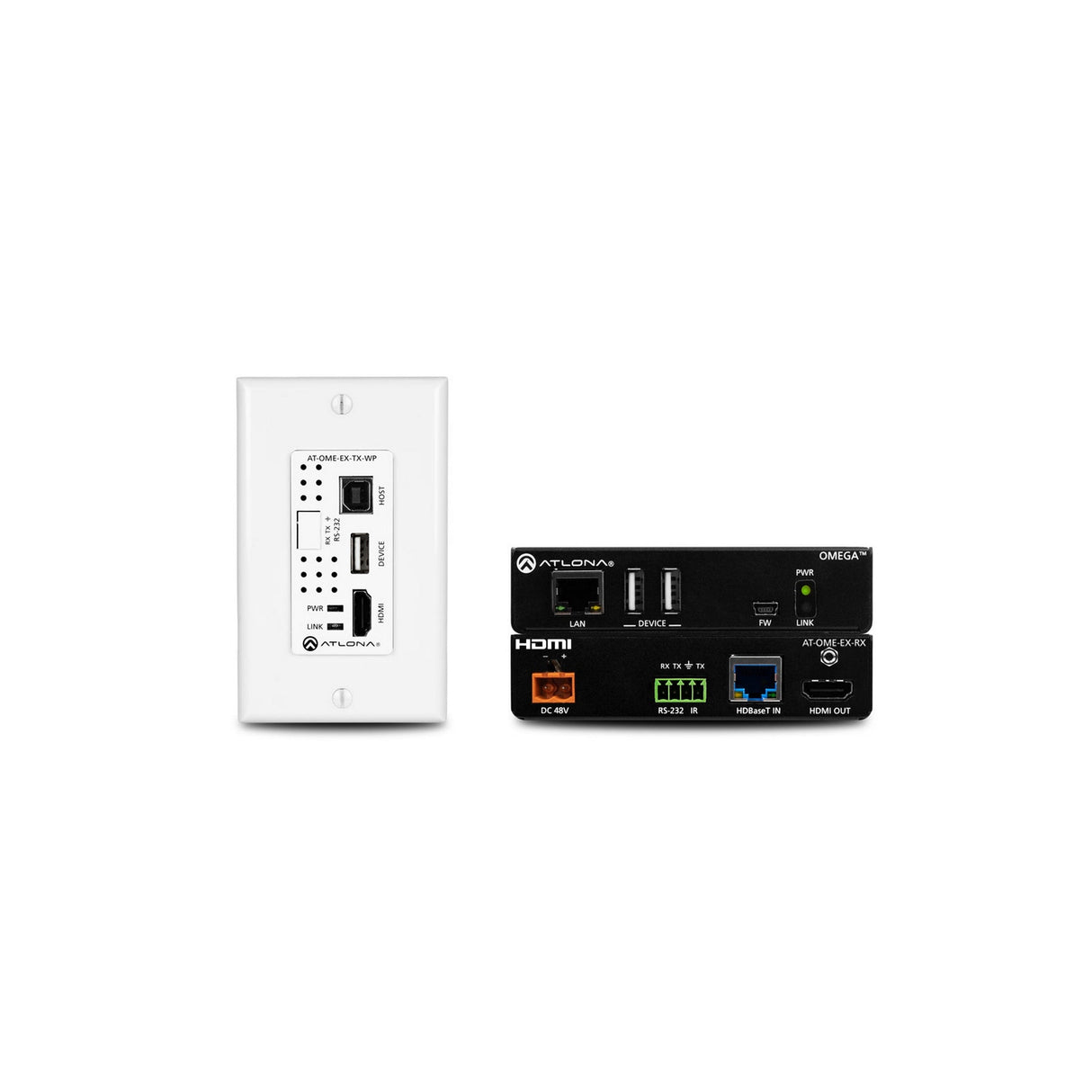

This extender supports HDMI and USB 2.0 extension via HDBaseT up to 330 feet (100 meters), and includes a wallplate transmitter with interchangeable black or white trim and a compact receiver unit. HDCP 2.2 compliant, it also passes IR, RS-232, IP and USB peripheral data—ideal for BYOD, software video conferencing, and interactive display setups.

Installation is streamlined by remote Power over Ethernet (PoE) powering of the transmitter from the receiver. The one-gang wallplate form factor allows discreet mounting in desk boxes or furniture. With full AV and control signal integration, this kit ensures reliable performance and professional installation flexibility.

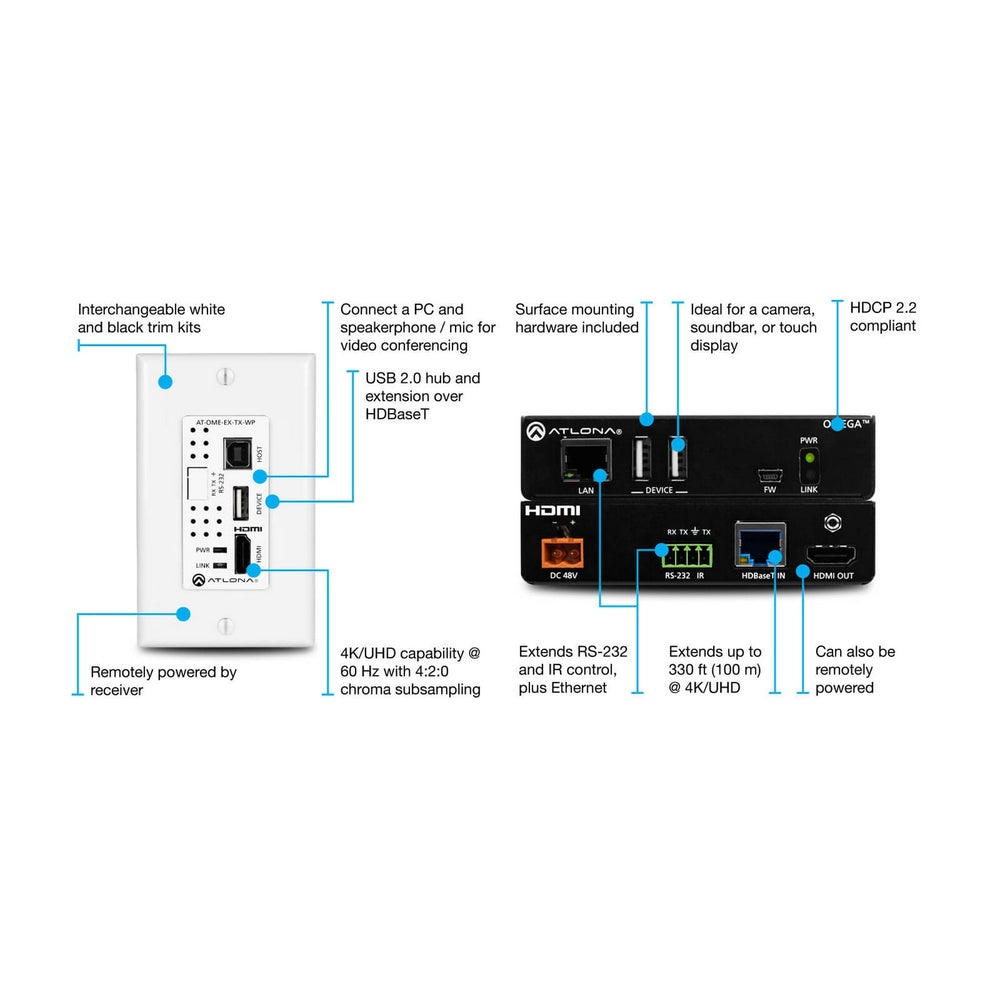

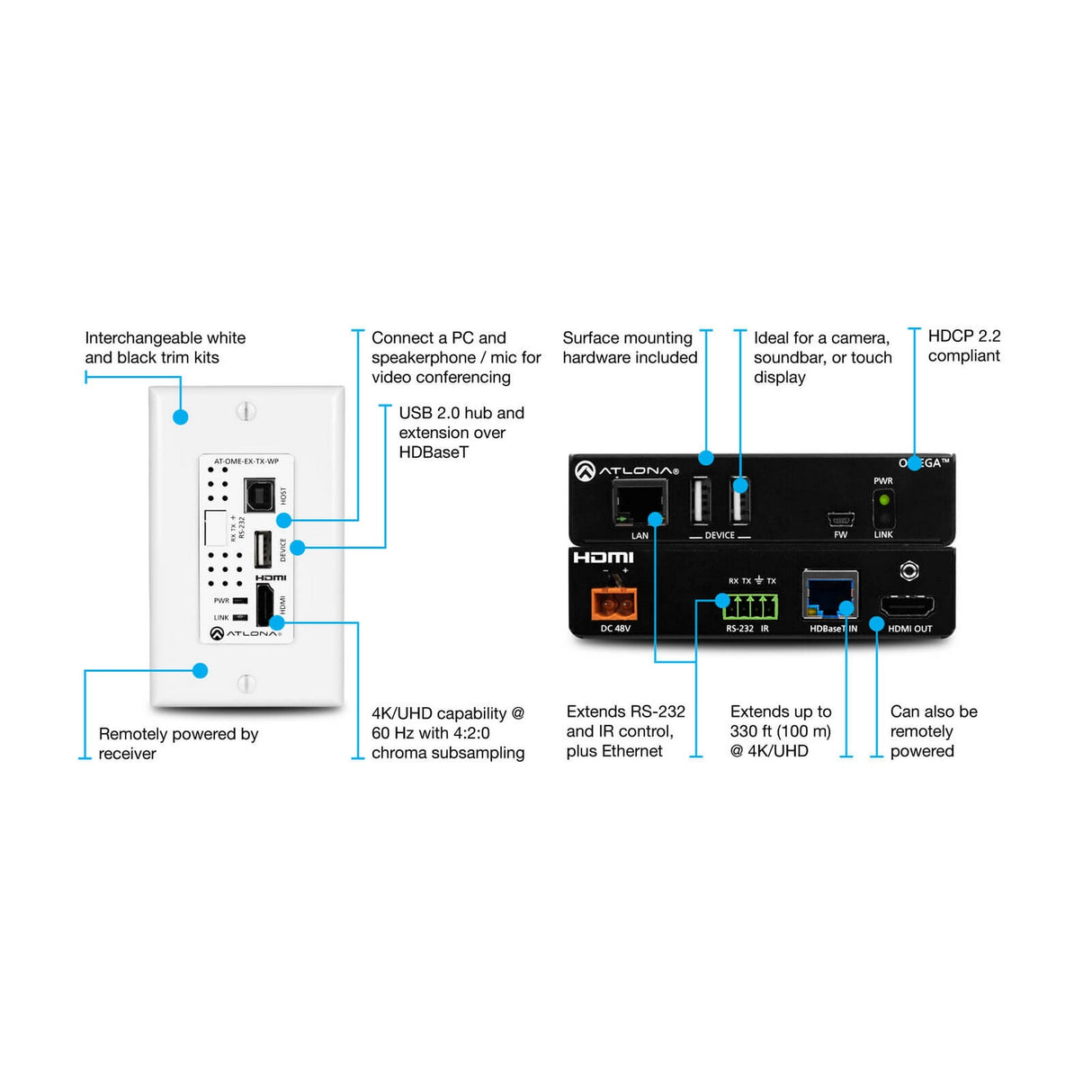

Key Features

  • 4K/UHD Video Over HDBaseT: Extend up to 330 ft (100 m) for 4K/UHD or full HD using CAT6a/7 cable.

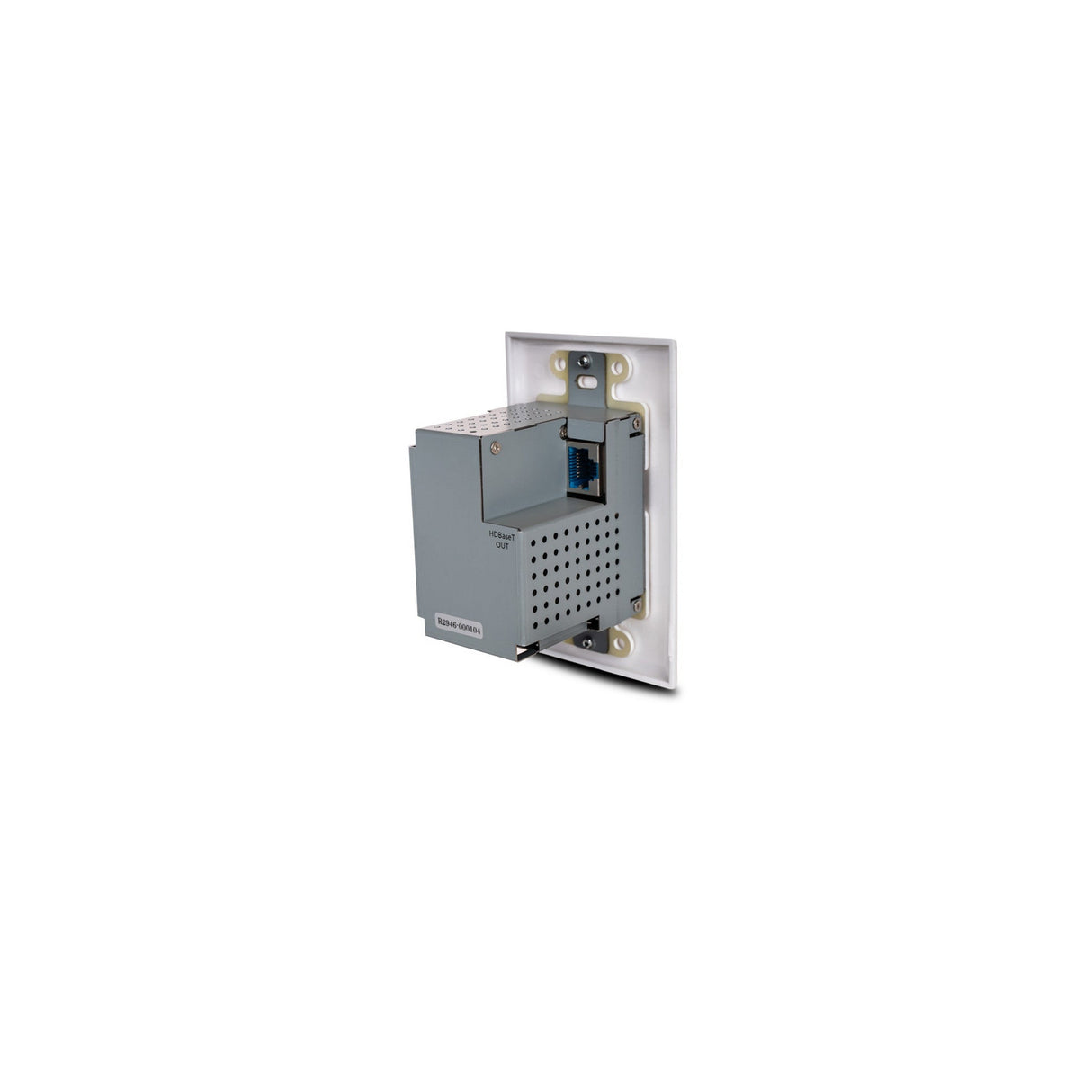

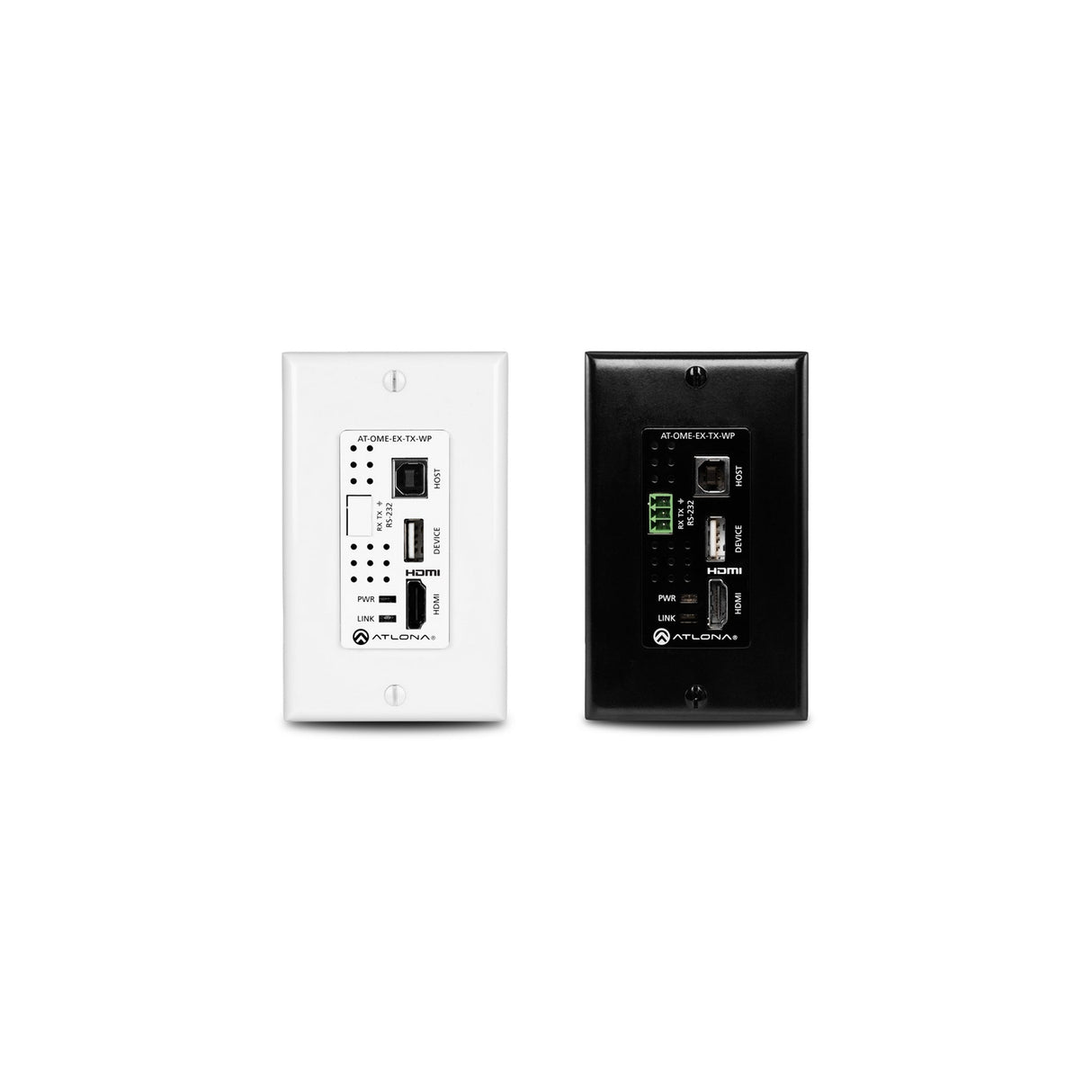

  • Wallplate Transmitter Design: US one-gang faceplate with interchangeable black and white trims for clean room integration.
  • USB 2.0 Hub and Extension: USB host and peripheral ports included for PC and device connectivity in conferencing or touch display contexts.
  • HDCP 2.2 Compliance: Supports protected content pass-through for modern source devices.
  • Control Signal Pass-Through: Extends RS-232, IR, IP and CEC control signaling, enabling seamless system integration.
  • Power over Ethernet: Transmitter powered via receiver over HDBaseT link, reducing wiring and installation complexity.
  • Compact Installation Form Factor: Wallplate and compact receiver support clean integration behind displays or in furniture.

Technical Specifications

  • Video Input/Output: HDMI / HDBaseT
  • Maximum Resolution: 4096Ɨ2160 @ 60Hz (4:2:0) or 3840Ɨ2160 @ 60Hz
  • Copy Protection: HDCP 2.2
  • USB: USB 2.0 interface for host and peripheral devices
  • Transmission Distance: Up to 330 ft (100 m) using CAT6a/7 cable
  • Control Interfaces: RS-232, IR, IP, CEC pass-through
  • Power: PoE powered transmitter, no local AC power required
  • Form Factor: Wallplate transmitter (one-gang), compact receiver unit
  • Warranty: 10-year limited manufacturer warranty
