Atlona AT-VCC-RS232-KIT IP to RS-232 Command Converter for Velocity Control System

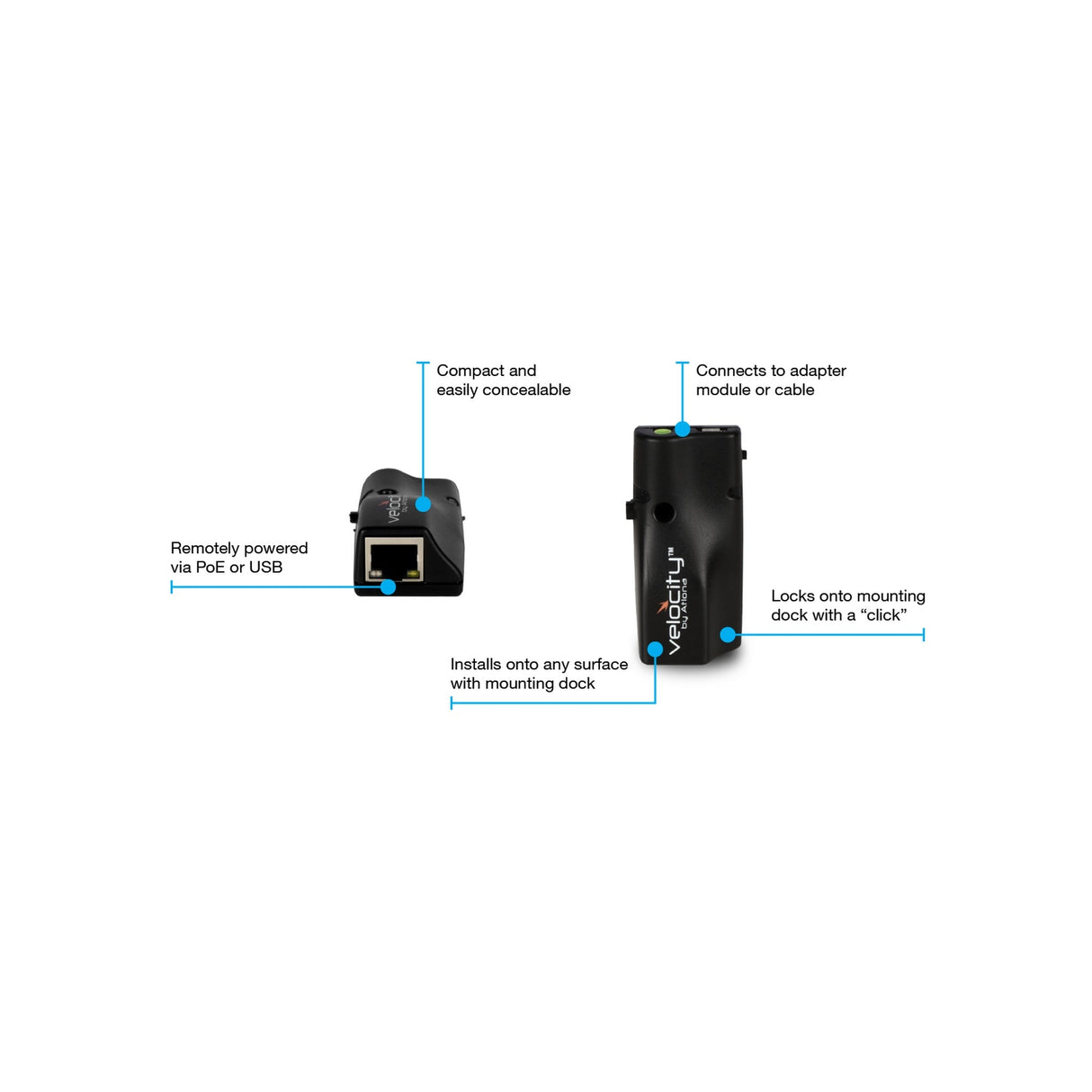

The Atlona AT-VCC-RS232-KIT is an IP to RS-232 command converter designed for use with the Atlona Velocity™ Control System. It enables reliable communication between IP-based Velocity controllers and AV devices that rely on RS-232 serial control. This compact, discreet module ensures seamless integration for displays, projectors, DSPs, and other serial-controlled hardware within modern AV environments.
The VCC-RS232-KIT is powered via Power over Ethernet (PoE) or through a local USB power source, allowing flexible deployment options. It includes a 5-foot (1.5-meter) RS-232 adapter cable with a DB9 connector and gender changer for compatibility with a wide range of equipment. The device installs easily using the included surface-mount dock, locking securely in place for dependable installation.
Key Features
- Converts between IP and RS-232 control commands for the Atlona Velocity™ Control System
- Compact, inconspicuous design suitable for concealed or rack-mounted installations
- Remotely powered via PoE (IEEE 802.3af-compliant) or locally through USB

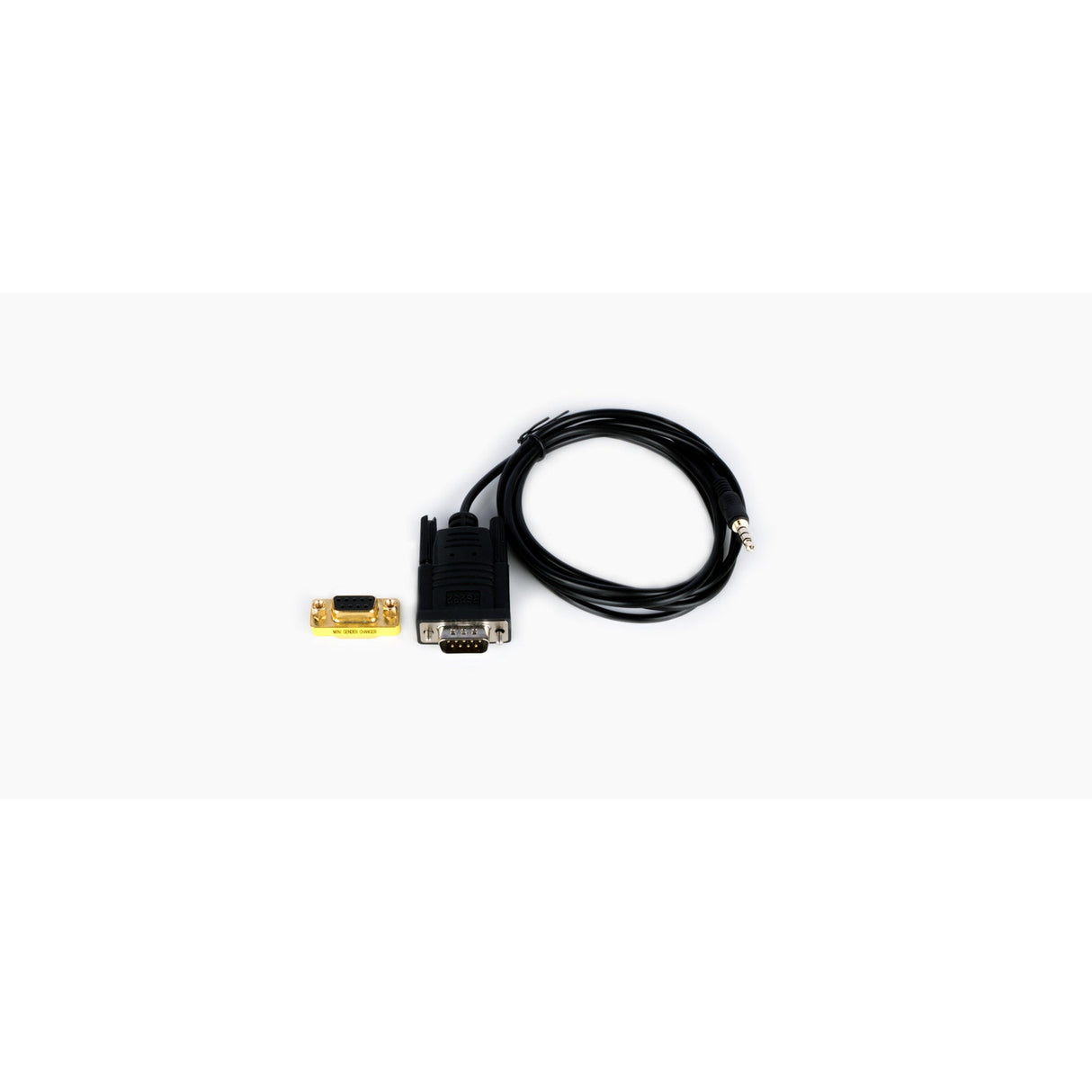

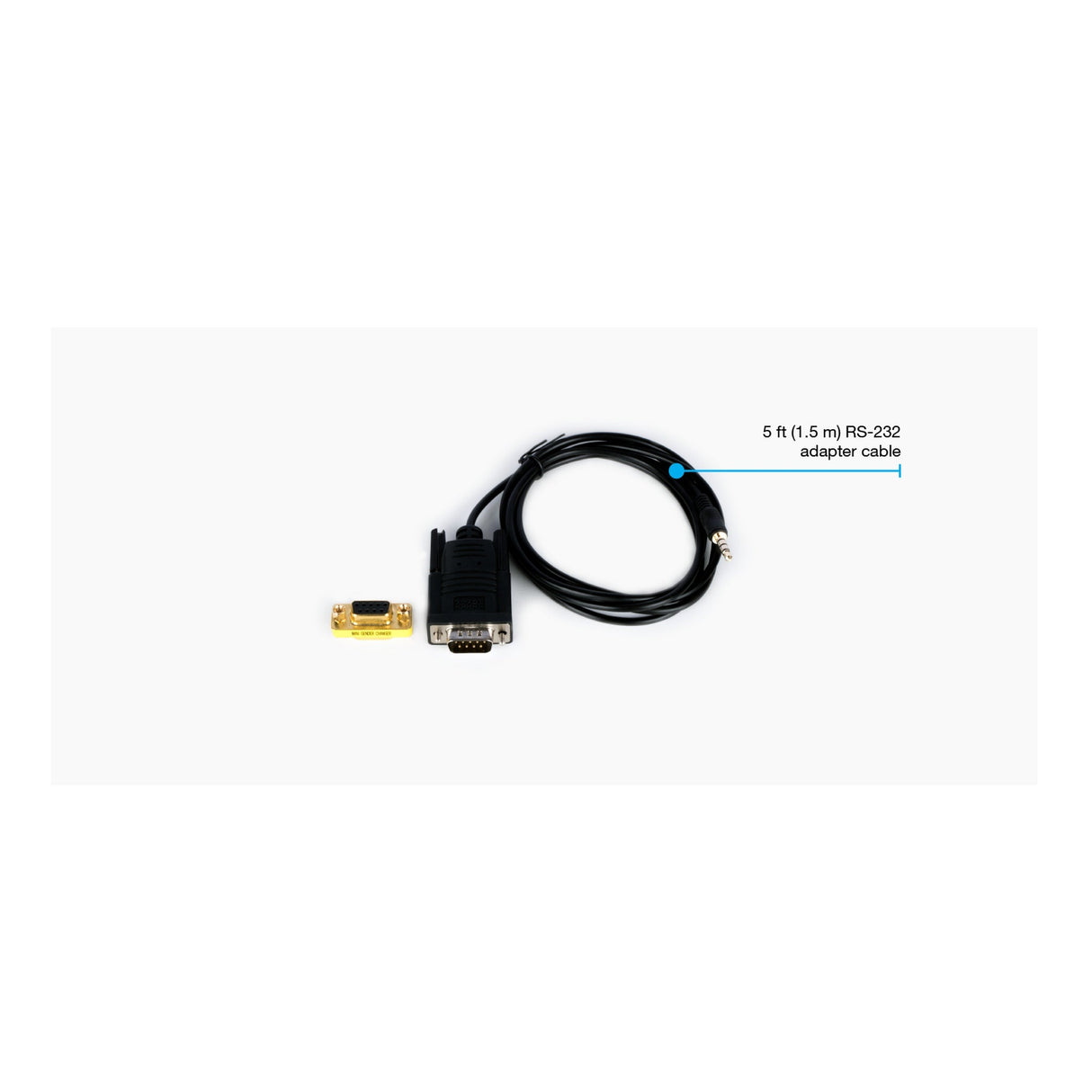

- Includes a 5-foot (1.5-meter) RS-232 adapter cable and DB9 gender changer
- Supports full bidirectional RS-232 communication with hardware handshaking
- Easy setup and configuration via the Velocity Control Gateway
- Simple “click-lock” mounting dock for secure surface installation
Technical Specifications
- Model: AT-VCC-RS232-KIT
- Network Connection: RJ45, 100/10 Mbps Ethernet (Velocity system integration)
- RS-232 Port:
- DB9 male connector with gender changer
- 5 ft (1.5 m) cable with 3.5 mm mini-stereo connector
- Supports Tx, Rx, CTS, RTS, DTR, and DTS signals
- Bidirectional communication with full hardware handshaking
- Power Options:
- PoE (802.3af-compliant)
- USB Micro-B (local power source)
- Configuration: Managed via the Velocity Control Gateway
- Mounting: Surface-mount dock with click-lock installation

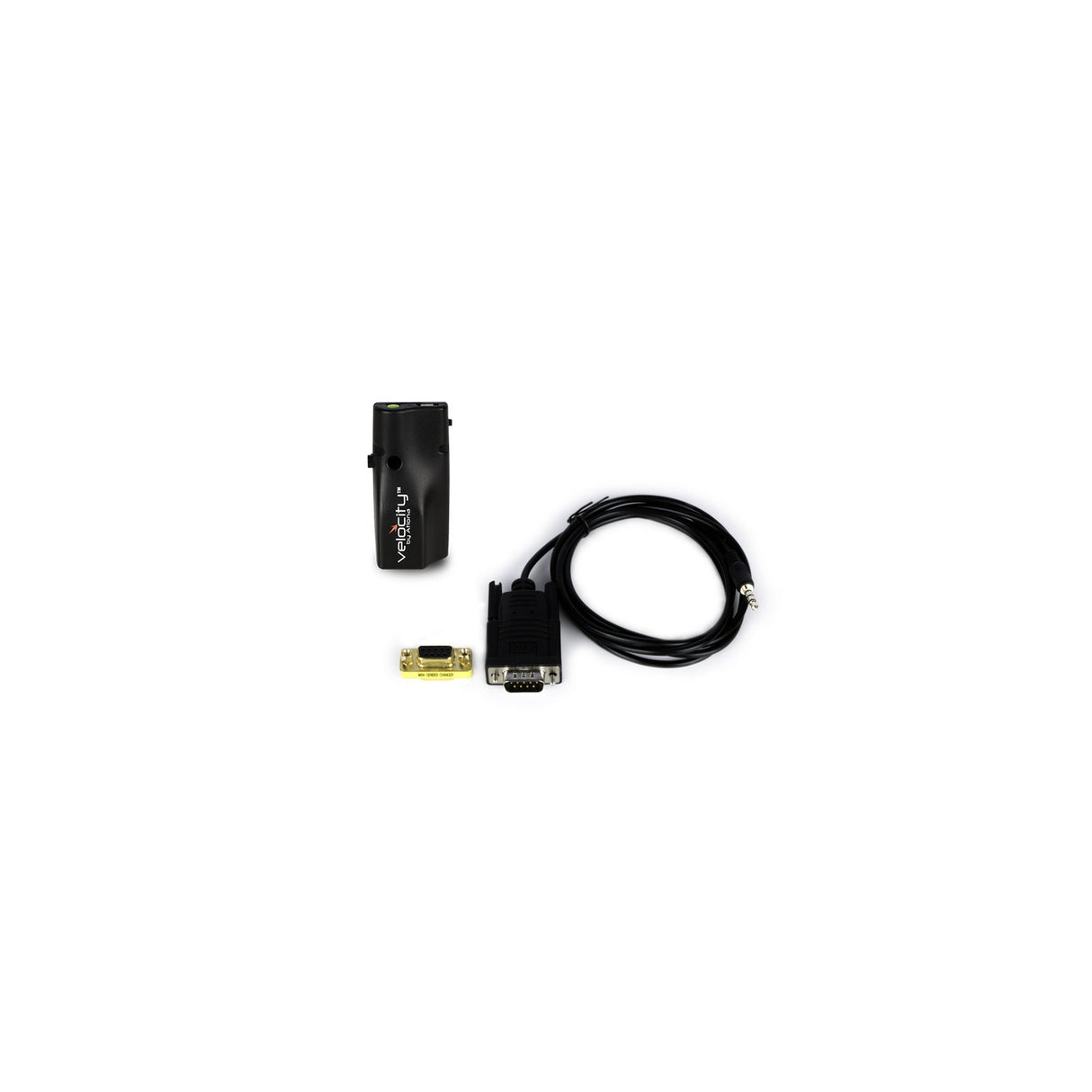

What's in the Box
- x1 Atlona AT-VCC-RS232-KIT main unit
- x1 RS-232 adapter cable (5 ft / 1.5 m)
- x1 DB9 gender changer
- Mounting dock and hardware
- User guide
