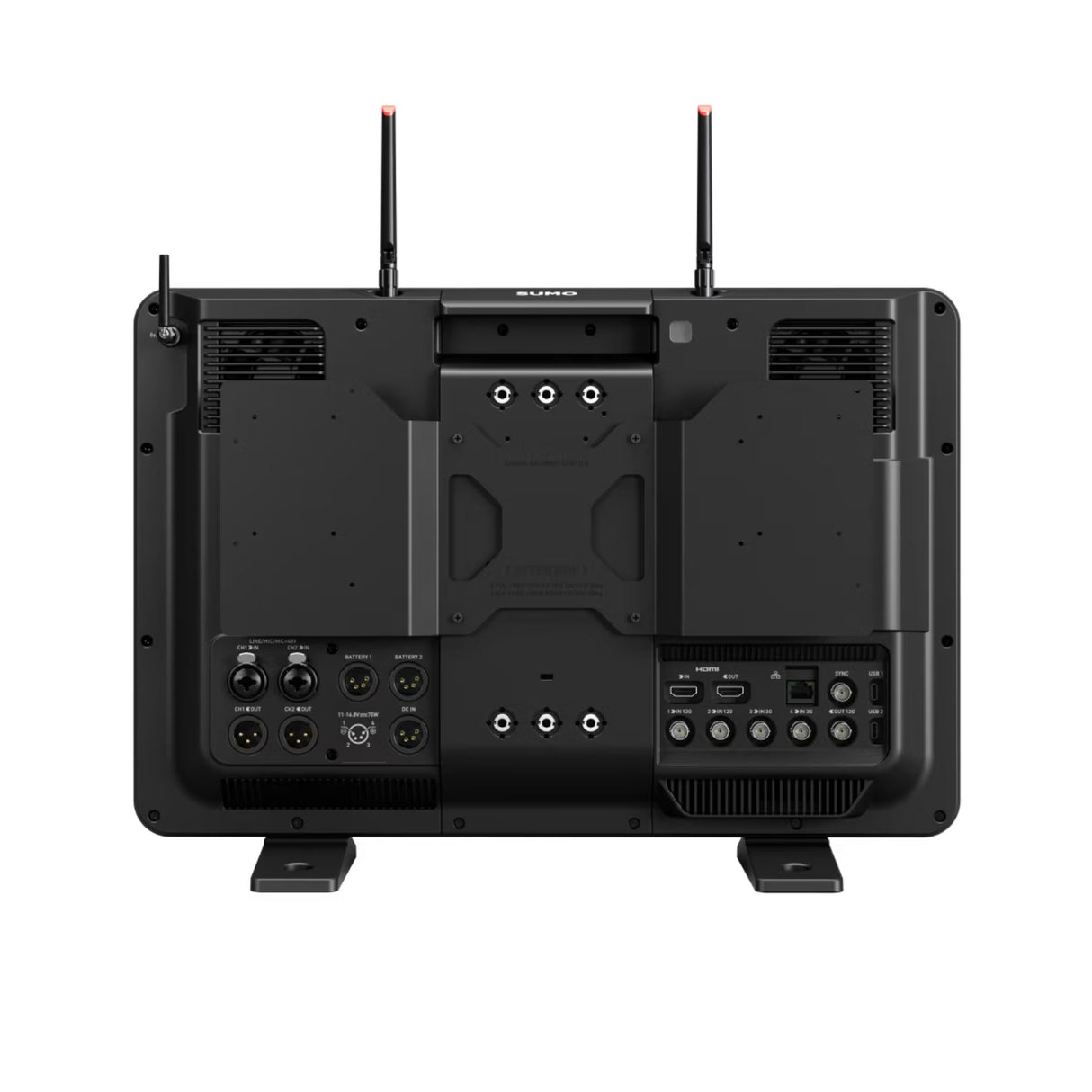

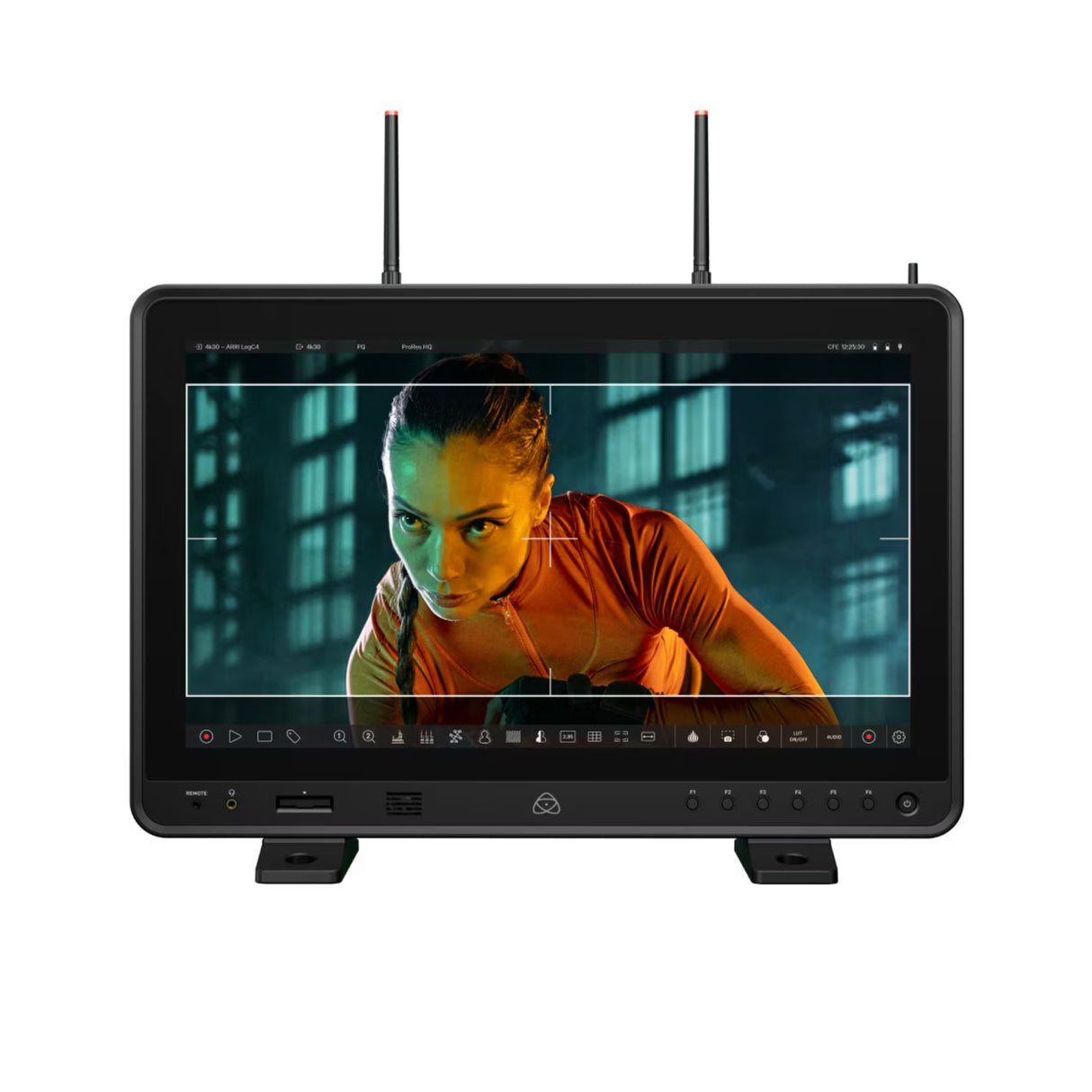

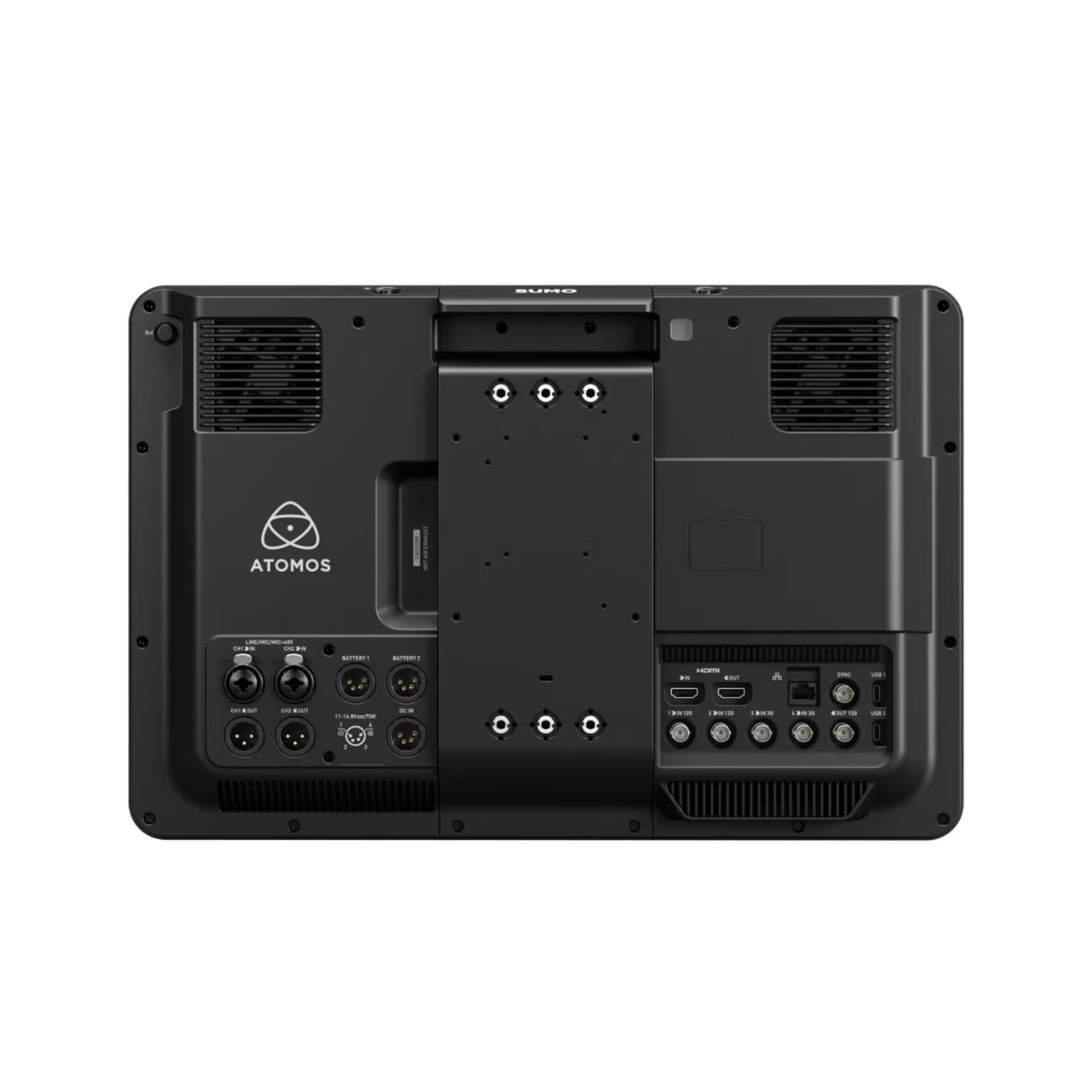

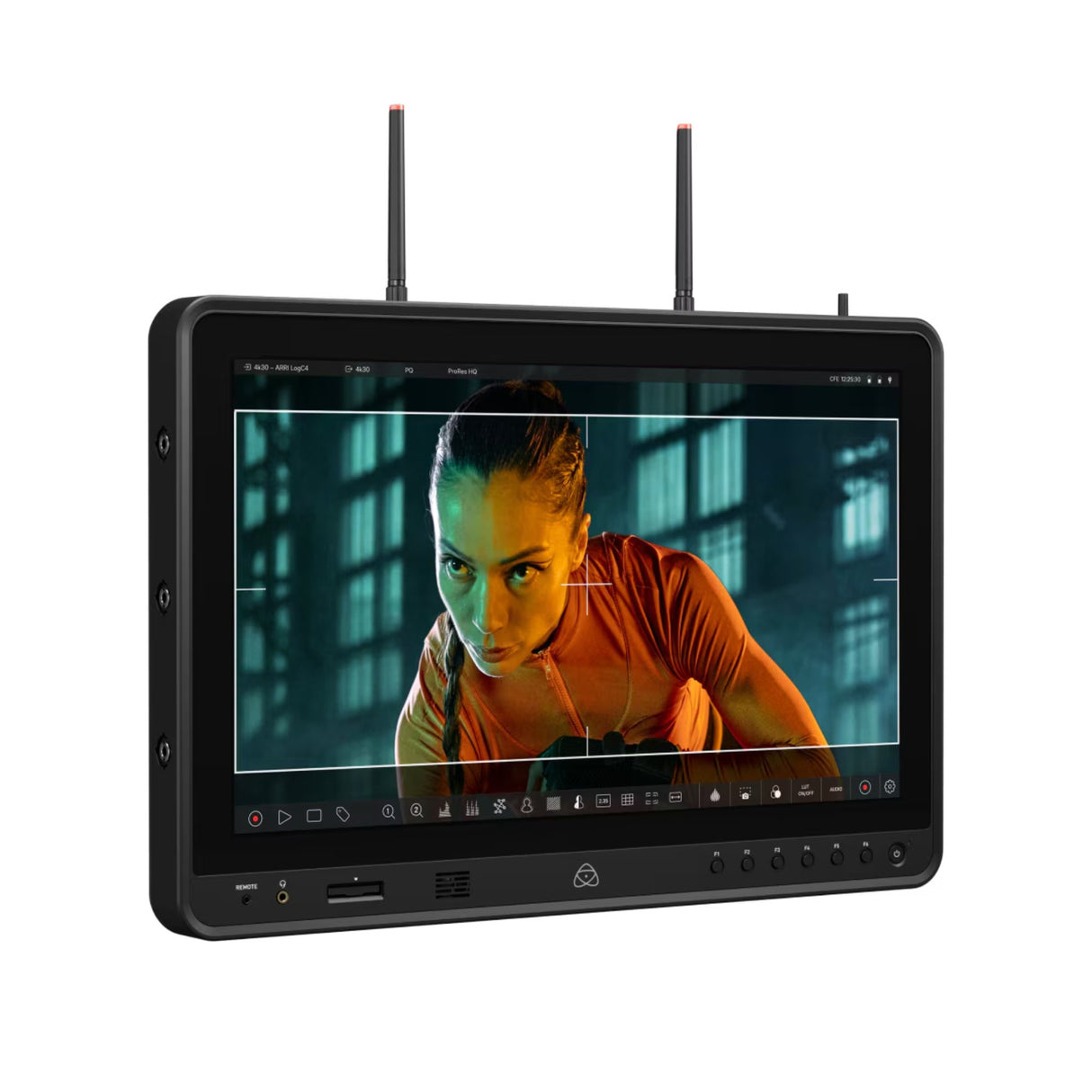

Atomos Sumo PRO-19 19" 4K HDR Monitor-Recorder-Switcher

Atomos Sumo PRO-19 19-Inch 4K HDR DCI-P3 Monitor-Recorder-Switcher

The Atomos Sumo PRO-19 4K HDR Monitor-Recorder-Switcher is a 19-inch free-standing production display that combines reference-grade monitoring, multi-input ISO recording, and live switching in a single on-set device. With 1200-nit brightness, 99% DCI-P3 coverage, four SDI inputs, ProRes RAW recording, and NDI HX3 streaming over Wi-Fi 6E or Ethernet, it anchors modern video village and studio workflows.

Built for DITs, DPs, and multi-camera production crews evaluating the best on-set monitor recorder for film production, the Sumo PRO-19 records up to four isolated camera feeds plus a fifth program output to CFexpress Type B or USB-C media. Quad-view multiview and input switching turn it into a portable live production hub, while comprehensive scopes and HDR tools give colorists and operators confidence in every frame they commit to media.

Engineered for professional cinema pipelines, the Sumo PRO-19 supports log and gamma profiles from Sony, Canon, ARRI, Panasonic, RED, JVC, FujiFilm, and Nikon, with .Cube 3D LUT display and HDR output conversion across HLG, PQ (HDR10), and Rec.709. Direct camera-to-cloud upload to ATOMOSphere, Adobe Frame.io, and Dropbox accelerates dailies review, while AirGlu RF and Bluetooth timecode keep multi-camera shoots in perfect sync.

Key Features of the Sumo PRO-19 4K HDR Production Monitor

• 19-Inch 4K HDR DCI-P3 Display: Delivers 3840 x 2160 UHD resolution at 1200 nits with 99% DCI-P3 and 100% Rec.709 coverage, giving crews a true reference-grade view at the video village.
• Multi-Camera ISO Recording: Captures up to four isolated 1080p60 camera feeds plus a fifth program output, enabling full multi-cam post workflows from a single on-set device.
• ProRes RAW, ProRes, and Avid DNx Recording: Records to Atomos-certified CFexpress Type B or USB 3.0 media in ProRes RAW, ProRes HQ/422/LT, DNxHD, DNxHR, and H.265 for flexible post pipelines.
• Comprehensive SDI and HDMI I/O: Includes 2 x 12G-SDI and 2 x 3G-SDI inputs, 12G-SDI loop-through, HDMI 2.0 in/out up to 4Kp60, and XLR analog audio in and out for full production connectivity.
• NDI HX3 Over Wi-Fi 6E and Ethernet: Transmits and receives NDI HX3 streams wirelessly or over RJ45, integrating seamlessly into IP-based studio and broadcast infrastructures.
• Advanced Monitoring Toolset: Provides waveform, RGB parade, vectorscope, focus peaking, Atomos and ARRI false color, EL Zone, zebras, anamorphic desqueeze, and cine/social frame guides for precise technical evaluation.
• AirGlu Wireless Timecode: Operates as an AirGlu RF server/client and Bluetooth server, synchronizing timecode across multi-camera rigs without cables.
• Camera-to-Cloud Workflow: Supports direct progressive upload to ATOMOSphere, Adobe Frame.io, and Dropbox over Wi-Fi or Ethernet for real-time dailies and remote review.

Technical Specifications

• Display Size: 19 inches
• Resolution: 3840 x 2160 (4K UHD)
• Bit Depth: 10-bit (8+2 FRC)
• Brightness: 1200 nits
• Color Gamut: 100% Rec.709, 99% DCI-P3, 99% NTSC, 87% BT.2020
• Aspect Ratio: 16:9
• Backlight: Double Edge Lit
• Touchscreen: Capacitive touch
• SDI Input: 2 x 12G-SDI (6G/3G backwards compatible) + 2 x 3G-SDI
• SDI Output: 1 x 12G-SDI loop through
• HDMI: 1 x HDMI 2.0 in / 1 x HDMI 2.0 out (up to 4Kp60)
• Wireless: Wi-Fi 6E, Bluetooth
• Ethernet: 1 x RJ45
• USB: 2 x USB-C 2.0/3.0
• Analog Audio In: 2 x 3-pin XLR (female)
• Analog Audio Out: 2 x 3-pin XLR (male)
• Headphone Out: 3.5mm jack, 2-channel
• Audio Quality: 24-bit / 48kHz PCM
• Timecode: Embedded HDMI/SDI, LTC BNC in, AirGlu RF & Bluetooth
• Recording Codecs: ProRes RAW / ProRes RAW HQ, ProRes LT/422/422 HQ, DNxHD, DNxHR, H.265
• Max RAW Recording: Up to 8Kp30 / 6Kp30 / 4Kp60 / 2Kp240
• Max Video Recording: 4K DCI/UHD up to 60p, 1080p up to 120p
• Media: Atomos-certified CFexpress Type B, USB 3.0 (ExFAT)
• ISO Recording: Up to 4 x 1080p60 (3G SDI Level A)
• Input Voltage: DC 12V to 16.8V
• Operating Power: 75W
• Battery Compatibility: 95Wh+ V-Lock / Anton Bauer Gold Mount (optional plates)
• Battery Input: Dual 4-pin XLR
• DC Input: 1 x 4-pin XLR
• Mount Points: Top 4 x 1/4"-20 + 2 x 3/8"; Bottom 6 x 1/4"-20 + 3 x 3/8"; Right 4 x 1/4"-20 + 2 x 3/8"; Left 2 x 1/4"-20 + 1 x 3/8"
• VESA Mount: 100 x 100
• Construction: Aluminum with ABS plastic, actively controlled fan and heat sink
• Operating Temperature: Up to 104°F (40°C)
• Dimensions (W x H x D): 18.66" x 12.40" x 2.44"
• Weight: 15.65 lbs
• Warranty: 1 year, extendable to 2 years with product registration (excludes screen)

What's Included

• Sumo PRO-19 monitor-recorder-switcher
• 2 x Wi-Fi antennas
• 5 x antenna tips (black, white, yellow, green, red)
• AirGlu antenna
• 3 x antenna caps
• Desktop feet and screws
• Battery plate mount and screws
• XLR 4-pin power supply
• 5 x international IEC power cables
• Screen cloth
• HEX key
• Quick Start Guide
