Description

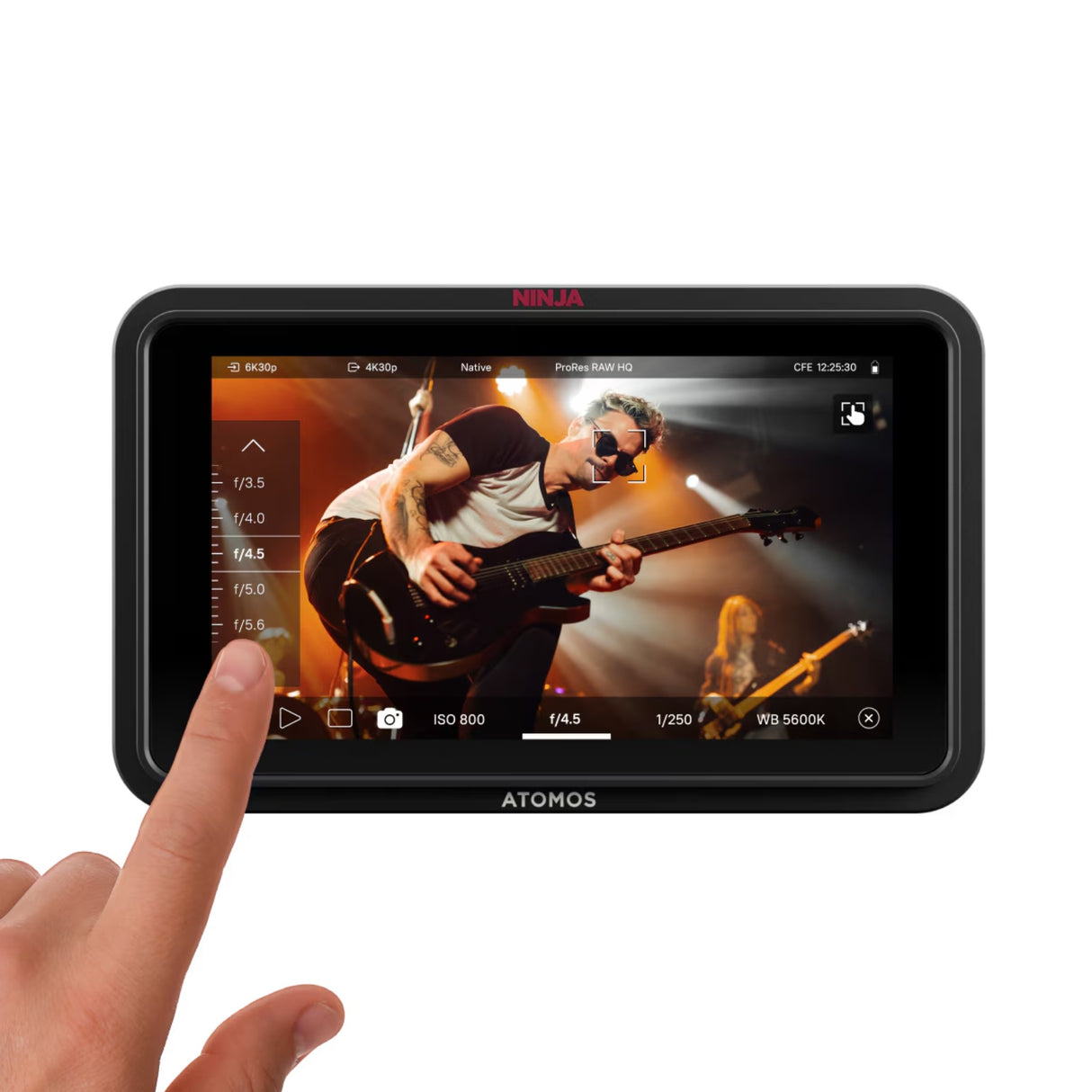

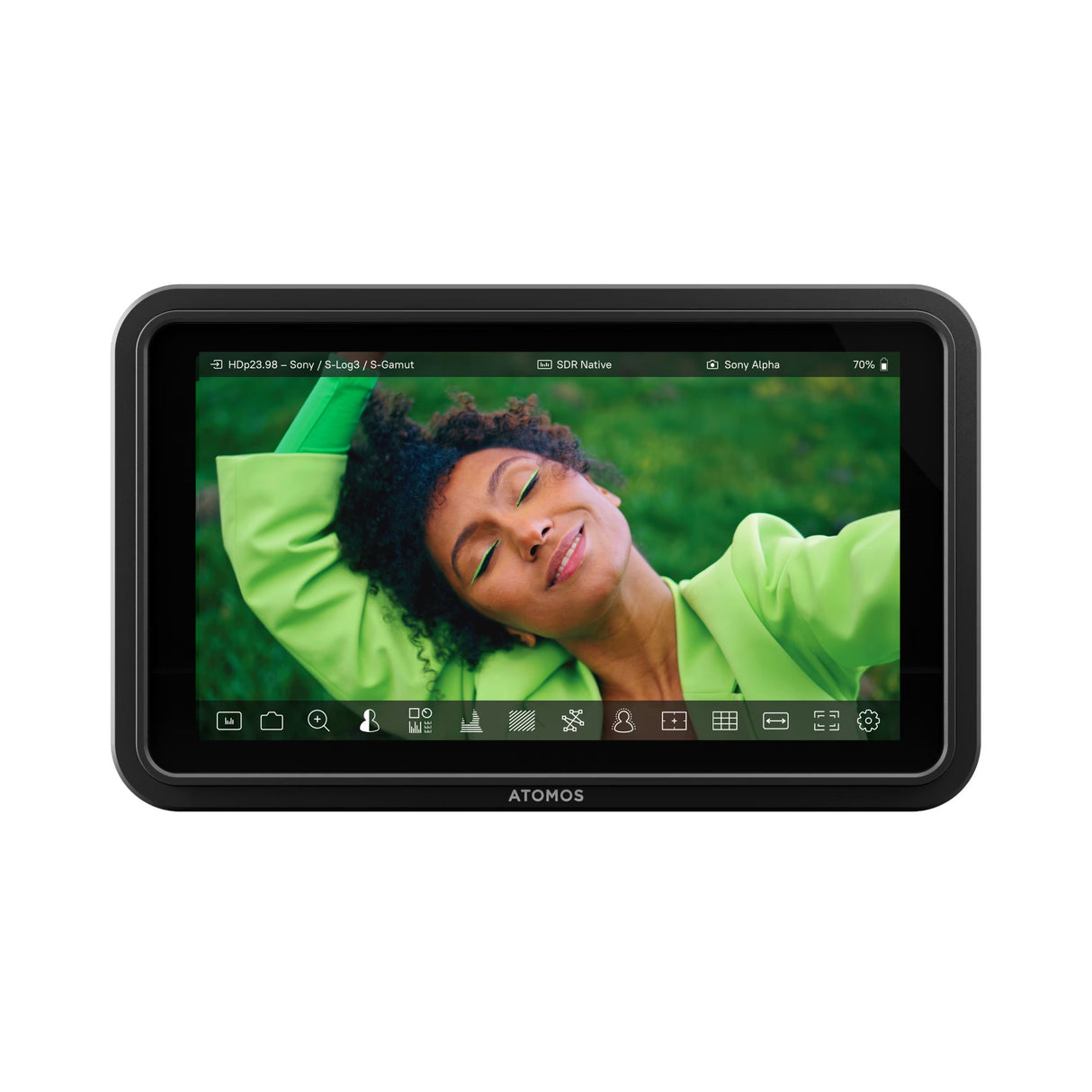

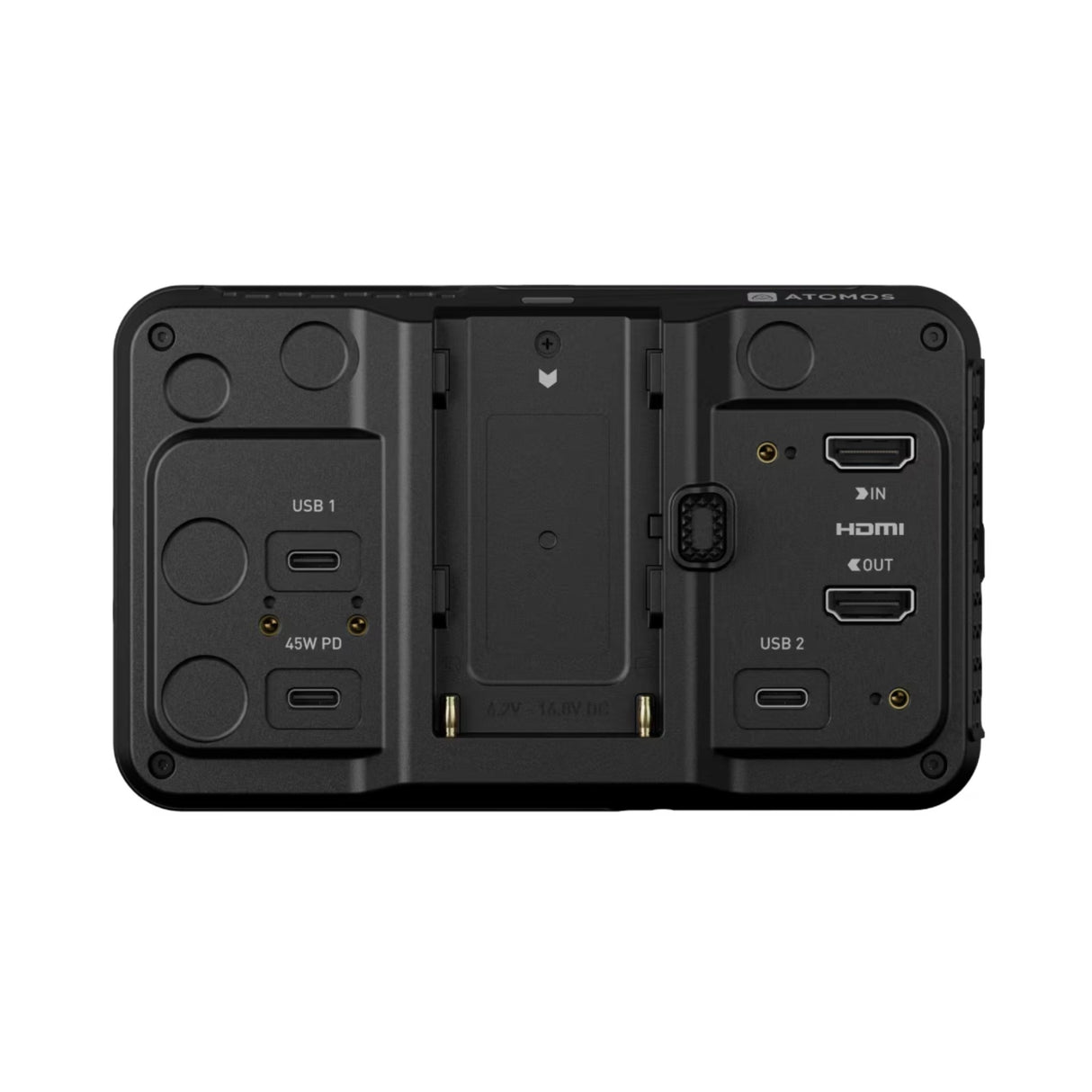

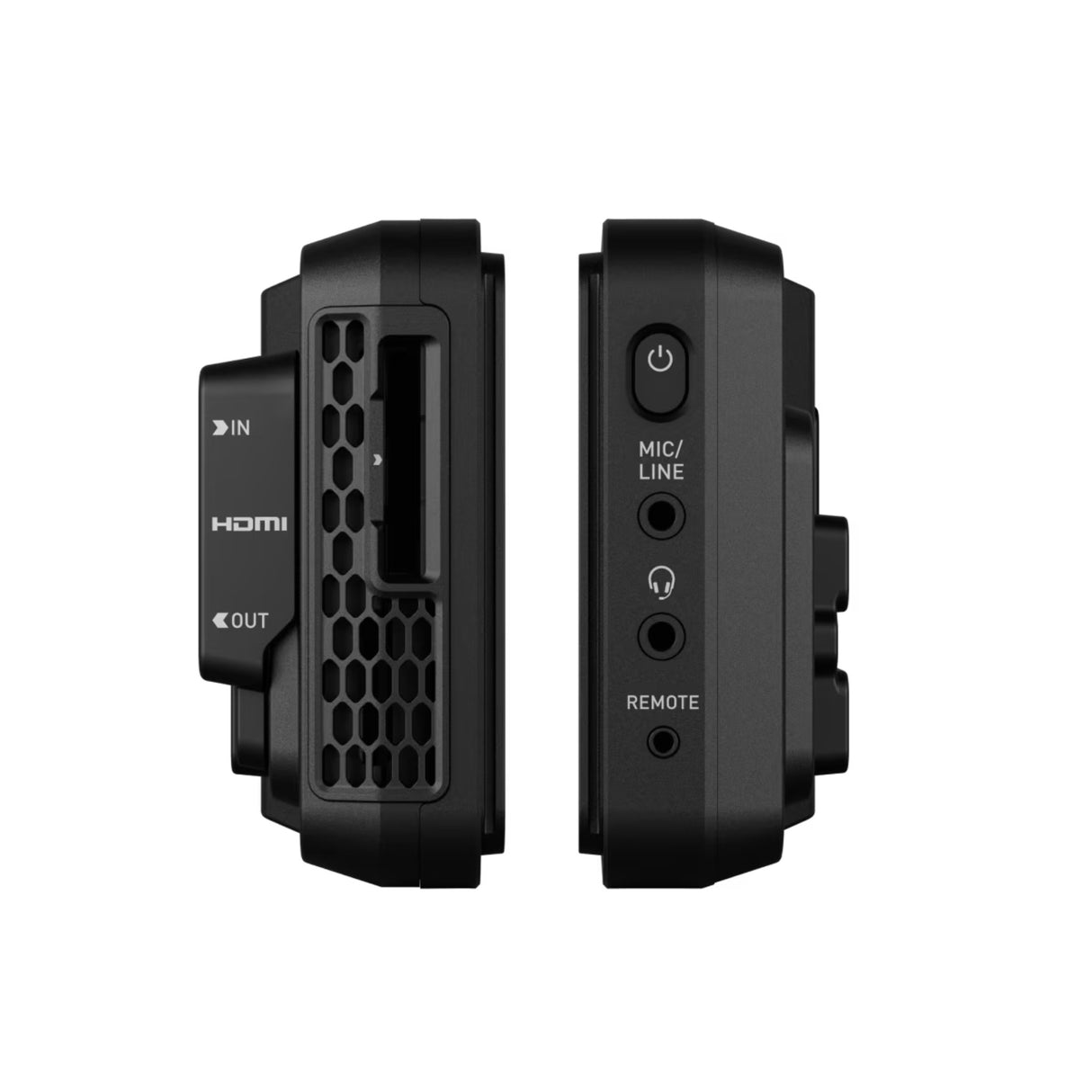

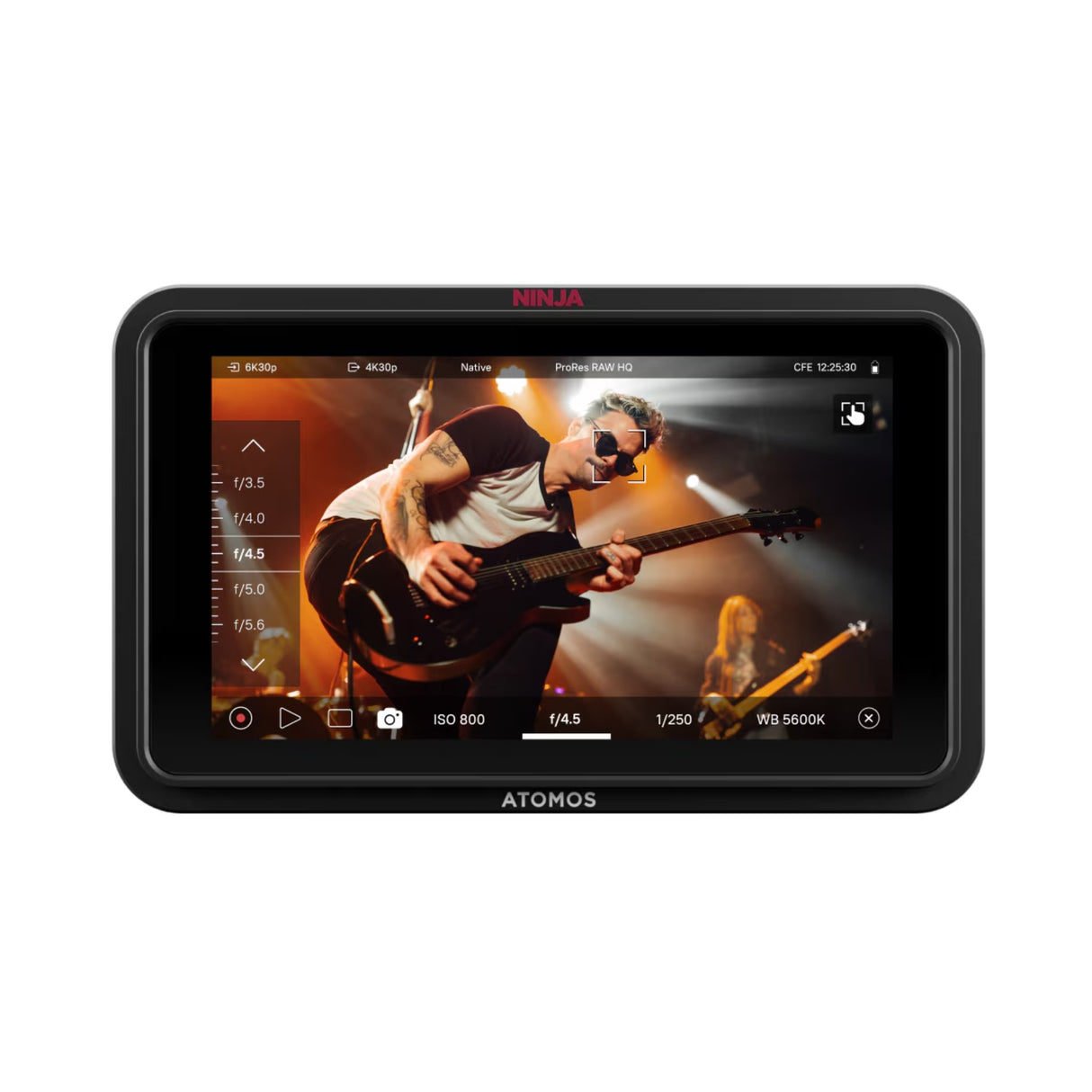

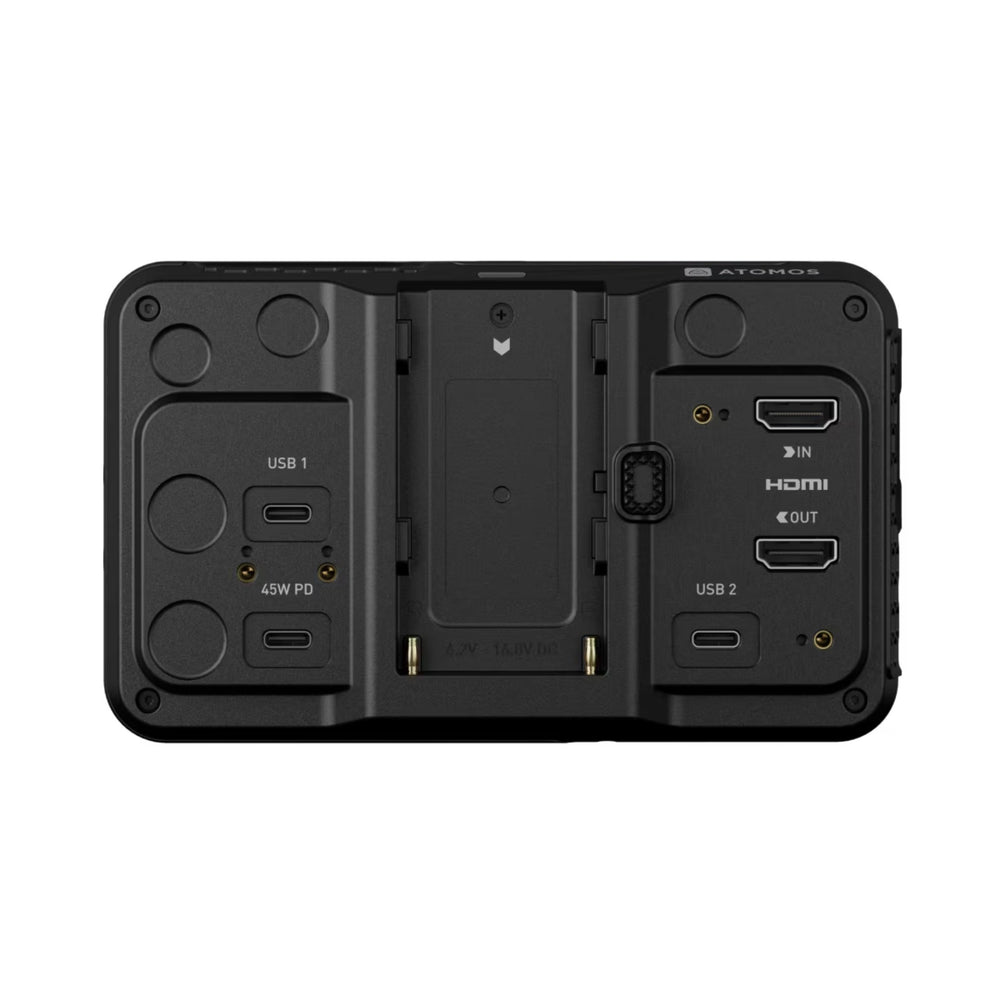

Atomos Ninja RAW 5-Inch HDMI Monitor-Recorder for ProRes & ProRes RAW
The Atomos Ninja RAW is a super-bright, compact HDMI monitor-recorder built for creators and filmmakers who want professional monitoring and high-quality recording from HDMI mirrorless and DSLR cameras. With a 1500-nit HDR touchscreen and a full suite of on-screen analysis tools, Ninja RAW helps you judge exposure, focus, and framing with confidence—even in bright environments and fast-moving shoots.
Designed for efficient post workflows, Ninja RAW records directly to Apple ProRes and ProRes RAW (including ProRes RAW HQ), while also supporting additional production-friendly codecs like Avid DNx and H.265. It captures up to 6K30p via HDMI and supports common 4K and high-frame-rate HD formats, producing edit-ready files compatible with leading NLEs such as DaVinci Resolve, Adobe Premiere Pro, Apple Final Cut Pro, and Avid Media Composer.
Beyond recording, Ninja RAW adds responsive camera control for supported cameras—including start/stop, ISO, shutter, aperture, and white balance—plus touch-to-focus via USB-C where supported. Flexible power options (NP-F batteries, USB-C PD power banks, or DC power) and dual USB-C ports for external media help keep rigs mobile and production-ready for run-and-gun, indie filmmaking, and professional videography.
Key Features of the Atomos Ninja RAW HDMI Monitor-Recorder
- Super-Bright HDR Touchscreen: 5.2-inch 1920 x 1080 display with 1500 nits brightness for clear viewing in challenging light.
- ProRes & ProRes RAW Recording: Record Apple ProRes RAW, ProRes RAW HQ, ProRes LT, ProRes 422, and ProRes 422 HQ direct from compatible camera outputs.
- 6K HDMI Capture Support: HDMI 2.0 input supports up to 6Kp30, 4K up to 60fps, and 1080p up to 120fps for flexible productions.
- Professional Monitoring Tools: Includes EL Zone™ false color, waveform, focus peaking, RGB parade, vectorscope, zebra, and frame guides.
- Onion Skin Overlay: Compare frames or align shots using the Onion Skin tool for consistency across takes.
- Camera Control & Touch Interface: Control start/stop, ISO, shutter, aperture, and white balance via a responsive scroll wheel; touch-to-focus supported via USB-C with compatible cameras.
- Dual USB-C Ports: Attach external storage or expand workflows with optional accessories such as network adaptor or calibration probe (sold separately).
- Flexible Power Options: Run on NP-F batteries, USB-C Power Delivery sources, or DC power for portable and studio setups.
- Rugged Build for Production: Aluminium body with ABS plastic and actively controlled fan/heat sink for real-world reliability.
Technical Specifications
- Product Type: HDMI monitor-recorder with camera control
- Display Size: 5.2-inch
- Display Resolution: 1920 x 1080
- Brightness: 1500 nits
- Aspect Ratio: 16:9
- Color Gamut: Rec.709
- Monitoring Modes: Native / HLG / PQ / 3D LUT
- 3D LUT Support: .Cube format; downstream loop out; 50/50 LUT view supported
- Video Input: 1 x HDMI 2.0 (up to 6Kp30)
- Video Output: 1 x HDMI 2.0 (up to 6Kp30) loop-through
- Bit Depth: 8/10-bit video
- Chroma Subsampling: 4:2:2
- USB Ports: 2 x USB-C 2.0/3.0
- LANC: Yes
- Bluetooth: No
- Wi-Fi: No
- Audio via HDMI: 8-channel, 24-bit
- Analog Audio In: 3.5mm headphone jack, 2-channel input
- Headphone Out: 3.5mm headphone jack, 2-channel
- Timecode: Embedded via HDMI; Time of day supported
- Supported Media: Atomos certified CFexpress Type B media; Atomos certified USB 3.0 media
- File System: ExFAT
- Codecs (Apple ProRes RAW): ProRes RAW, ProRes RAW HQ
- Codecs (Apple ProRes): LT, 422, 422 HQ
- Codecs (Avid): DNxHD 220x/220/145/36; DNxHR LB/SQ/HQ/HQX
- Codecs (H.265): LQ/MQ/HQ/XQ in 8/10-bit; 4:2:2 and 4:2:0
- Recording Resolutions: RAW up to 6Kp30; 4K DCI/UHD up to 60p; 1080p up to 120p; 720p up to 60p
- Operating Temperature: Up to 40°C
- Construction: Aluminium with ABS plastic
- Cooling: Actively controlled fan and heat sink
- Power Input Voltage: 6.2V to 16.8V DC
- Operating Power: Up to 30W
- USB-C PD In: 45W capable (power supply required)
- USB-C PD Out: Up to 13W
- DTAP: Up to 13W
- Mount Points: 1 x anti-rotation 1/4-inch & 3/8-inch, top and bottom
Dimensions
- Dimensions (W x H x D): 5.94 x 3.62 x 1.42 in (151 x 92 x 36 mm)
