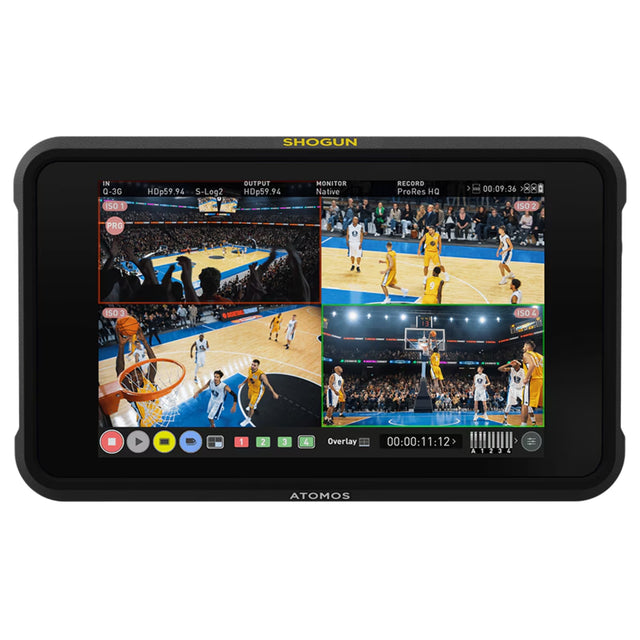

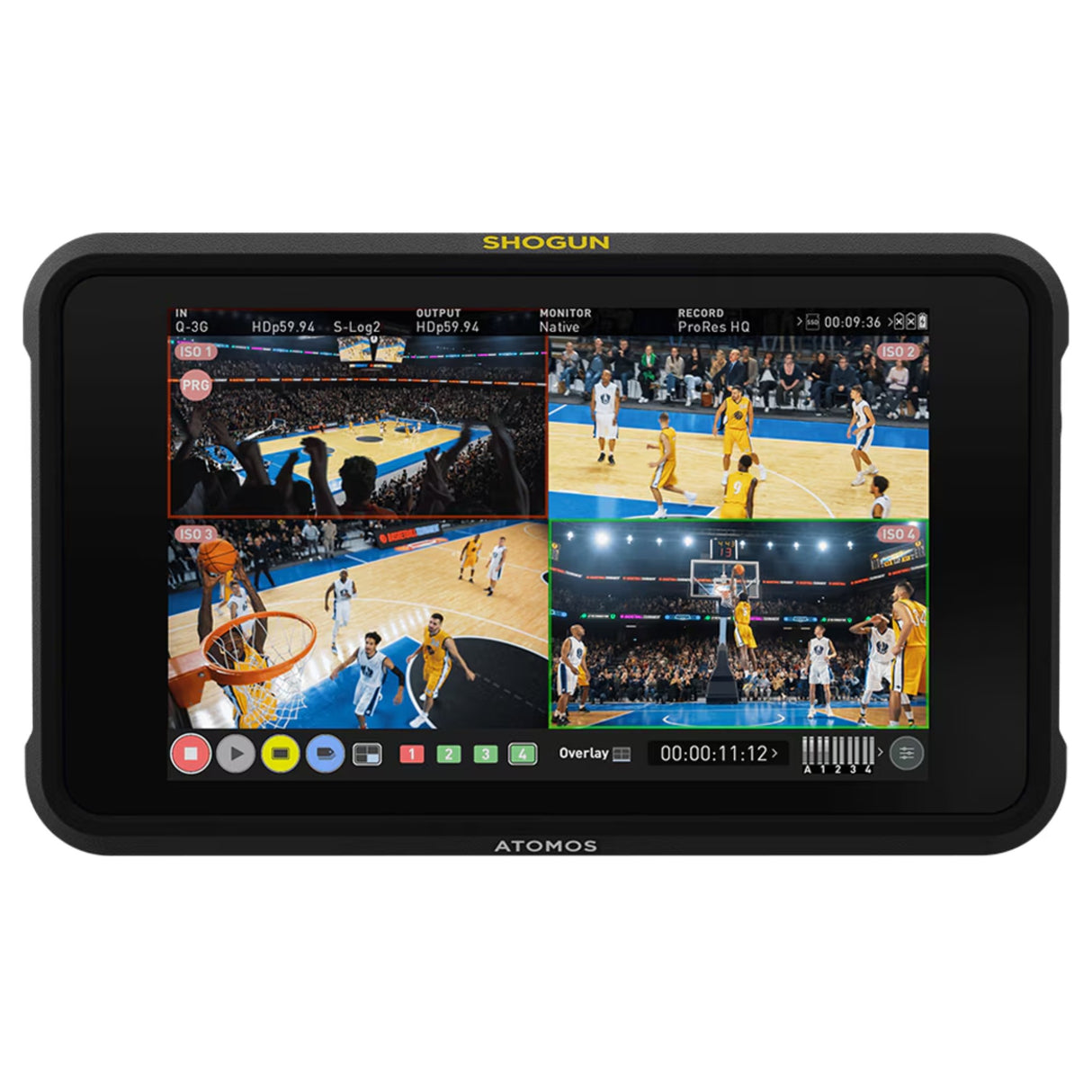

Atomos Shogun Classic 7" HDR Monitor-Recorder-Switcher
The Shogun Classic consolidates a broadcast-grade field monitor, a multi-format 4K recorder, and a four-input live switcher into one portable unit ā replacing three separate devices on your rig or production cart. It records up to DCI 4K at 60fps in Apple ProRes or Avid DNx directly to SSD, with a 3000 nit display bright enough for outdoor monitoring in any conditions.
The problem it solves: Managing a multi-camera live shoot with separate monitors, recorders, and switchers is expensive, heavy, and complex. The Shogun Classic replaces all three ā record ISOs, switch live, and monitor in HDR from a single device you can hold in one hand.
Who this is for
Key features
A 7.2" Full-Array Local Dimming panel with 105% DCI-P3 coverage gives you accurate HDR monitoring outdoors or in direct sunlight ā no shade tent required.
Records edit-ready Apple ProRes HQ / 422 / LT and Avid DNxHR / DNxHD files directly to SSD. No transcoding. Hand off drives and cut immediately.
Switch between four SDI camera sources live on the touchscreen. Asynchronous inputs mean you don't need genlocked cameras ā mix brands freely without extra sync gear.
Records up to four 1080p60 ISO streams plus a fifth switched program channel at the same time, giving editors full flexibility in post without additional hardware.
Load custom .cube LUTs and monitor in any major log format ā S-Log3, ARRI LogC, RED Log3G10, Canon C-Log3, Panasonic V-Log, and more ā without touching the recorded signal.
False color, focus peaking (3 modes), waveform, RGB parade, vectorscope, zebra, anamorphic desqueeze, frame guides, safe areas, and tap-to-zoom ā all from the capacitive touchscreen.
Camera compatibility
Technical specifications
Display
Recording
Connectivity
Power & physical
What's in the box
- Atomos Shogun Classic unit
- Master Caddy II
- 12V 3A AC power supply
- Carry case
- Quick start guide
- 1-year warranty (2 years with registration)
For productions that demand broadcast-grade recording quality, live switching, and accurate HDR monitoring without the weight of a full cart, the Shogun Classic is the complete solution ā one device that earns its place on every shoot.
Frequently Asked Questions
What recording formats does the Atomos Shogun Classic support?
The Shogun Classic records in Apple ProRes (HQ, 422, and LT) and Avid DNxHD/DNxHR formats, all wrapped in .MOV containers. These are edit-ready formats compatible with all major NLE applications including Final Cut Pro, Premiere Pro, and Media Composer ā no transcoding required.
What is the maximum recording resolution and frame rate?
The Shogun Classic records up to DCI 4K at 60fps and UHD 4K at 60fps via both HDMI and SDI. It also supports 2K DCI up to 60fps via SDI, 1080p up to 120fps via SDI, and 720p up to 60fps.
Can the Shogun Classic be used as a multi-camera switcher?
Yes. The Shogun Classic accepts four SDI inputs and functions as a compact live switcher. It records up to four simultaneous 1080p60 ISO streams plus a fifth switched program channel. Asynchronous switching means your sources do not need to be genlocked, so you can mix cameras freely without additional sync equipment.
What media does the Shogun Classic record to?
The unit supports Master Caddy II, Master Caddy III, and SSDmini drives via a SATA 3.0 interface formatted in exFAT. Note that Master Caddy I is not supported. SSD media is not included and must be purchased separately.
What cameras are compatible with the Shogun Classic?
The Shogun Classic works with any camera outputting HDMI 2.0 or SDI signals. It has dedicated log format support for cameras from ARRI, RED, Sony, Canon, Panasonic, Fujifilm, Nikon, and JVC, covering major log profiles including S-Log3, ARRI LogC, RED Log3G10, Canon C-Log3, and Panasonic V-Log.
How is the Shogun Classic powered?
It accepts DC input from 6.2V to 16.8V and is compatible with two NP-F / L-Series batteries simultaneously. A 12V 3A AC power supply is included in the box for studio or desktop use.
Does the Shogun Classic support HDR monitoring?
Yes. The 3000 nit Full-Array Local Dimming display supports HDR monitoring in HLG and PQ formats. It can convert camera log signals to HDR output in real time over HDMI, and supports AtomHDR with auto-detection on both HDMI input and output.
Can I load custom 3D LUTs on the Shogun Classic?
Yes. The Shogun Classic supports 3D LUT monitoring in standard .cube format. LUTs can be applied on-screen for accurate creative or technical monitoring without affecting the recorded signal.
What audio connections does the Shogun Classic have?

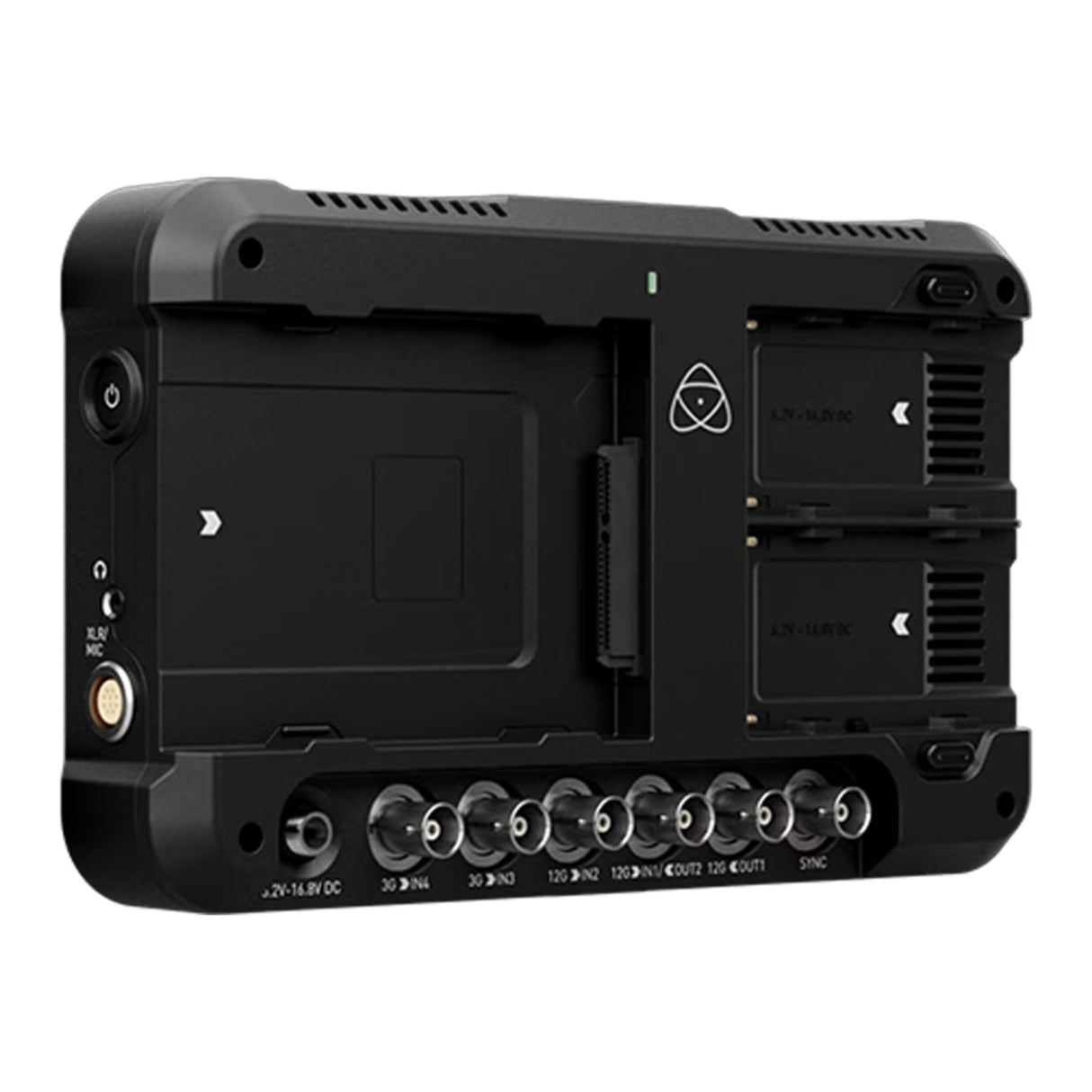

The unit features a 3.5mm headphone output for monitoring, analog audio I/O via an optional 2-in/2-out XLR cable, embedded audio via HDMI (2 or 8 channels) and SDI (12 channels at 48kHz 24-bit), and a 2.5mm LANC port for remote start/stop control.
What monitoring tools are built into the Shogun Classic?
The Shogun Classic includes a full professional monitoring toolset: false color, focus peaking (3 modes), waveform, RGB parade, vectorscope, zebra (adjustable 50-105%), anamorphic desqueeze (up to 2x), safe areas, frame guides (6 cinema, 4 social), 9-grid markers, tap-to-zoom (1x and 2x), and vertical display flip.
