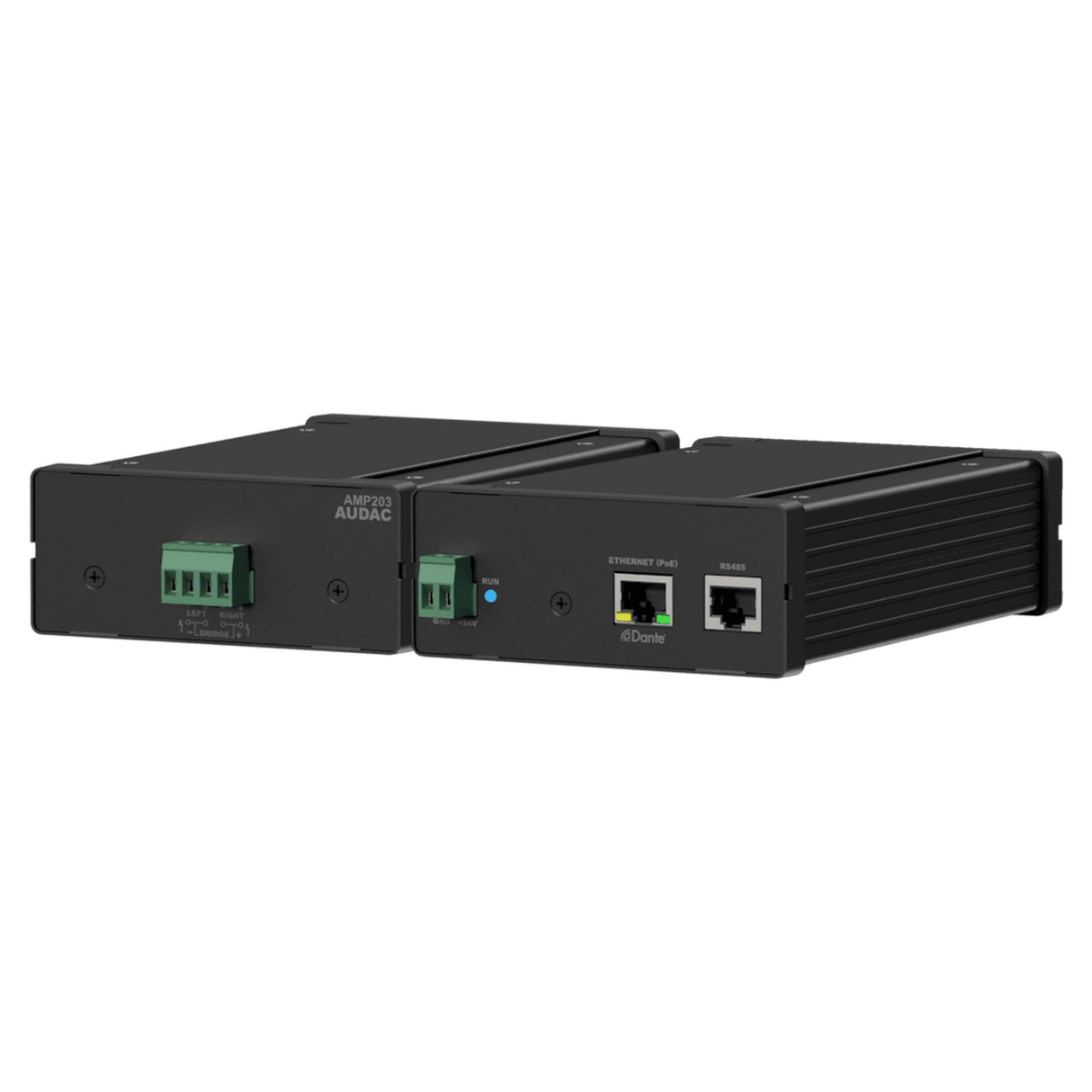

Audac AMP203 Dante Mini Stereo Amplifier
Audac AMP203 Dante Mini Stereo Amplifier
Audac AMP203 Dante Mini Stereo Amplifier
The AMP203 is a revolutionary mini stereo amplifier, featuring network input through Dante or AES67 providing a complete media networking solution to distribute uncompressed audio via standard Ethernet networks with near-zero latency, while allowing all other data to be connected on the same network. Various DSP functionalities are implemented in the AMP203. This allows all configurations to be made in AUDAC Touch 2 or via RS485 and Ethernet, making it a fully-fletched 2 x 30W amplifier. The output connector has been implemented using a 4-pin terminal block connector, featuring an output power of 30W per channel and 60W when bridged.
Key Features
- Compatible with AUDAC Touch 2
- Compatible with TouchLink
- PoE 802.3bt (and lower) compatible
- Dante & AES67 digital audio input
- Ethernet & RS485 control possibilities
- Create a decentralized multi-zone system
Technical Specifications
THD+N (@ 1 kHz)
< 0.015%
Crosstalk (@ 1 kHz)
< -98 dB
Efficiency
> 70%
Cooling
Convection cooled
Control
RS-485
TCP/IP
Power
PoE 802.3bt
Protection
Over heating
Over load
DC Short circuit
Signal limiting
Dimensions
4.25 x 1.73 x 6.50ā (W x H x D)
Weight
1.54 lb
