Upgrade your audio experience with the Audac ARES5A 2-Way Stereo Active Speaker System 2 x 40W, a versatile 2-way active speaker system designed to deliver exceptional sound quality in a variety of settings. meticulously crafted with high-quality components, the ARES5A boasts a 5 ¼” woofer and ½” tweeter for powerful, clear audio with rich bass and crisp highs. An integrated DSP ensures optimal audio processing for an immersive listening experience.

The ARES5A offers flexible connectivity options to suit your needs. Balanced and unbalanced stereo inputs, including a 3.5mm jack and terminal block connection, allow you to seamlessly connect the speaker system to a wide range of audio sources. Adjustable volume, treble, and bass controls provide personalized sound tailoring, ensuring you achieve the perfect audio balance for your space.

The ARES5A boasts a space-saving design that blends seamlessly into any environment. The sleek, ABS enclosure features close-to-wall mounting brackets for a clean aesthetic. With versatile mounting options including horizontal, vertical, and angled positioning (up to 45° on each side), you can find the ideal placement to optimize sound dispersion. For additional tilt functionality, the optional MBK455 bracket allows for an extra 90° adjustment.

Energy efficiency is a key feature of the ARES5A. The auto-standby mode automatically conserves power when the system is not in use, reducing your environmental impact and lowering energy costs. Safety is another priority, with M6 drop safety ensuring secure installation for peace of mind.

The ARES5A is designed for expandability. A remote input connection (RJ45) enables integration with optional wall panel input modules, providing additional functionality to suit your evolving needs.

The AUDAC ARES5A is the perfect solution for a wide range of applications, including classrooms, meeting rooms, restaurants, retail stores, home offices, and more. Experience the difference with AUDAC ARES5A. Buy today!

Key Features

• Active and passive stereo speaker system

• 2-way speaker system with 5 ¼" drivers

• Includes a recessed mounting bracket

• Features a remote wall panel input connection from the WP2xx series

• Equipped with standby energy saving mode and can be mounted vertically or horizontally

Technical Specifications

Available models
ARES5A/B
Black version
ARES5A/W
White version

System Information
RMS/AES power handling
2 x 20 W
Dynamic power
2 x 40 W
Sensitivity (1W/1m)
89 dB
Sound Pressure (Max. W/1m)
105 dB
Frequency Response (± 3 dB)
80 Hz - 20 kHz
Power Consumption
Nominal (1/8 MUP)
11.3 W
Standby
< 0.35 W

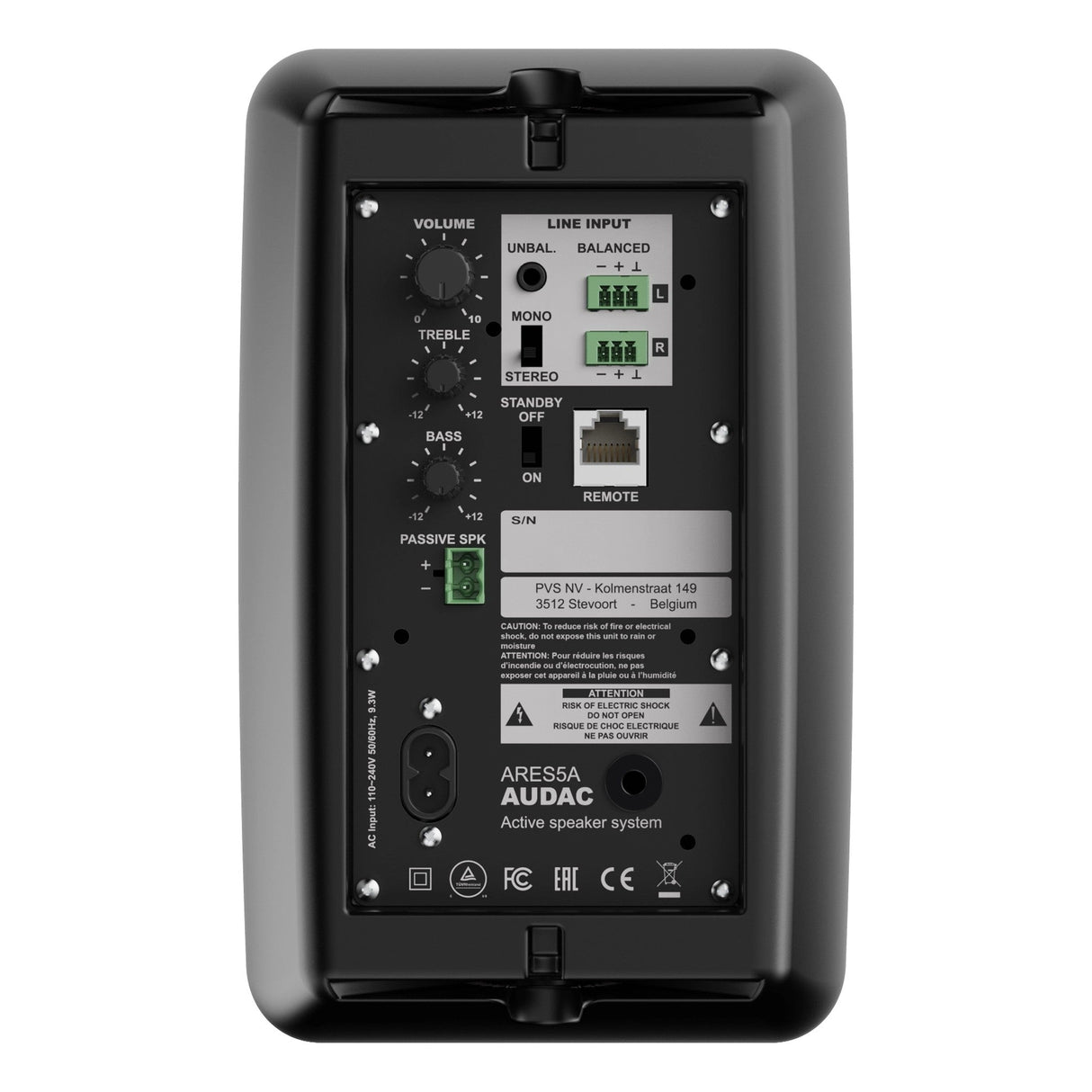

Inputs
Balanced Stereo Connector
2 x 3-pin Euro Terminal Block (Pitch - 3.81 mm)
Unbalanced Stereo Connector
3.5 mm Jack (2x)
Remote Connector
RJ45
Power Supply
100 ~ 240 V AC / 50 ~ 60 Hz
Power Connector
IEC C7/C8 power inlet
Connectors (Remote control)
RJ45
Outputs - Passive loudspeaker
2-pin Euro Terminal Block (Pitch - 5.08 mm)
Drivers
HF
0.51 " (PEI tweeter)
LF
5 1/4" (Polypropylene)
Dispersion
Horizontal
210° (Average -6 dB / 100 Hz – 10 kHz)
Vertical
205° (Average -6 dB / 100 Hz – 10 kHz)

Product Features
Dimensions
5.91 x 9.45 x 5.75 " (W x H x D) (excl bracket) & 150 x 240 x 194 mm (incl bracket)
Weight
7.72 lb (pair)
Colours
Black (RAL9003)
White (RAL9005)
Construction
ABS
Front finish
Powder coated steel grill with lining
Bracket
Powder Coated steel
Construction
Impact & UV resistant ABS
Colours
Black (RAL9005) (ARES5A/B)
White (RAL9003) (ARES5A/W)
Accessories
Included
Mounting bracket
Power cable
3.5 m connection cable speaker
Wall screws and plugs
Optional – NOT included

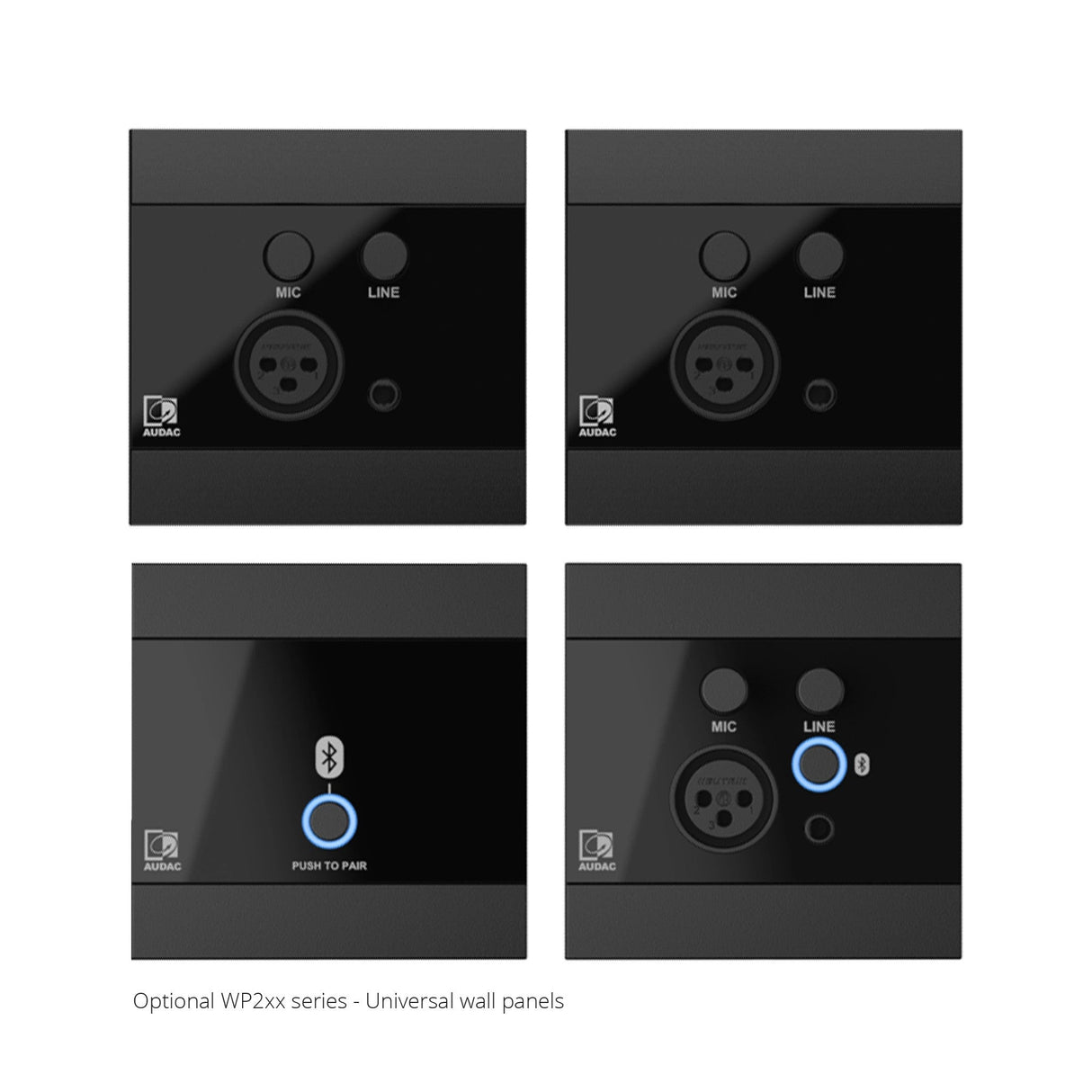

WP205 - ARES5A wall panel

Recommended applications
Education
Retail
Bars & Restaurants
Corporate
