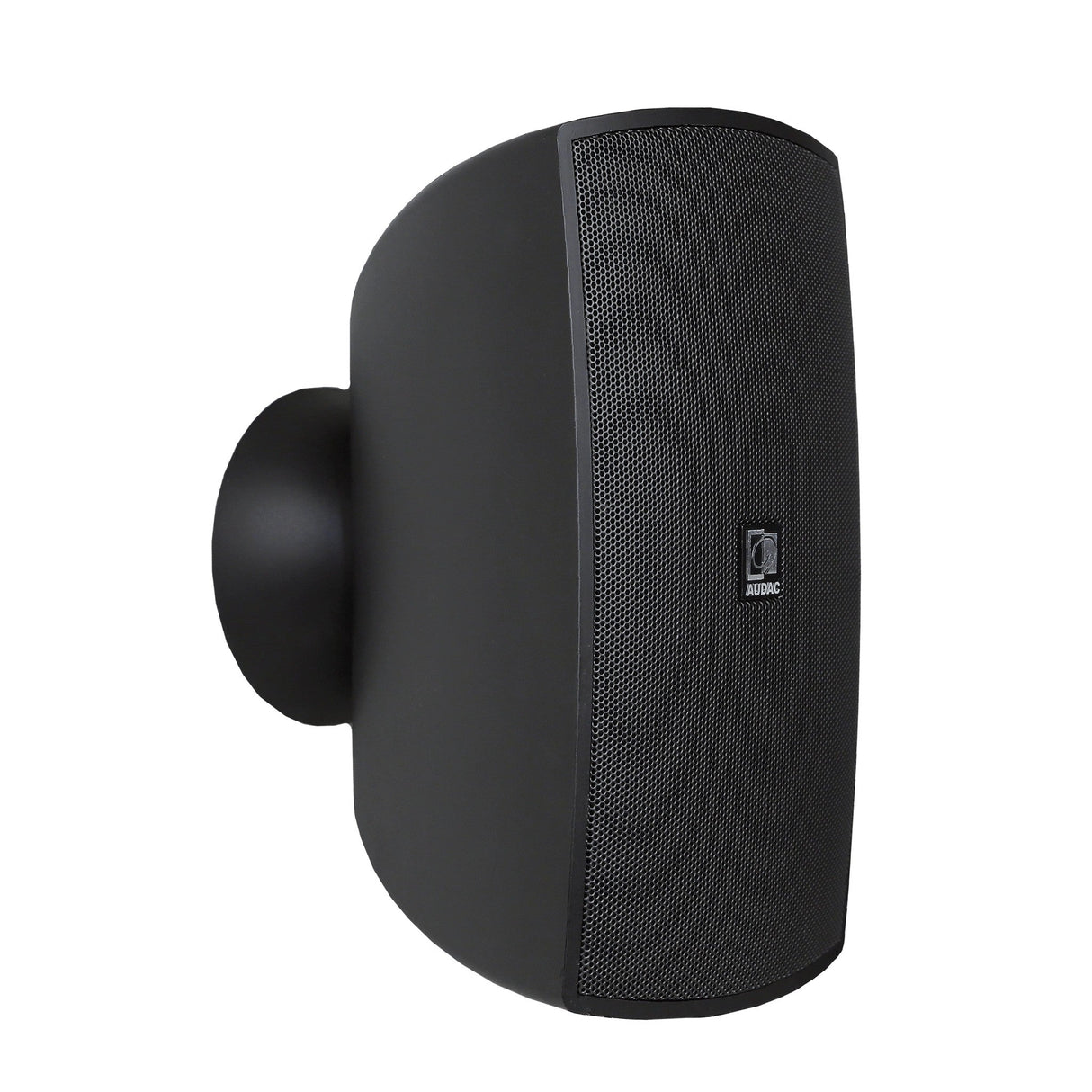

Elevate your indoor sound experience with the Audac ATEO6 6-Inch Low Frequency Wall Loudspeaker with Mount, Pair, designed for seamless integration into any environment. This premium speaker delivers true-to-life audio reproduction, thanks to the powerful combination of a 6-inch mid/bass driver and a 1-inch dome tweeter. Whether you're seeking exceptional sound for your home, retail store, restaurant, club, or another space, the ATEO6 delivers. Its sleek ABS housing offers a touch of elegance that complements any décor.

The innovative CleverMount™ technology takes the frustration out of installation. This patented mounting system ensures a clean, professional look and simplifies setup. With the included wall plate and secure connection block, mounting the ATEO6 takes mere seconds. Plus, the speaker offers flexible placement options, allowing for vertical or horizontal mounting to achieve optimal sound positioning in your space.

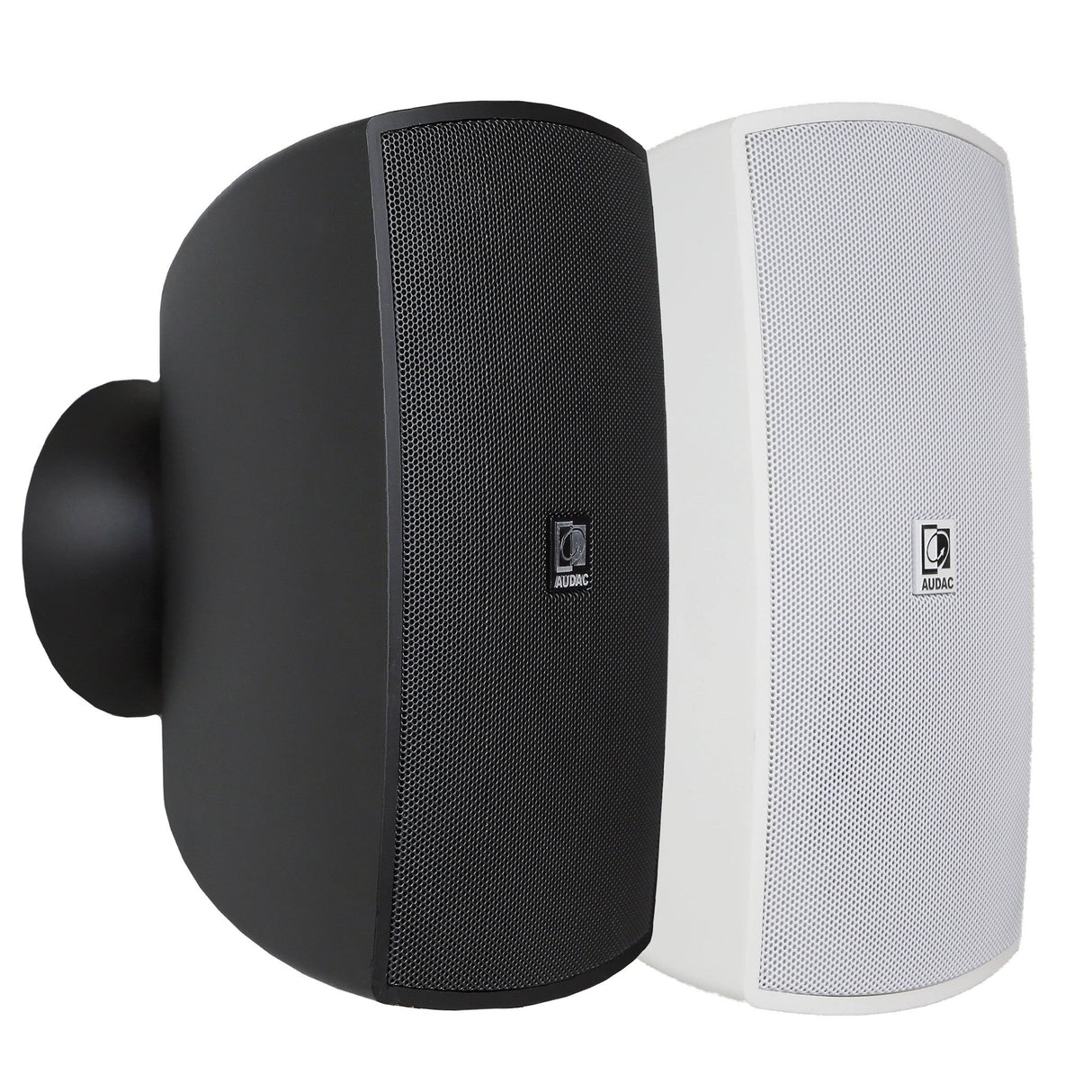

The Audac ATEO6 6-inch Low Frequency Wall Loudspeaker with Mount is the perfect choice for both discerning audiophiles and design enthusiasts. It delivers superior sound quality with a hassle-free installation experience. Available in black (/B) or white (/W), the ATEO6 blends seamlessly into your space while providing exceptional audio performance.

Key Features

• Rotatable logo for vertical or horizontal mounting

• 1" Dome tweeter for clear high frequencies

• 6" Low frequency loudspeaker for powerful bass

• Supports 100V and low impedance connections

• ABS enclosure with stunning design and elegant appearance

• Features patented CleverMount™ mounting system for easy installation

• Multi-tapping 70V / 100V line transformer for versatile use

Technical Specifications

Available models
ATEO6/B
Black version - 8 Ω
ATEO6/W
White version - 8 Ω
ATEO6D/B
Black version - 16Ω
ATEO6D/W
White version - 16Ω

System Information
Speaker type
Full range
Peak power handling
240 W
Program power handling
120 W
RMS/AES power handling
60 W
Impedance
8 Ω (ATEO6)
16 Ω (ATEO6D)
Incline angle
Left
30°
Right
30°
Bottom
30°
Top
5°
Sensitivity (1W/1m)
89 dB
Sound Pressure (Max. W/1m)
@ 8 Ω
106 dB
@ 100 V
105 dB
Frequency Response (± 3 dB)
65 Hz - 20 kHz
Frequency Range (-10 dB)
55 Hz - 20 kHz
Dispersion
Horizontal
120°
Vertical
120°
Connectors
6-pin Custom Terminal Block
Drivers
1” Dome tweeter
6” MF / LF Woofer
Line Transformer Tappings
1
100 Ω - 100 V / Not used - 70 V / 50 W
2
200 Ω - 100 V / 50 W - 70 V / 25 W
3
400 Ω - 100 V / 25 W - 70 V / 12.5 W
4
800 Ω - 100 V / 12.5 W - 70 V / 6.25 W

Product Features
Dimensions
7.60 x 13.68 x 8.47 " (W x H x D)
Weight
8.42 lb
Operating temperature
-4 °F ~ 140 °F
Mounting
Clevermount™
Accessories (Included)
Allen-key wrench
Construction
ABS
Front finish
Steel grill
Colours
Black (RAL9005) (ATEO6/B, ATEO6D/B)
White (RAL9003) (ATEO6/W, ATEO6D/W)

Recommended applications
Bars & Restaurants
Corporate
Education
Hotels
Retail
Residential
Clubs
