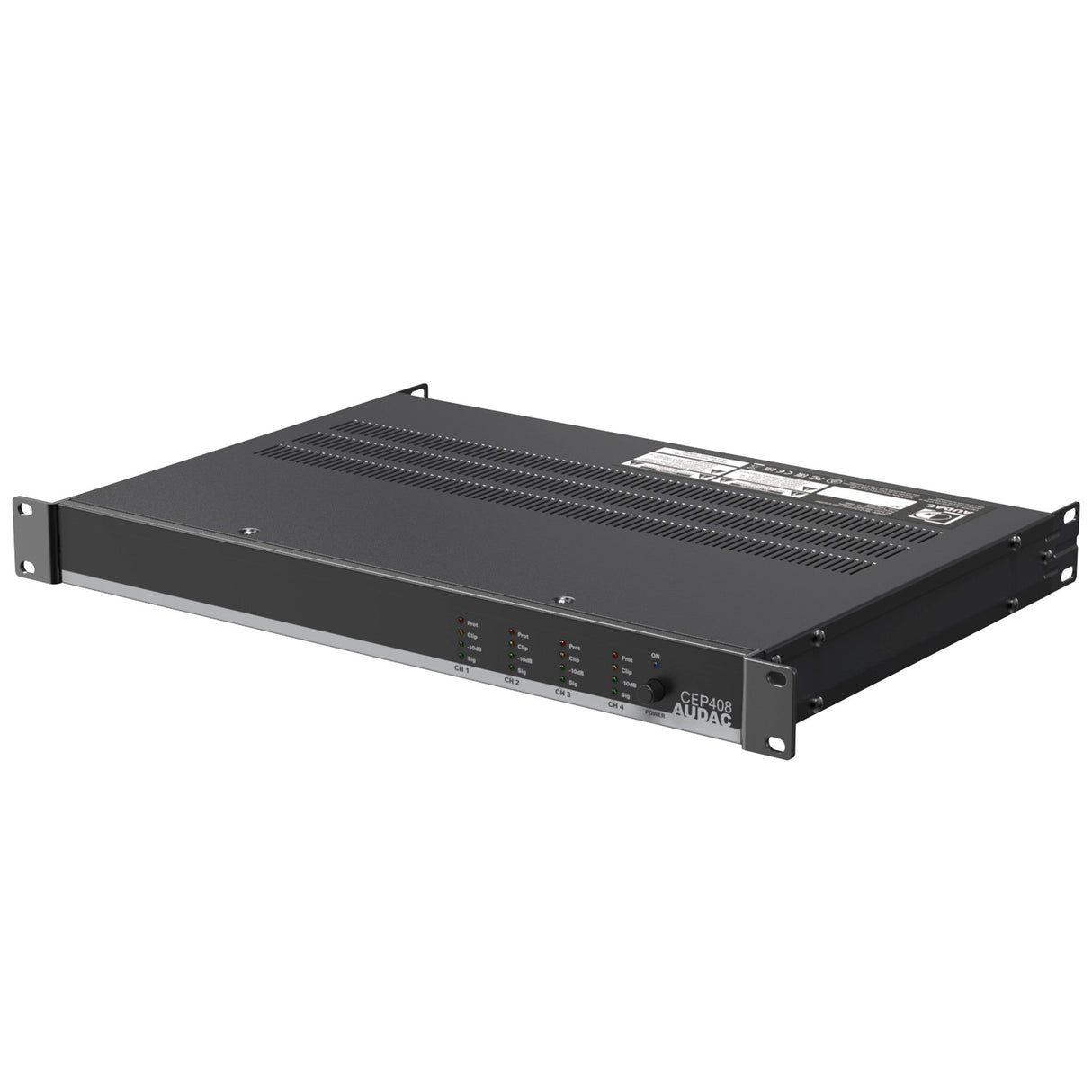

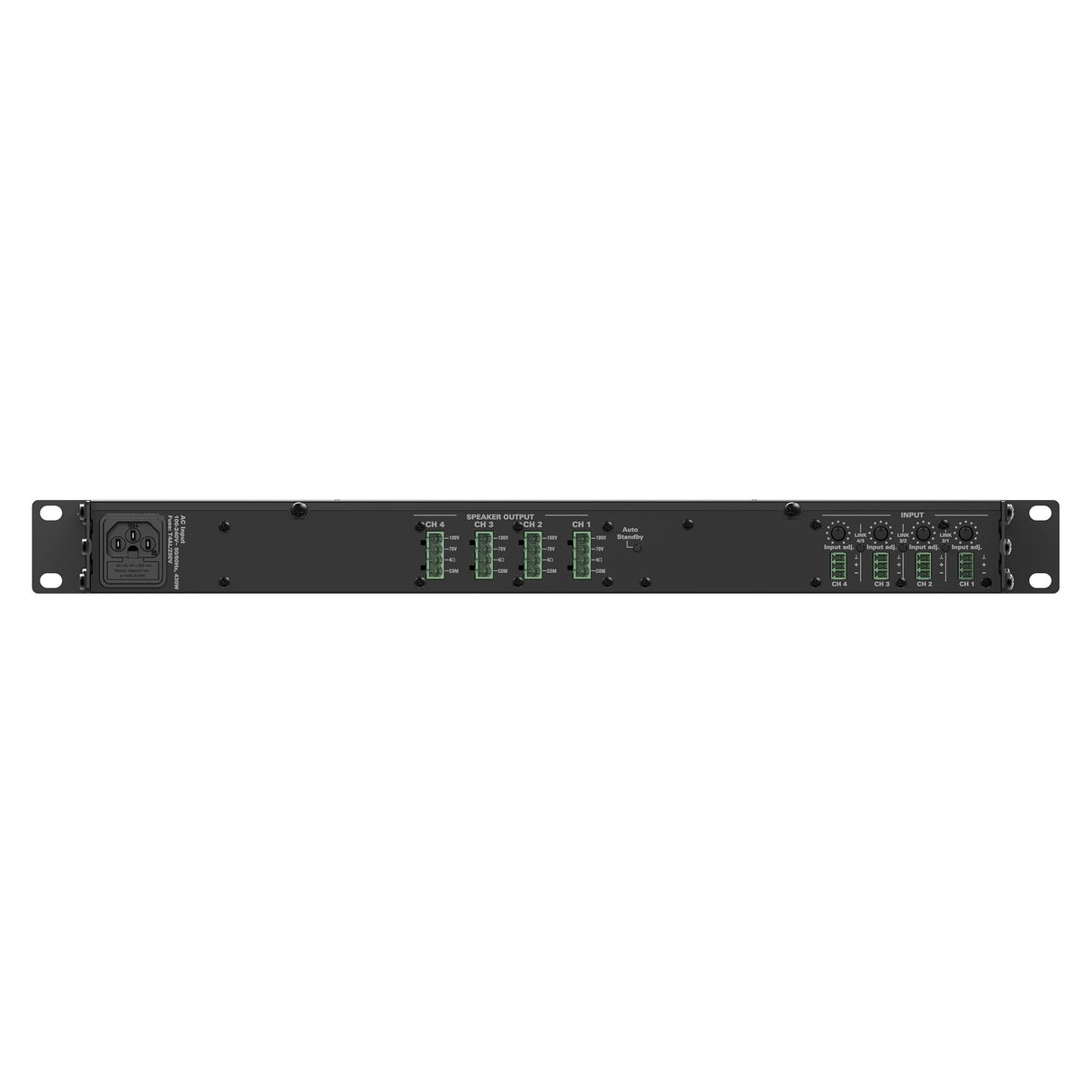

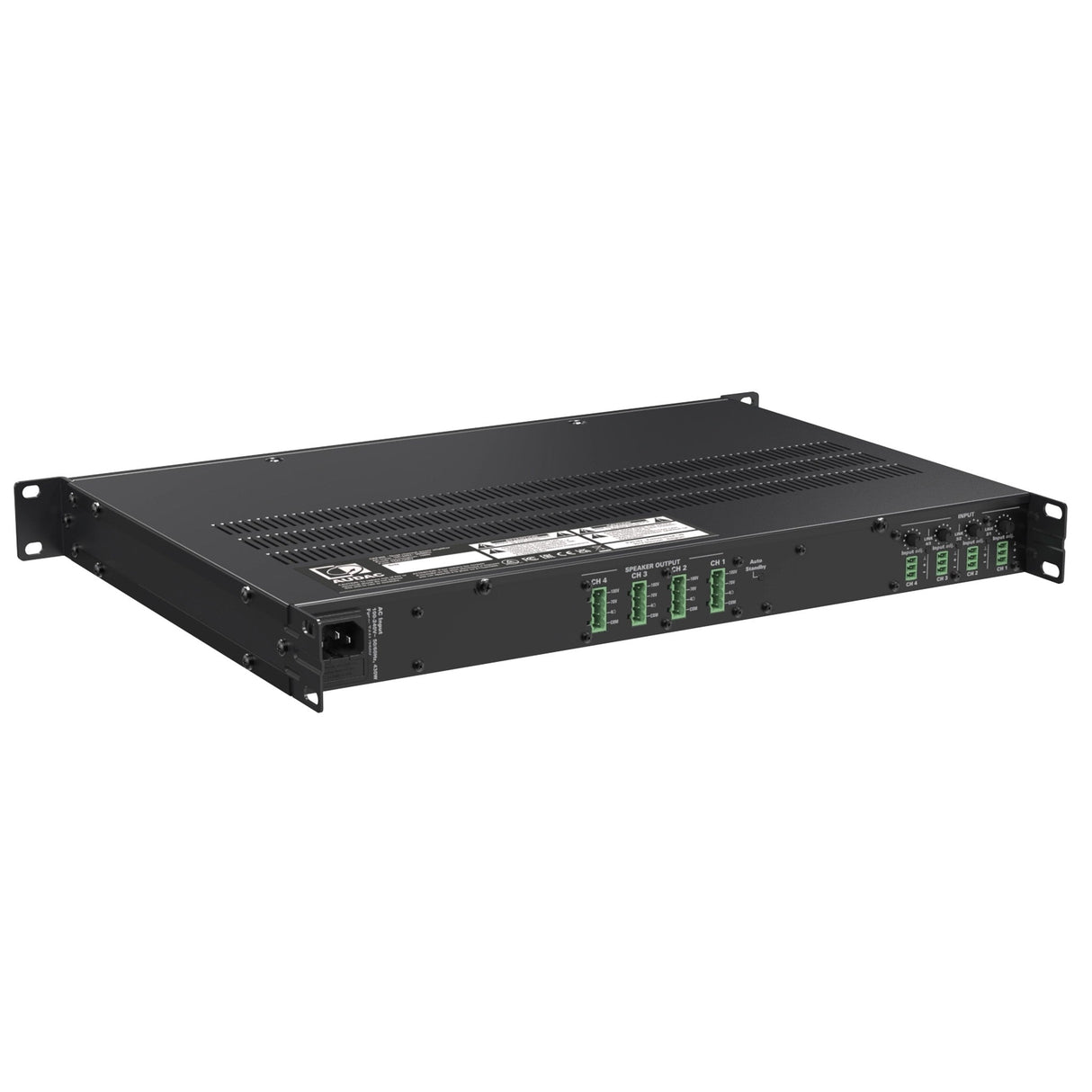

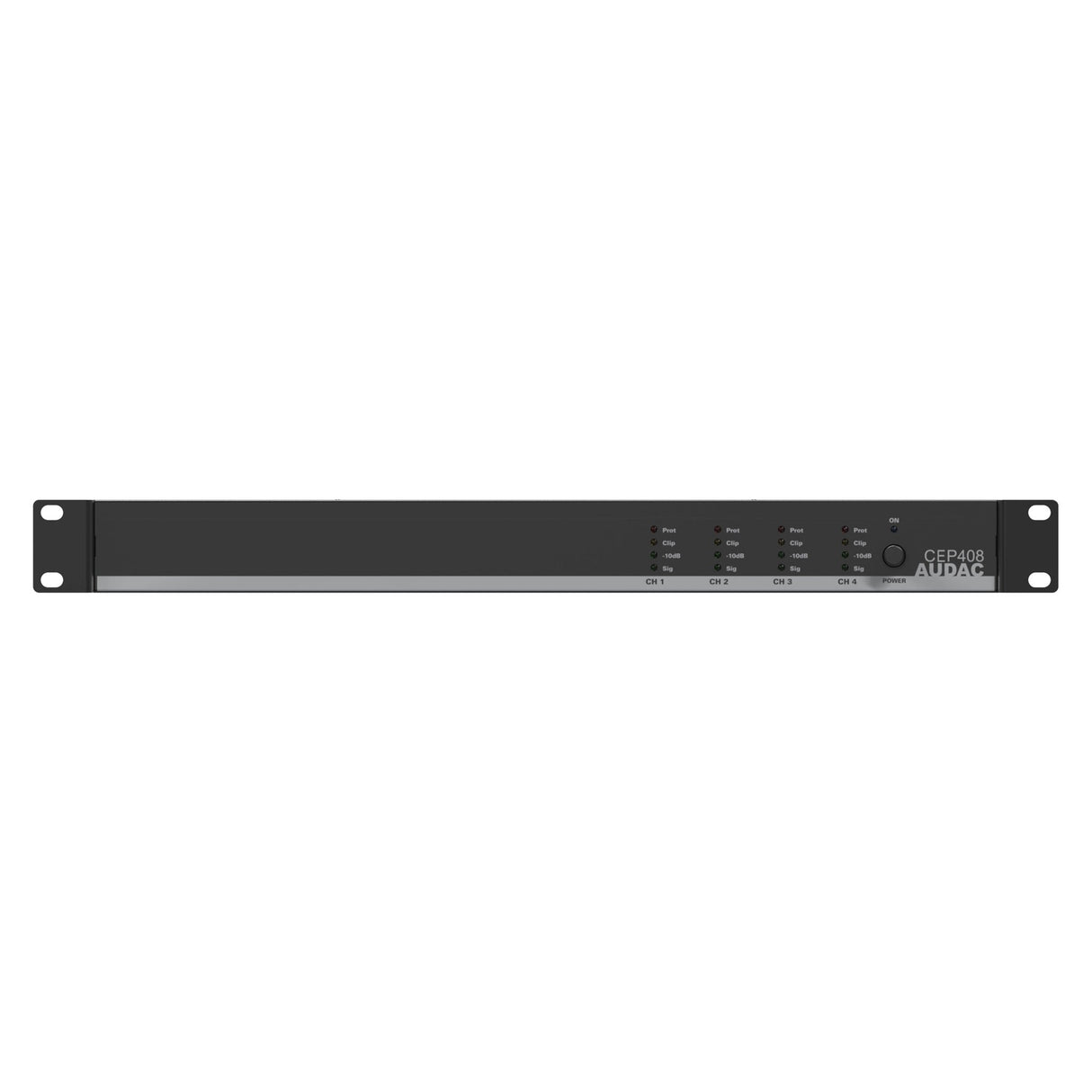

Audac CEP408 4 x 80W Quad-Channel 4 Ohm Energy-Efficient Amplifier, 70/100V
Audac CEP408 4 x 80W Quad-Channel 4 Ohm Energy-Efficient Amplifier,...
The Audac CEP408 4 x 80W Quad-Channel 4 Ohm Energy-Efficient Amplifier, 70/100V is a professional quad-channel amplifier designed to elevate your sound system's capabilities. This energy-efficient workhorse delivers 4 x 80 watts of power at 70/100 volts, making it perfect for powering multiple zones in applications like background music systems or public address setups.
The CEP408 boasts Class-D amplifier technology, ensuring high-fidelity sound without sacrificing energy efficiency. Its compact, one-unit height design allows for seamless integration into any rack, while the built-in miniature switches offer effortless daisy chaining of audio signals between channels.
Built for reliable performance, the CEP408 features passive cooling for quiet operation. Additionally, this eco-friendly amplifier is Energy Star compliant, promoting energy savings and reduced operational costs.
Whether you're managing a multi-zone sound system or require a powerful and efficient amplifier solution, the AUDAC CEP408 is a perfect choice. Its combination of power, efficiency, and user-friendly features makes it a valuable asset for professional audio applications.
Key Features
- Certified by Energy Star
- Input connections through terminal block
- Output connections through terminal block
- Linking of input through miniature switches
- Design is compact and lightweight
- Utilizes Class-D amplifier technology
Technical Specifications
System Information
RMS/AES power handling
4 x 80 W
@ 70 V
4 x 80 W
@ 100 V
4 x 80 W
Outputs (Connector)
4-pin Euro Terminal Block (Pitch - 5.08 mm)
Inputs (Connector)
3-pin Euro Terminal Block (Pitch - 3.81 mm)
Power Supply
100 ~ 240V AC mains operation voltage
Signal / Noise
> 100 dB
THD+N (@ 1 kHz)
< 0.05% (1/8 rated Power)
Crosstalk (@ 1 kHz)
< 70 dB
Technology
Class-D
Protection
DC Short circuit
Over heating
Over load
Signal limiting
Cooling
Convection cooled
Operating temperature
0Ā° ~ 40Ā° @ 95% Humidity
Frequency
Response (Ā± 3 dB)
110 Hz - 20 kHz
Power Supply
Switching mode
Source
100 ~ 240 V AC / 50 ~ 60 Hz
Consumption
Standby
0.6 W
Idle
16.4 W
Nominal (1/3 MUP)
196 W
Nominal (1/8 MUP)
92 W
Inputs
Sensitivity
-0.5 dB ~ 10.5 dB
Impedance
10 kā¦ balanced
Connector
3-pin Euro Terminal Block (Pitch - 3.81 mm)
IEC C14 Connector
Input linking through miniature switches
Outputs
Voltage / Impedance
4 ā¦
70 V / 62.5 ā¦
100 V / 125 ā¦
Product Features
Mounting
19ā
Unit height
1 HE
Colours
Black
Dimensions
18.98 x 1.73 x 13.98 " (W x H x D)
Weight
13.89 lb
Construction
Steel
Recommended applications
Bars & Restaurants
Corporate
Education
Retail
