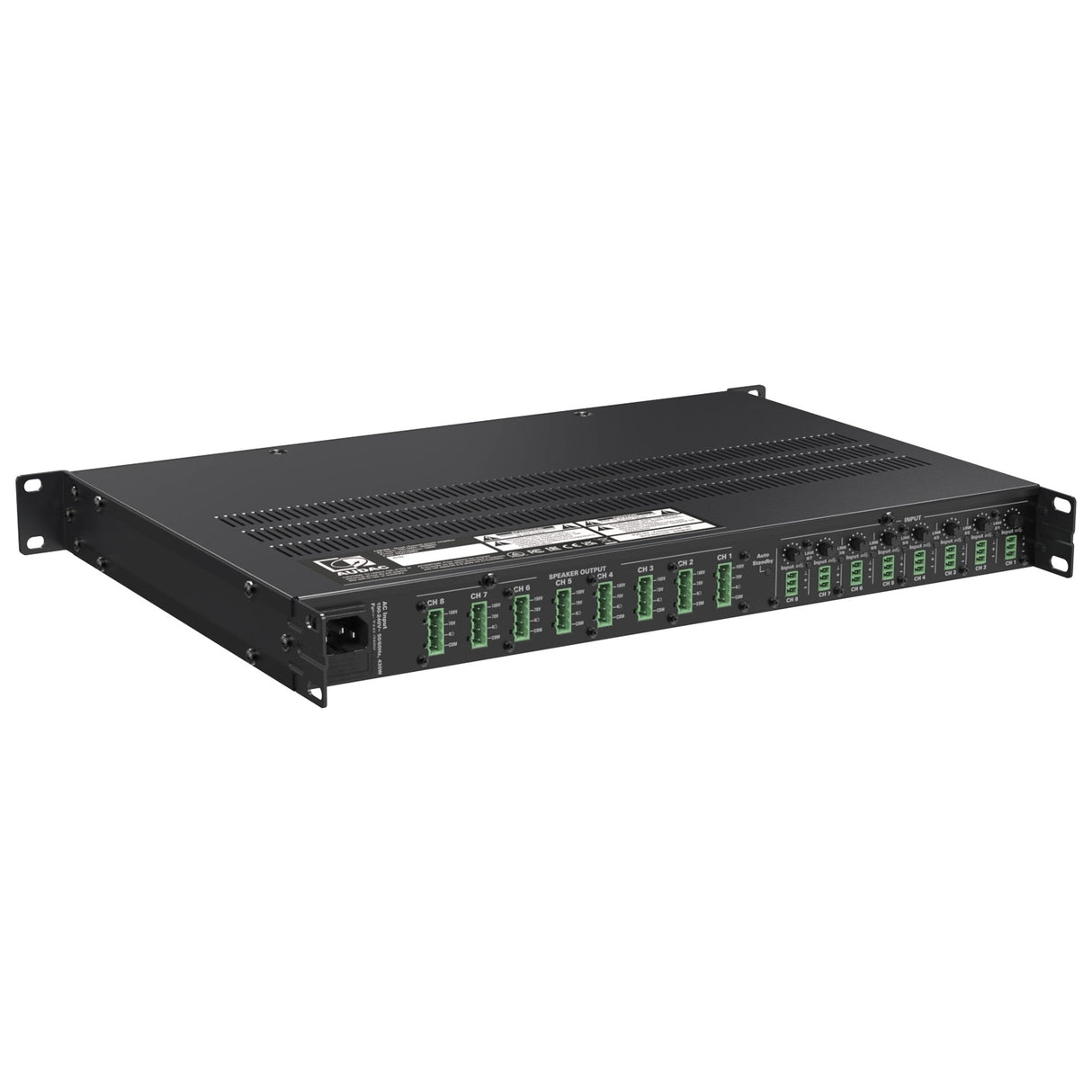

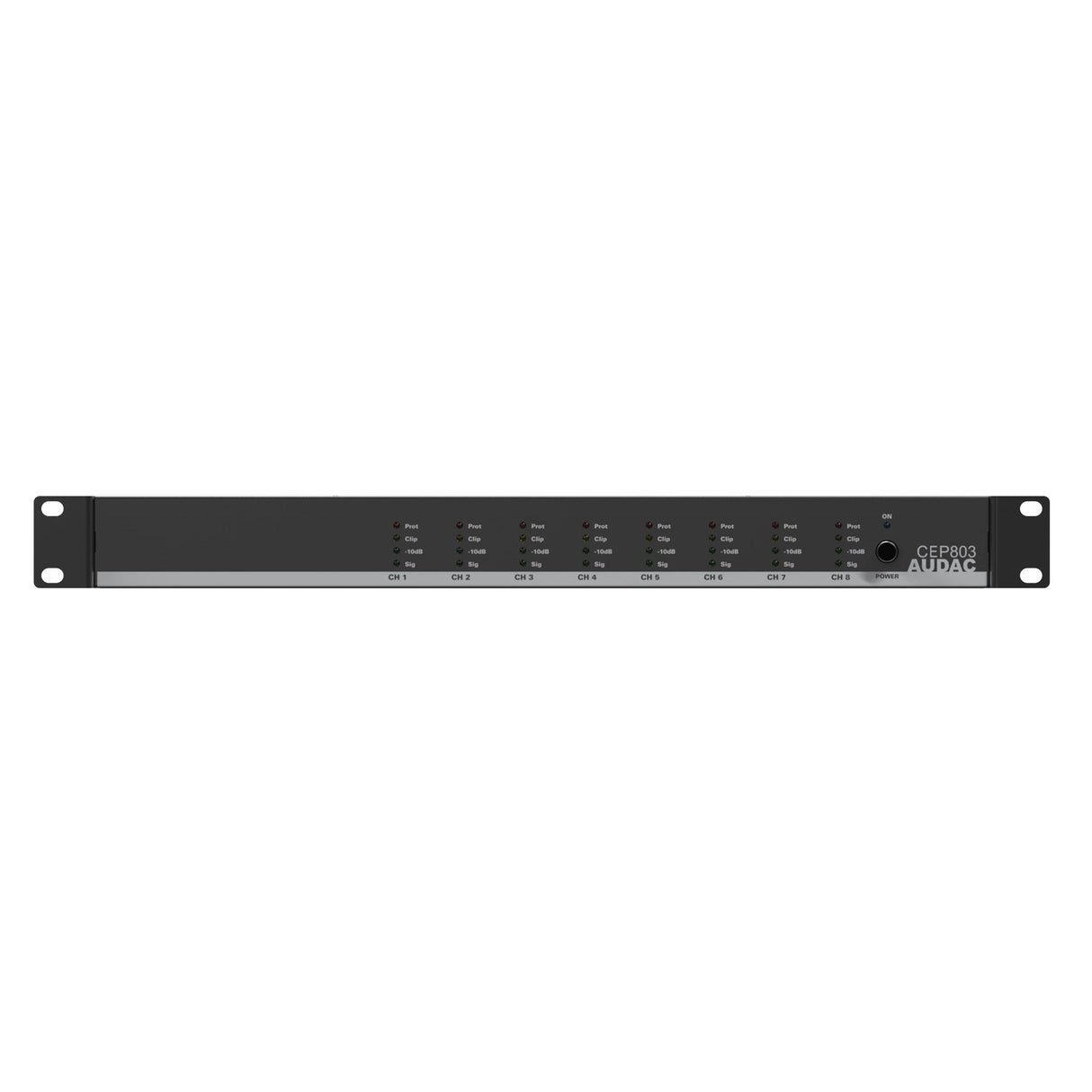

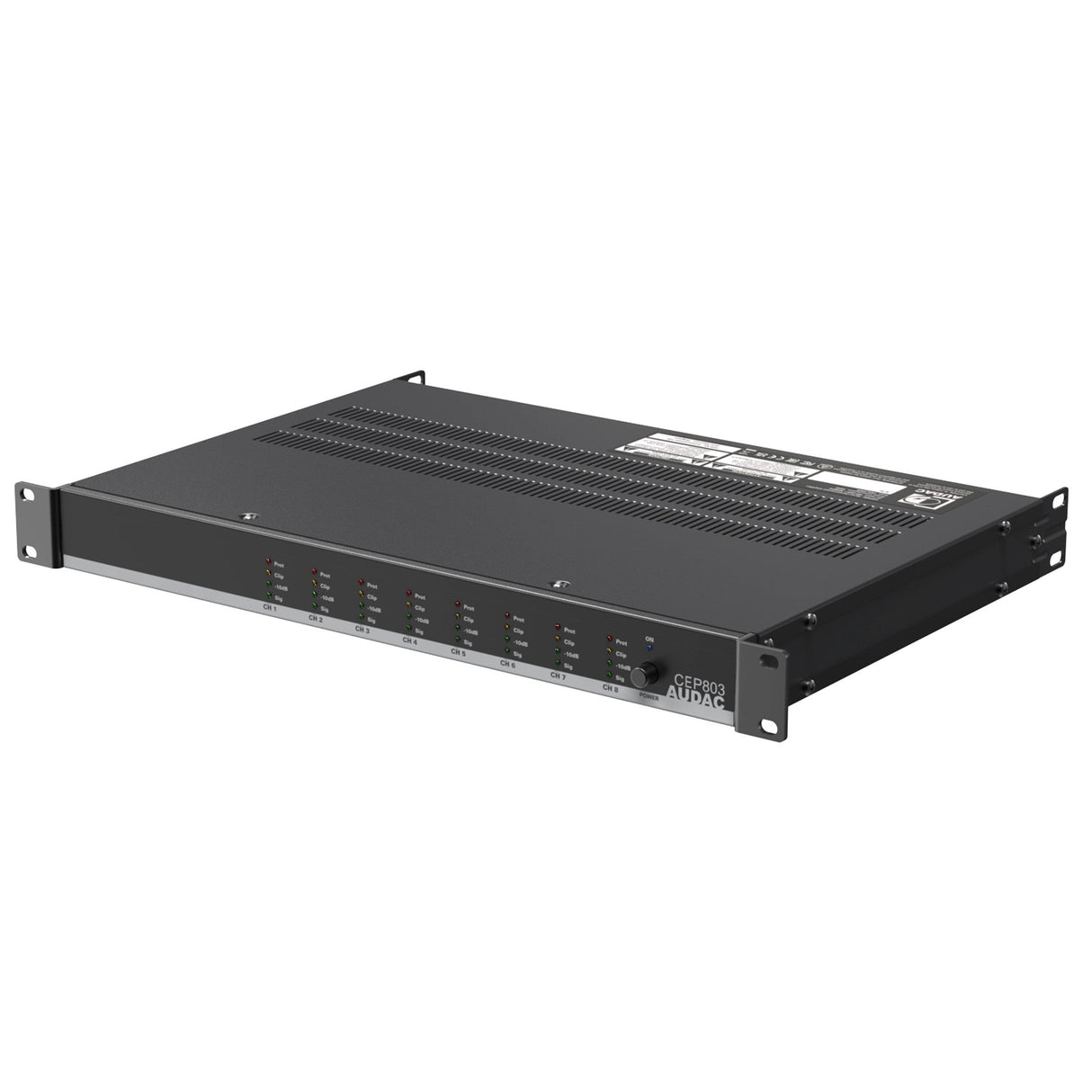

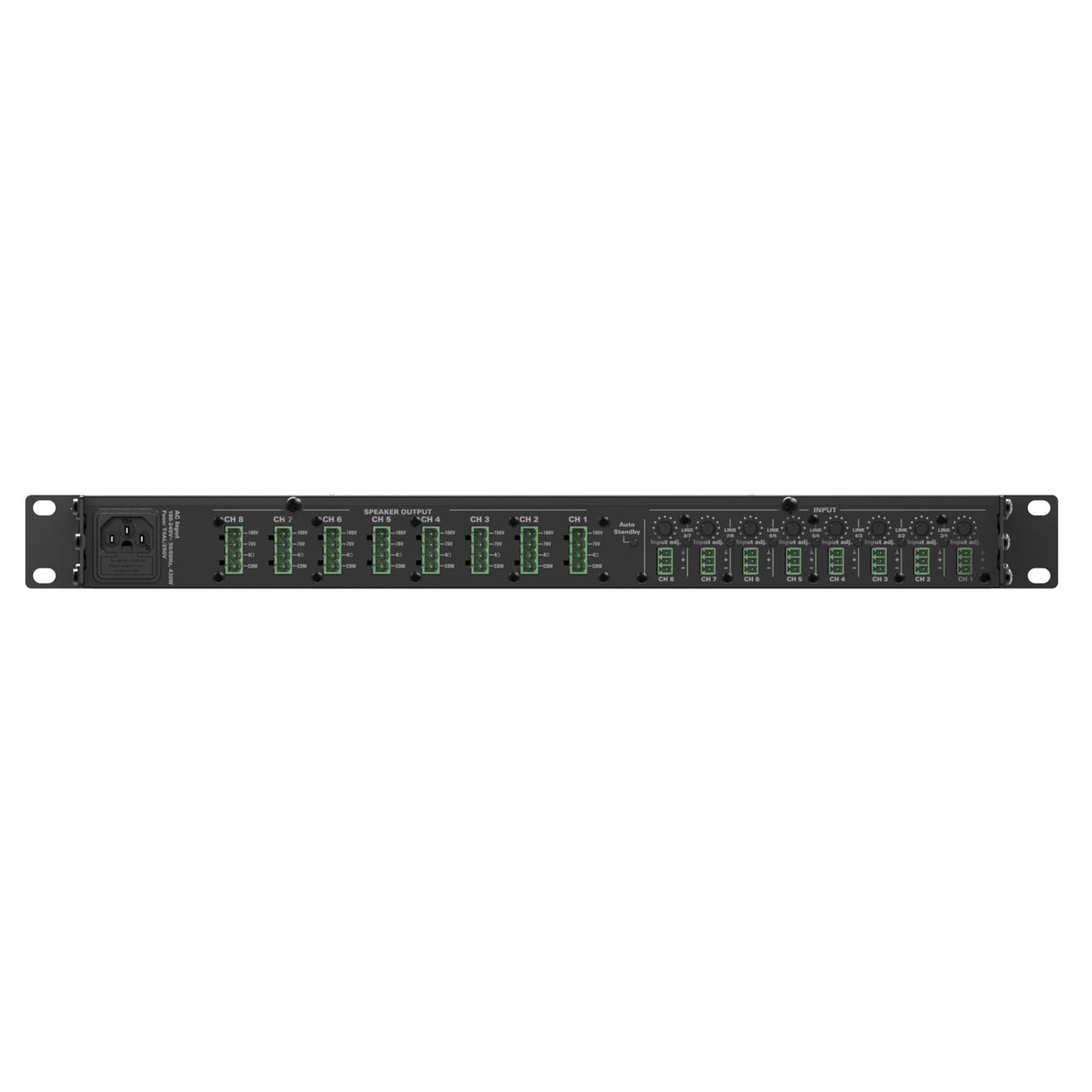

Professional-grade and designed for exceptional performance, the Audac CEP803 8 x 30W Octo-Channel 4 Ohm Energy-Efficient Amplifier, 70/100V is a multi-channel solution that prioritizes both power and energy efficiency. It delivers pristine sound across eight channels, making it perfect for background music systems in restaurants, bars, retail stores, or public address systems in schools, offices, and transportation hubs. Even multi-room audio distribution in homes and businesses is achievable with the CEP803.

This amplifier boasts 70/100V compatibility, ensuring clear audio distribution in various applications. Experience high-fidelity sound with 30 watts per channel while saving energy thanks to Energy Star certification and a convenient standby switch. The CEP803's one-unit height design maximizes space efficiency, and its effortless setup is guaranteed with input linking via miniature switches and easy-to-use terminal block connectors.

The CEP803 utilizes advanced Class-D amplifier technology, ensuring uncompromised sound quality and operational efficiency. Enjoy a peaceful listening environment with its passive cooling system, eliminating fan noise for a quieter experience.

Upgrade your sound system with the AUDAC CEP803 amplifier. Purchase today!

Key Features

• Certified by Energy Star for energy efficiency

• Input connections made through terminal blocks

• Linking of inputs facilitated by miniature switches

• Output connections made through terminal blocks

• Designed to be compact and lightweight

• Utilizes Class-D amplifier technology

Technical Specifications

System specifications
RMS/AES power handling
@ 4 Ω
8 x 30 W
@ 70 V
8 x 30 W
@ 100 V
8 x 30 W
Signal / Noise
> 100 dB
THD+N (@ 1 kHz)
< 0.05% (1/8 rated Power)
Crosstalk (@ 1 kHz)
< 70 dB
Frequency Response (± 3 dB)
110 Hz - 20 kHz
Technology
Class-D
Protection
DC Short circuit
Over heating
Over load
Signal limiting
Cooling
Convection cooled
Operating temperature
0° ~ 40° @ 95% Humidity
Power Supply
Switching mode
Source
100 ~ 240 V AC / 50 ~ 60 Hz
Consumption
Standby
0.6 W
Idle
17.5 W
Nominal (1/3 MUP)
150 W
Nominal (1/8 MUP)
68 W
Inputs (Connector)
IEC C14 Connector
Input linking through miniature switches
Connector
3-pin Euro Terminal Block (Pitch - 3.81 mm)
Outputs (Connector)
4-pin Euro Terminal Block (Pitch - 5.08 mm)
Inputs (Sensitivity)
-0.5 dB ~ 10.5 dB
Outputs (Voltage / Impedance)
4 Ω
70 V / 167 Ω
100 V / 333 Ω

Product Features
Mounting
19”
Unit height
1 HE
Colours
Black
Dimensions
18.98 x 1.73 x 13.19 " (W x H x D)
Weight
13.23 lb
Construction
Steel

Recommended applications
Bars & Restaurants
Corporate
Education
Retail
