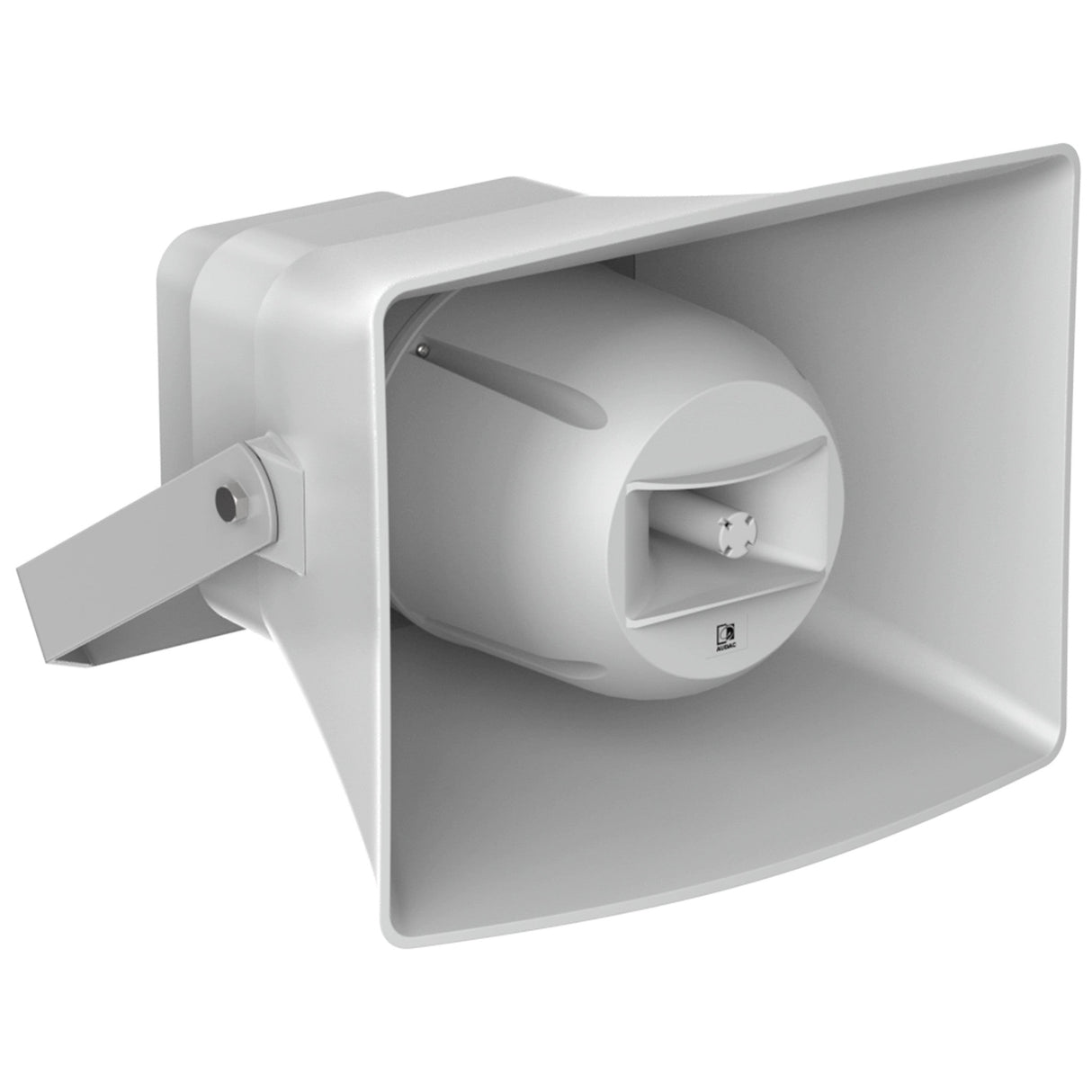

Audac CHA660 2-Way 6.5-Inch Horn Loudspeaker
Audac CHA660 2-Way 6.5-Inch Horn Loudspeaker
The Audac CHA660 2-Way 6.5-Inch Horn Loudspeaker is a 2-way horn loudspeaker designed to deliver exceptional performance in various indoor and outdoor environments. It excels at reproducing both clear voice and a full range of music, making it ideal for applications where a well-rounded listening experience is crucial.
The Audac CHA660 2-Way 6.5-Inch Horn Loudspeaker surpasses traditional horn speakers by utilizing high-quality components and meticulous engineering to achieve a smooth frequency response and outstanding clarity. This translates to powerful performance with 60 Watts RMS power handling (120 Watts maximum) and a maximum SPL of 116 dB, making it suitable for larger spaces. The speaker also boasts a wide frequency response that stretches from 100 Hz to 16 kHz, ensuring accurate sound reproduction.
Furthermore, the Audac CHA660 2-Way 6.5-Inch Horn Loudspeaker offers versatile connectivity. Its compatibility with 70V and 100V public address systems allows for seamless integration with existing setups. Designed to withstand the elements, the IP66-rated enclosure shields the speaker from dust, rain, and other outdoor elements, making it a perfect choice for permanent outdoor installations. Installation is also a breeze thanks to the included stainless steel mounting bracket that allows for secure and adjustable placement.
Whether you need a loudspeaker solution for retail stores, corporate spaces, sports facilities, public transportation hubs, educational institutions, or a multitude of other applications, the Audac CHA660 2-Way 6.5-Inch Horn Loudspeaker delivers exceptional audio clarity and versatility for both indoor and outdoor use.
Key Features
- Transformer for multi-tapping 70V / 100V line
- Provides IP66 Ingress protection
- Delivers 60 Watt RMS power
- Equipped with a 6.5" low frequency loudspeaker
- Features a 1" HF horn tweeter
Technical Specifications
System Information
Speaker type
2-way horn speaker
Peak power handling
240 W
Program power handling
120 W
RMS/AES power handling
60 W
Inputs (Connector)
-pin Euro Terminal block (Balanced)
Line Transformer Tappings
1
83 ā¦ - 100 V / Not used - 70 V / 60 W
2
167 ā¦ - 100 V / 60 W - 70 V / 30 W
3
333 ā¦ - 100 V / 30 W - 70 V / 15 W
4
667 ā¦ - 100 V / 15 W - 70 V / 7.5 W
Sensitivity (1W/1m)
99 dB
Sound Pressure (Max. W/1m) @ 100 V
116 dB
Frequency Response (Ā± 3 dB)
100 Hz - 16 kHz
Crossover Type
Passive built-in
Dispersion
Horizontal
100Ā°
Vertical
60Ā°
Ingress Protection rating
IP66
Drivers
HF
1" HF Horn tweeter
6.5ā MF / LF Woofer
Connection
AWX5ā¢ waterproof
Product Features
Dimensions
16.54 x 13.19 x 15.75 " (W x H x D)
Weight
14.77 lb
Construction
Impact & UV resistant ABS
Colours
Light grey (RAL7035)
Mounting & handling
Powder coated steel
Accessories (Included)
Mounting bracket
Recommended applications
Museums & Themeparks
Events
Retail
Corporate
Sporting facilities
