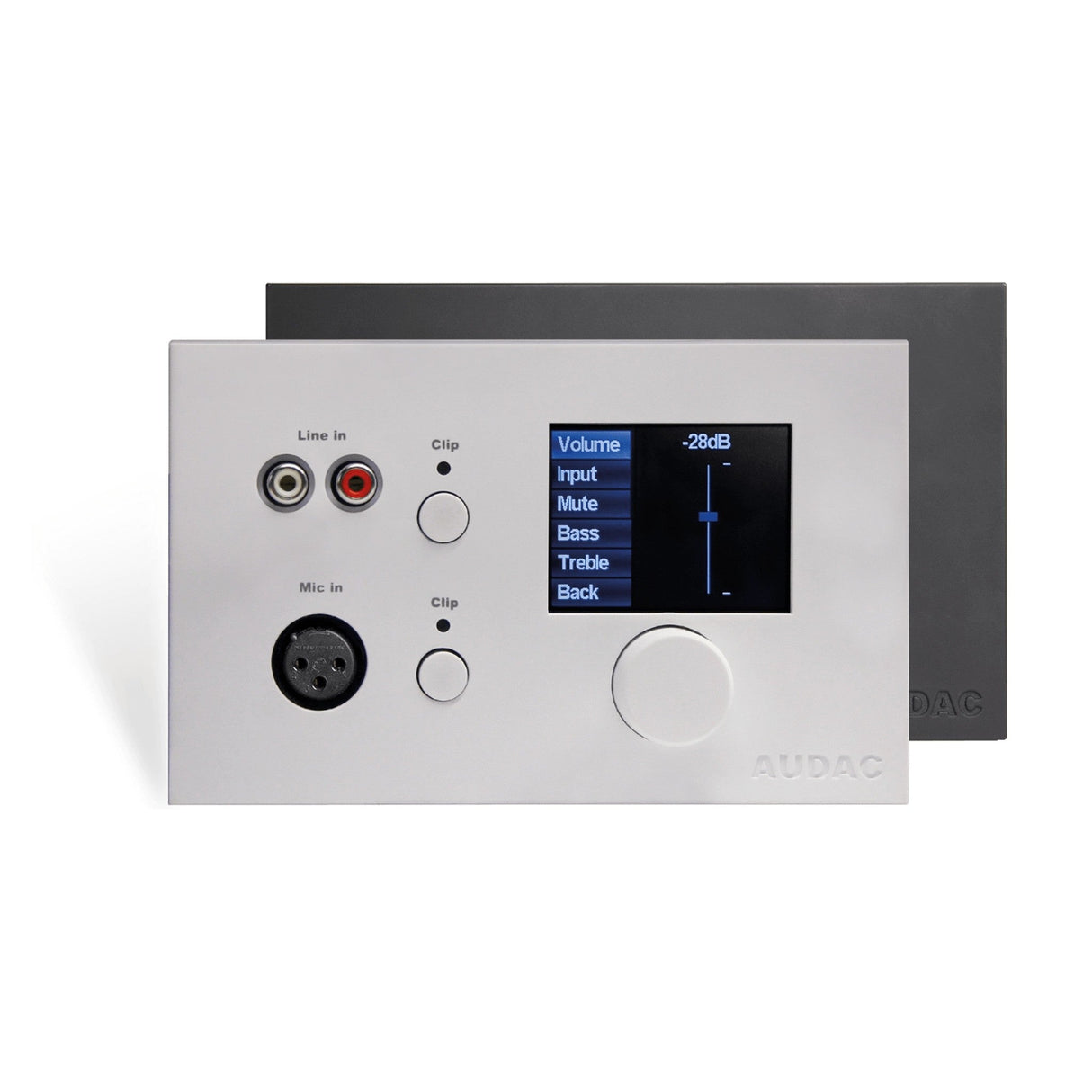

Audac DW5066/W Digital All-in-One Wall Panel
Audac DW5066/W Digital All-in-One Wall Panel
Elevate your sound system with the Audac DW5066/W Digital All-in-One Wall Panel, a comprehensive digital wall panel controller designed for multi-zone audio matrix systems and multimedia digital audio mixers. This all-in-one solution empowers effortless control over your audio experience.
Switching between audio sources and activating pre-configured mixing settings (M2 only) is a breeze with the intuitive rotary dial. Fine-tune your listening with volume control, tone adjustments, microphone muting, and phantom power for condenser microphones. The DW5066 offers flexible input/output options, allowing you to connect additional audio devices like CD players or microphones with the local line and microphone inputs. Additionally, one input can be converted into a local line output for monitoring or recording purposes. Achieve perfect audio blends using the two built-in potentiometers for local line and microphone inputs.
Navigating settings and information is effortless on the user-friendly 2.5" graphical LCD display. Professional XLR and stereo RCA connectors ensure reliable audio connections for microphones and line-level sources.
The DW566 simplifies multi-zone audio control, letting you manage complex systems from a single, convenient location. Enjoy an enhanced audio experience with precise control over volume, tone, and source selection for optimal listening. Versatile connectivity options allow you to expand your audio setup, while the intuitive design makes controlling your system a breeze.
Applications:
Residential Buildings: Create a customized soundscape throughout your home.
Commercial Buildings: Provide zone-specific audio control in offices, restaurants, and bars.
Conference Rooms: Ensure clear and focused audio for meetings and presentations.
Hotels: Offer guests personalized audio control in their rooms.
Upgrade your audio control today with the DW5066 digital wall panel controller!
Key Features
Technical Specifications
Available models
DW5066/W
White version
System specifications
Control
RS-485
Digital audio
S/PDIF
Inputs
Unbalanced Stereo Type
1 x Stereo Unbalanced Line
Connector
RCA
Balanced Microphone Type
1 x Balanced Microphone
Connector
XLR female
Phantom Power
15 V DC (software enabling)
Cabling
UTP CAT 6 (Up to 300 meter)
Display Type
2.5ā Graphical Full colour
Connectors
8-pin Euro Terminal Block
Product Features
Dimensions
6.024 x 3.70 x 1.77 " (W x H x D)
Built-in depth
1.46 "
Weight
0.46 lb
Construction
ABS
Colours
Black (RAL9005) (DW5066/B) (Unavailable)
White (RAL9010) (DW5066/W)
Accessories
Optional (NOT included)
WB50/FG - Flush mount box for hollow wall
WB50/FS - Flush mount box for solid wall
Repeater (>300 m)
CP43ARP: bTicino version (/B & /W)
CP45ARP: 45x45mm version (/B & /W)
Recommended applications
Bars & Restaurants
Retail
Hotels
Corporate
Residential
