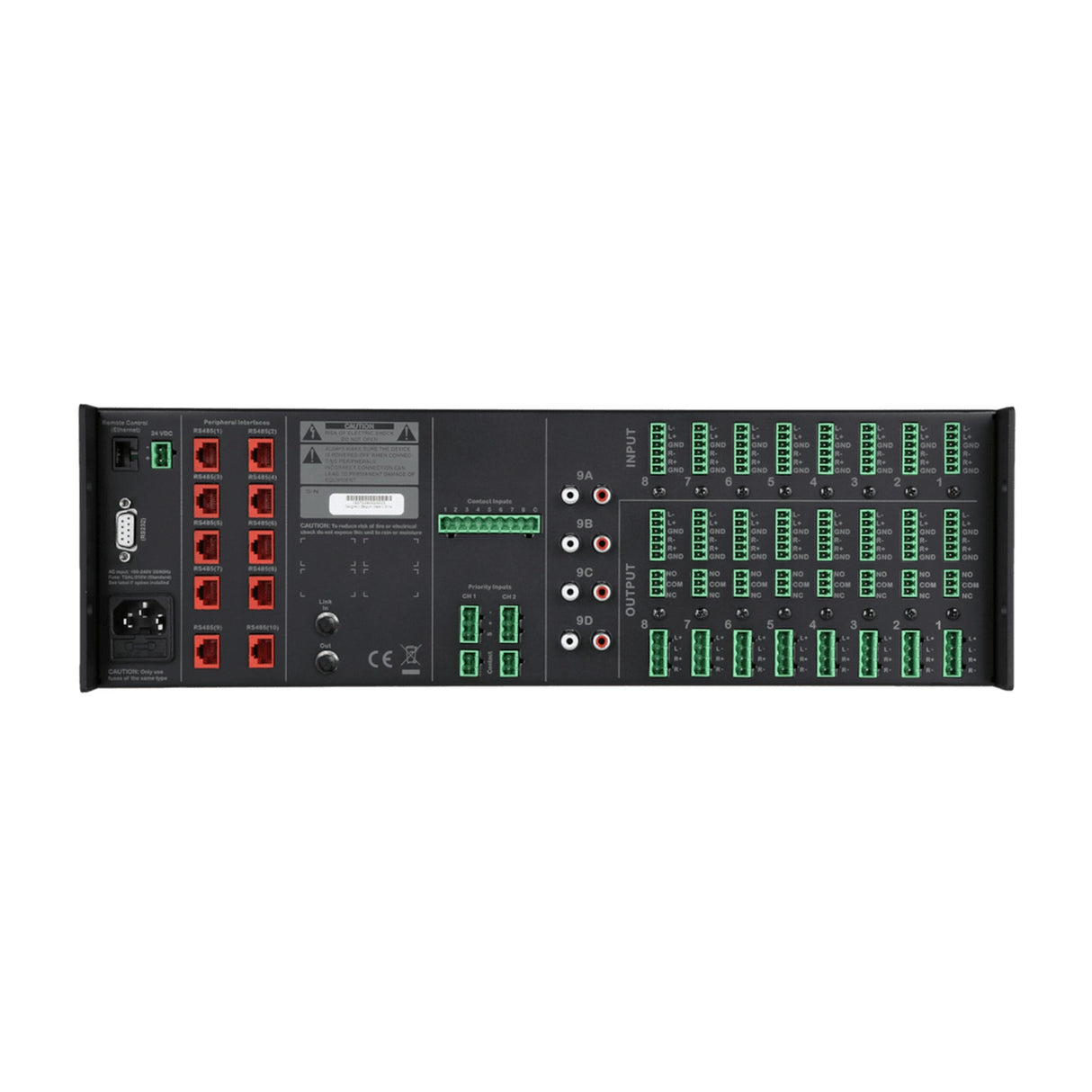

Audac M2 Multi-Media Digital Audio Mixer
The M2 is a multi-media audio distribution system which offers an unseen flexibility and amount of possibilities for any audio distribution system. It can handle a diverse array of input signals and has enough DSP power to apply the most modern filters, effects and other options. In general, the M2 is an 9 x 8 digital audio mixer, which is based on 11 powerful DSP processors. It is fully digitally controllable through a web browser interface, optional touchscreen display, wall panels and Android or IOS apps. Using the freely available AUDAC Touch application for smart devices guarantees total system control and configuration from any device on any location and at any time. The built-in digital mixer makes it possible to mix all input signals together and patch them to any of the outputs. What makes the M2 superior to all other digital audio matrixes is the superior DSP power and advanced software.
Key Features
- AUDAC Touch enabled
- SD card slot for voice file storage
- USB connection for updating
- RS-232 & ethernet remote control connection
- Peripheral interface connections (10x)
- Priority audio & contact inputs
- Balanced stereo line outputs (8x)
- 24V emergency power input
- Switchable (4x) line input
- Balanced stereo line inputs (8x)
- Output relay (NO & NC) contacts
- Contact inputs (8x)
Technical Specifications
Control
Front panel (M2DIS Display option)
RS-232
TCP/IP (RJ45)
Wall panel (RS-485)
Audac Touch
Web (Flash)
Socket Connections (AUDAC Touch)
5 sockets
Power Supply
100 ~ 240 V AC / 50 ~ 60 Hz
Inputs
Balanced Mic./Line
Type
8 x Balanced Stereo Input (Mic./Line)
Dimensions
482 x 132 x 350 mm (W x H x D)
Weight
8.850 kg
Mounting
19ā Rack
Unit height
3 HE
Optional expansion kit
M2DIS (7ā Touchscreen display kit)
POW2 (Internal Power Amp 16 x 60 W)
OPT2 (Fiber interconnection Interface)
Peripheral Interfaces
DW5065 All-In-One Wall Panel
DW3020/4020 Wall control panel
APM1xx Digital Paging Consoles
