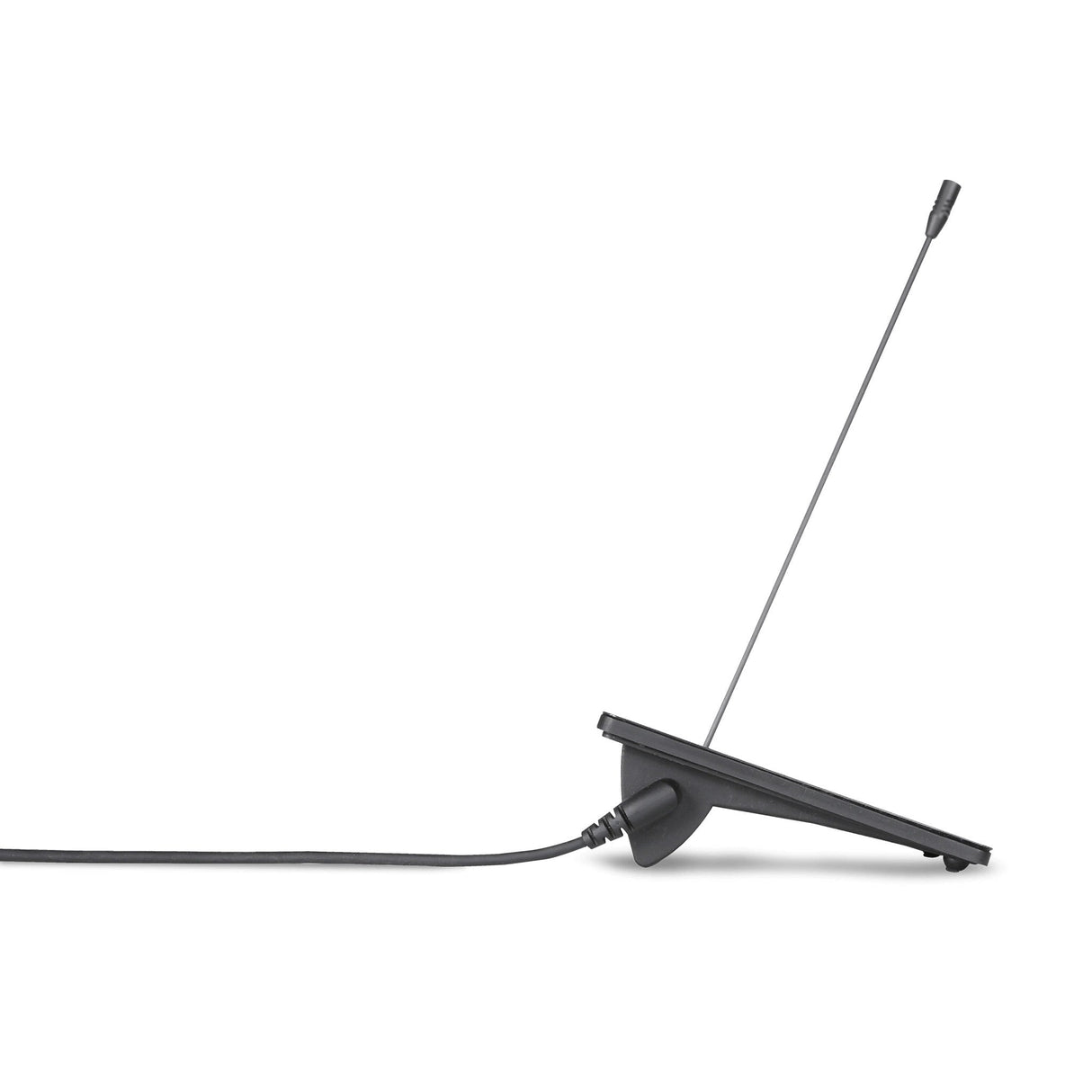

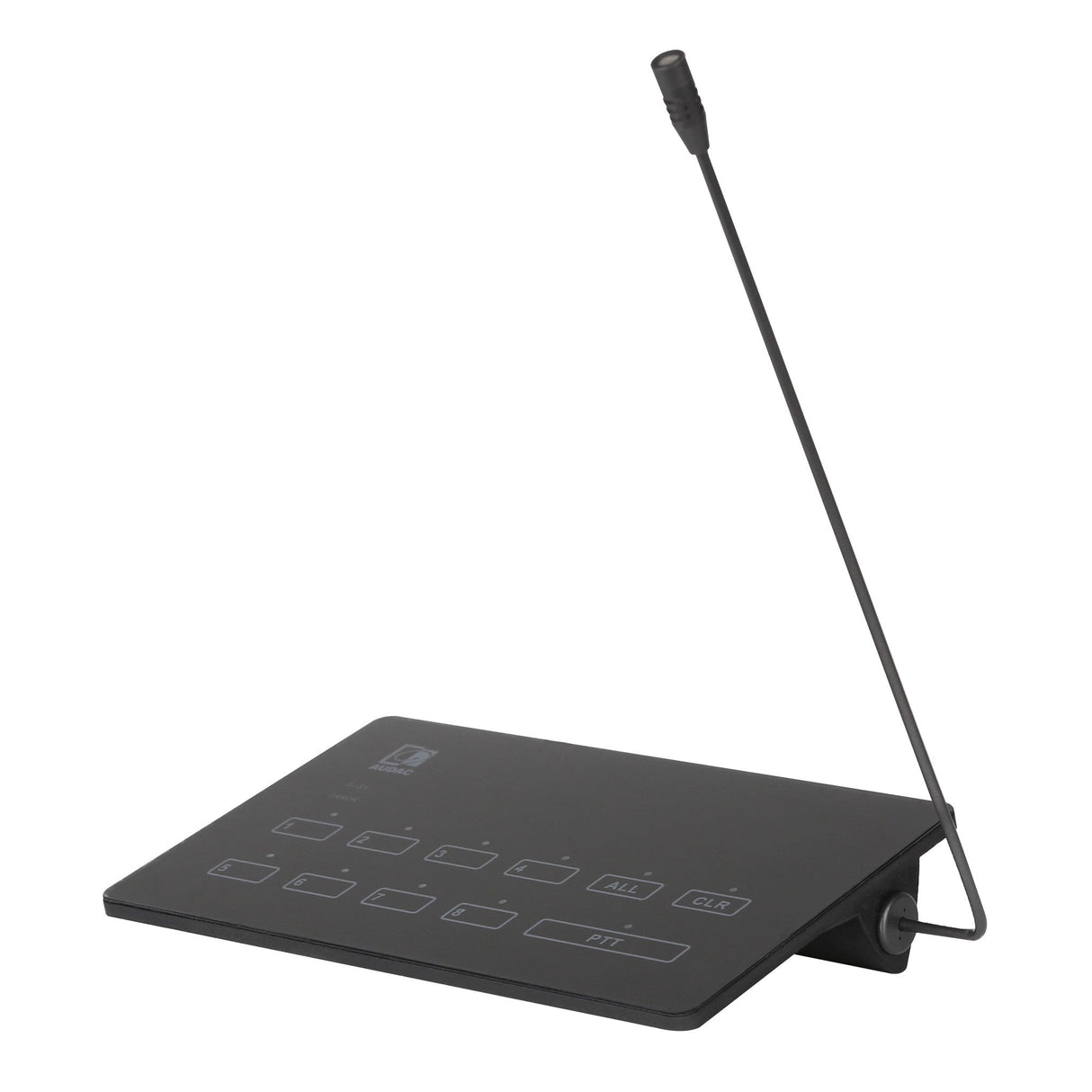

Take your communication system to the next level with the sleek and functional Audac MPX Touch Paging Microphone. Available in 4-zone and 8-zone configurations, the MPX integrates seamlessly with MTX series audio matrix systems for crystal-clear announcements across various environments.

The MPX combines modern design with superior audio quality. The stylish enclosure features a real glass front panel and intuitive capacitive touch controls, making it ideal for offices and design-conscious spaces. Equipped with a high-quality condenser microphone with a cardioid pickup pattern, the MPX delivers clear and focused voice capture.

For effortless operation, the MPX features easy-to-use capacitive touch buttons for zone selection and clear announcements. Integrated LED indicators provide clear status updates on zones and overall system activity. The adjustable pipe-neck microphone allows for optimal positioning, while the 2-meter connection cable can be extended up to 300 meters using standard CAT5E cabling. This flexibility ensures the MPX adapts to your specific needs.

Furthermore, the MPX offers scalability. Create a larger paging network by cascading multiple MPX units with the optional ARJ03P junction box. This makes the MPX ideal for offices, schools, hospitals, retail stores, and public facilities.

Upgrade your paging experience with the feature-rich and aesthetically pleasing Audac MPX SurfaceTouch microphone. Acquire today!

Key Features

• Cardioid pickup pattern for high quality audio capture

• LED indicators for level and status indication

• Adjustable pipe-neck microphone for flexible positioning

• SurfaceTouch™ front panel for easy control and navigation

• Capacitive and illuminated selection buttons (4x) for intuitive operation

Technical Specifications

System Information
Microphone Type
Back electret condenser
Length
9.84 "
Frequency Response (± 3 dB)
50 Hz - 16 kHz
Sensitivity (1W/1m)
45 dB
Sound Pressure (Max. W/1m)
130 dB
Power Consumption
1.5 W
Supply
24 V DC (from MTX)
Connectors
RJ45 (Fixed 2 m cable)
Polar Pattern
Cardioid

Product Features
Dimensions
8.72 x 1.69 x 4.39 " (W x H x D)
Weight
0.73 lb
Construction
ABS
Databus Control
RS-485
Audio
Differential analogue
Colours
Black (RAL9004)
Paging Zones
4 Zones (use with MTX48)
8 Zones (use with MTX88)
Accessories (Included)
Windscreen
Connection cable 2 meter(fixed)

Recommended applications
Corporate
Sporting facilities
