Audac MWX45 MTX Wall Panel Controller, 45 x 45 mm - Black
Audac MWX45 MTX Wall Panel Controller, 45 x 45 mm

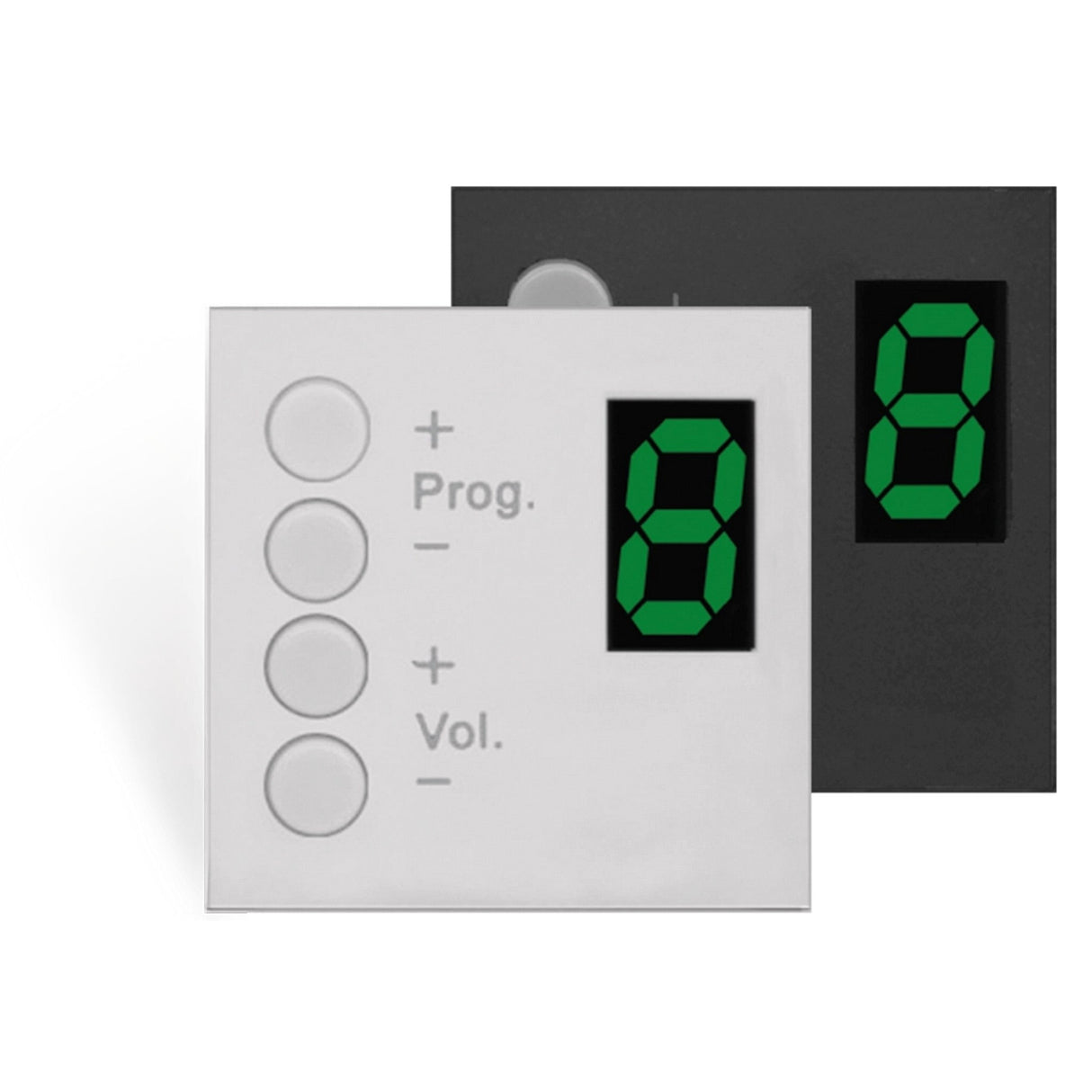

The Audac MWX45 MTX Wall Panel Controller, 45 x 45 mm are specifically designed to work seamlessly with the AUDAC MTX series multi-zone audio matrix systems, as well as the AUDAC AMP523MK2 & RM523. These controllers allow users to easily select their desired audio source and adjust the volume for a single zone. The 7 segment LED display provides clear indication of the current audio source or volume level, making it user-friendly and efficient.
To establish a connection between the wall panel controller and the matrix system, a standard CAT5 UTP cable is used. This cable should be connected to the terminal block connector located on the back side of the wall panel. The MWX45 wall panels come in a 45 x 45 mm size, making them compatible with various installation materials from brands like AUDAC, Niko, and Legrand. Their sleek and modern design allows them to seamlessly blend into any environment or interior, enhancing the overall aesthetic.
For added customization, the MWX45 wall panel controllers are available in both black and white options. Additionally, there are two different AUDAC cover frames with metal subframes available, designed for either 1 or 2 units. These cover frames also come in black or white, providing users with the flexibility to choose the option that best suits their preferences and needs. With their versatile functionality and stylish design, the MWX45 wall panel controllers are a practical and visually appealing choice for audio control in various settings.
Key Features
- Connection of terminal blocks
- Integration with installation materials measuring 45 x 45 mm
- Display of LED
- Control of program selection and volume
Technical Specifications
Available models
MWX45/B
Black version
MWX45/W
White version
System Information
Control
RS-485
Cabling
CAT5 (up to 500 meter)
Power Consumption
0.35 W - 14 mA / 24 V
Connectors
4-pin Euro Terminal Block
Product Features
Dimensions
1.77 x 1.77 x 1.30 " (W x H x D)
Weight
0.062 lb
Construction
ABS
Finish
Soft-touch painting
Mounting
45 x 45 mm
Colours
Black (RAL9005) (MWX45/B)
White (RAL9010) (MWX45/W)
Accessories (Optional – NOT included)
CF45D - Cover frame double 45 x 45 mm
CF45S - Cover frame single 45 x 45 mm
Recommended applications
Bars & Restaurants
Retail
Hotels
Corporate
Residential
