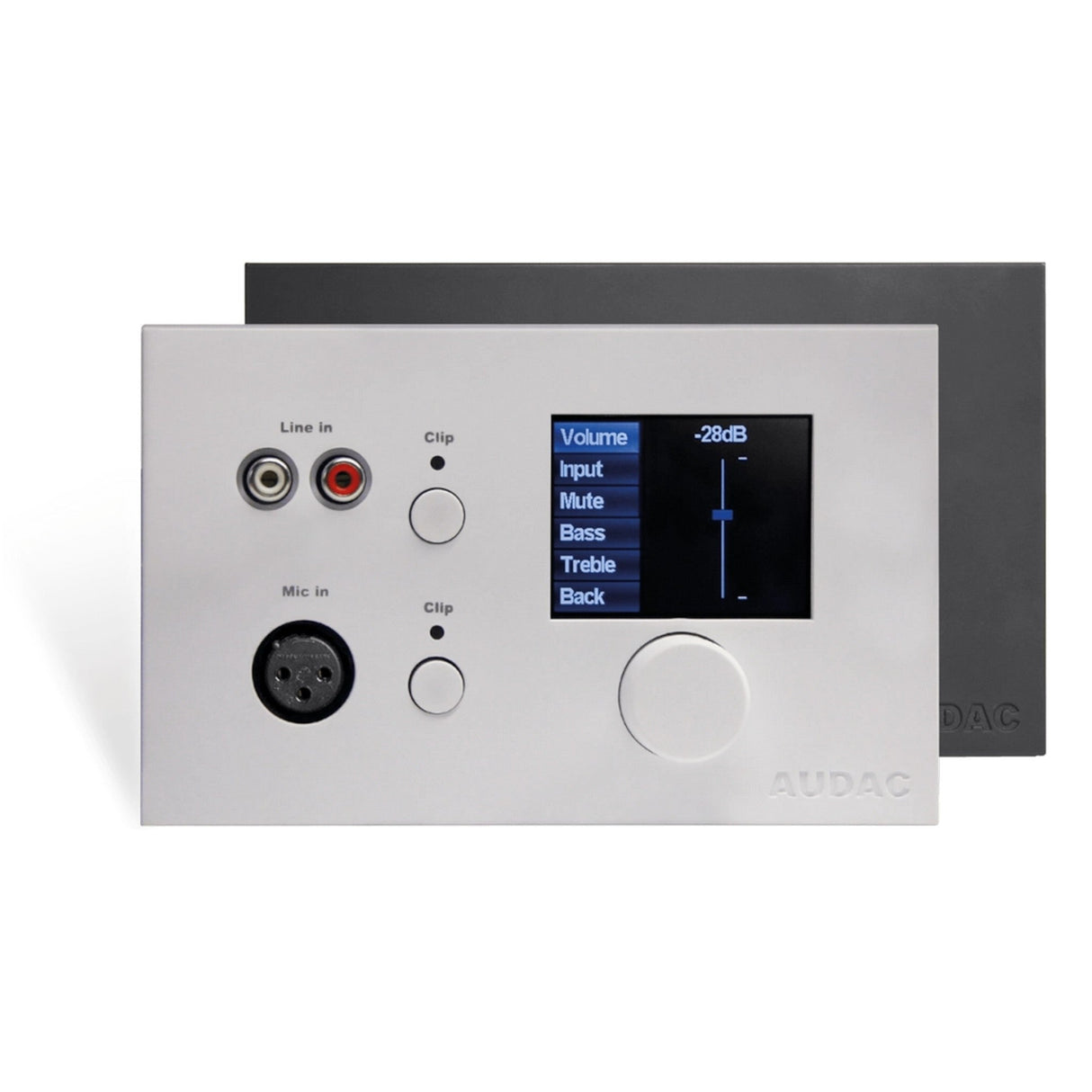

Audac MWX65 All-in-One Wall Panel for MTX - Black
Audac MWX65 All-in-One Wall Panel for MTX
The Audac MWX65 All-in-One Wall Panel for MTX is designed to seamlessly integrate with AUDAC's MTX series multi-zone audio matrix systems. Offering fingertip control over a single zone, the MWX65 empowers users to effortlessly manage input selection, volume, and even two-band tone adjustments.
This comprehensive controller boasts a user-friendly rotary push-dial for intuitive navigation. With a simple twist, users can select between various inputs and adjust the volume to their desired level. The MWX65 also incorporates dual microphone and line inputs, providing enhanced functionality. An XLR connector allows for the connection of a microphone for announcements, while RCA connectors enable the integration of a line-level device like a CD or MP3 player, creating a dedicated local music source.
Furthermore, the MWX65 features built-in two-band tone control, allowing users to fine-tune the audio experience for their specific zone. A crystal-clear 2.5" graphical display ensures clear communication, providing effortless control and information display.
Installation and power delivery are simplified with the MWX65. Standard UTP CAT5 cabling is used for a streamlined installation process. This cable transmits control signals, audio signals, and power to the MWX65 simultaneously. The microphone input offers optional 12V phantom power, configurable via software for added versatility.
The AUDAC MWX65 wall panel controller is ideal for a variety of applications, including multi-room audio systems in residential or commercial settings, educational institutions, hospitality venues, and retail stores. Upgrade your multi-zone audio experience with the power and convenience of the MWX65. Purchase today!
Key Features
- Stereo line input with imbalance
- User-friendly interface on a 2.5" LCD screen
- Connection through terminal block
Technical Specifications
Available models
MWX65/B
Black version
MWX65/W
White version
System Information
Control
RS-485
Audio transfer
Analogue differential (Dual mono)
Phantom Power
12 V DC (software enabling)
Cabling
CAT5 (up to 300 meter)
Display Type
2.5ā Graphical Full colour
Power Consumption
1.8 W - 75 mA / 24 V
Connectors
8-pin Euro Terminal Block
Inputs
Unbalanced Stereo Connector
RCA
Sensitivity
-12 dBV ~ 12 dBV
THD+N (@ 1 kHz)
< 0.05 %
Signal / Noise
85 dB
Balanced Microphone
Connector
XLR female
Sensitivity
-50 dBV ~ -15 dBV
THD+N (@ 1 kHz)
< 0.1%
Signal / Noise
75 dB
Product Features
Dimensions
6.024 x 3.70 x 1.77 " (W x H x D)
Built-in depth
1.46 "
Weight
0.46 lb
Construction
ABS
Colours
Black (RAL9005) (MWX65/B)
White (RAL9010) (WMX65/W)
Accessories (Optional ā NOT included)
Flush mount Installation boxes
WB5065/FS: Concrete & Brick walls
WB5065/FG: Wooden & Gypsum walls
Surface mount Installation boxes
WB5065/SW: White version
WB5065/SB: Black version
Recommended applications
Bars & Restaurants
Retail
Hotels
Corporate
Residential
