Elevate your space with the crystal-clear sound of the Audac NELO706 Surface Mount Speaker. Designed for exceptional audio performance in various environments, the NELO706 offers a functional and cost-effective solution for music and speech applications. Whether you require background music for a soothing ambiance or clear voice announcements for effective communication, the NELO706 delivers.

The Audac NELO706 Surface Mount Speaker boasts a powerful 6.5-inch broadband loudspeaker, ensuring rich and natural sound that fills your space without distortion. Its 10 Watt (RMS) power handling makes it ideal for a variety of applications. Compatibility with 70V/100V public address systems allows for wider audio coverage, perfect for larger spaces. The integrated line transformer with multiple power tappings (6W and 3W) offers flexible system configuration based on your specific needs.

The Audac NELO706 Surface Mount Speaker prioritizes a streamlined installation process with its SnapConnect™ terminals. These terminals ensure fast, reliable, and secure connections, saving you valuable time during setup. The speaker's minimalist design featuring a narrow border and perforated steel grill seamlessly integrates into any residential, commercial, or industrial décor, adding a touch of elegance to your space.

For added convenience, the Audac NELO706 Surface Mount Speaker model comes equipped with a built-in volume control knob, allowing for on-speaker adjustments to suit your listening preferences. Additionally, the NELO706 is available in both black and white finishes to perfectly match your existing aesthetic.

The Audac NELO706 Surface Mount Speaker is the ideal solution for a variety of applications. From creating a pleasant background music atmosphere in retail stores, restaurants, and offices to ensuring clear audio in conference rooms, meeting spaces, and public address systems within schools, hospitals, and transportation hubs, the Audac NELO706 Surface Mount Speaker delivers exceptional performance. Upgrade your sound and create a more engaging environment. Purchase today!

Key Features

• Sleek and sophisticated living spaces

• Choice of volume control inclusion

• Exceptional clarity and precise sound reproduction

• Connectivity via SnapConnect™ terminals

• Various mounting options available

Technical Specifications

Available models
NELO706/B
Black version without volume controller

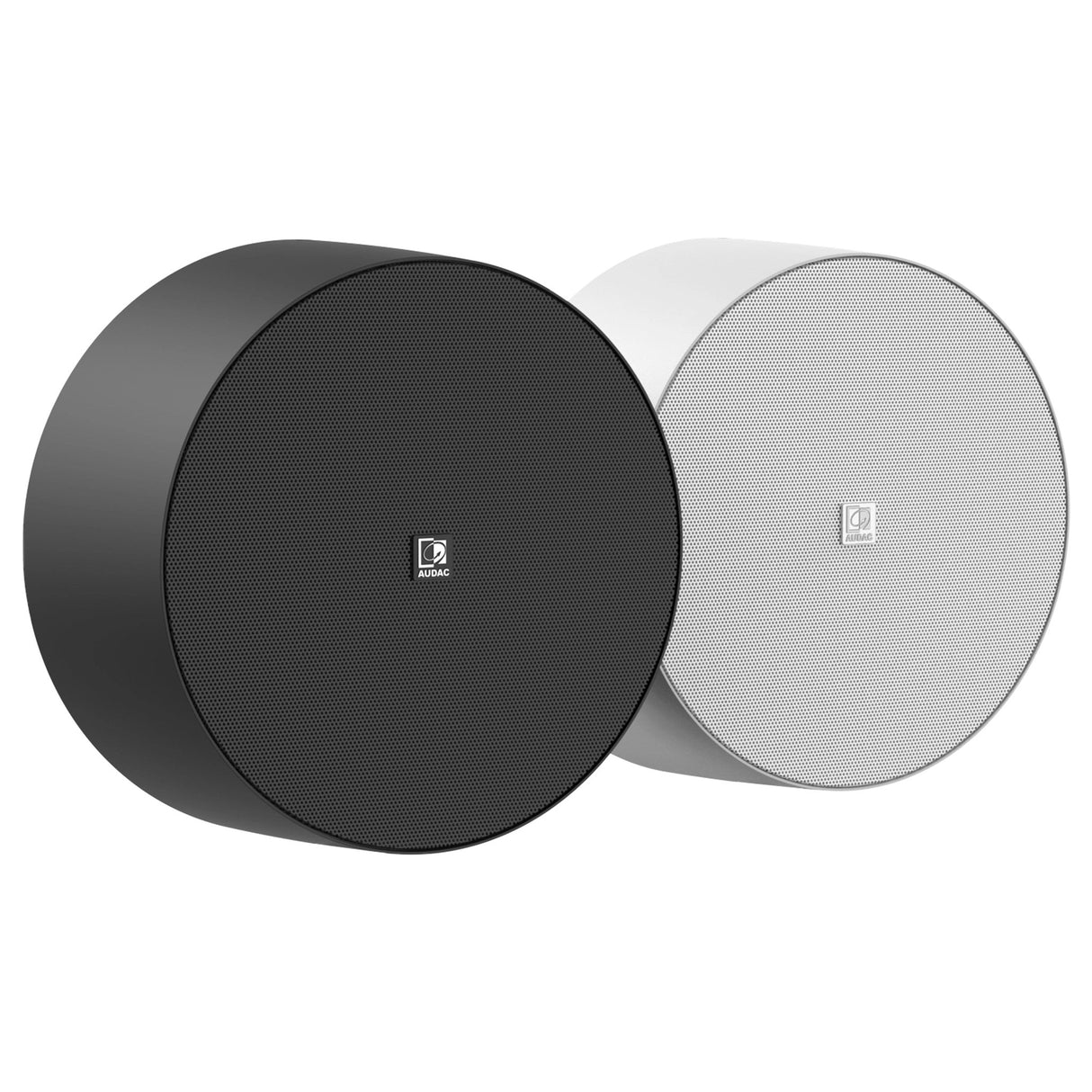

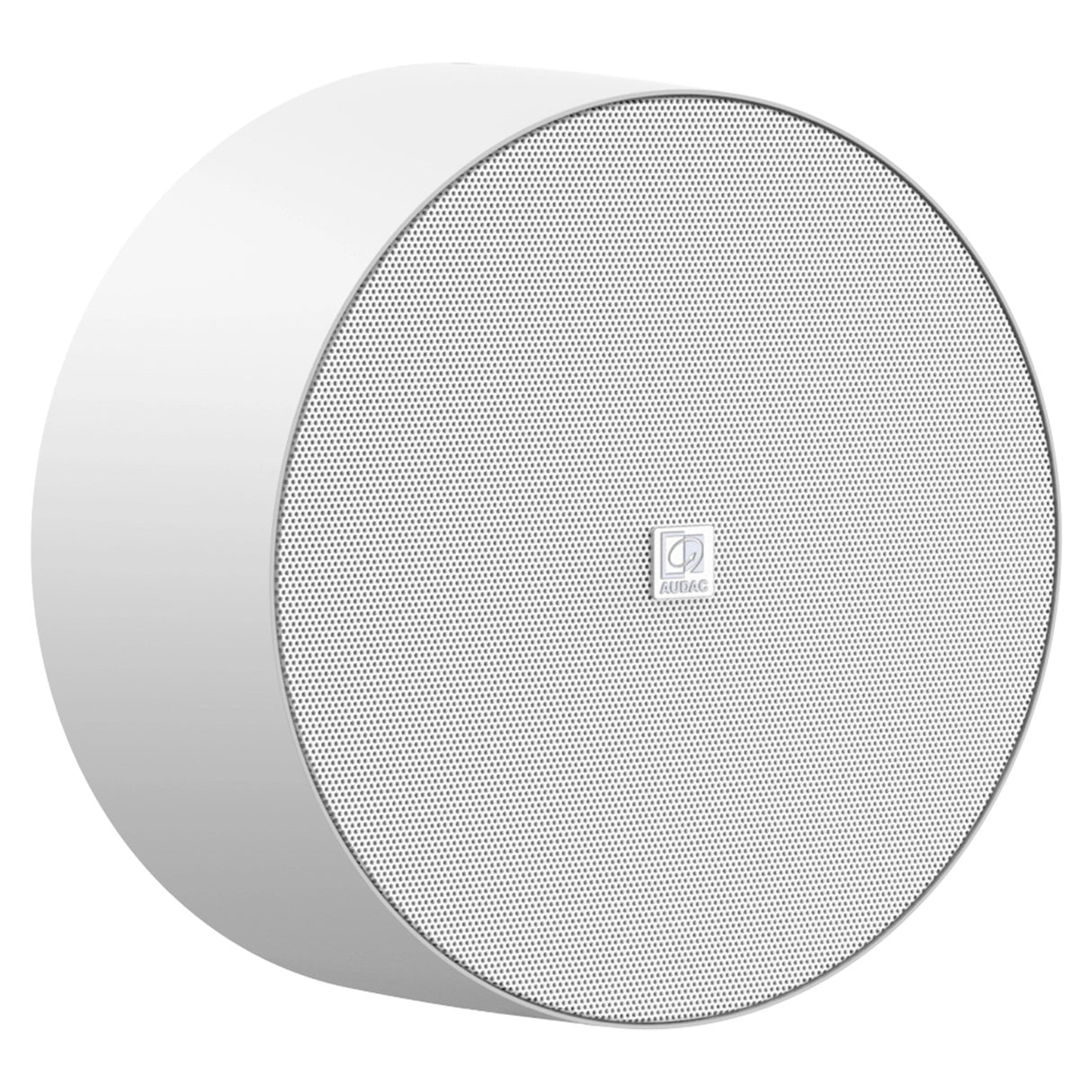

NELO706/W
White version without volume controller
NELO706V/B
Black version with volume controller
NELO706V/W
White version with volume controller

System specifications
Peak power handling
40 W
Program power handling
20 W
RMS/AES power handling
10 W
Sensitivity (1W/1m)
96 dB
Sound Pressure (Max. W/1m) @ 100 V
106 dB
Speaker type
Broadband
Connection
SnapConnect™
Drivers
6.5” Full Range
Volume control
Integrated rotary volume controller (only NELO706V)
Frequency Response (± 3 dB)
100 Hz - 15 kHz
Frequency Range (-10 dB)
70 Hz - 18 kHz
Line Transformer Tappings
1
833 Ω - 100 V / Not used - 70 V / 6 W
2
1667 Ω - 100 V / 6 W - 70 V / 3 W
3
3333 Ω - 100 V / 3 W - 70 V / 1.5 W
Dispersion (Conical)
140°

Product Features
Colours
Black & White
Front finish
Steel grill
Construction
ABS
Mounting
Wall/Ceiling mounting (two screw holes)

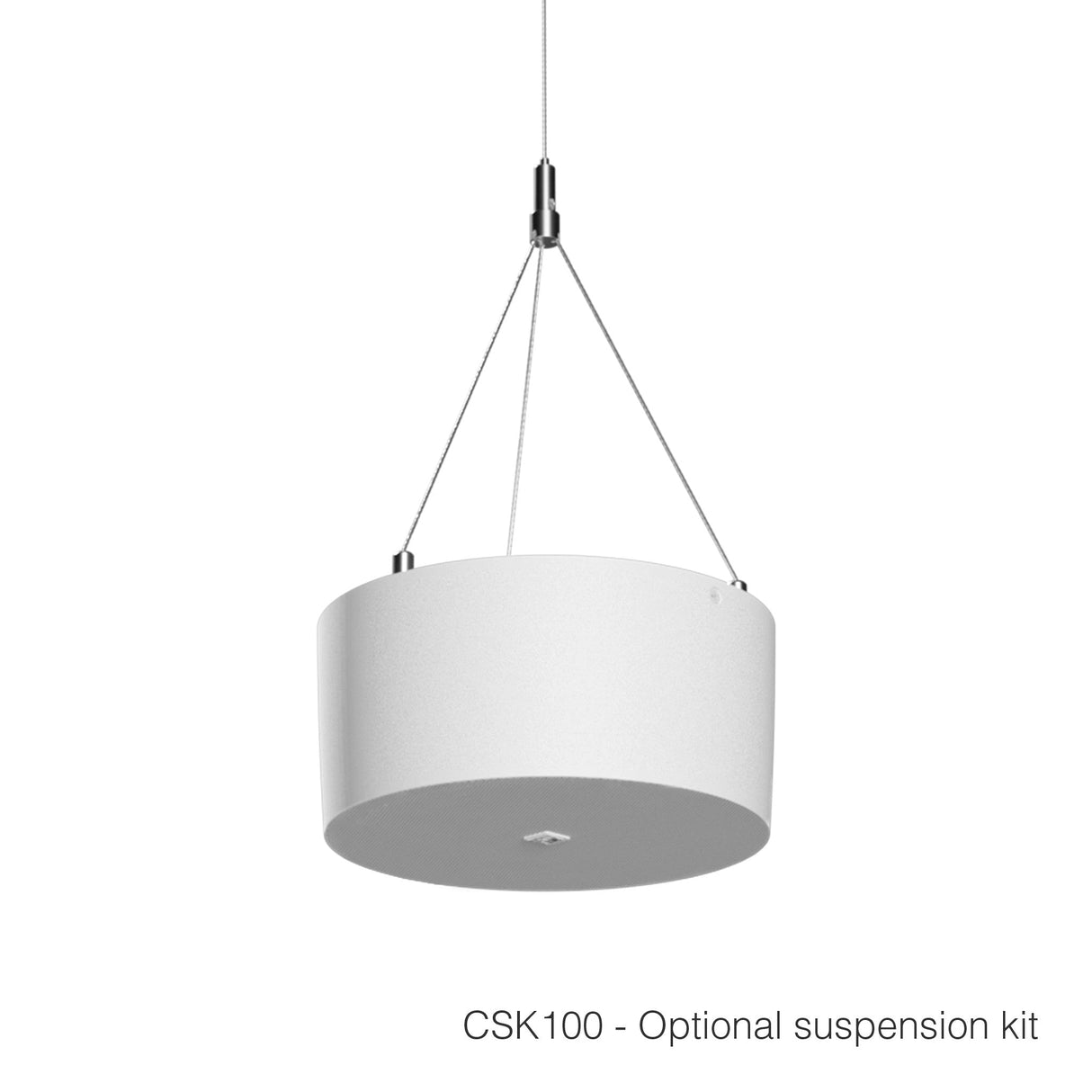

CSK100 ceiling suspension kit (optional)
Colours
White (RAL9003) (NELO706/W)
Black (RAL9005) (NELO706/B)
Dimensions
8.13 x 3.74 " (Ø x D)
Operating temperature
-13 °F ~ 158 °F

Recommended applications
Residential
Retail
Hotels
Corporate
