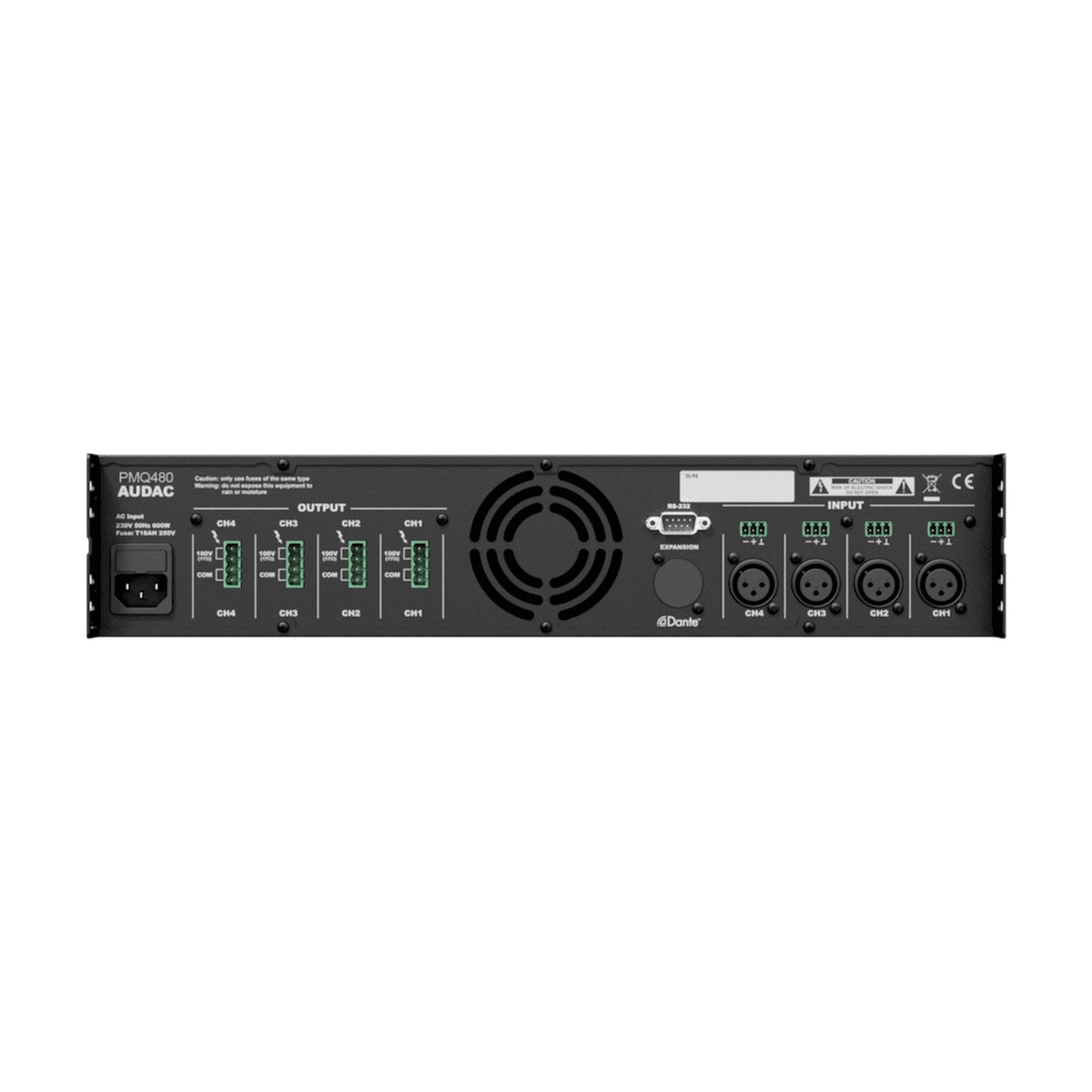

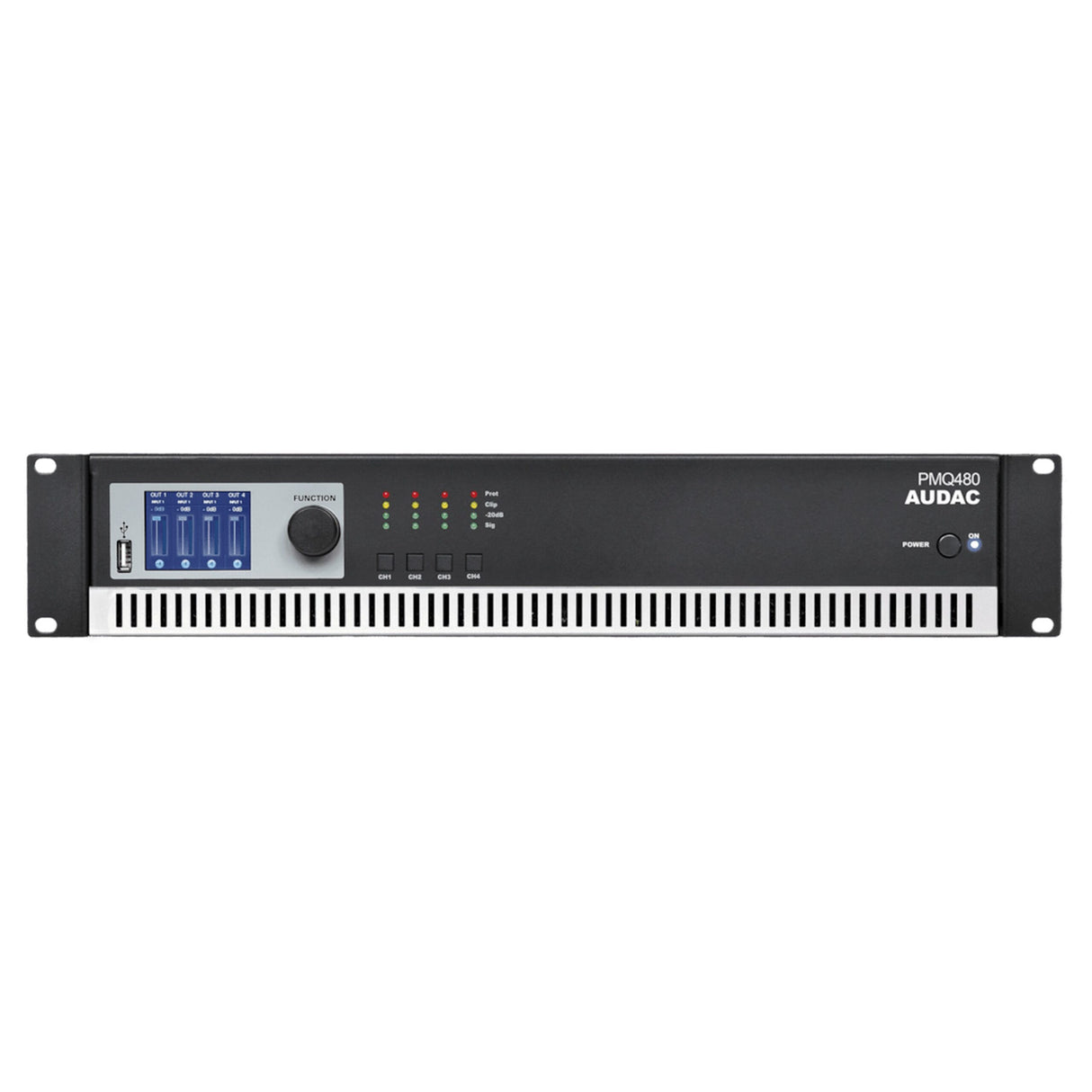

Audac PMQ480 480W WaveDynamics Quad-Channel 100V Power Amplifier
Audac PMQ480 480W WaveDynamics Quad-Channel 100V Power Amplifier
Audac PMQ480 480W WaveDynamics Quad-Channel 100V Power Amplifier
The PMQ series are professional 100V quad channel power amplifiers, providing a new standard for premium sound 100V amplification in public address applications. Their advanced features and availability in different output powers provide an enormous flexibility for numerous applications. The PMQ480 is a four channel Class-D 100V power amplifier with an output power of 480 Watt for each channel. The WaveDynamics DSP processor combination with the 2.5ā LCD display gives an unmatched user experience with intuitive functions overview for easy configuration.
Technical Specifications
RMS Power
4 x 480 W
Signal / Noise
> 95 dB
Crosstalk (@ 1 kHz)
> 70 dB
Technology
Class-D
Common mode rejection ratio
70 dB
Damping factor
> 200
Operating temperature
0 ~ 40 @ 95% Humidity
Dimensions
18.98 x 3.46 x 16.54ā (W x H x D)
Weight
18.74 lb
Mounting
19ā
Unit height
2 HE
Construction
Steel
Colors
Black
