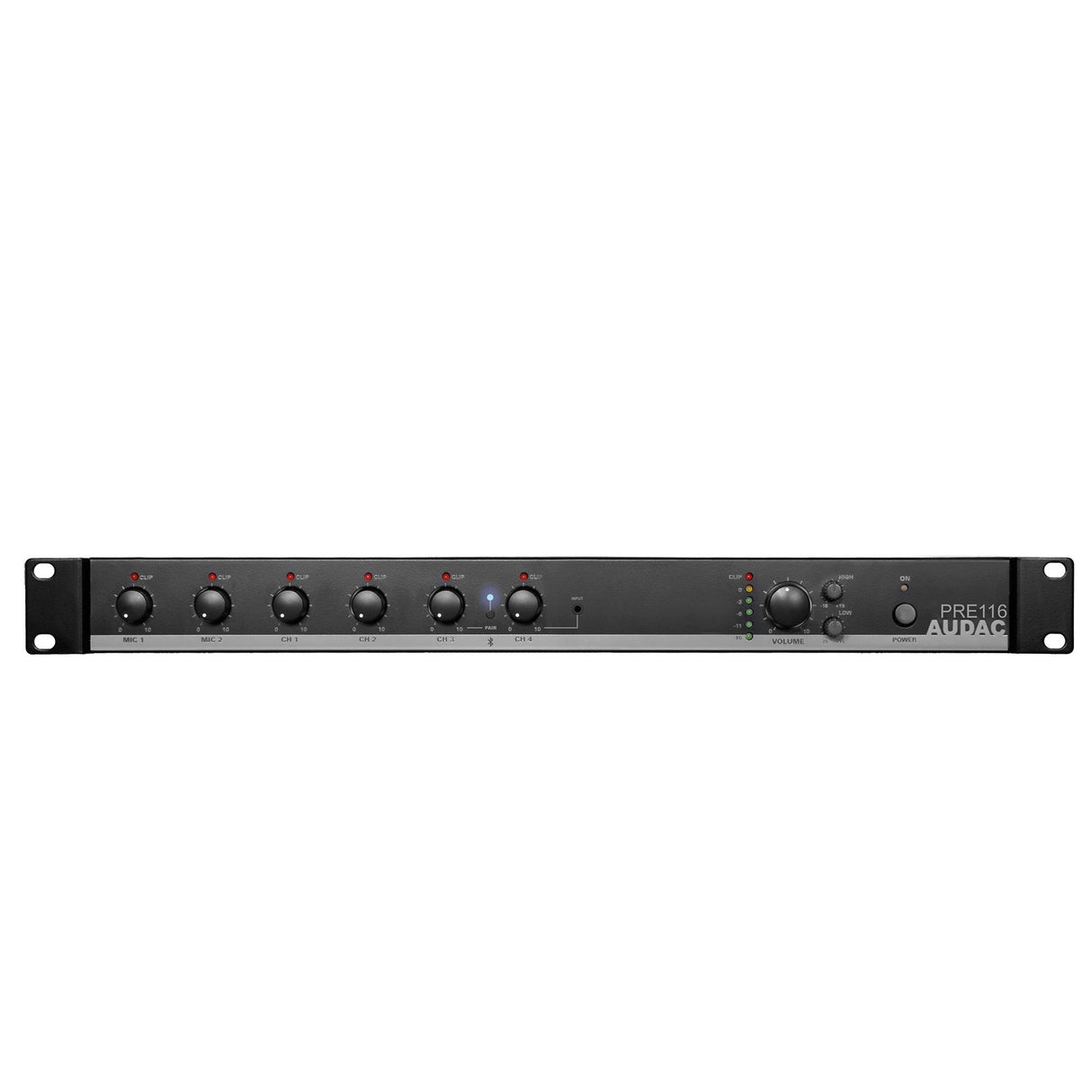

Elevate your sound system's capabilities with the Audac PRE116 6-Channel Stereo Preamplifier, a versatile 6-channel stereo preamplifier designed to excel in small to medium-sized applications. The PRE116 boasts a wide range of input options, making it easy to connect microphones and various line-level audio sources. Two balanced mono inputs with phantom power provide connectivity for microphones, while four stereo line-level inputs cater to a variety of devices. These inputs include one balanced XLR connector and three unbalanced RCA connectors, ensuring compatibility with most equipment. Additionally, the PRE116 features a built-in Bluetooth receiver for wireless connectivity and a convenient 3.5mm jack input for portable devices like laptops, smartphones, and tablets.

The AUDAC PRE116 prioritizes exceptional sound quality. Three-band tone control allows for precise adjustments at the input stage, while a separate 2-band tone control on the output refines the overall sound characteristics. For seamless integration into paging or announcement systems, the PRE116 features a switchable talkover function. This function prioritizes microphone or designated priority signals, ensuring clear and uninterrupted communication even when background music is playing.

The PRE116 offers comprehensive control and clear level monitoring. Rotary dials on the front panel provide easy management of individual input volume levels. A master volume control allows for overall system adjustment, and a 2-band tone control on the output lets you tailor the sound to your specific preferences. A 6-segment LED VU bar provides valuable visual feedback, ensuring optimal audio levels and helping to prevent clipping or distortion.

The AUDAC PRE116's flexible configuration options make it suitable for a wide range of applications. Gain adjustments and mono/stereo switching options located on the rear panel allow for customization to perfectly match your specific setup requirements. This versatility makes the PRE116 ideal for use in educational institutions, hospitality venues, corporate offices, retail spaces, bars & restaurants, and many other environments.

Key Features

• Stereo line output with balanced connection

• Three stereo line inputs with unbalanced connection

• Stereo line input with balanced connection

• Audio inputs with priority and phantom power

• One priority mute contact

• Front 3.5mm Jack, mixed with Channel 4

• Built-in Bluetooth receiver for seamless integration

Technical Specifications

System specifications
Inputs
Balanced Microphone Type
2 x Balanced Microphone
Balanced Stereo Type
1 x Stereo Balanced Line
Unbalanced Stereo Type
3 x Stereo Unbalanced Line
Bluetooth receiver (mixed with Ch 3)
Front 3.5mm Jack (mixed with Ch )
Priority mute contact
Outputs - Balanced Stereo Type
1 x Balanced Stereo outputs
Inputs
Microphone Sensitivity
-6 dB ~ -50 dB
Line Sensitivity
-20 dB ~ +4 dB
Balanced Microphone EQ
High
15 dB (12.5 kHz)
Mid
15 dB (2.5 kHz)
Low
15 dB (80 Hz)
Phantom Power
15 V DC
Outputs
EQ
Treble
15 dB (2.5~20 kHz)
Bass
15 dB (100 Hz)
Frequency Response (± 3 dB)
20 Hz - 20 kHz
Signal / Noise
> 90 dB
THD+N (@ 1 kHz)
< 0.05%
Crosstalk (@ 1 kHz)
> 70 dB
Power Supply
100 ~ 240 V AC / 50 ~ 60 Hz
Power Consumption
12 W

Product Features
Dimensions
18.98 x 1.73 x 13.19 " (W x H x D)
Weight
90.39 lb
Unit height
1 HE

Recommended applications
Education
Hotels
Corporate
Bars & Restaurants
Retail
